Countershaft Disassembly and Reassembly: Reassembly

NOTE:

• Where icon is shown, further information shown below.
• The bearing and the bearing outer race should be replaced as a set.
• Inspect the countershaft bearing thrust clearance whenever the bearing is replaced.
• Apply a light coat of clean ATF on all parts before installation.

Procedure

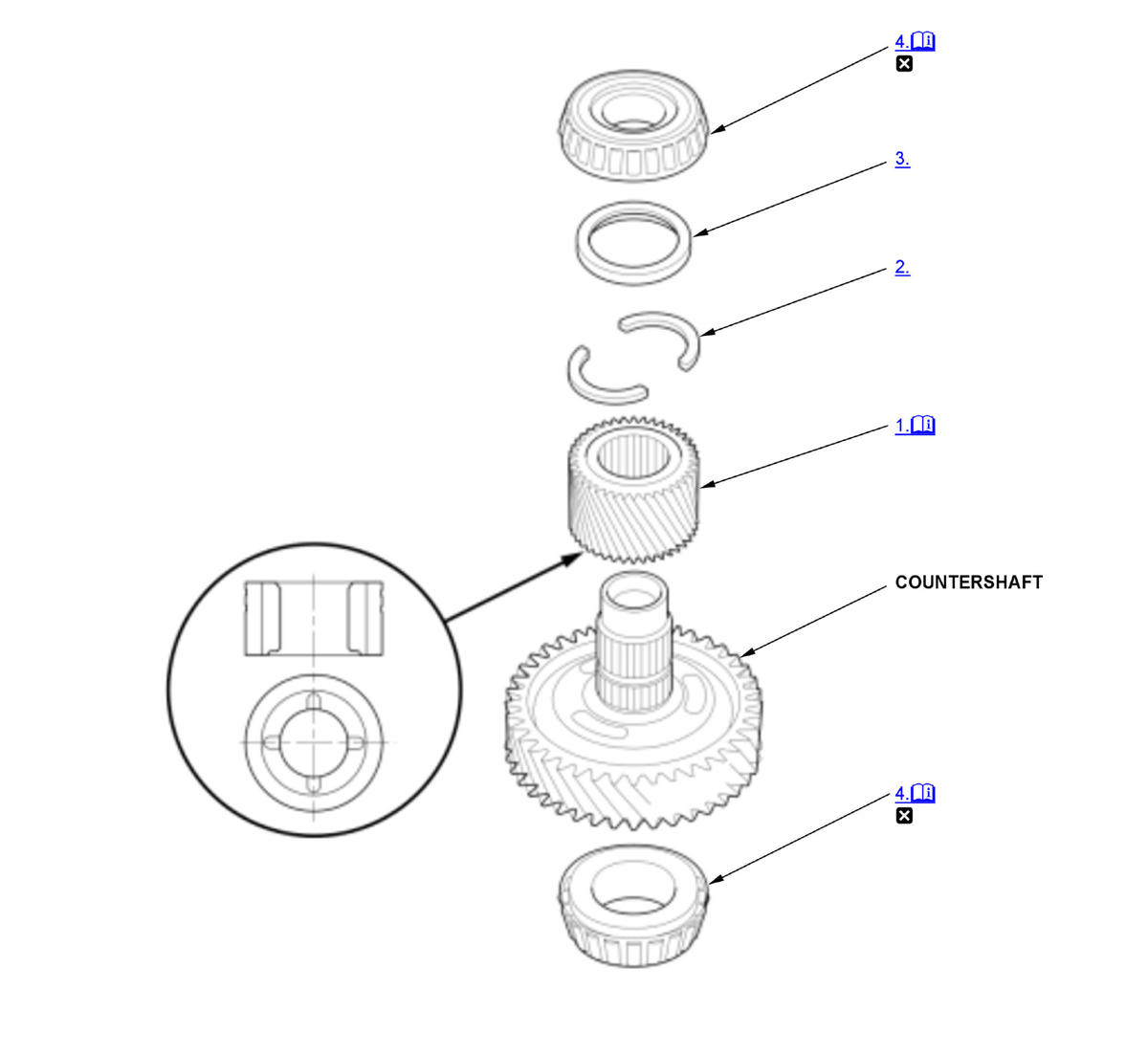

NOTE: Numbered call-outs in figure pertain to list numbers in following procedure. Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Replace

1. Final Drive Gear - Install

   NOTE:  Make sure the final drive gear is installed in the correct direction.

2. Cotter - Install
3. Cotter Retainer - Install
4. Countershaft Bearing - Install

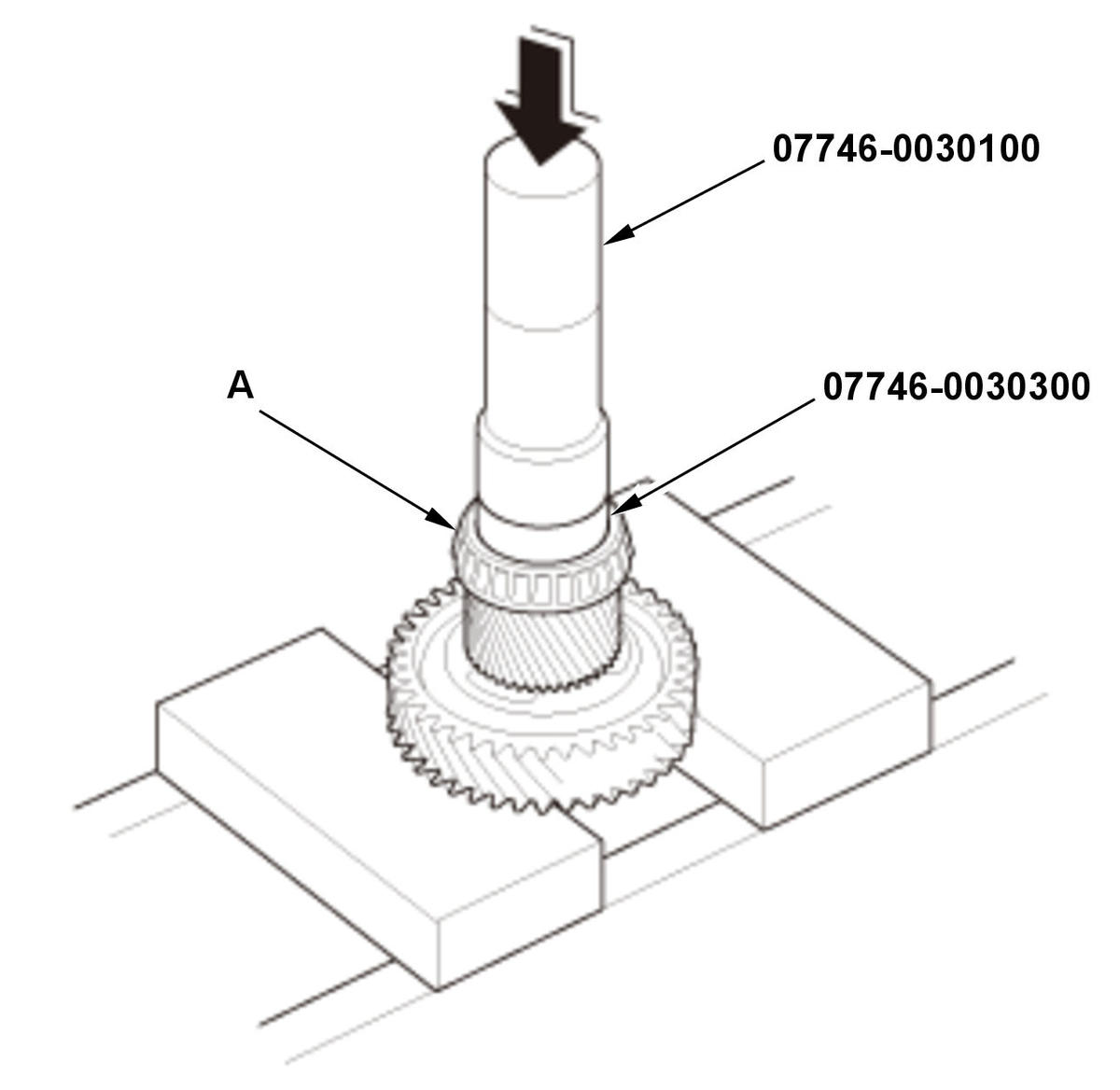

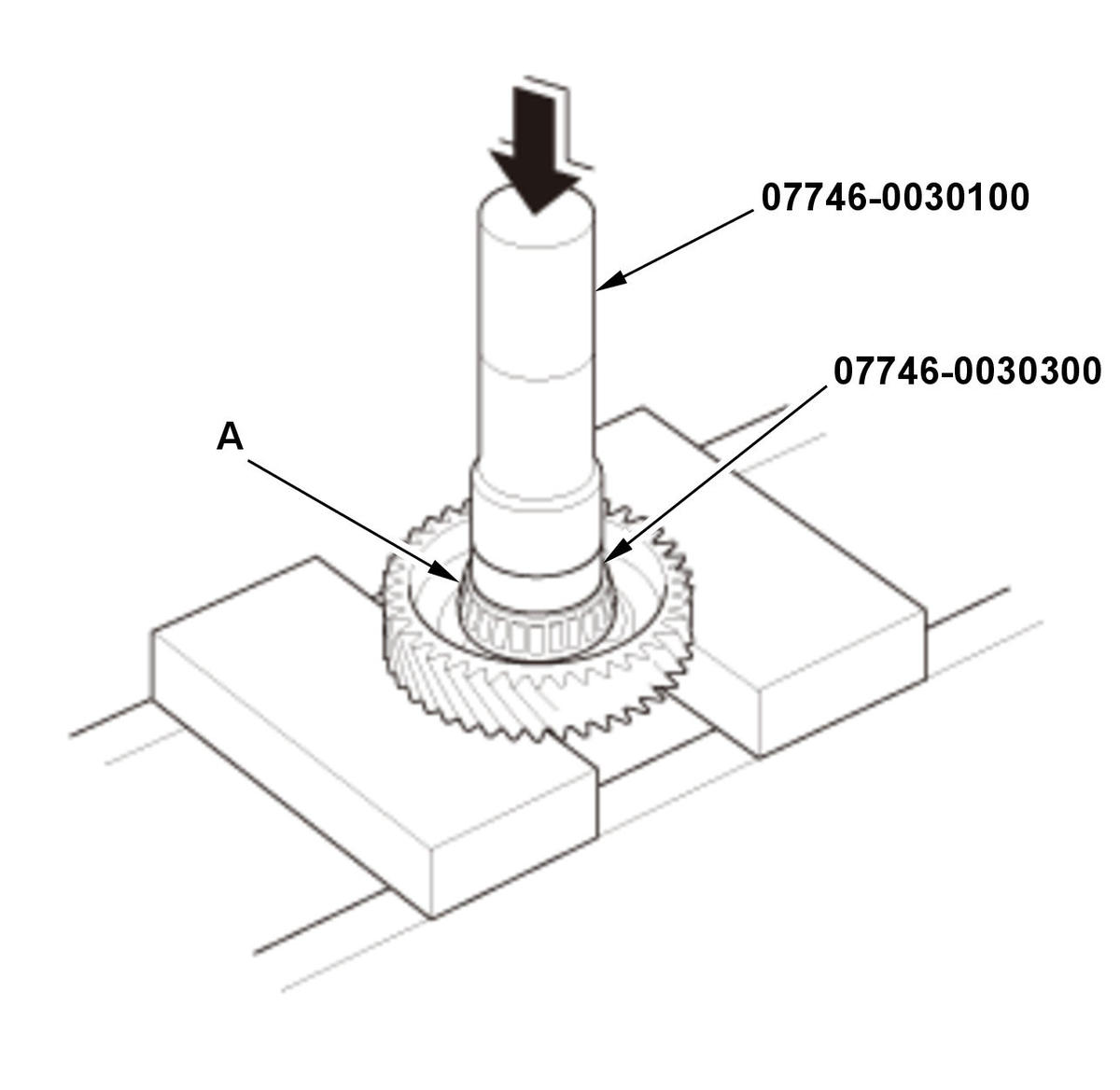

   Flywheel Housing Side  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Transmission Housing Side  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

   1. Install the countershaft bearings (A) until it bottoms using the 40 mm I.D. driver handle, the 30 mm I.D. bearing driver attachment, and a press.
