Countershaft Disassembly and Reassembly: Disassembly

NOTE:

• Where icon is shown, further information shown below.
• The bearing and the bearing outer race should be replaced as a set.

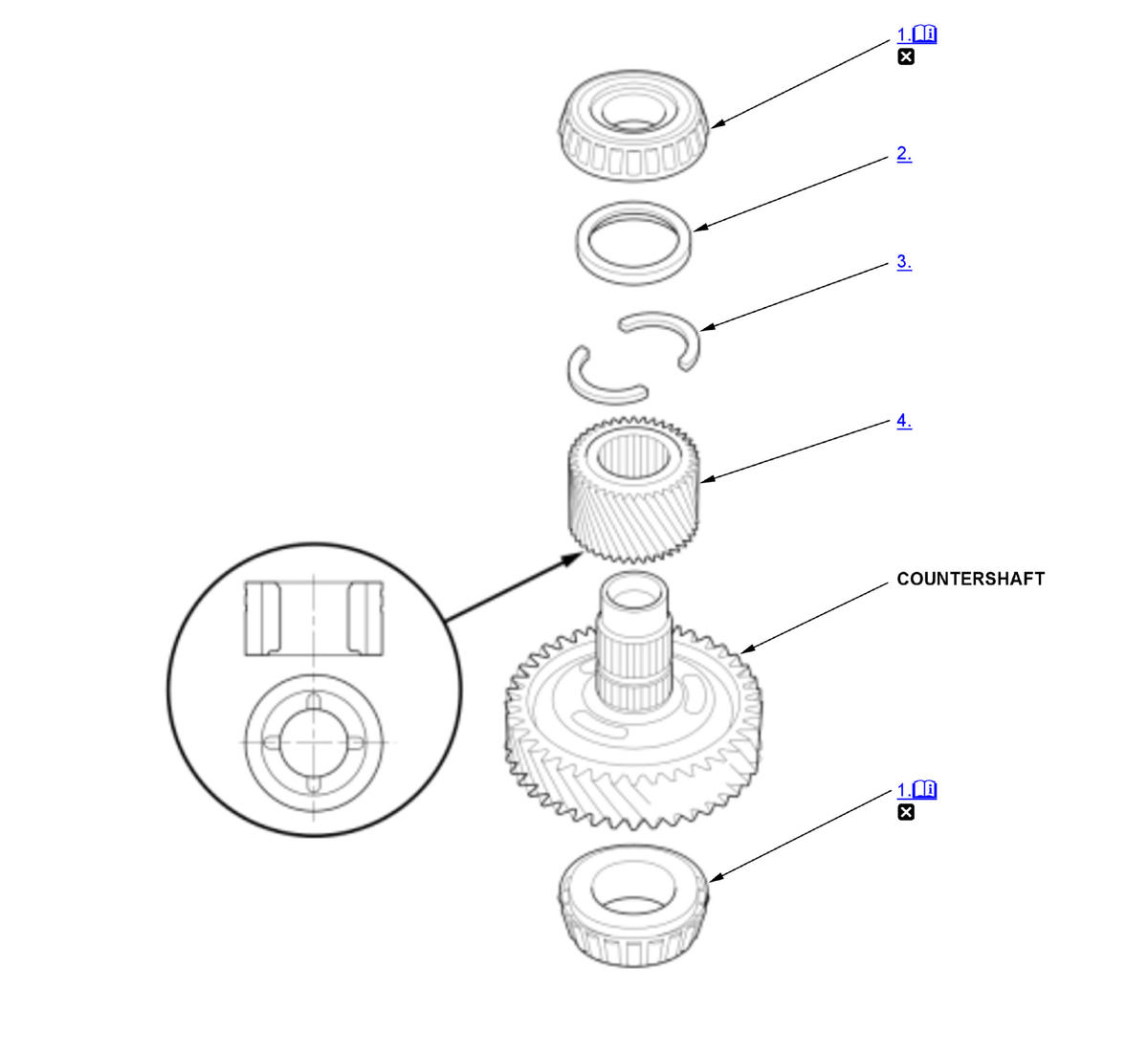

Procedure

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Replace

1. Countershaft Bearing - Remove

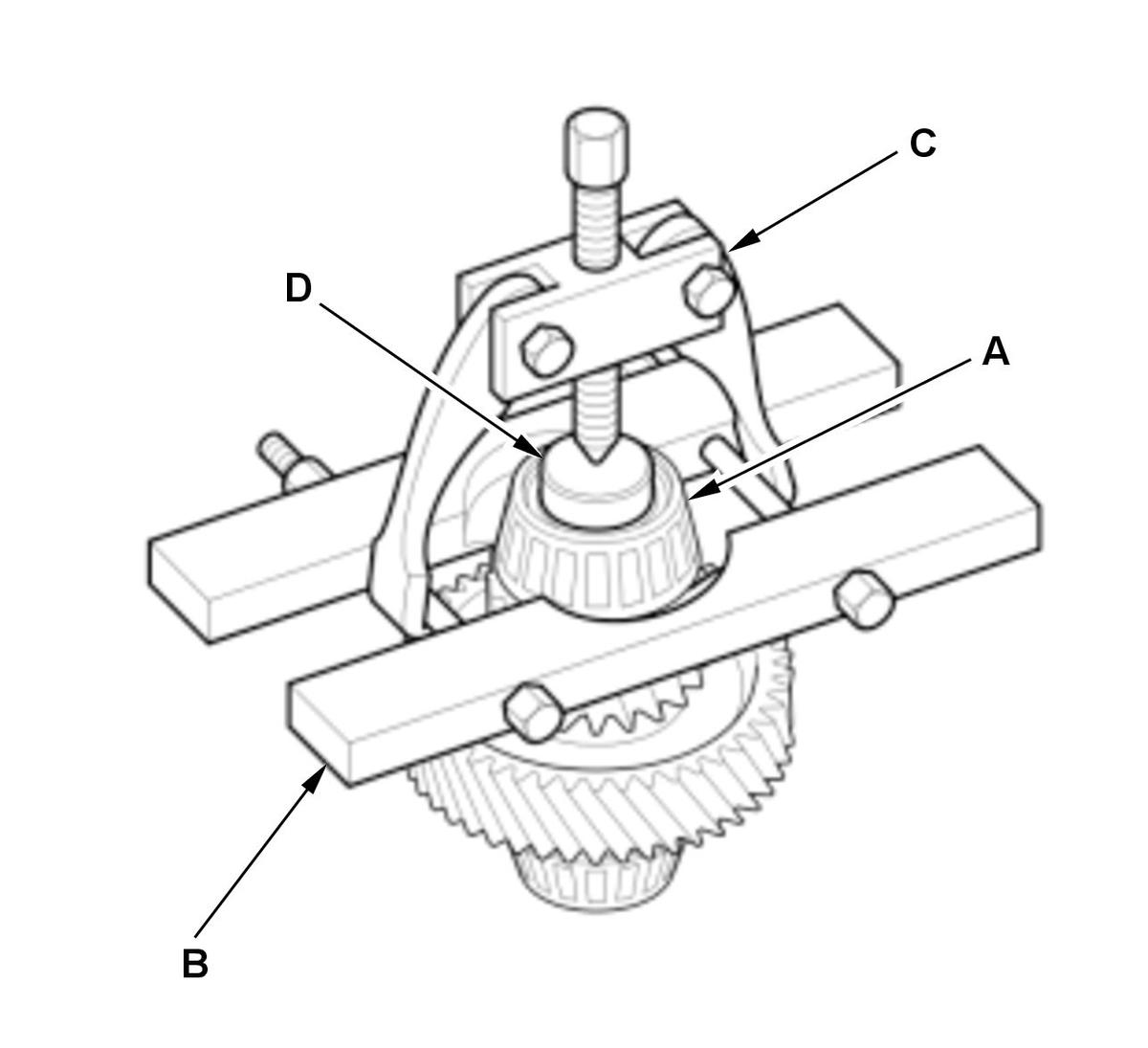

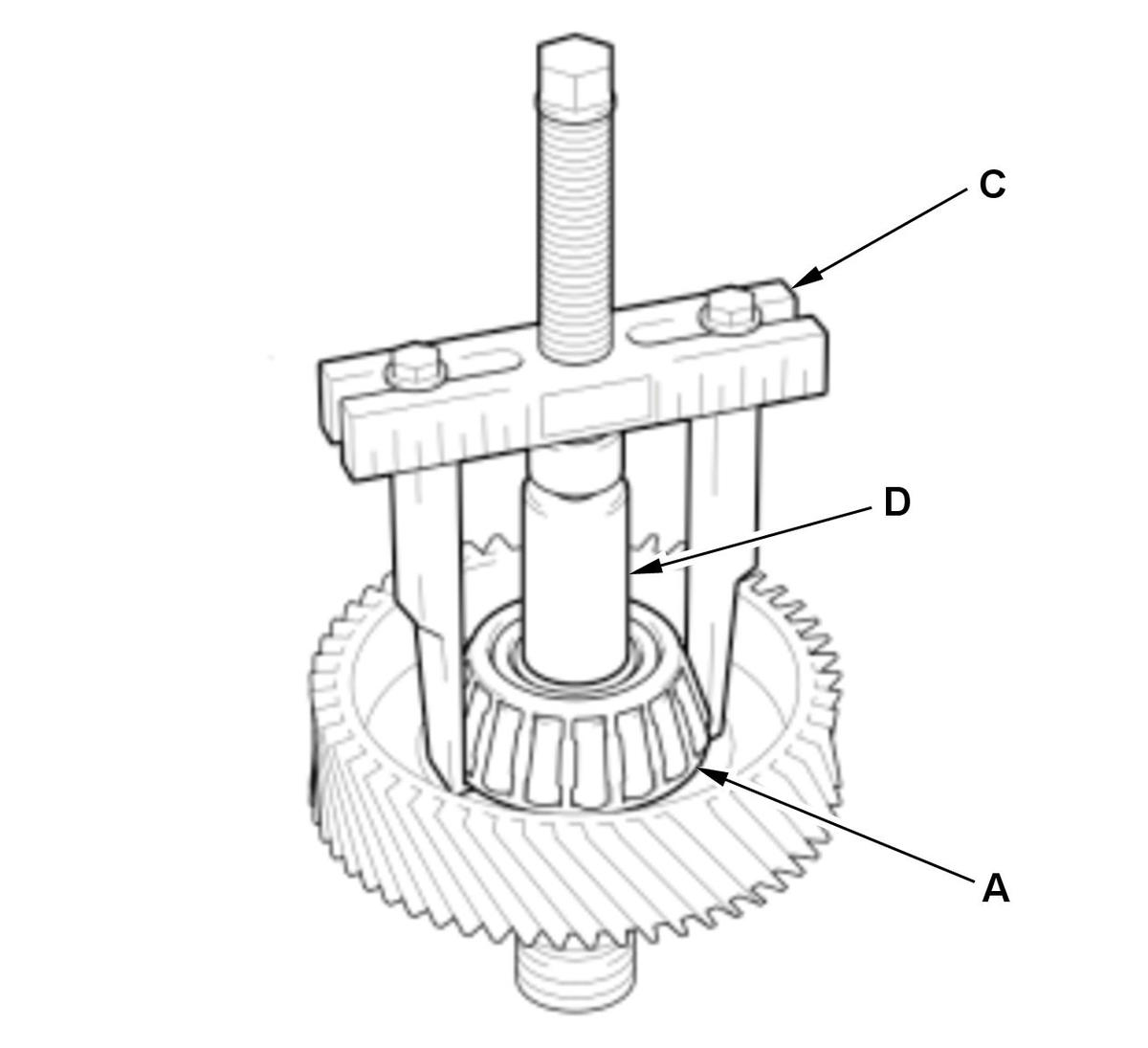

   Flywheel Housing Side  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Transmission Housing Side  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

   1. Remove the final drive shaft tapered roller bearings (A) using the commercially available bearing separator (B), a commercially available bearing puller (C), and a commercially available spacer (D).

2. Cotter Retainer - Remove
3. Cotter - Remove
4. Final Drive Gear - Remove
