Steering System - Service Information
>>
Disassembly and Reassembly
>>
Steering Gearbox Disassembly and Reassembly
>>

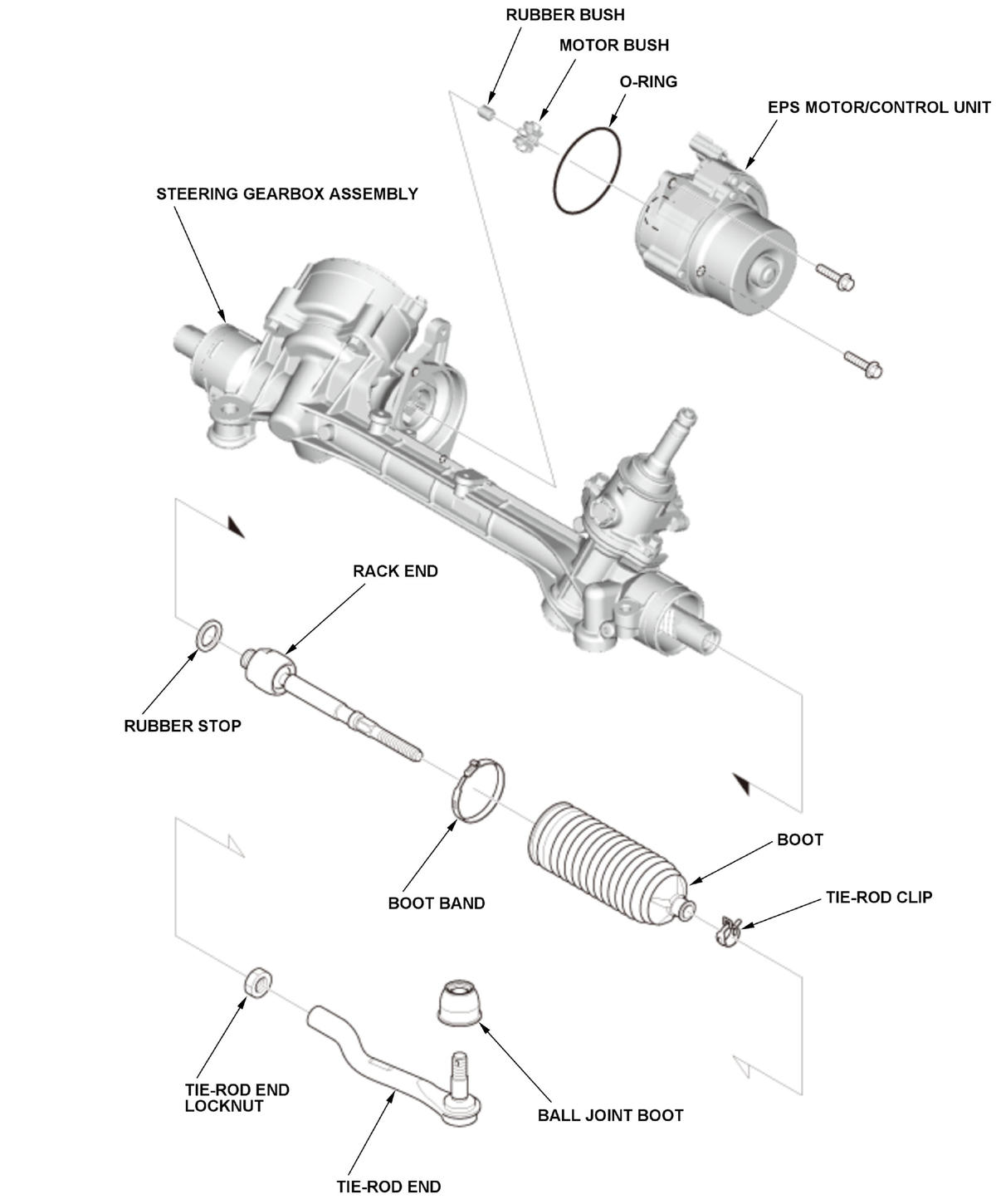

Exploded View
Exploded View
NOTE:
For these operations, refer to the complete procedure as needed.
Rack end removal and installation
Tie-rod end ball joint boot replacement
EPS motor/control unit removal and installation
Steering Gearbox
Courtesy of HONDA, U.S.A., INC.
