Turning On the Service Plug

NOTE: How to read the torque specifications .

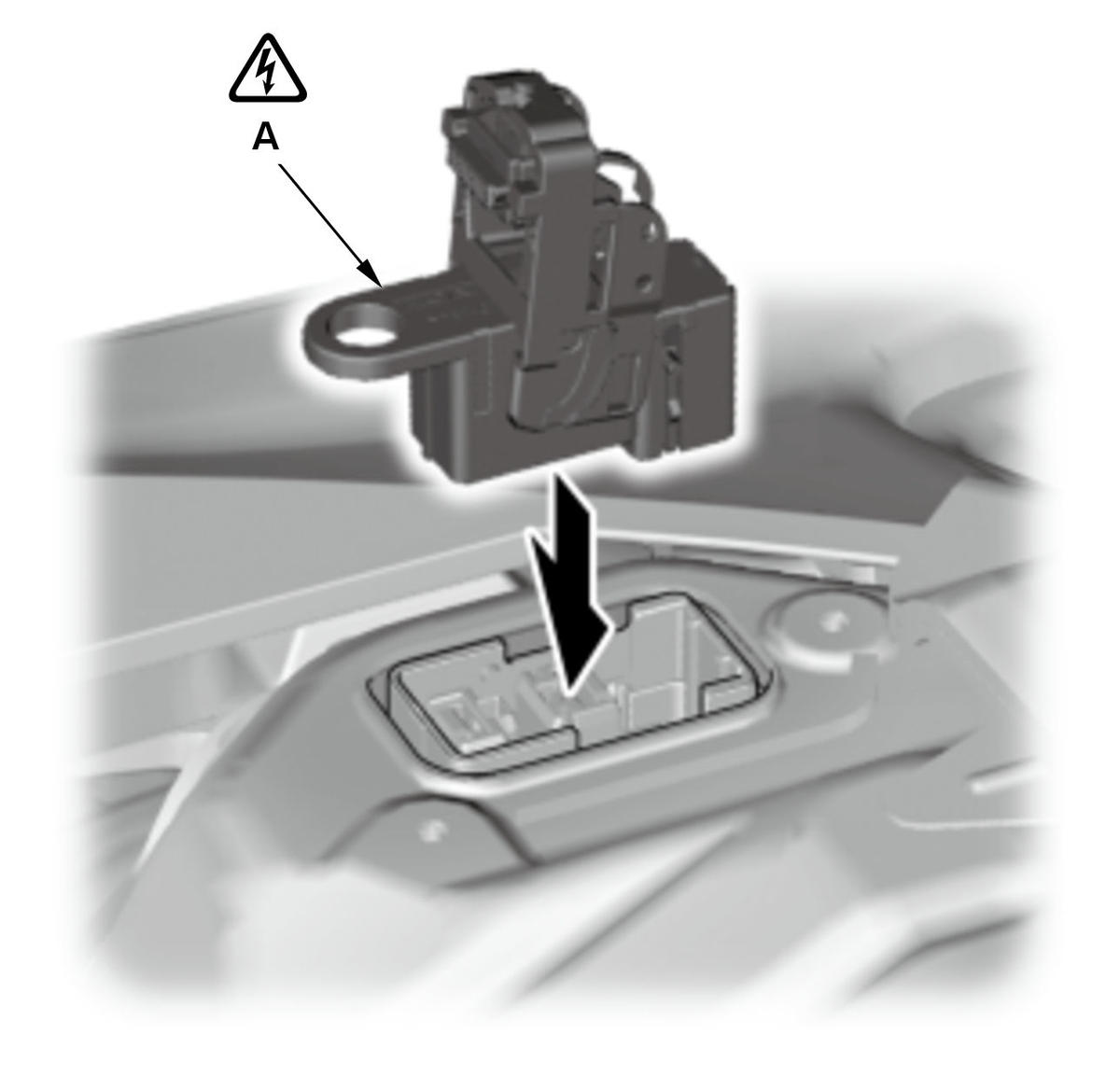

1. Remove insulating tape and insert the service plug (A) as shown.

Courtesy of HONDA, U.S.A., INC.

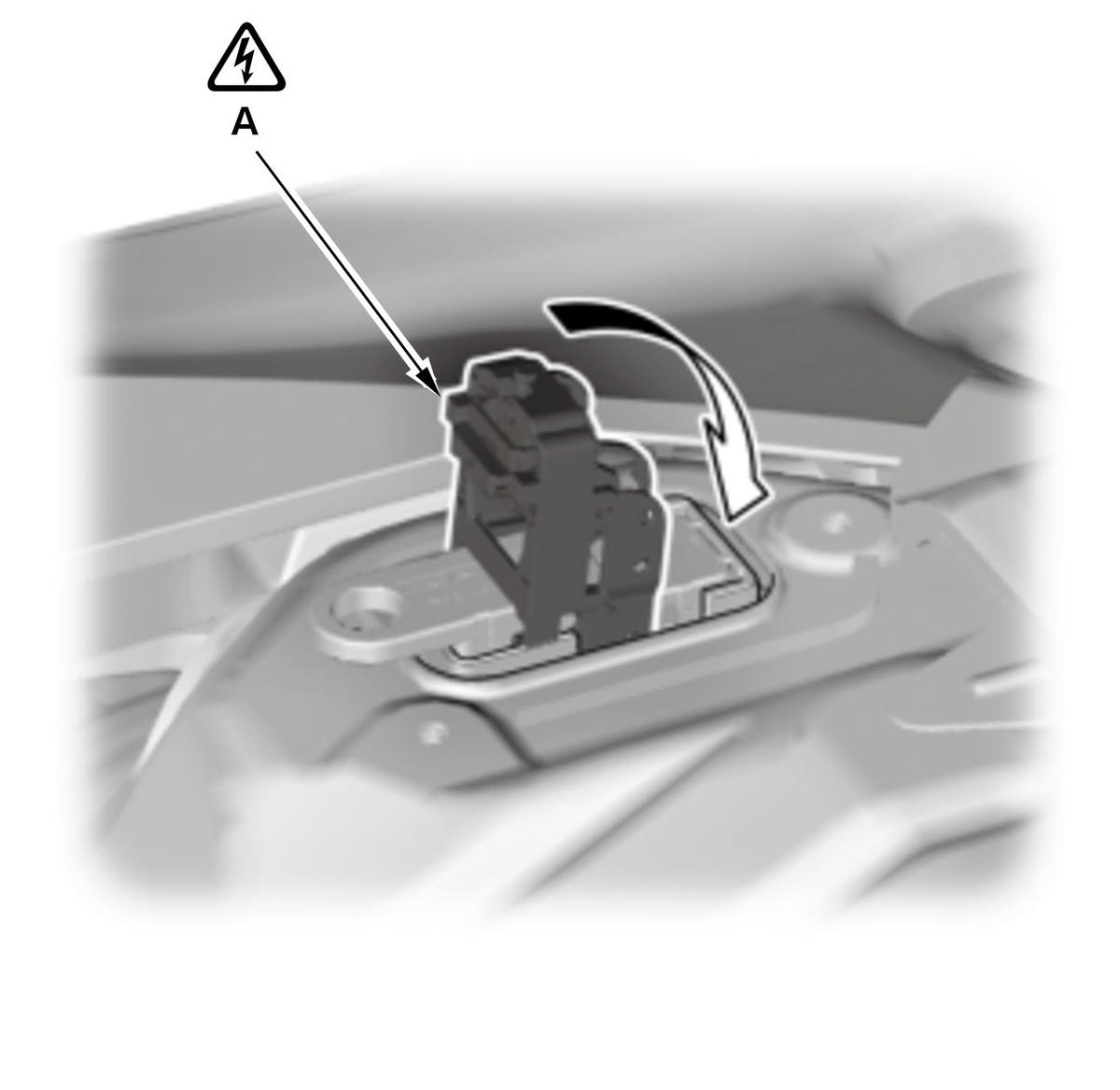

2. Lower the lever (A).

Courtesy of HONDA, U.S.A., INC.

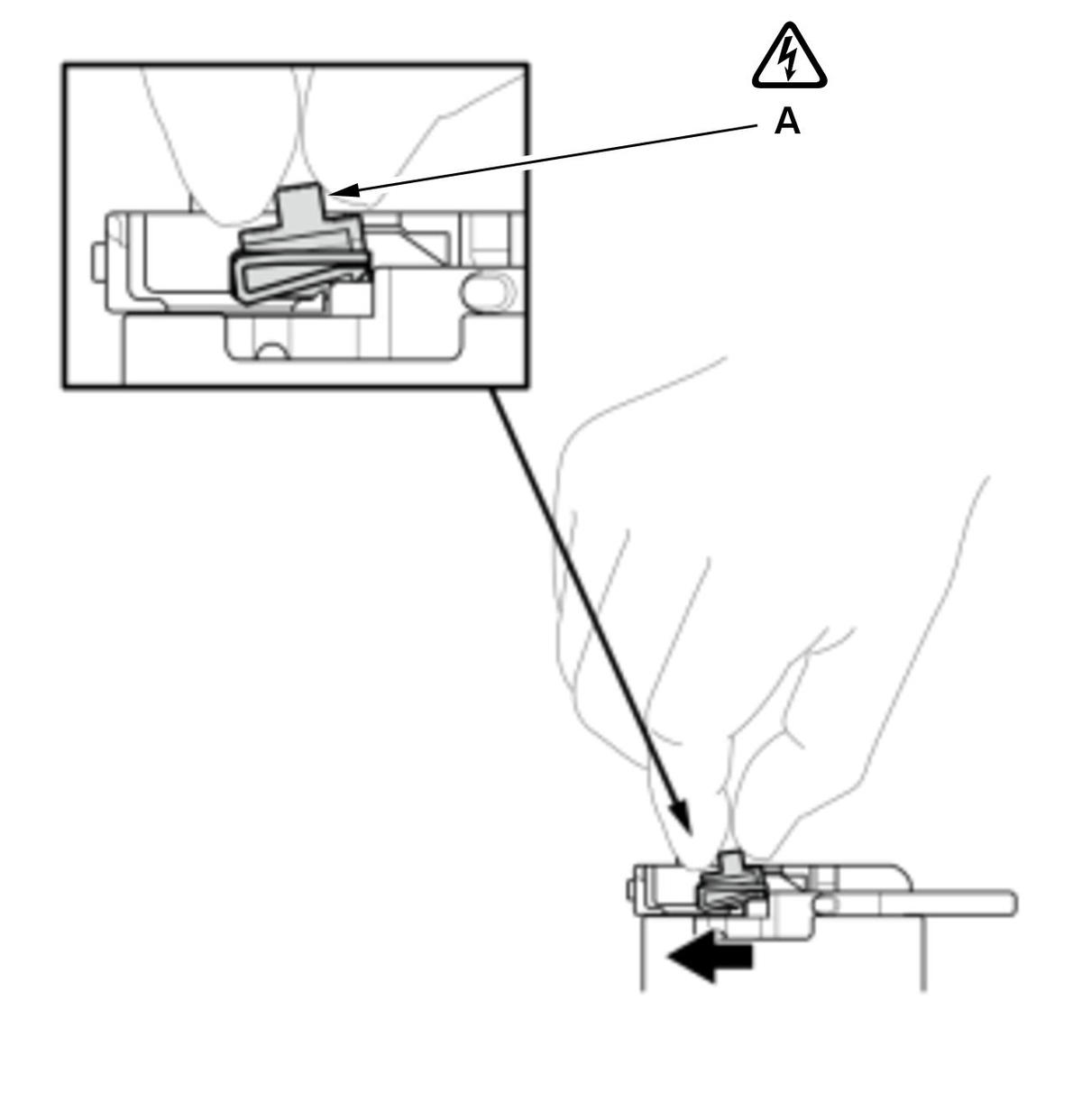

3. Slide the tab (A) in the direction of the arrow while holding the lever, then lock the service plug.

Courtesy of HONDA, U.S.A., INC.

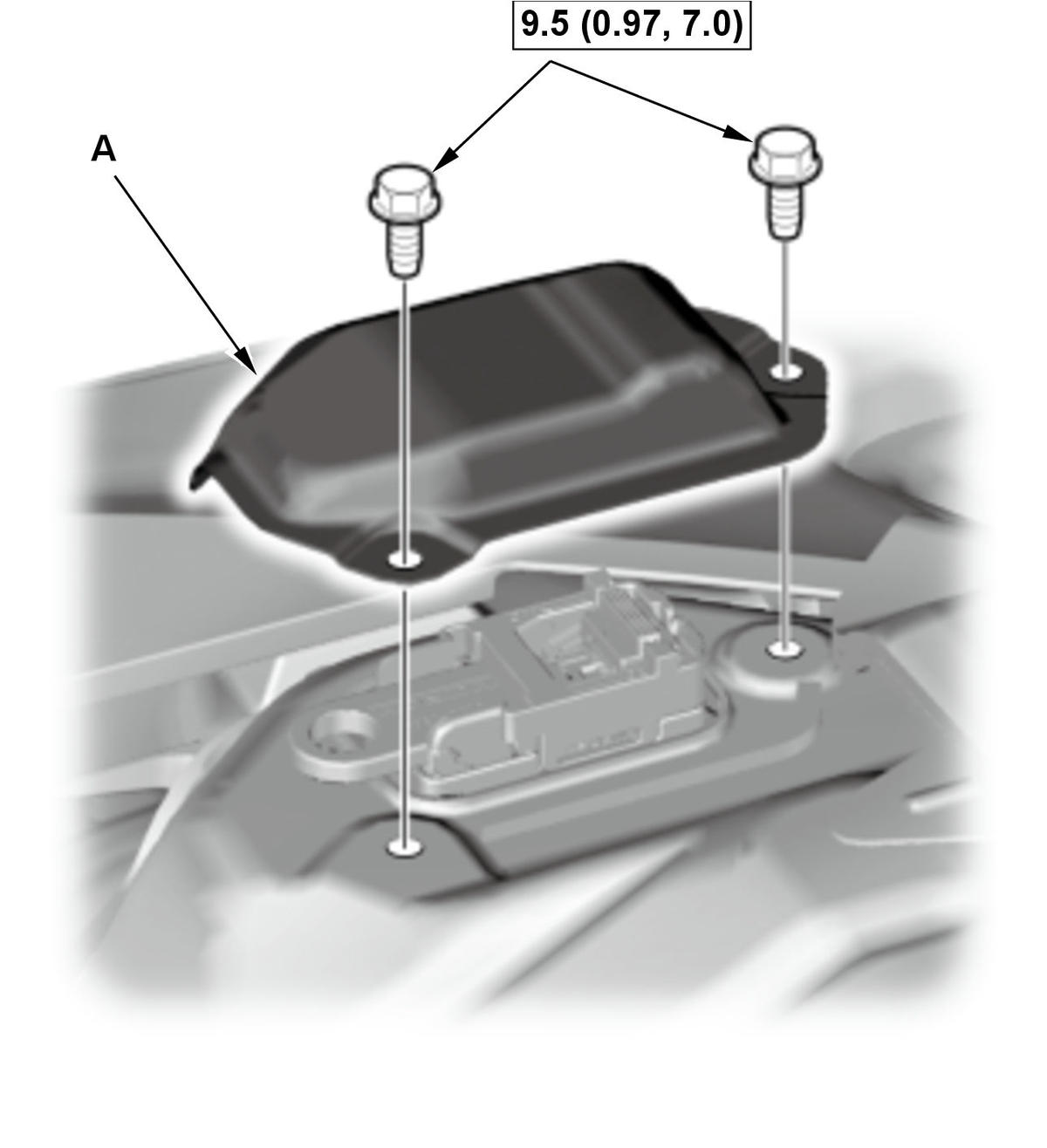

4. Install the service plug cover (A).

Courtesy of HONDA, U.S.A., INC.

5. Install the rear seat cushion .

6. Do the 12 volt battery negative terminal reconnection procedure .
