Electric Powertrain Component Location Index

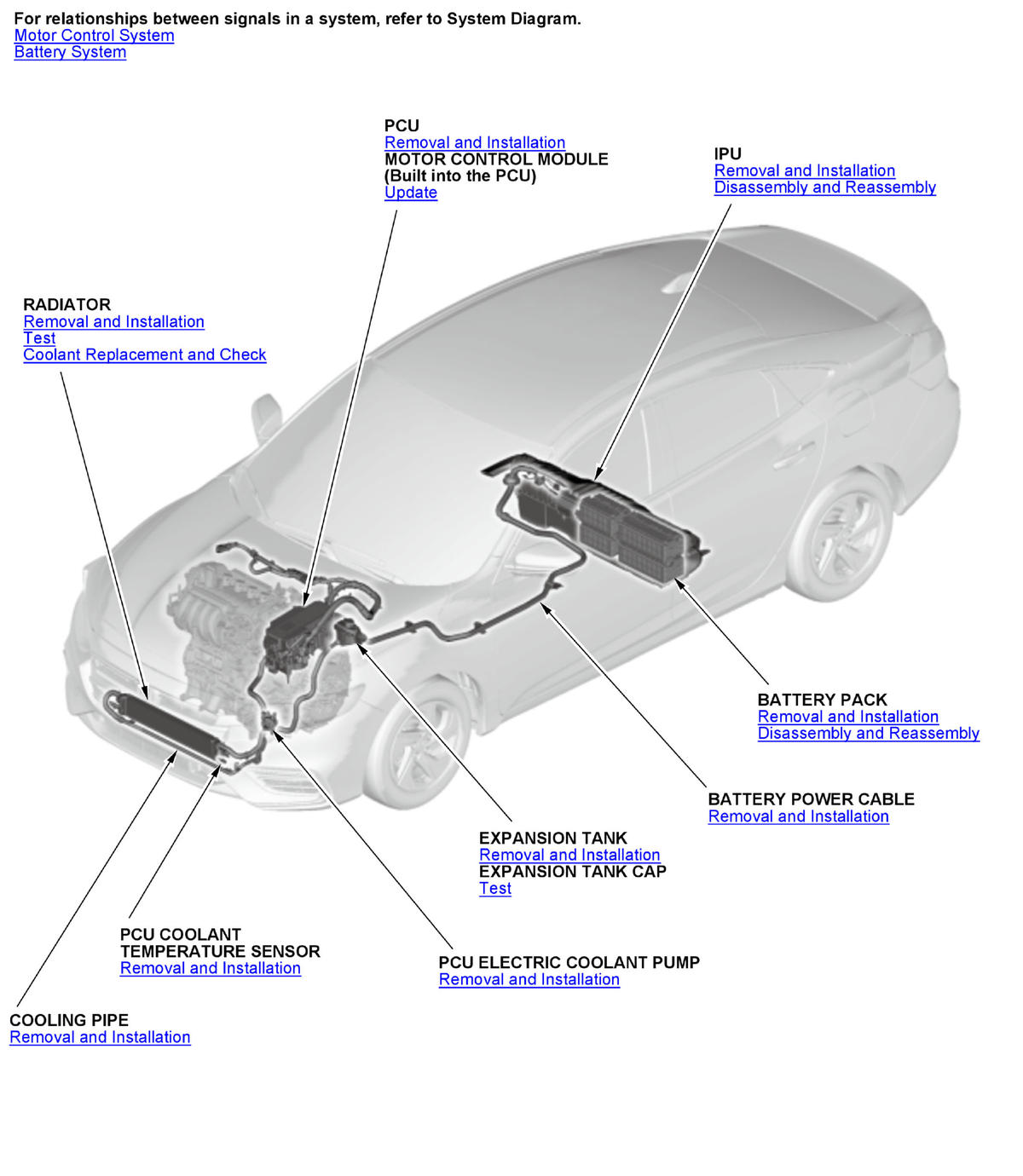

GHH384008

Courtesy of HONDA, U.S.A., INC.

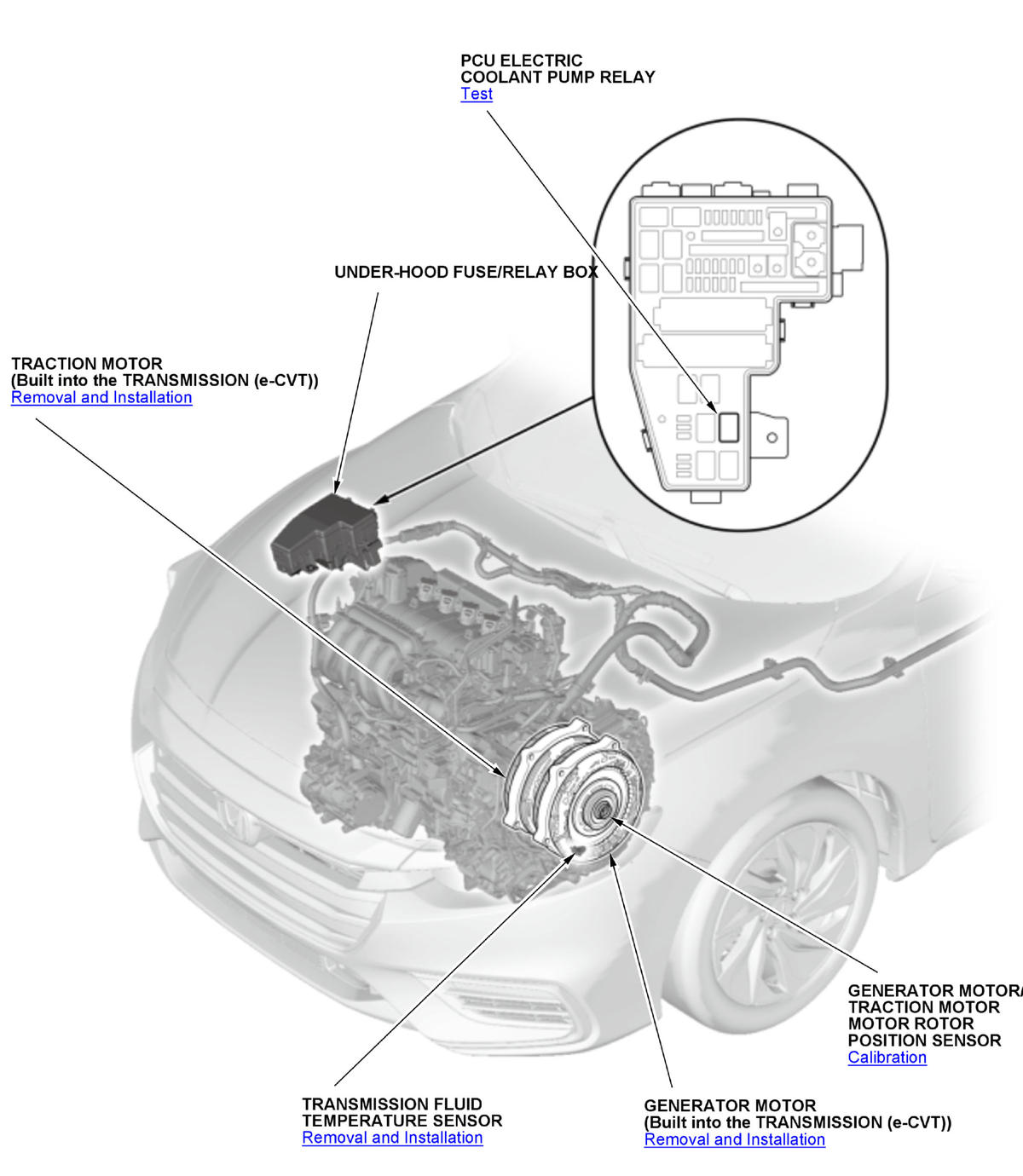

GHH384009

Courtesy of HONDA, U.S.A., INC.

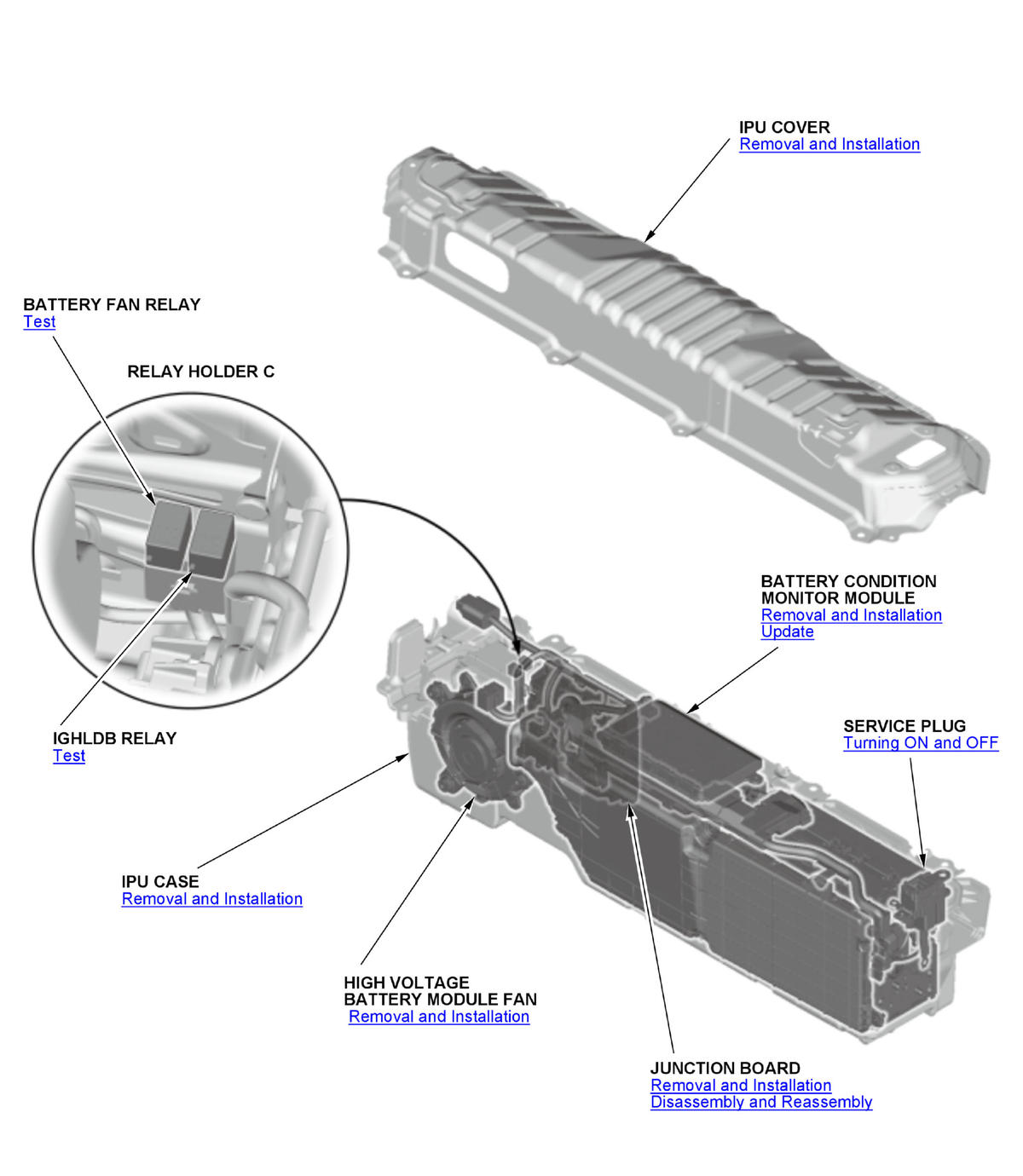

GHH384010

Courtesy of HONDA, U.S.A., INC.

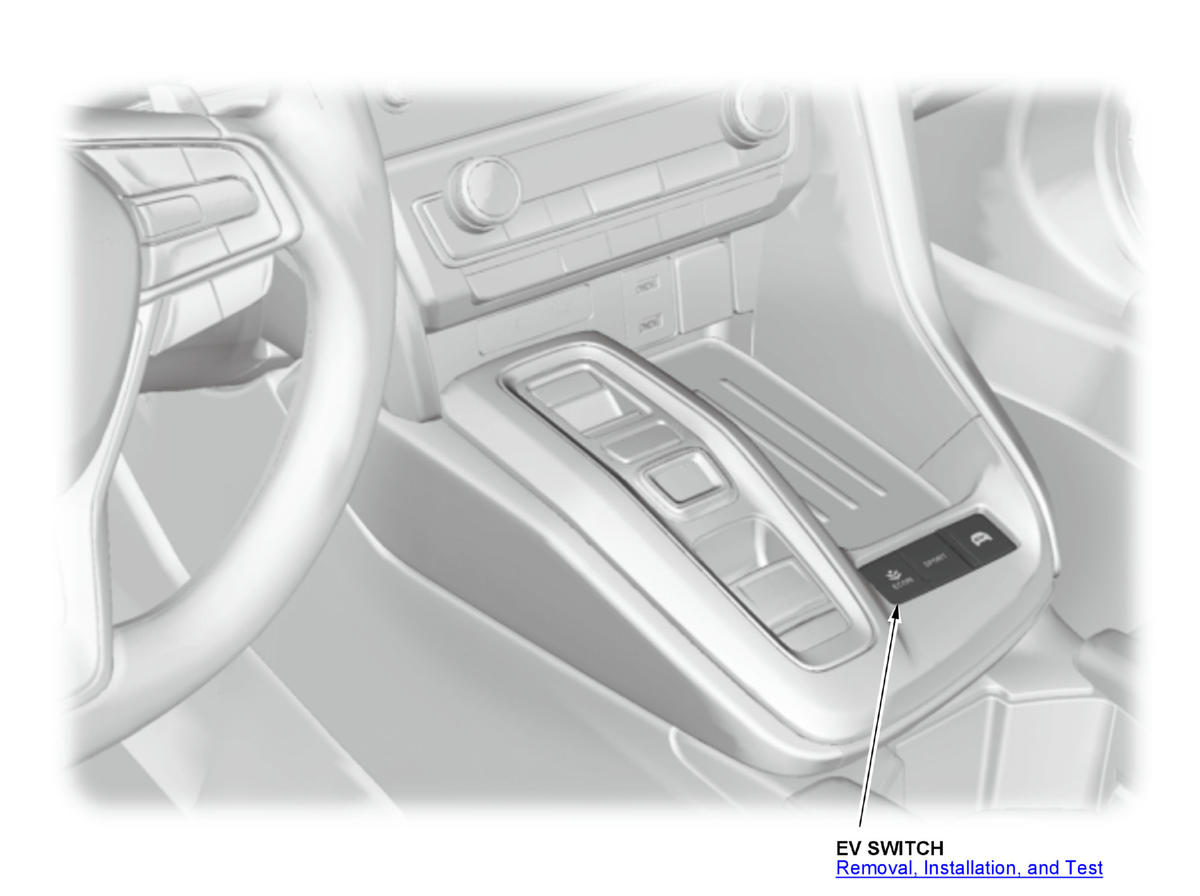

GHH384011

Courtesy of HONDA, U.S.A., INC.
