DTC P0606, P1A48, P1A49, P1A4A: General Description

Courtesy of HONDA, U.S.A., INC.

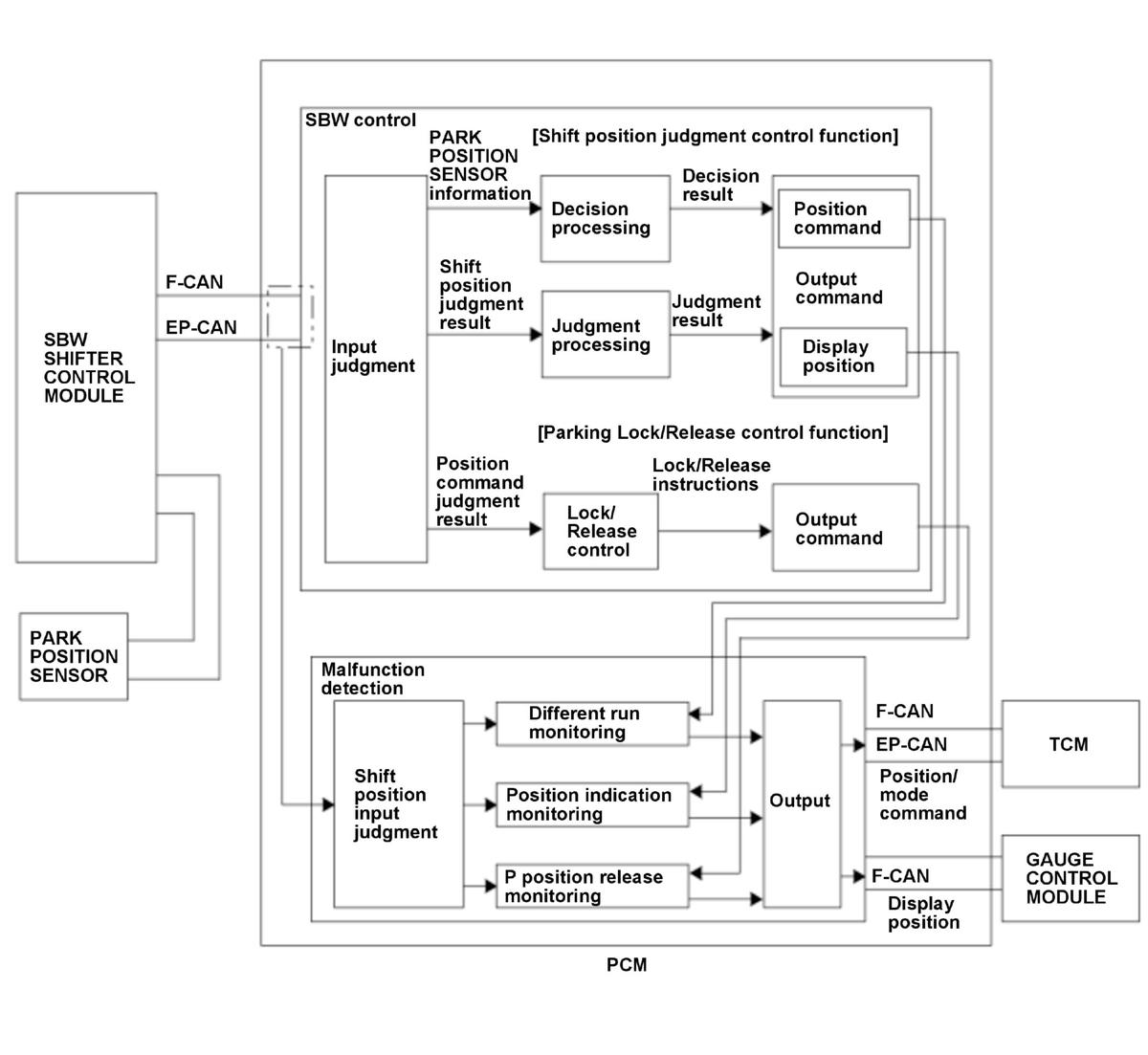

An abnormal condition is detected based on the correlation between the input signal of the shift by wire (SBW) shifter control module (in) and the position indication/display (out). The SBW control, which is the target of this detection, shifts the shift position/mode only when there is an input from the SBW shifter control module. If the shift position/mode changes with no signal from the SBW shifter control module, the powertrain control module (PCM) detects a malfunction and stores a DTC.

*: DTC P0606 is stored when DTC P1A48, P1A49, and/or P1A4A are stored.
