DTC P1A56: General Description

Courtesy of HONDA, U.S.A., INC.

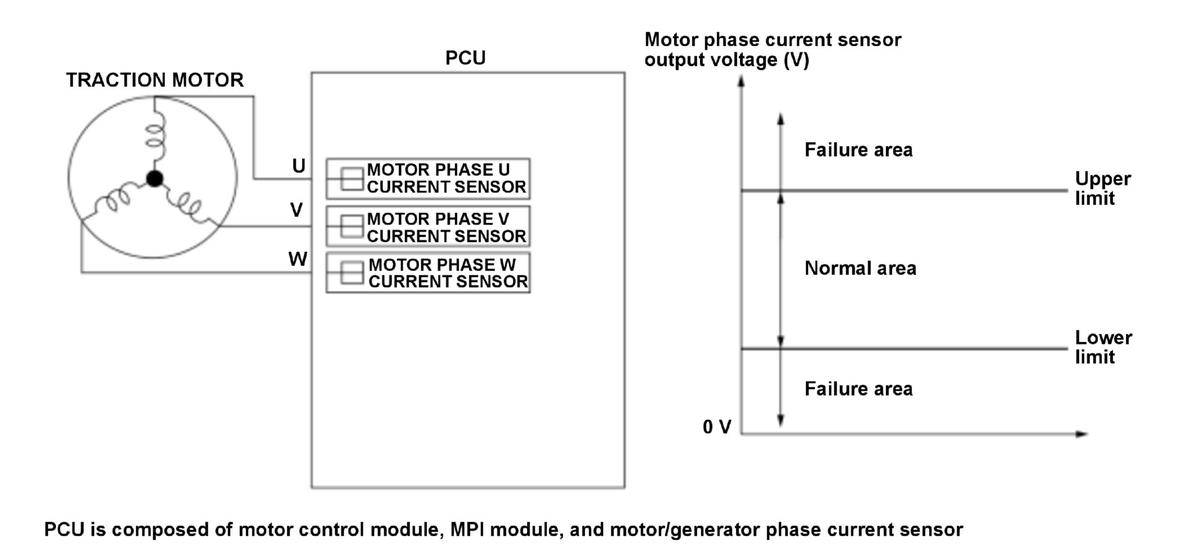

The power control unit (PCU) controls the motor output based on the motor phase current sensor signals. If the motor phase current sensor output voltage is out of a specified range, the motor control module in the PCU detects a malfunction and stores a DTC.
