Security System / Keyless Entry System - Testing & Troubleshooting
>>

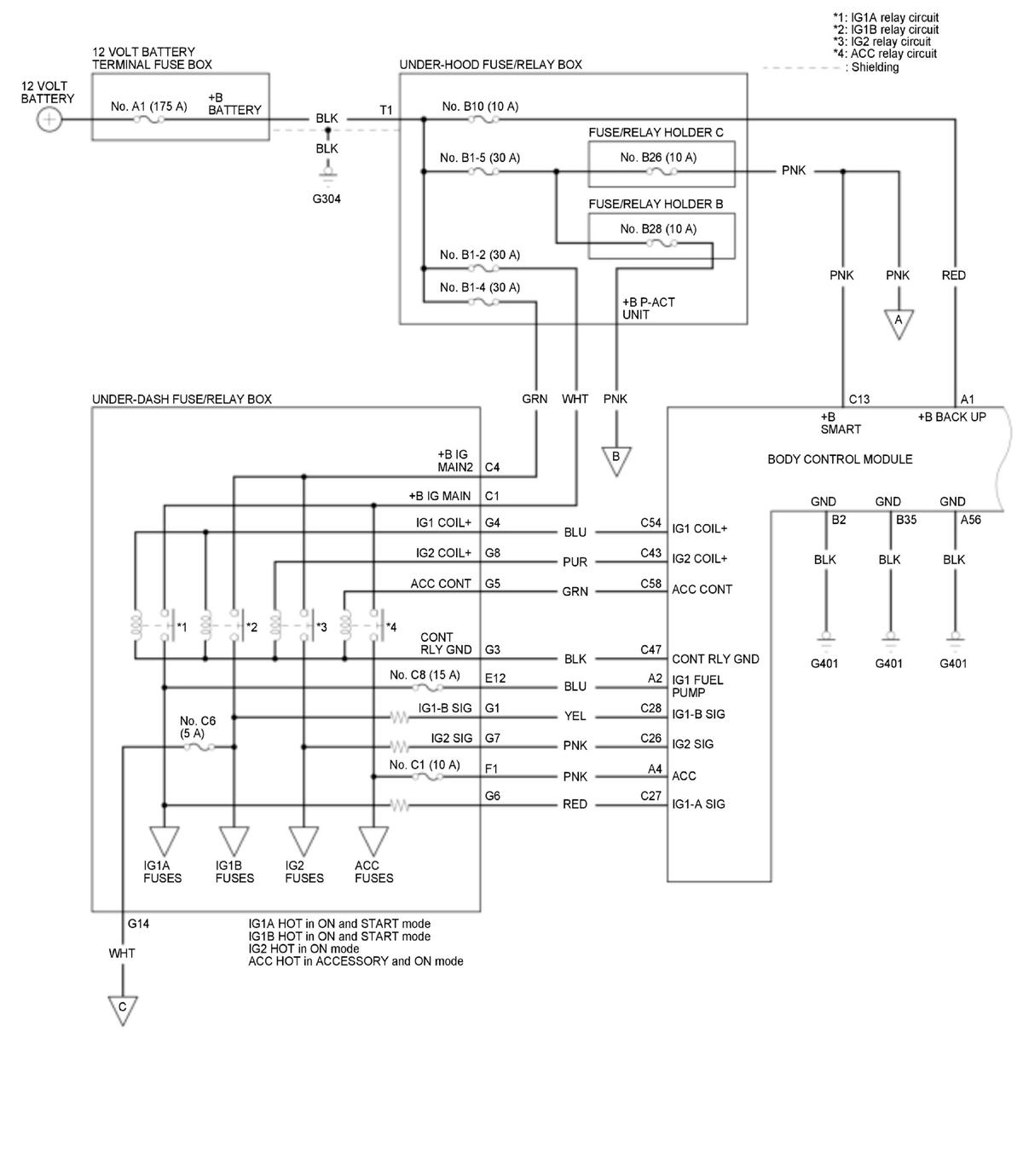

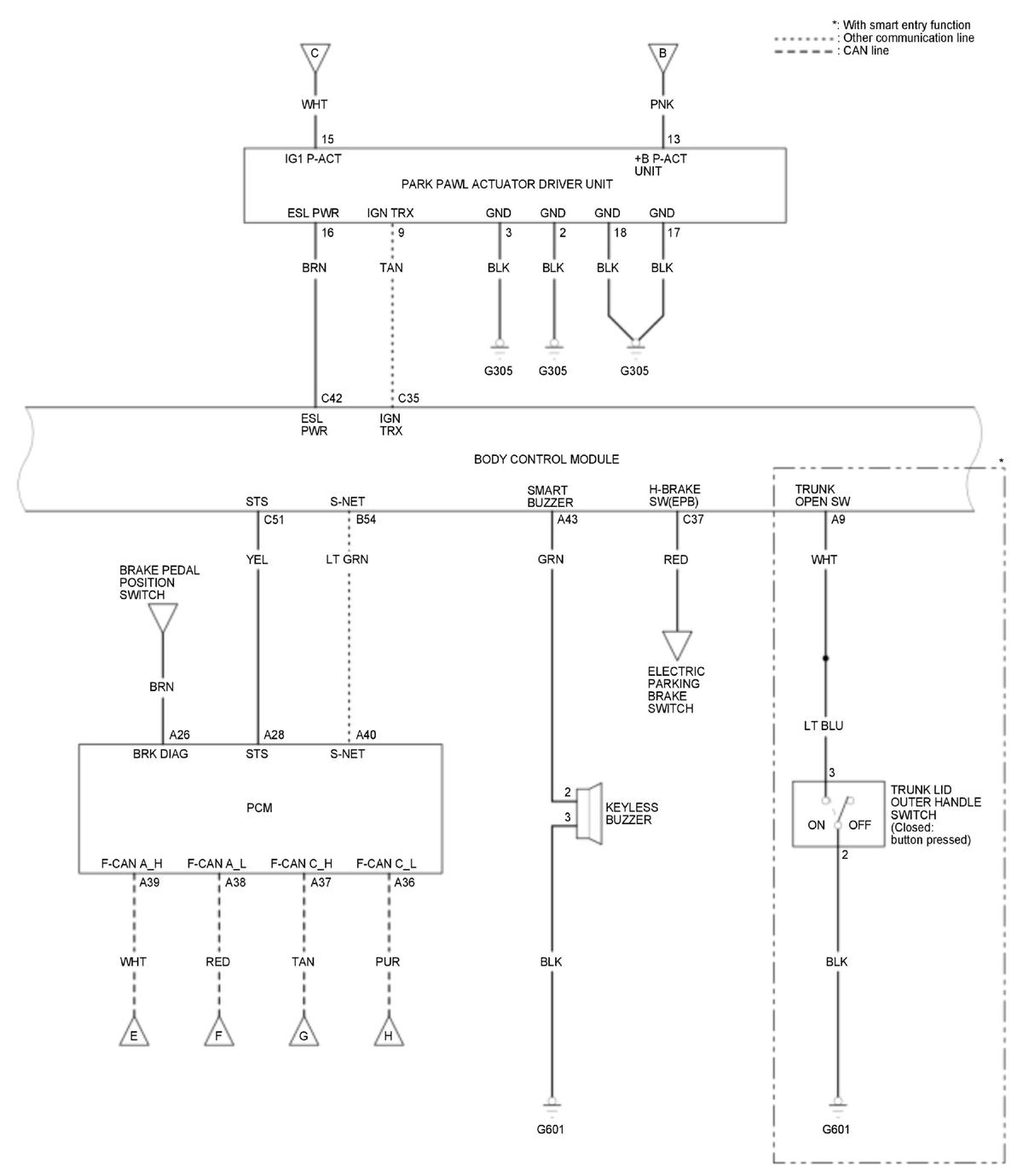

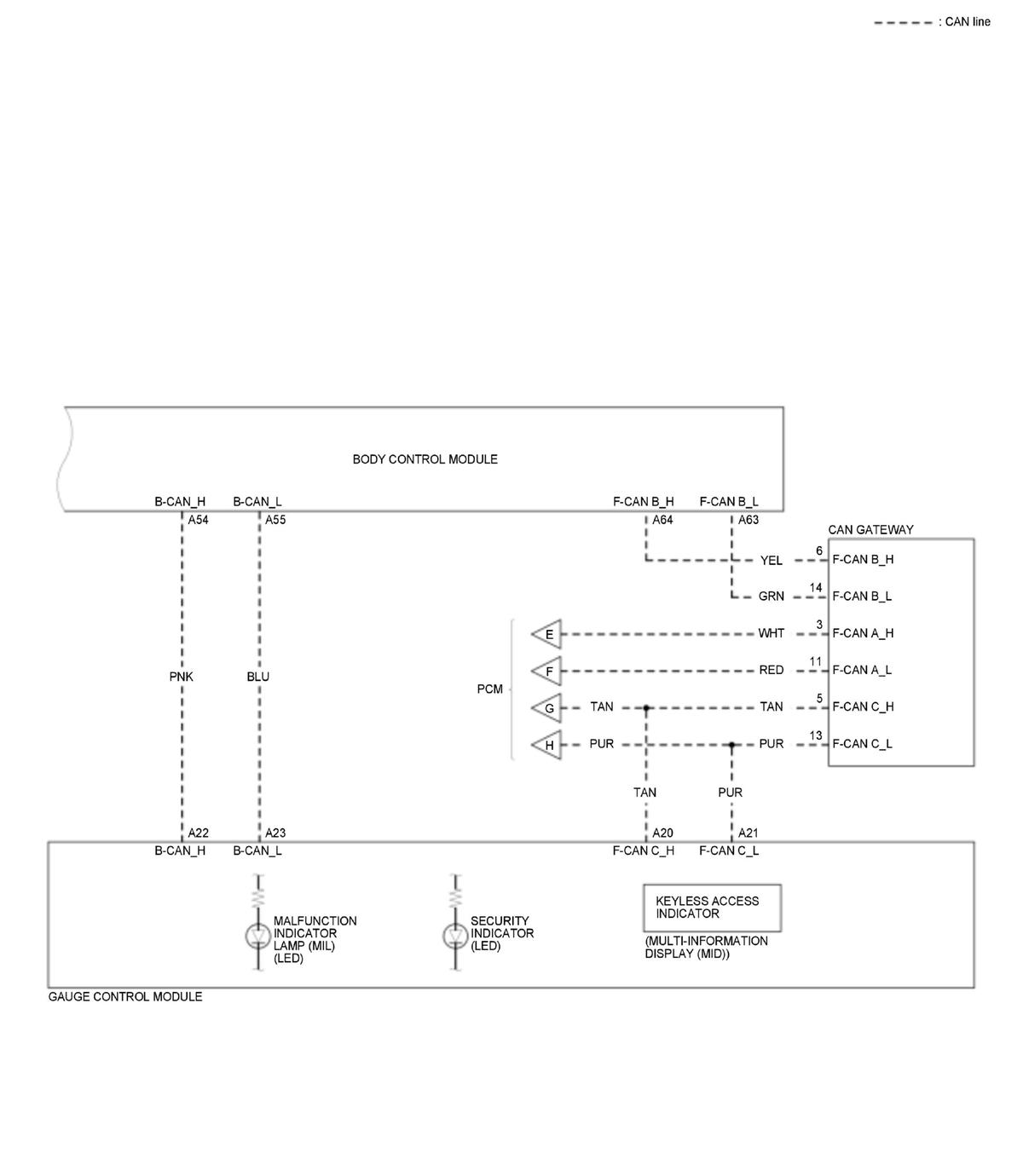

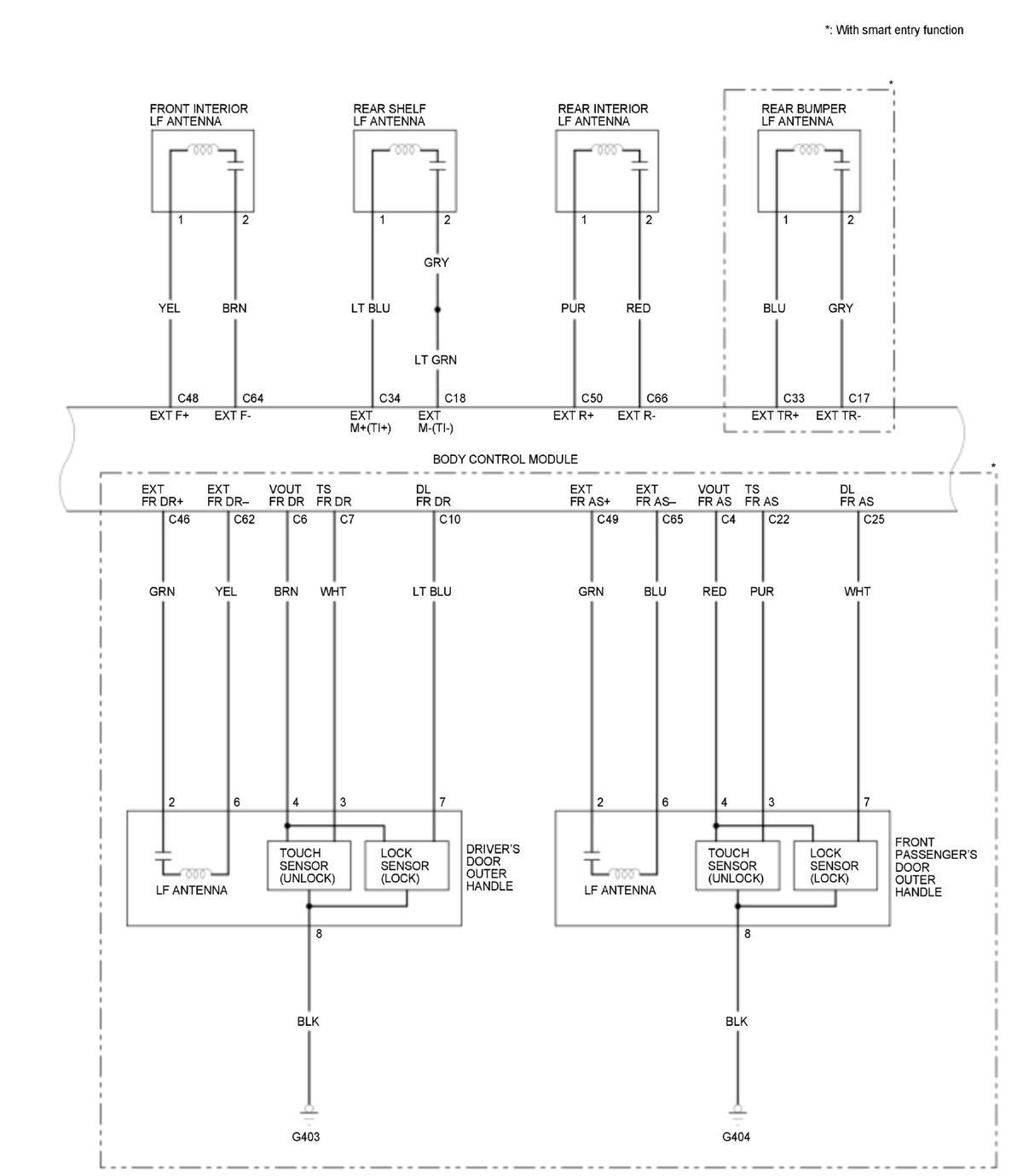

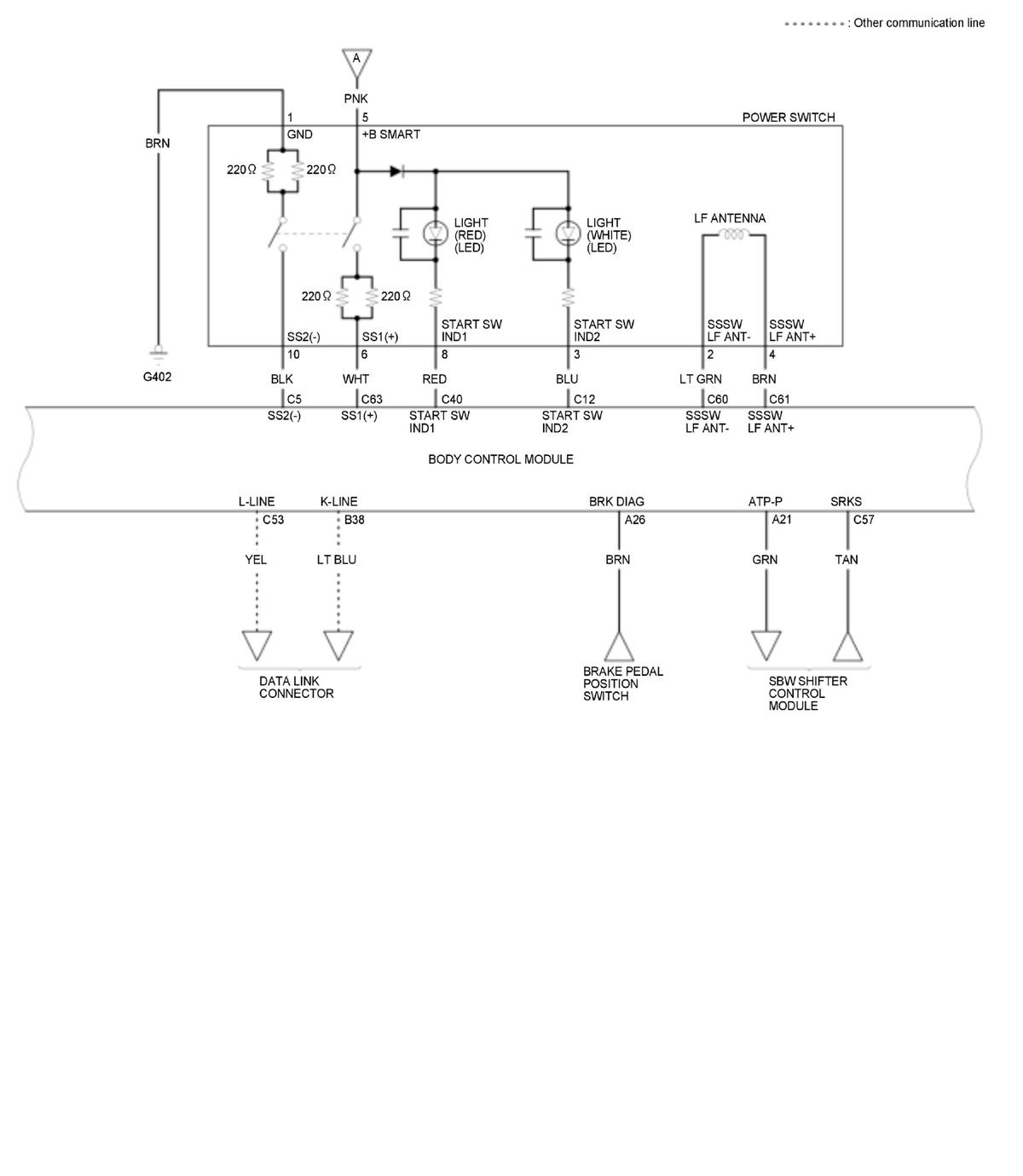

Circuit Diagram
>>
Keyless Access System
Keyless Access System
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
