Ignition Switch Test: Test

NOTE:  SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. 12 Volt Battery Terminal - Disconnect
2. Column Cover - Remove
3. Ignition Switch - Test

   Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

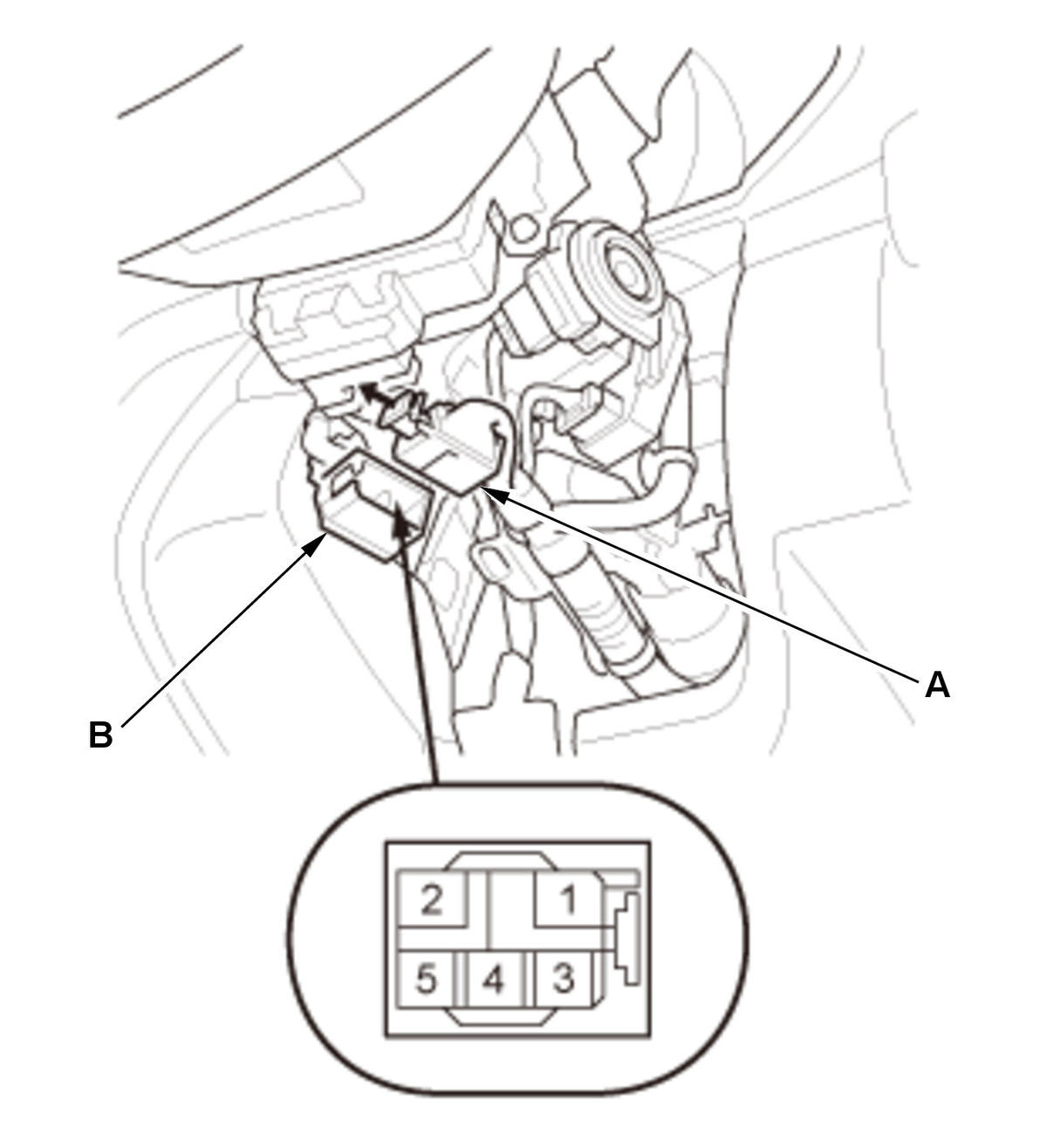

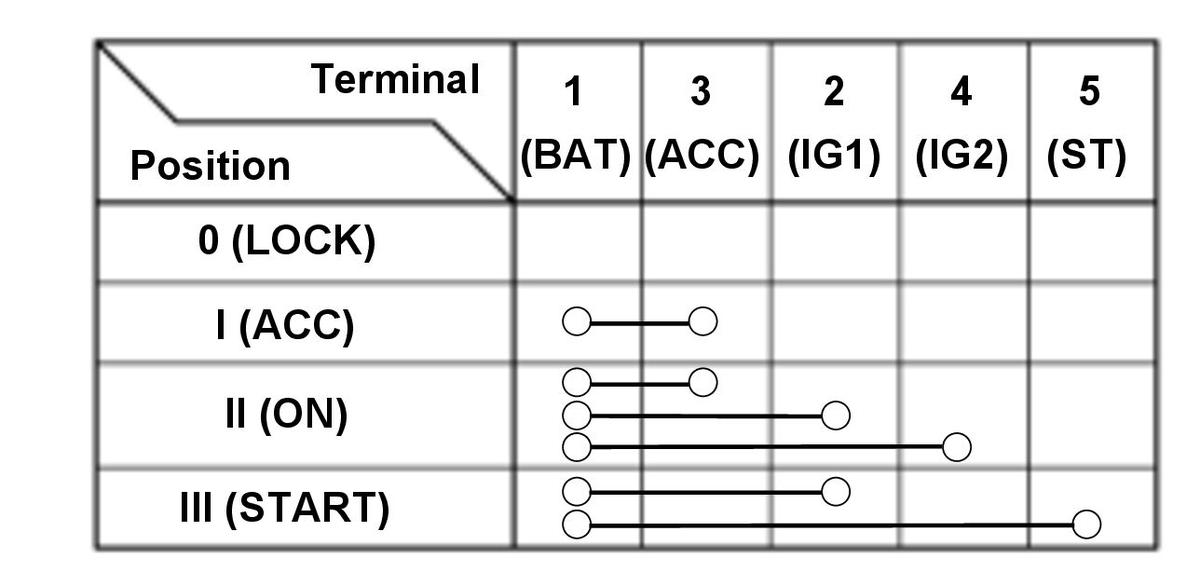

   1. Disconnect the connector (A). 2. Check for continuity between the terminals in each switch position according to the table. 3. If the continuity is not as specified, replace the ignition switch (B).

4. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.
