HR-V LX, AWD
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Continuously Variable Transmission (CVT) - Service Information
>>
Disassembly and Reassembly
>>
Transfer Assembly Disassembly and Reassembly (CVT)
>>
Exploded View
Exploded View
Transfer Assembly

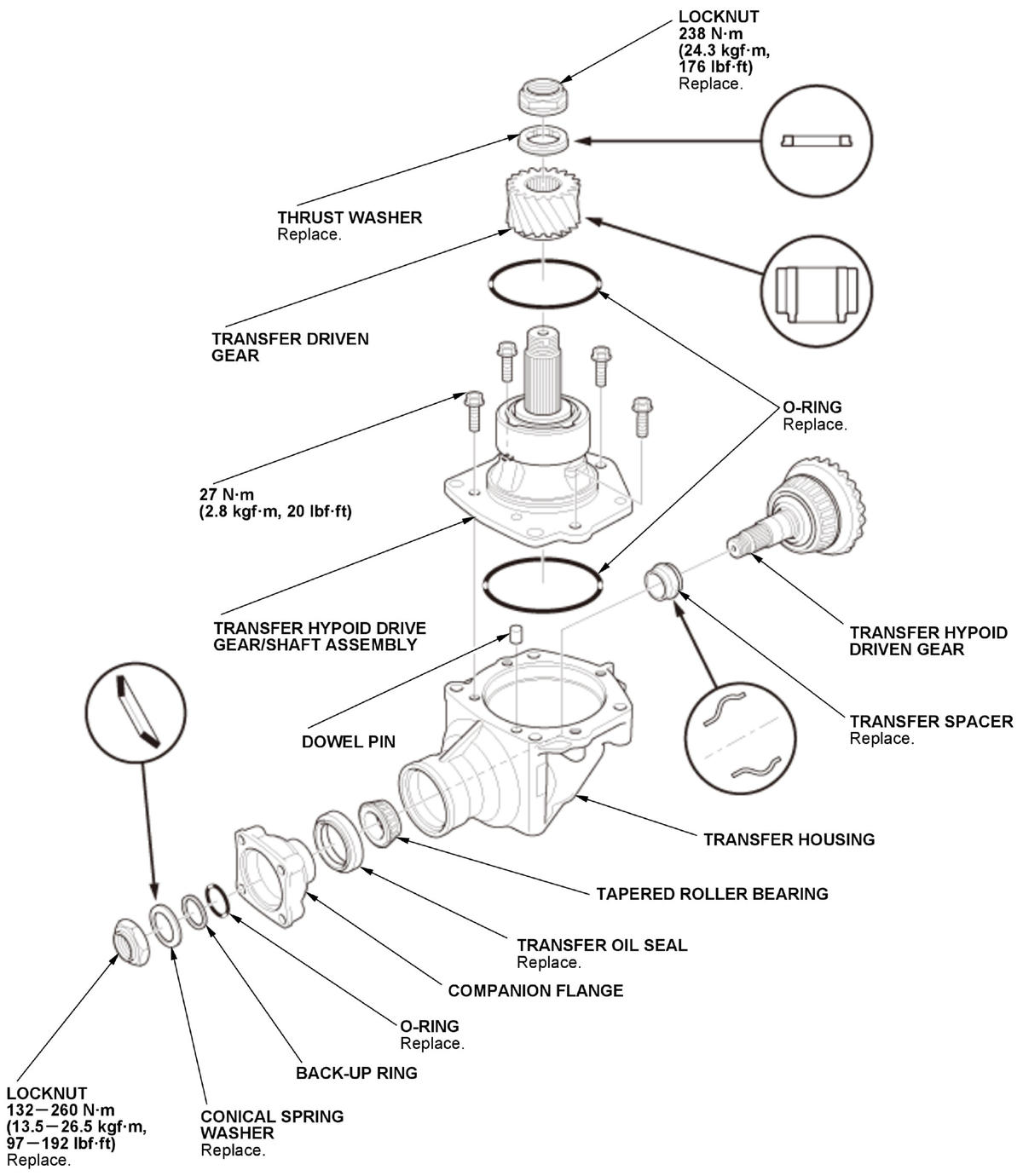

Fig 1: Transfer Assembly Exploded View With Driven Gear Torque Specifications
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
