Front Stabilizer Link: Installation

  1. Stabilizer Link - Install

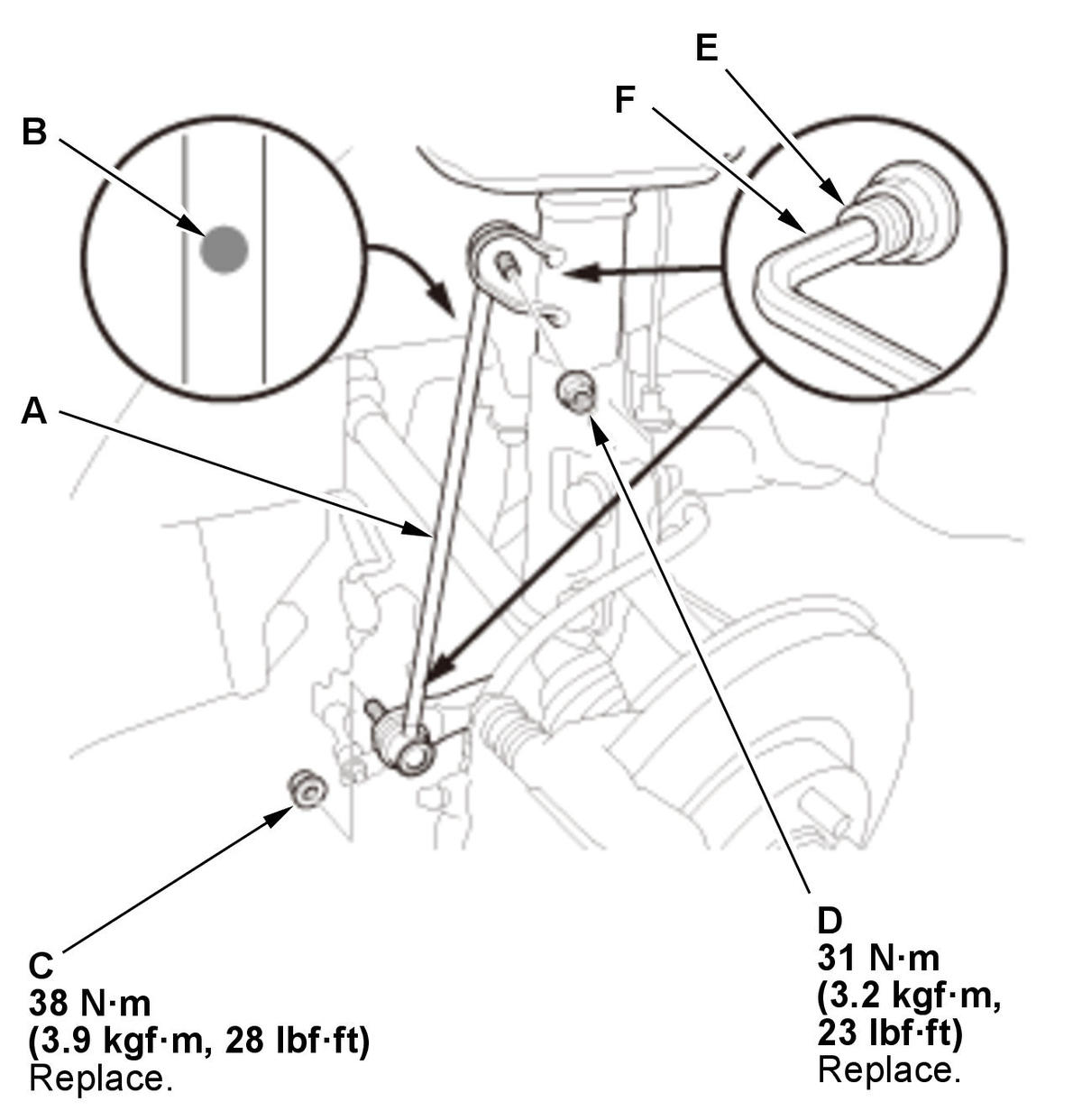

    Fig 1: Stabilizer Link With Torque Specifications
    GHH439333Courtesy of HONDA, U.S.A., INC.
    1. Install the stabilizer link (A).

    NOTE:  The stabilizer link has a paint mark (B). The paint mark indicates the difference between the left and right stabilizer links.

    2. Install the new self-locking nut (C) and the new flange nut (D), then tighten them to the specified torque while holding the respective joint pin (E) with a hex wrench (F).
  2. Front Wheel - Install
