EPS Motor/Control Unit Removal and Installation: Removal

  1. Steering Column/EPS Control Unit - Remove
  2. EPS Motor/Control Unit - Remove

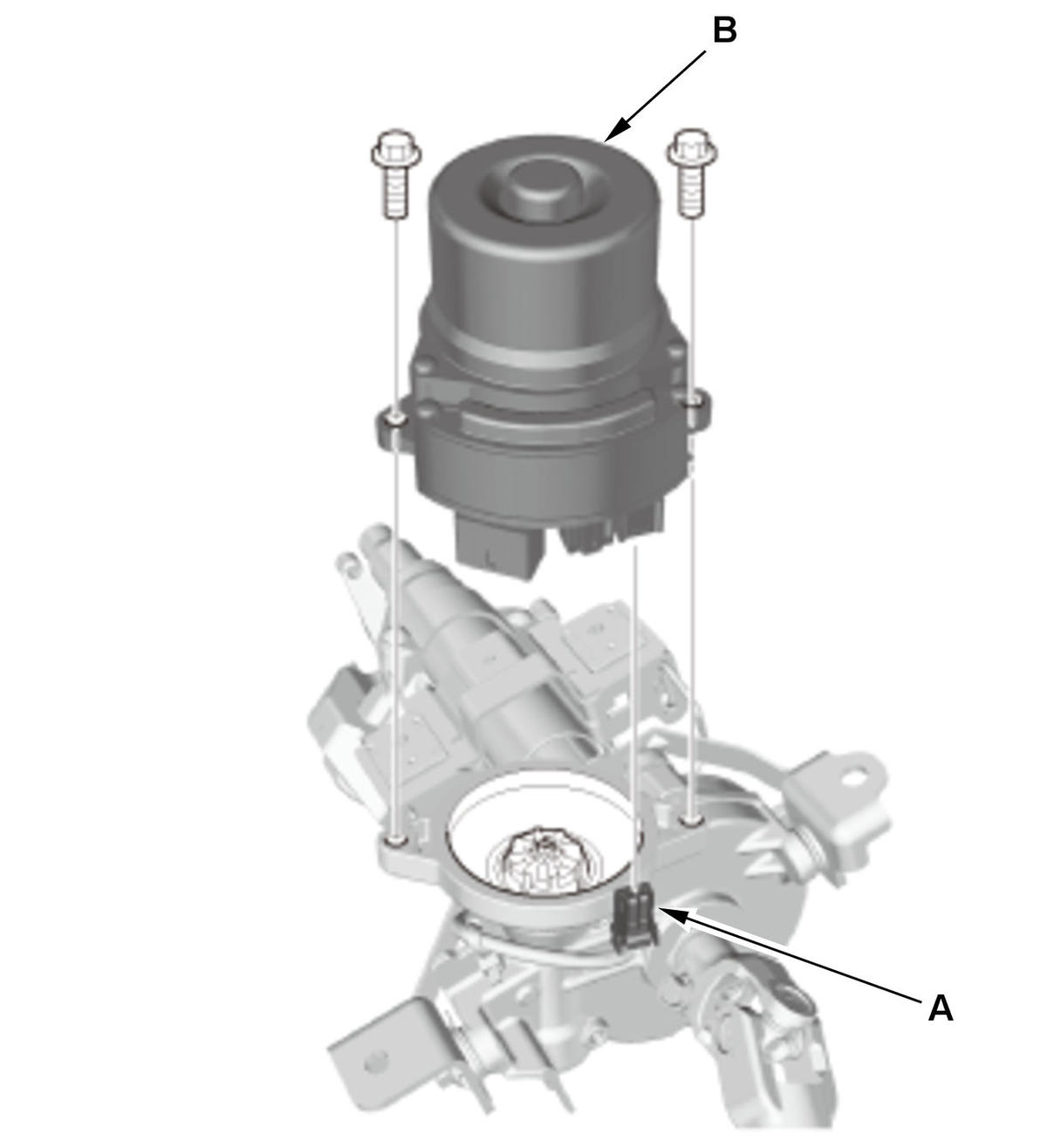

    GHH438778Courtesy of HONDA, U.S.A., INC.
    		 1. Disconnect the connector (A).

    2. Remove the EPS motor/control unit (B).
