Exploded View
Exploded View
Alternator Exploded View

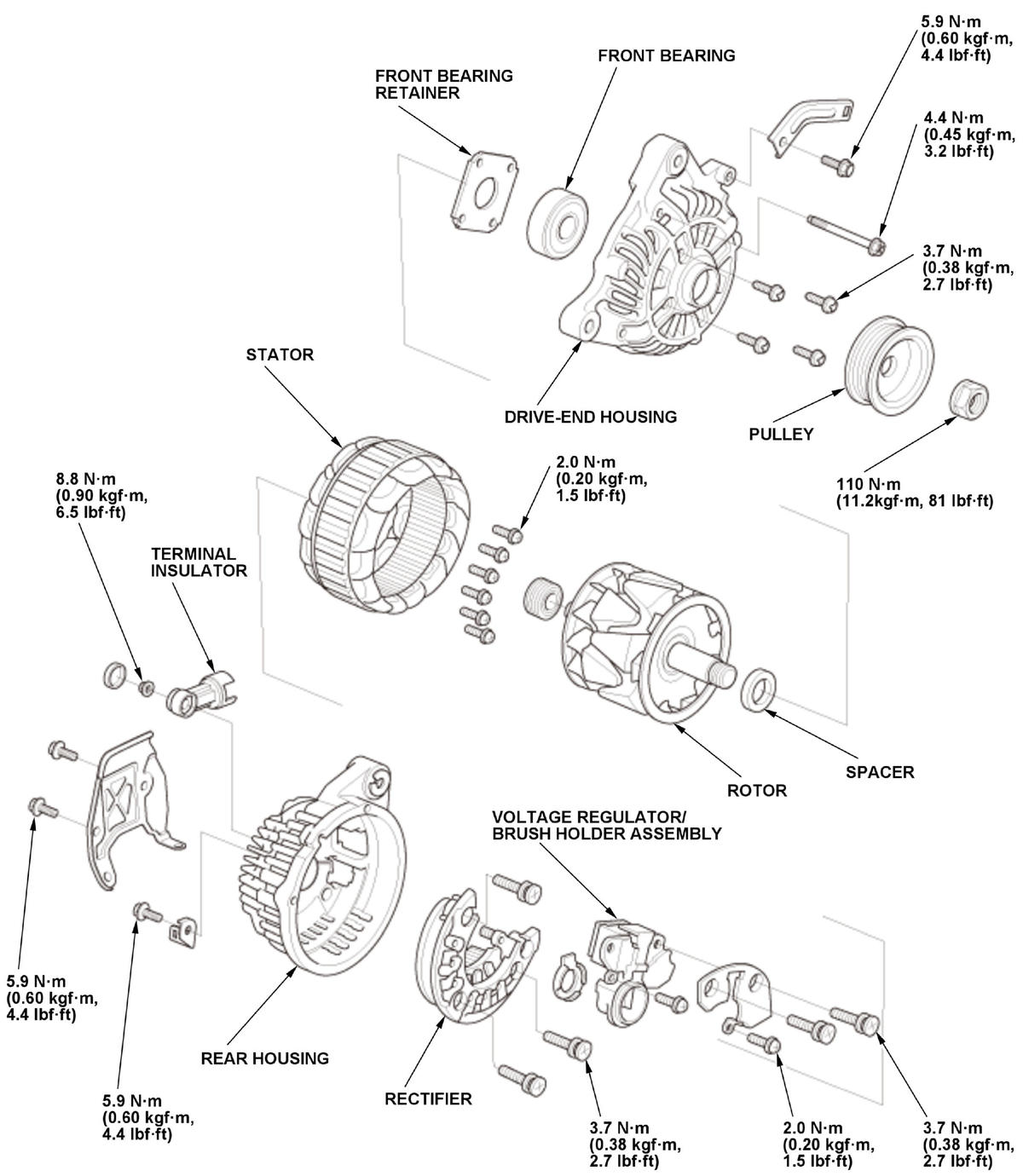

Fig 1: Alternator Exploded View With Torque Specifications
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
