DTC P0797 (KA/Kc)
DTC P0797: Pressure Control Solenoid Valve "C" Stuck ON
General Description

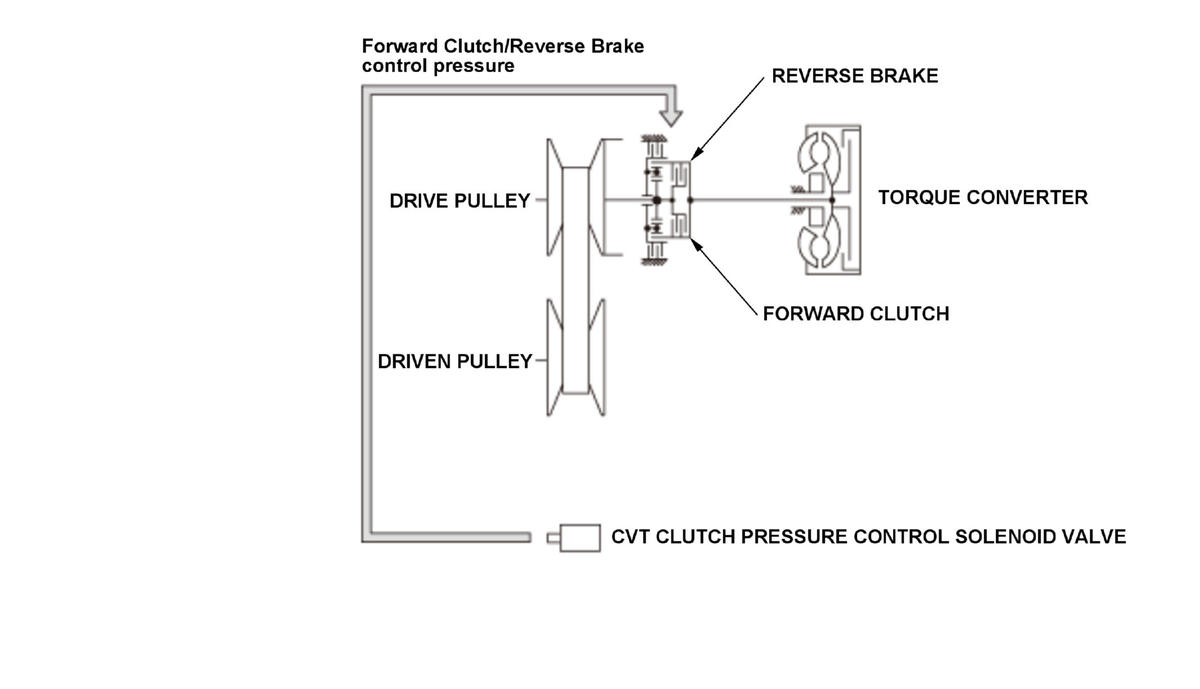

The CVT clutch pressure control solenoid valve controls hydraulic pressure to the forward clutch and the reverse brake. The CVT clutch pressure control solenoid valve is controlled by duty cycle output. The spool in the CVT clutch pressure control solenoid valve moves the valve according to the current, and produces hydraulic pressure in proportion to the current. To supply proper forward clutch/reverse brake oil pressure, the powertrain control module (PCM) outputs a CVT clutch pressure control solenoid valve oil pressure control signal. If the duration of the forward clutch/reverse brake engage operation from start to completion is short, the PCM detects a CVT clutch pressure control solenoid valve stuck ON failure and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | Depending on the driving conditions |
| DTC Type | Two drive cycles, MIL on, A/T gear position indicator blinks |
Enable Conditions
| Condition | Minimum | Maximum | |
|---|---|---|---|
| Engine speed [Engine Speed] | 500 rpm | - | |
| Vehicle speed [Vehicle Speed] | - | 1 mph (3 km/h) | |
| Accelerator pedal position | - | 1 deg. | |
| Shift lever position | Without paddle shifter | D, S, L | |
| With paddle shifter | D, S | ||
[ ]: HDS Parameter
Malfunction Threshold
Forward clutch engagement when shifted from N to D position takes less than 250 milliseconds.
Possible Cause
NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- CVT clutch pressure control solenoid valve stuck on
Confirmation Procedure
Operating Condition
- Start the engine.
- With the brake pedal pressed, place the shift lever in from N to D, then shift to N, and wait for at least 2 seconds.
- Repeat Driving Pattern step 2, five times.
- Turn the vehicle to the OFF (LOCK) mode.
- Repeat Driving Pattern steps 1 through 3.
With the HDS
None.
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the PCM memory. If the malfunction returns in the next (second) drive cycle, the MIL comes on and a Confirmed DTC and the freeze data are stored.
Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the 12 volt battery.
