Engine Mount Tightening Procedure: Procedure

NOTE:  Reinstall the mounting bolts and nuts in the sequence given in the following steps. Failure to follow this sequence may cause excessive noise and vibration, and reduce engine mount life.

1. Jack - Remove

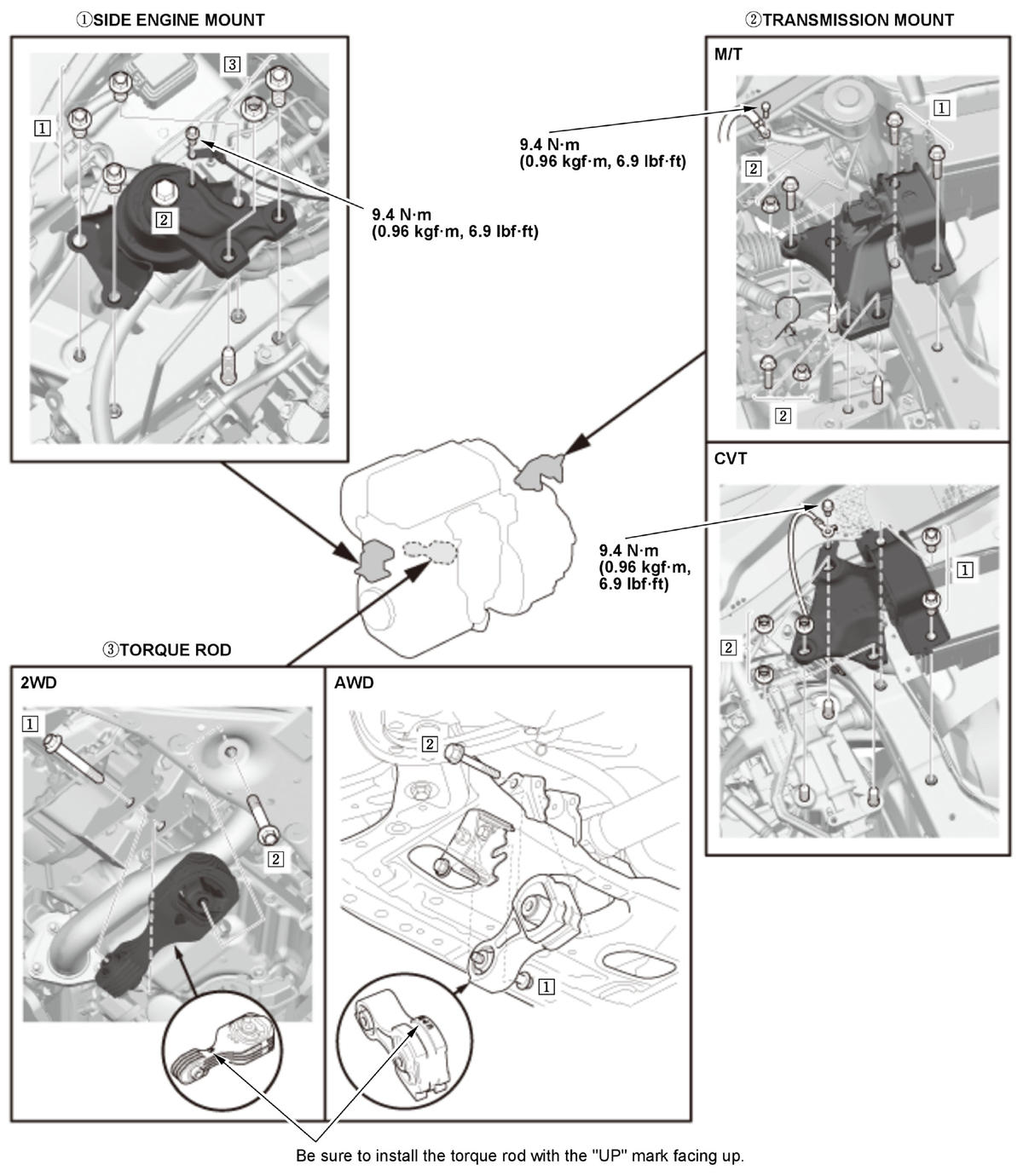

2. Engine/Transmission Mount - Tightening Procedure

   NOTE:

   • When the side engine mount is removed, loosely install the side engine mount, loosen the bolts and nuts of 's and 's before tightening. Then tightening all bolts and nuts in the sequence 's , , and , 's , and then 's .
   • When the transmission mount is removed, loosely install the transmission mount, loosen the bolt of 's before tightening. Then tightening all bolts and nuts in the sequence 's , and , and then 's .
   • When the torque rod are removed, only tighten the torque rod in the sequence listed below.

   Tightening Sequence

   Mount Removed	Mount Tightening Sequence
   Side Engine Mount	, , and
   Transmission Mount	, and
   Torque Rod

   Tightening Torque

   Mount No.	Mount Name		Mount Bolt/Nut Tightening Sequence
   	Side Engine Mount		59 N.m (6.0 kgf.m, 44 lbf.ft)Replace.	103 N.m (10.5 kgf.m, 76 lbf.ft)Replace.	93 N.m (9.5 kgf.m, 69 lbf.ft)Replace.
   	Transmission Mount		59 N.m (6.0 kgf.m, 44 lbf.ft)Replace.	74 N.m (7.5 kgf.m, 55 lbf.ft)Replace.
   	Torque Rod	2WD	83 N.m (8.5 kgf.m, 61 lbf.ft)Replace.	93 N.m (9.5 kgf.m, 69 lbf.ft)Replace.
   		AWD	59 N.m (6.0 kgf.m, 44 lbf.ft)	59 N.m (6.0 kgf.m, 44 lbf.ft)Replace.

   Courtesy of HONDA, U.S.A., INC.
