DTC P0831

DTC P0831  : Clutch Pedal Position Switch A Circuit High Voltage

NOTE:  Before you troubleshoot, review the general troubleshooting information .

DTC (PGM-FI)

1. Problem verification

   -1. Turn the vehicle to the ON mode.

   -2. Clear the DTC with the HDS.

   -3. Check the parameter (s) below with the HDS.

   Signal	Threshold		Current Conditions
   	Values	Unit	Values	Unit
   CLUTCH PEDAL POSITION SWITCH A	CLOSE

   Do the current condition (s) match the threshold?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at clutch pedal position switch A and the PCM, and check the installation of clutch pedal position switch A. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot .

2. Clutch pedal position switch A installation check

   -1. Check clutch pedal position switch A.

   Is it damaged or loose?

   YES

   Repair or replace clutch pedal position switch A .

   NO

   Go to step 3.

3. Clutch pedal position switch A check

   -1. Disconnect the following connector.

   Clutch pedal position switch A 2P connector

   -2. Check the parameter (s) below with the HDS.

   Signal	Threshold		Current Conditions
   	Values	Unit	Values	Unit
   CLUTCH PEDAL POSITION SWITCH A	OPEN

   Do the current condition (s) match the threshold?

   YES

   Replace clutch pedal position switch A .

   NO

   Go to step 4.

4. Shorted wire check (CLUTCH SW (SA) line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Jump the SCS line with the HDS.

   -3. Disconnect the following connector.

   PCM connector A (51P)

   -4. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode

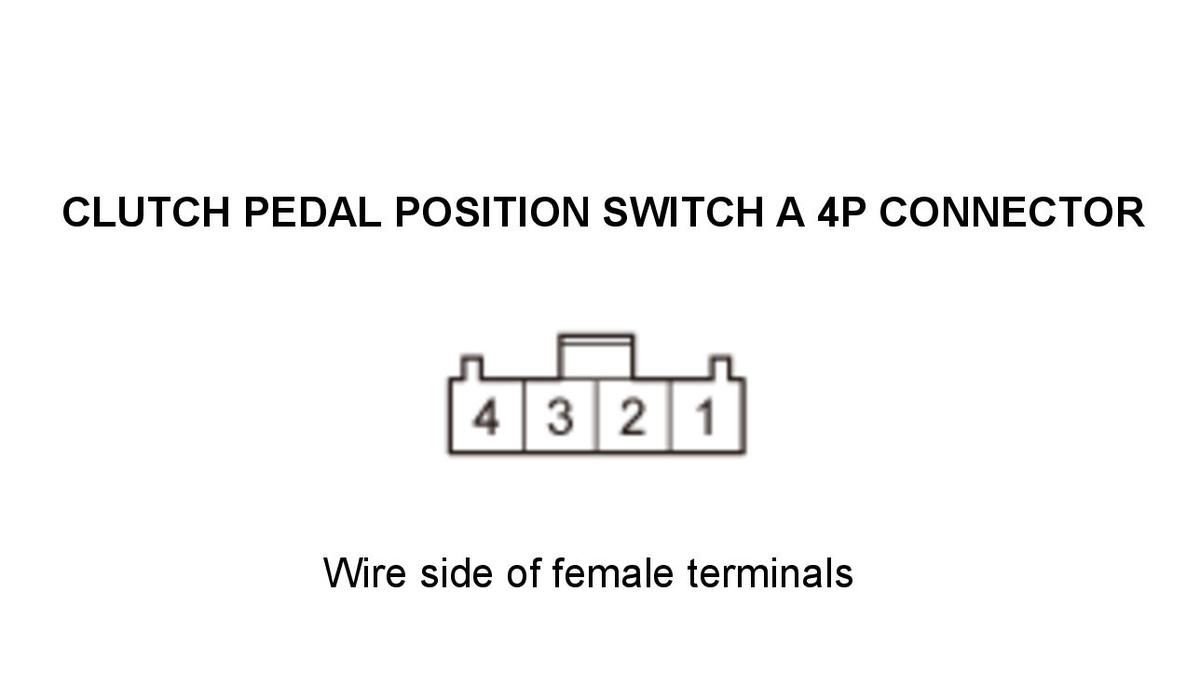

   Test point 1	Clutch pedal position switch A 4P connector No. 4
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair a short in the CLUTCH SW (SA) wire between the PCM (A18) and clutch pedal position switch A.

   NO

   The CLUTCH SW (SA) wire is OK. Update the PCM if it does not have the latest software, or substitute a known-good PCM , then recheck. If DTC P0831 goes away and the PCM was updated, troubleshooting is complete. If DTC P0831 goes away and the PCM was substituted, replace the original PCM .
