DTC P0720
DTC P0720 : Output Shaft (Countershaft) Speed Sensor Circuit Malfunction
NOTE: Before you troubleshoot, review the general troubleshooting information .
| DTC Description | Confirmed DTC | Pending DTC | Freeze Frame |
|---|---|---|---|
| P0720 Output Shaft (Countershaft) Speed Sensor Circuit Malfunction |
DTC (PGM-FI)
- Problem verification
-1. Start the engine. Hold the engine speed at 3, 000 rpm without load (CVT in P or N, M/T in neutral) until the radiator fan comes on, then let it idle.
-2. Test-drive several minutes.
-3. Check the parameter (s) below with the HDS.
Signal Current Conditions Values Unit C SHAFT SPD Is any vehicle speed indicated?
YES
Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the output shaft (countershaft) speed sensor and the PCM. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot .
NO
Go to step 2.
- Open wire check (VCC1 line)
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Disconnect the following connector.
Output shaft (countershaft) speed sensor 3P connector -3. Turn the vehicle to the ON mode.
-4. Measure the voltage between test points 1 and 2.

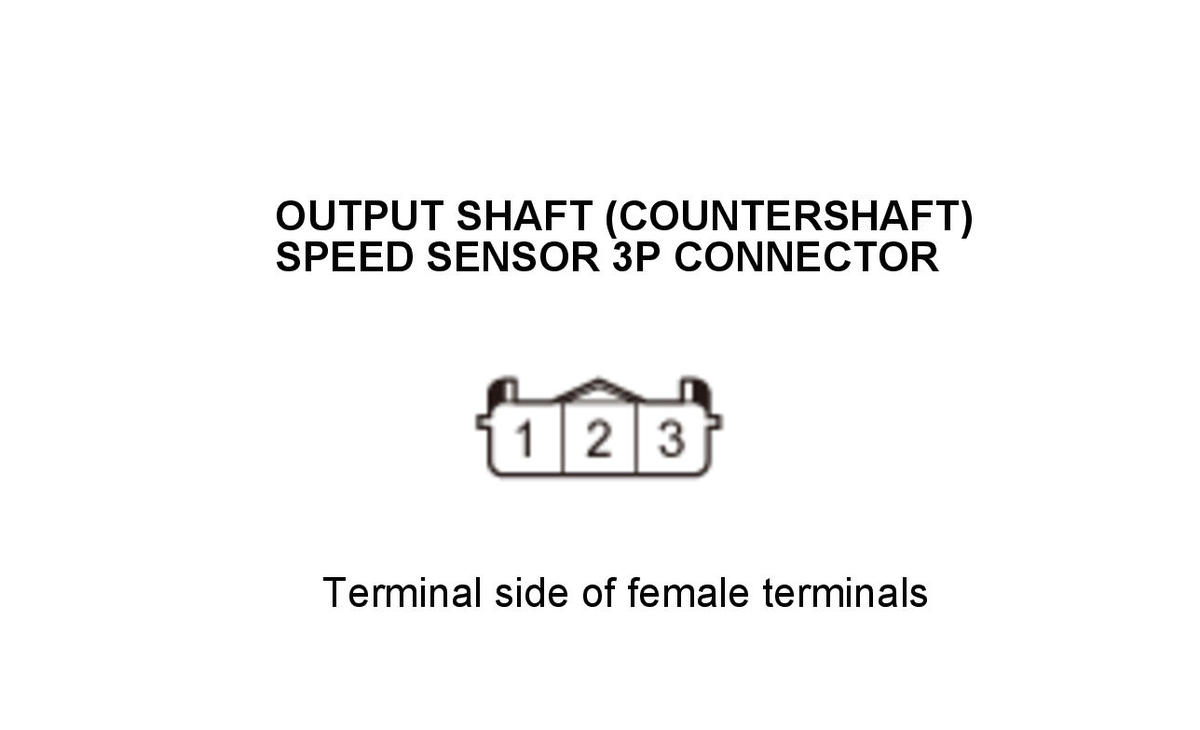

Test condition Vehicle ON mode Output shaft (countershaft) speed sensor 3P connector: disconnected Test point 1 Output shaft (countershaft) speed sensor 3P connector No. 3 Test point 2 Body ground Is there about 5.0 V?
YES
The VCC1 wire is OK. Go to step 3.
NO
Repair an open in the VCC1 wire between the PCM (B41) and the output shaft (countershaft) speed sensor.
- Determine possible failure area (NC line, others)
-1. Measure the voltage between test points 1 and 2.

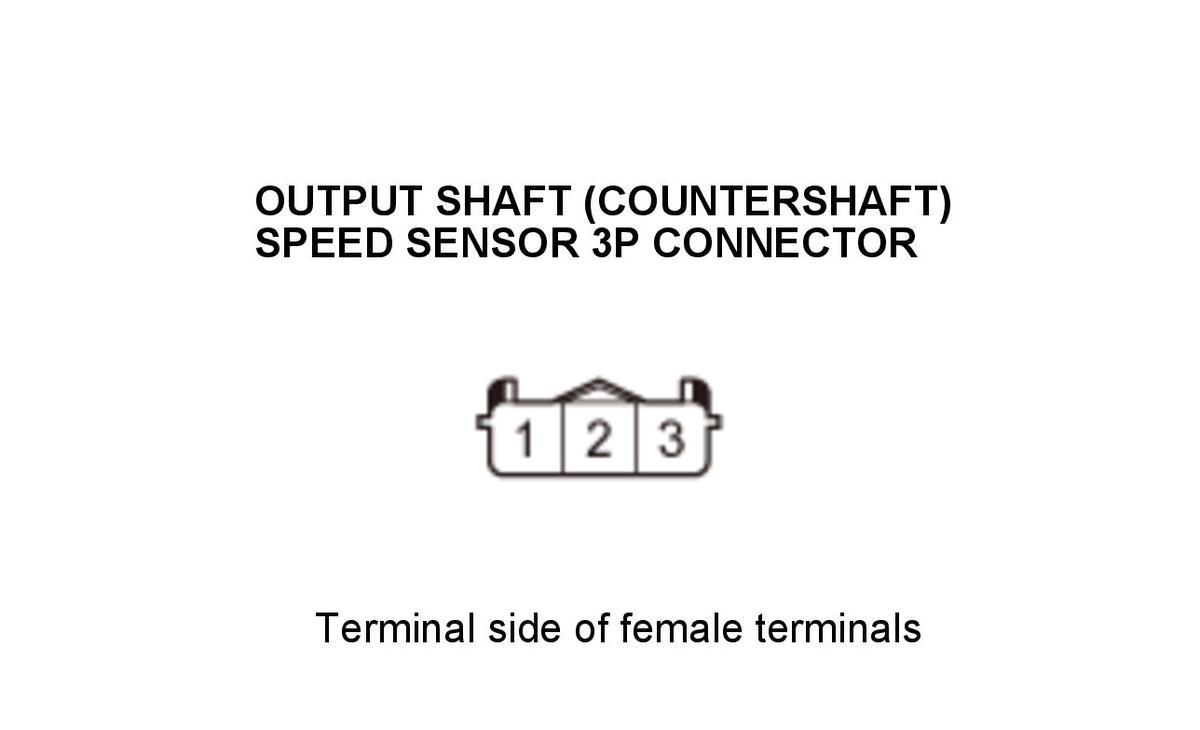

Test condition Vehicle ON mode Output shaft (countershaft) speed sensor 3P connector: disconnected Test point 1 Output shaft (countershaft) speed sensor 3P connector No. 2 Test point 2 Body ground Is there about 5.0 V?
YES
Go to step 4.
NO
Go to step 5.
- Open wire check (SG1 line)
-1. Measure the voltage between test points 1 and 2.

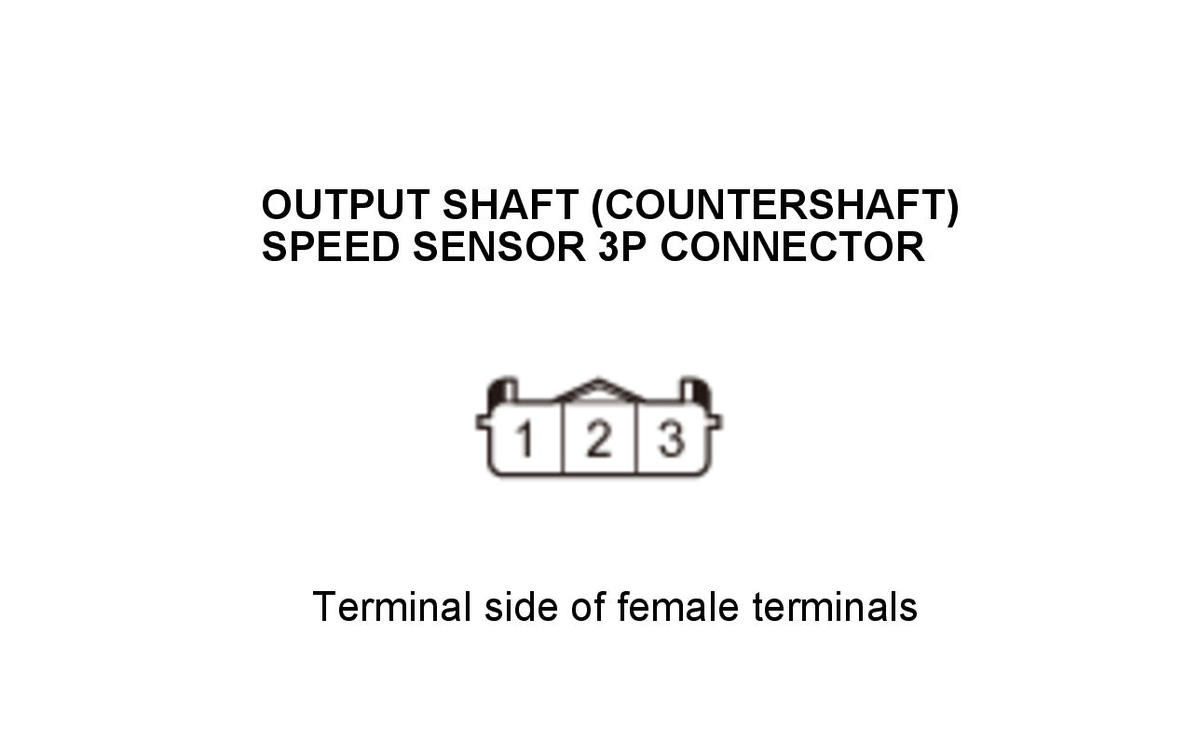

Test condition Vehicle ON mode Output shaft (countershaft) speed sensor 3P connector: disconnected Test point 1 Output shaft (countershaft) speed sensor 3P connector No. 1 Test point 2 Output shaft (countershaft) speed sensor 3P connector No. 3 Is there about 5.0 V?
YES
The SG1 wire is OK. Replace the output shaft (countershaft) speed sensor .
NO
Repair an open in the SG1 wire between the PCM (C40) and the output shaft (countershaft) speed sensor.
- Shorted wire check (NC line)
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Jump the SCS line with the HDS.
-3. Disconnect the following connector.
PCM connector B (51P) -4. Check for continuity between test points 1 and 2.

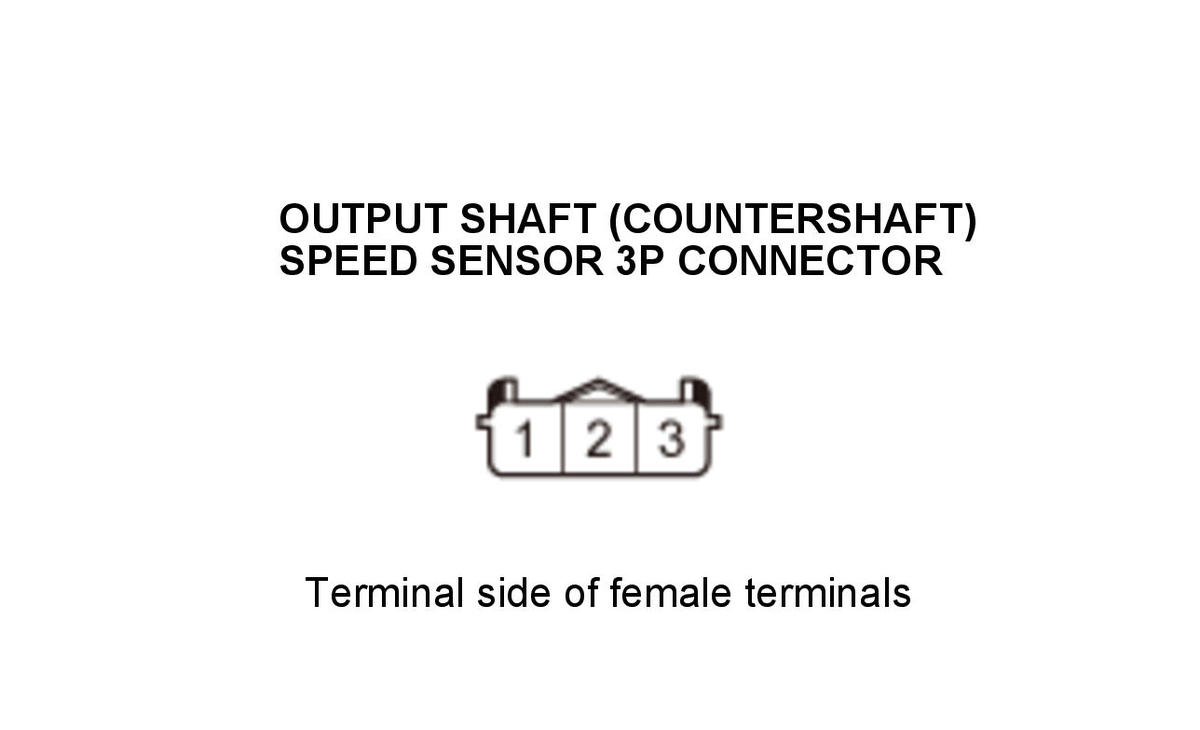

Test condition Vehicle OFF (LOCK) mode Output shaft (countershaft) speed sensor 3P connector: disconnected PCM connector B (51P): disconnected Test point 1 PCM connector B (51P) No. 8 Test point 2 Body ground Is there continuity?
YES
Repair a short in the NC wire between the PCM (B8) and the output shaft (countershaft) speed sensor.
NO
The NC wire is not shorted. Go to step 6.
- Open wire check (NC line)
-1. Check for continuity between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode Output shaft (countershaft) speed sensor 3P connector: disconnected PCM connector B (51P): disconnected Test point 2 PCM connector B (51P) No. 8 Test point 1 Output shaft (countershaft) speed sensor 3P connector No. 2 Is there continuity?
YES
The NC wire is OK. Update the PCM if it does not have the latest software, or substitute a known-good PCM , then recheck. If DTC P0720 goes away and the PCM was updated, troubleshooting is complete. If DTC P0720 goes away and the PCM was substituted, replace the original PCM .
NO
Repair an open in the NC wire between the PCM (B8) and the output shaft (countershaft) speed sensor.
