Driver's Power Window Motor Test: Test
Motor Test
- Driver's Door Panel - Remove
- Driver's Power Window Motor - Test

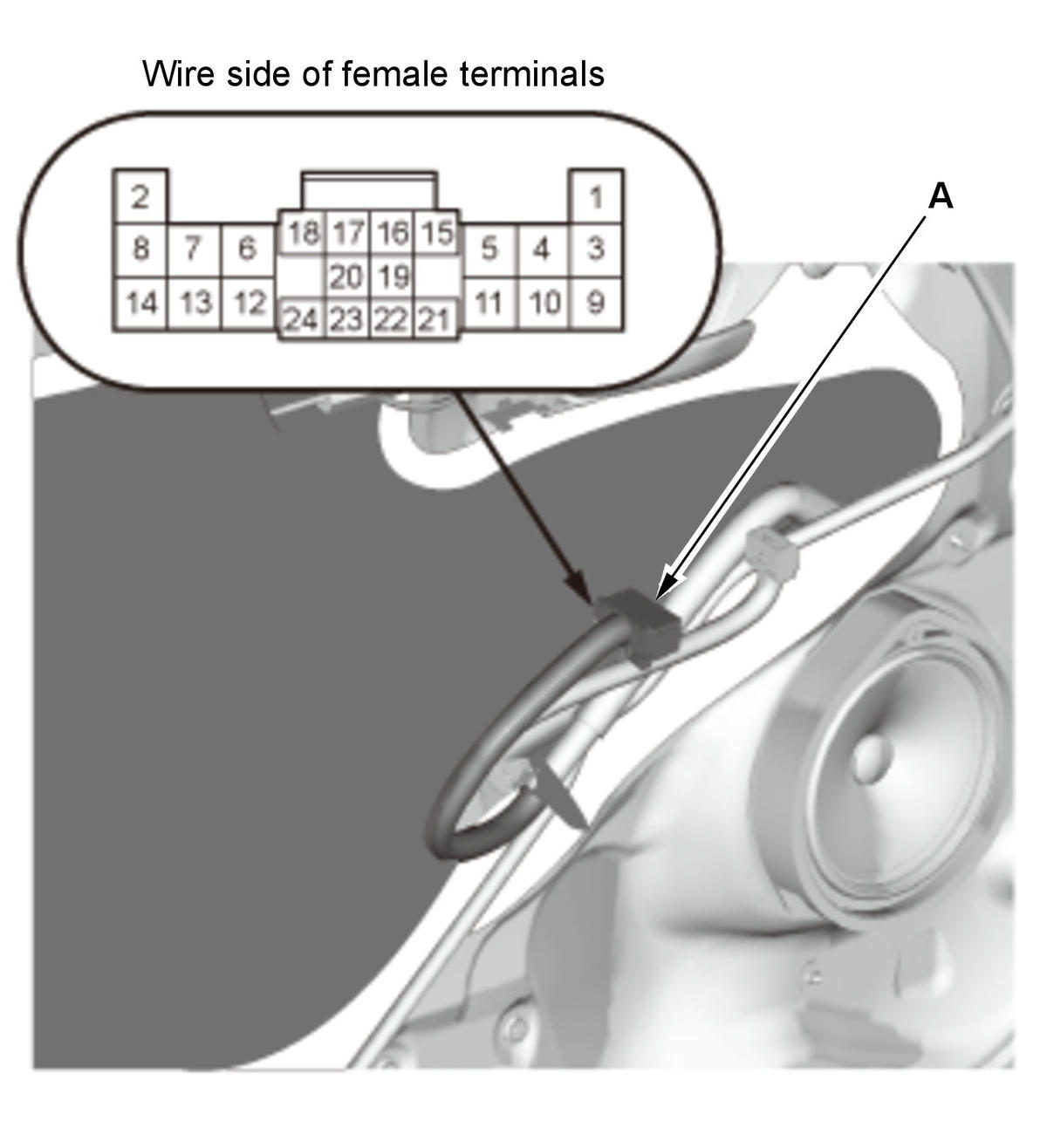

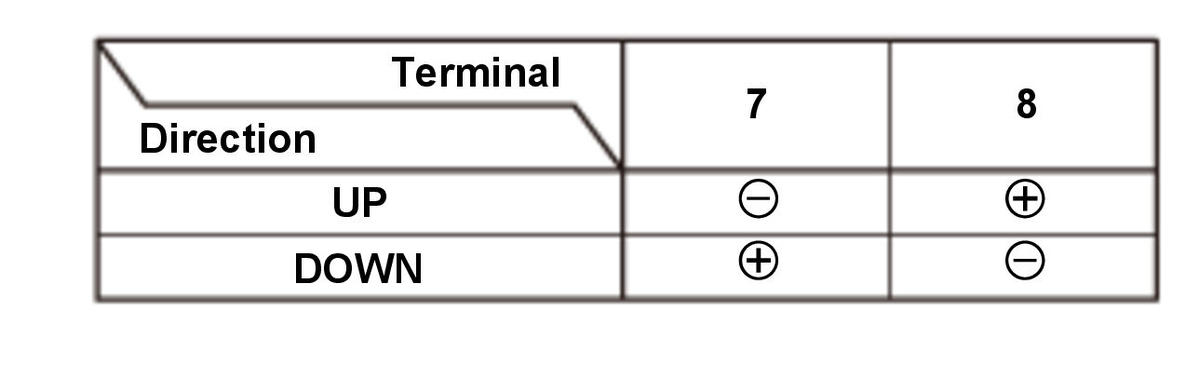

1. Test the motor in each direction by connecting 12 volt battery power and ground to the connector (A) according to the table. When the motor stops running, disconnect 12 volt battery power immediately. - If the motor does not run or fails to run smoothly, remove the driver's door regulator , then go to step 2.
- If the motor runs smoothly, go to Hall IC Unit (Pulser) Test.

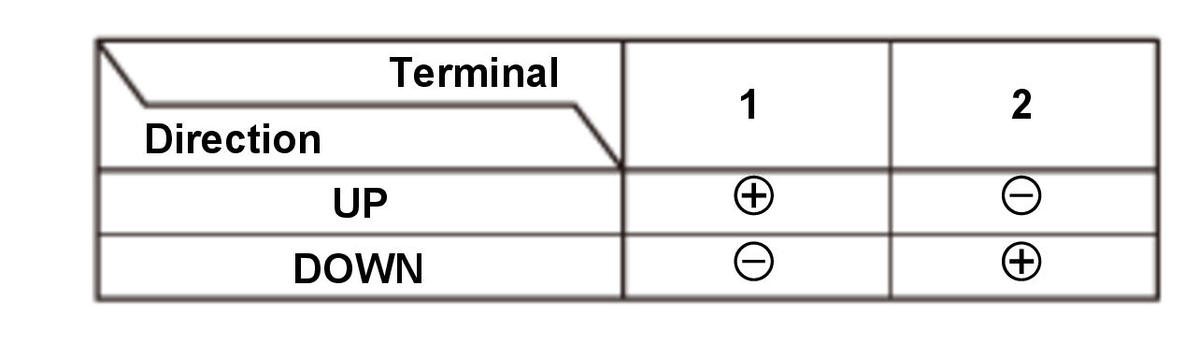

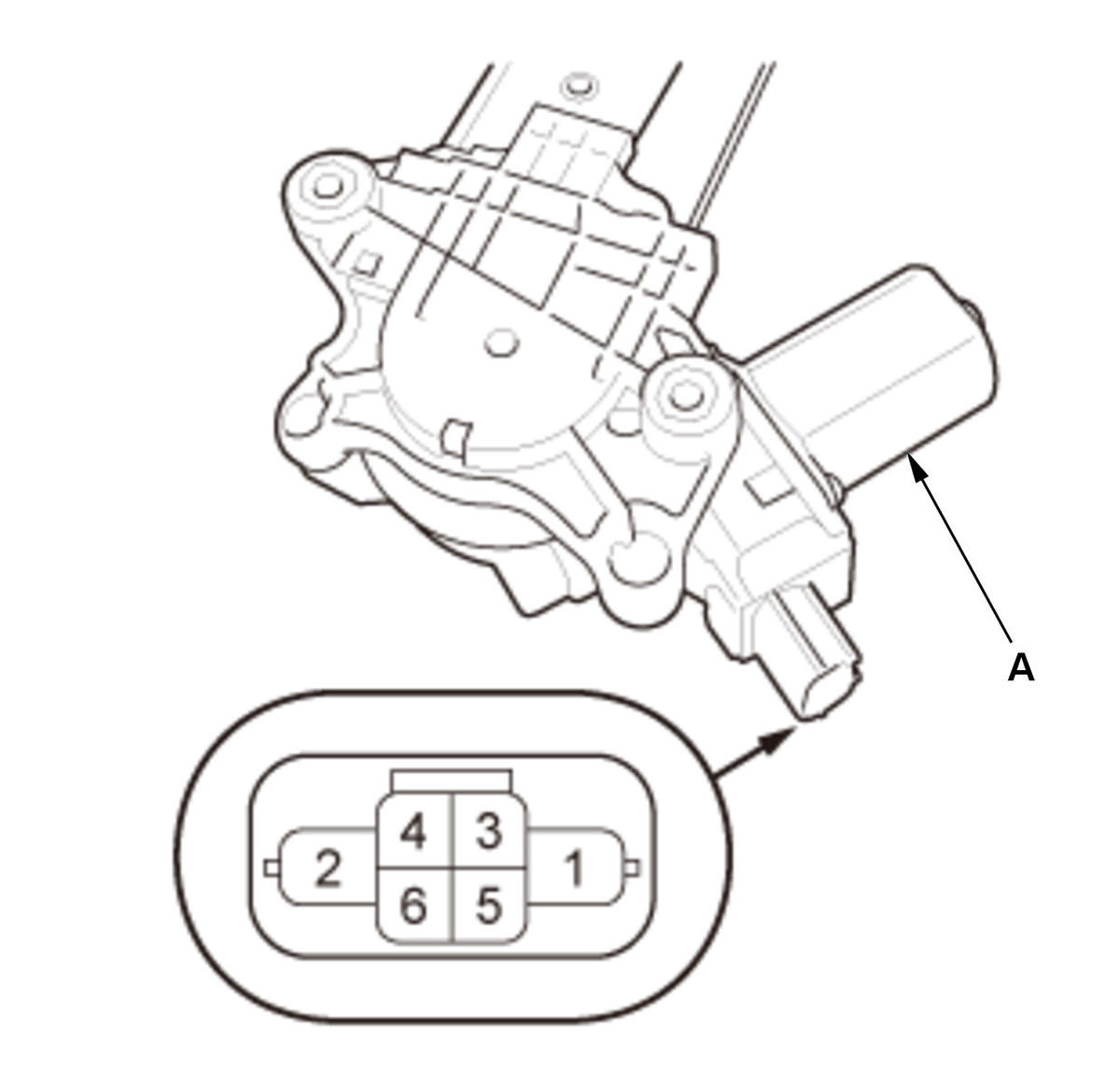

2. Test the driver's power window motor (A) by connecting 12 volt battery power and ground according to the table. When the motor stops running, disconnect 12 volt battery power immediately. 3. If the motor does not run or fails to run smoothly, the driver's power window motor is faulty; replace the driver's door regulator .
If the motor runs smoothly, replace the wire harnesses or adjust the driver's door glass .
Hall IC Unit (Pulser) Test
- Hall IC Unit (Pulser) - Test

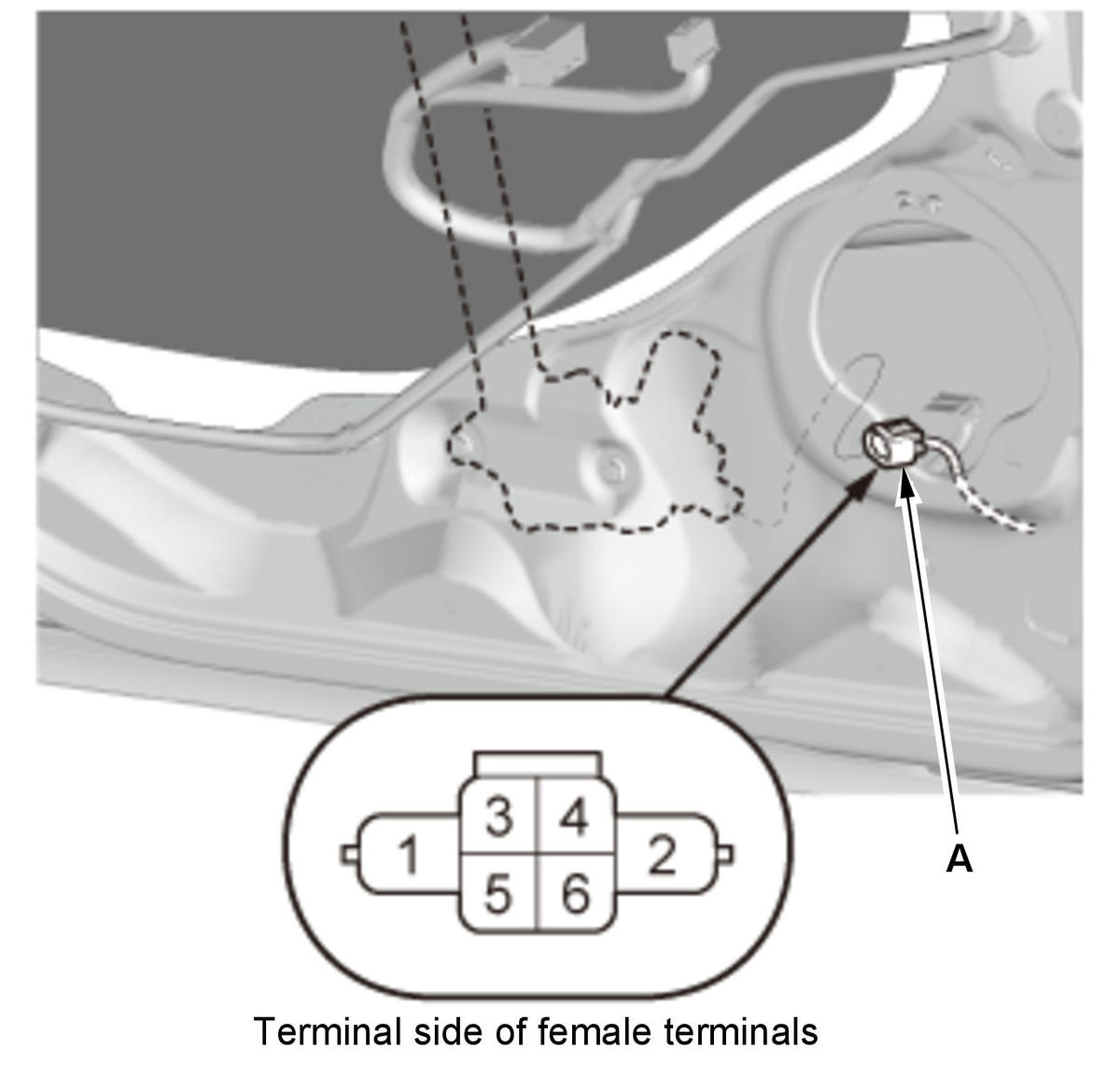

1. Remove the driver's door speaker 2. Disconnect the connector (A).
3. Check for continuity between the connector terminal No. 4 and body ground. There should be continuity.
- If there is continuity, connect the motor connector, then go to step 4.
- If there is no continuity, check for an open or high resistance in the BLK wire or poor ground (G401).

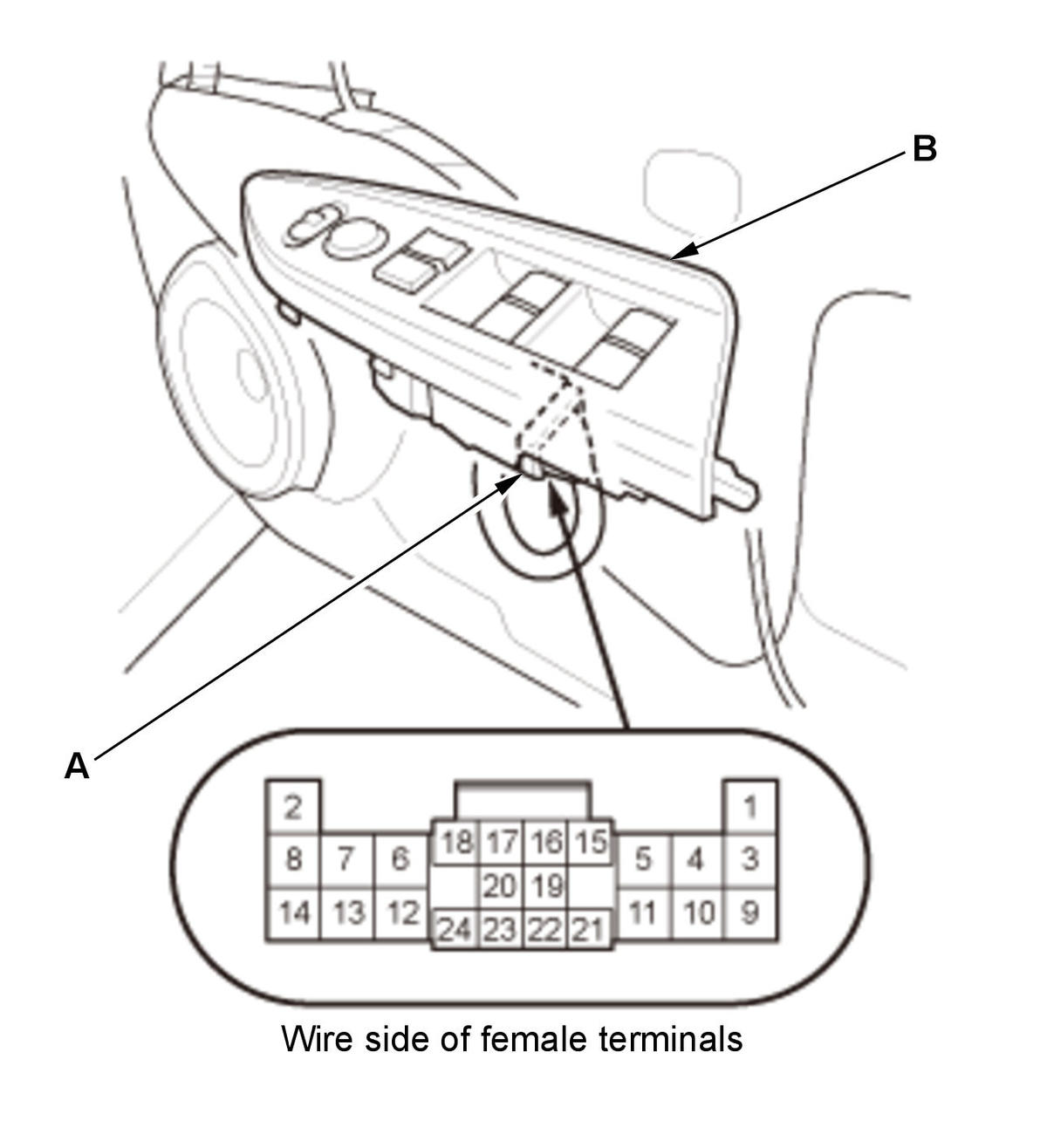

4. Connect the connector (A) to the power window master switch (B). 5. Turn the vehicle to the ON mode.
6. Do the power window master switch input test terminals No. 15, No. 16, No. 17, and No. 18
.
MTR SVCC circuit
MTR PLSA and MTR PLSB circuits
- If the voltage is as specified, replace the power window master switch .
- If the voltage is not specified, the Hall IC Unit (Pulser) is faulty; replace the driver's door regulator .
Power window master switch connector No. 16 No. 18 No. 17 No. 18 Power window master switch connector No. 15 No. 18 - All Removed Parts - Install
1. Install the parts in the reverse order of removal.
