Steering Tie-Rod End Ball Joint Boot Replacement: Removal

NOTE: How to read the torque specifications .

1. Vehicle - Lift
2. Front Wheel - Remove
3. Tie-Rod End Ball Joint - Disconnect

   Courtesy of HONDA, U.S.A., INC.

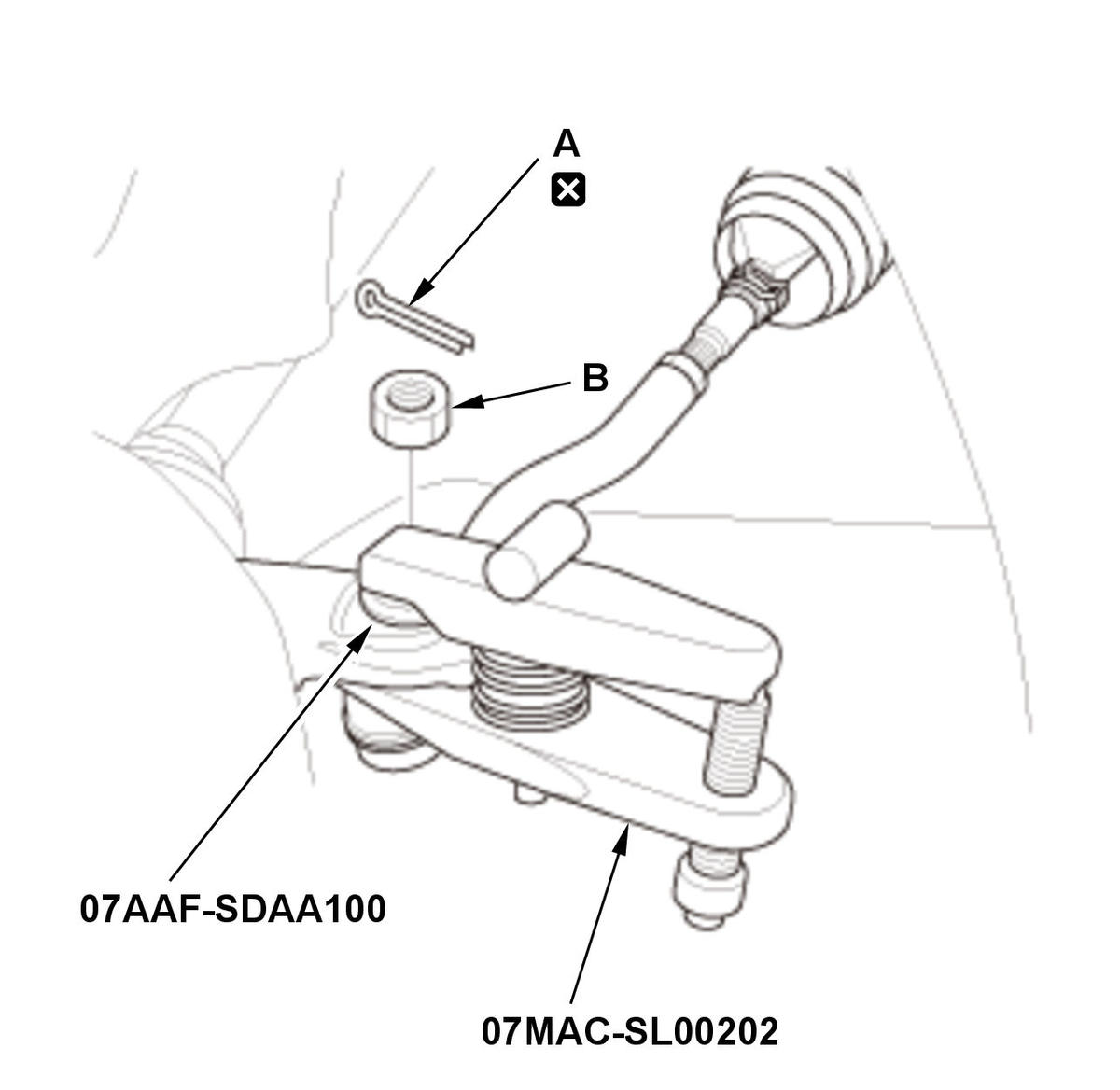

   1. Remove the cotter pin (A). 2. Remove the nut (B). 3. Disconnect the tie-rod end ball joint from the knuckle using the ball joint thread protector and the ball joint remover . NOTE:  Be careful not to damage the ball joint boot when installing the ball joint remover.

4. Tie-Rod End Ball Joint Boot - Remove

   Courtesy of HONDA, U.S.A., INC.

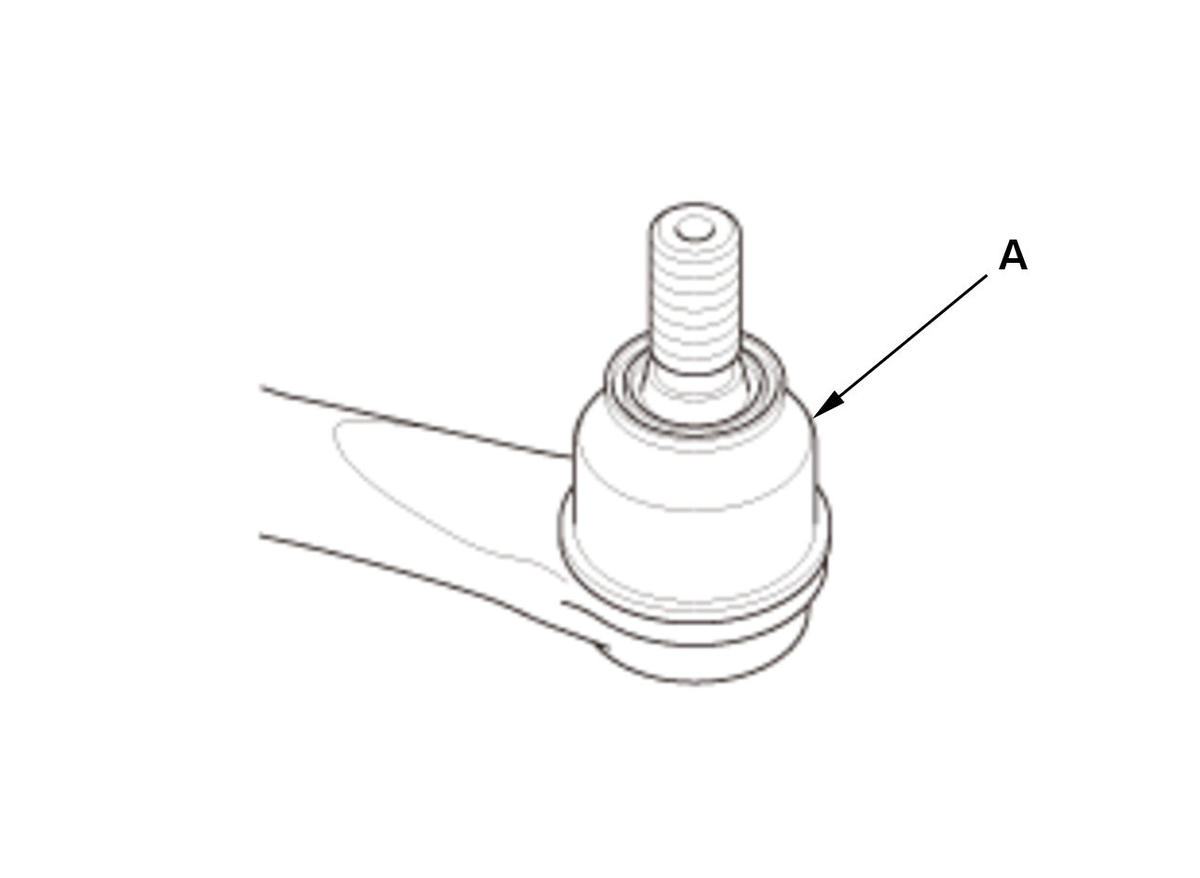

   1. Remove the ball joint boot (A) from the tie-rod end. 2. Wipe the old grease off the ball pin.
