Steering System - Testing & Troubleshooting (Plug-In)
>>
Circuit Diagram
>>

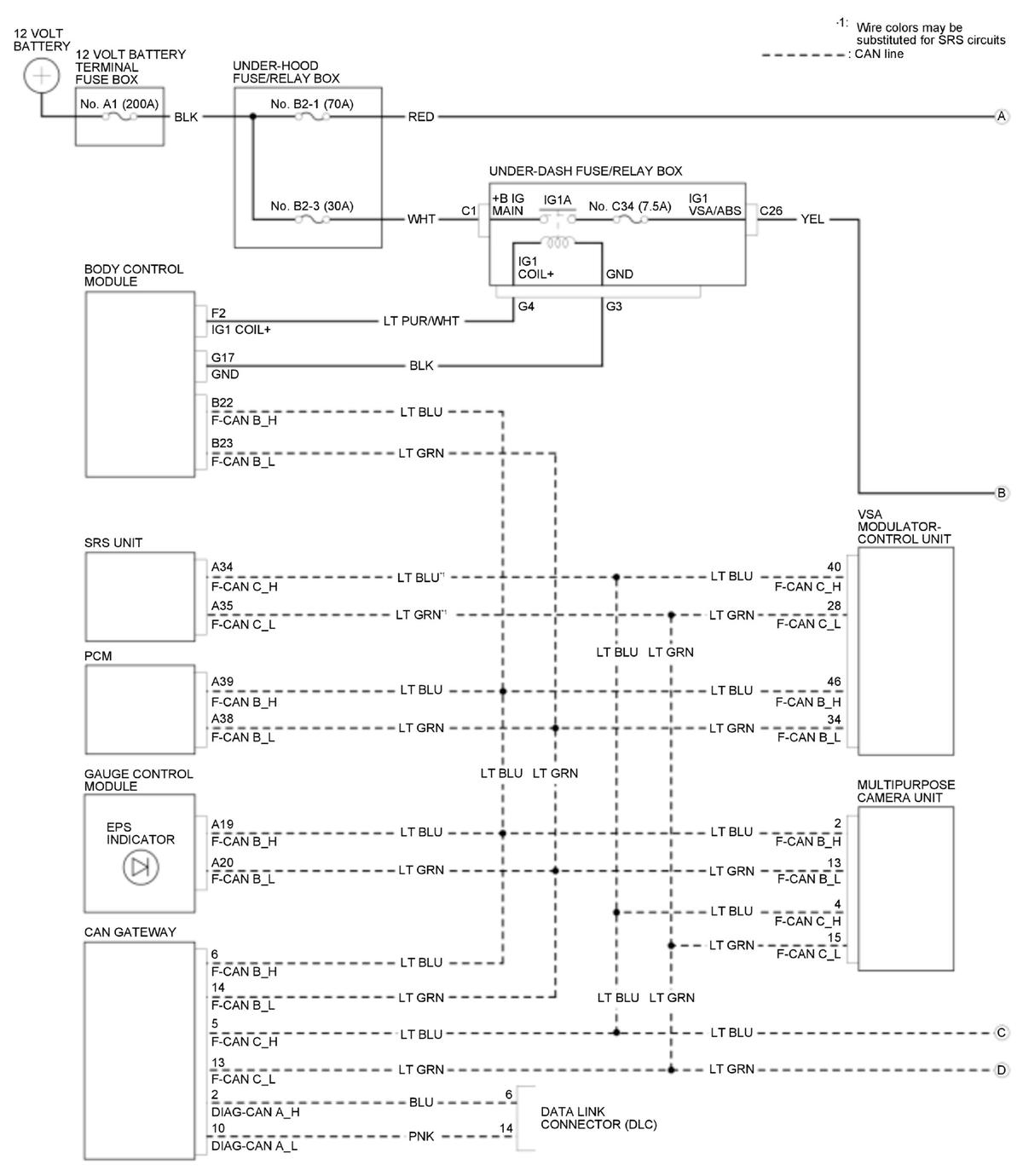

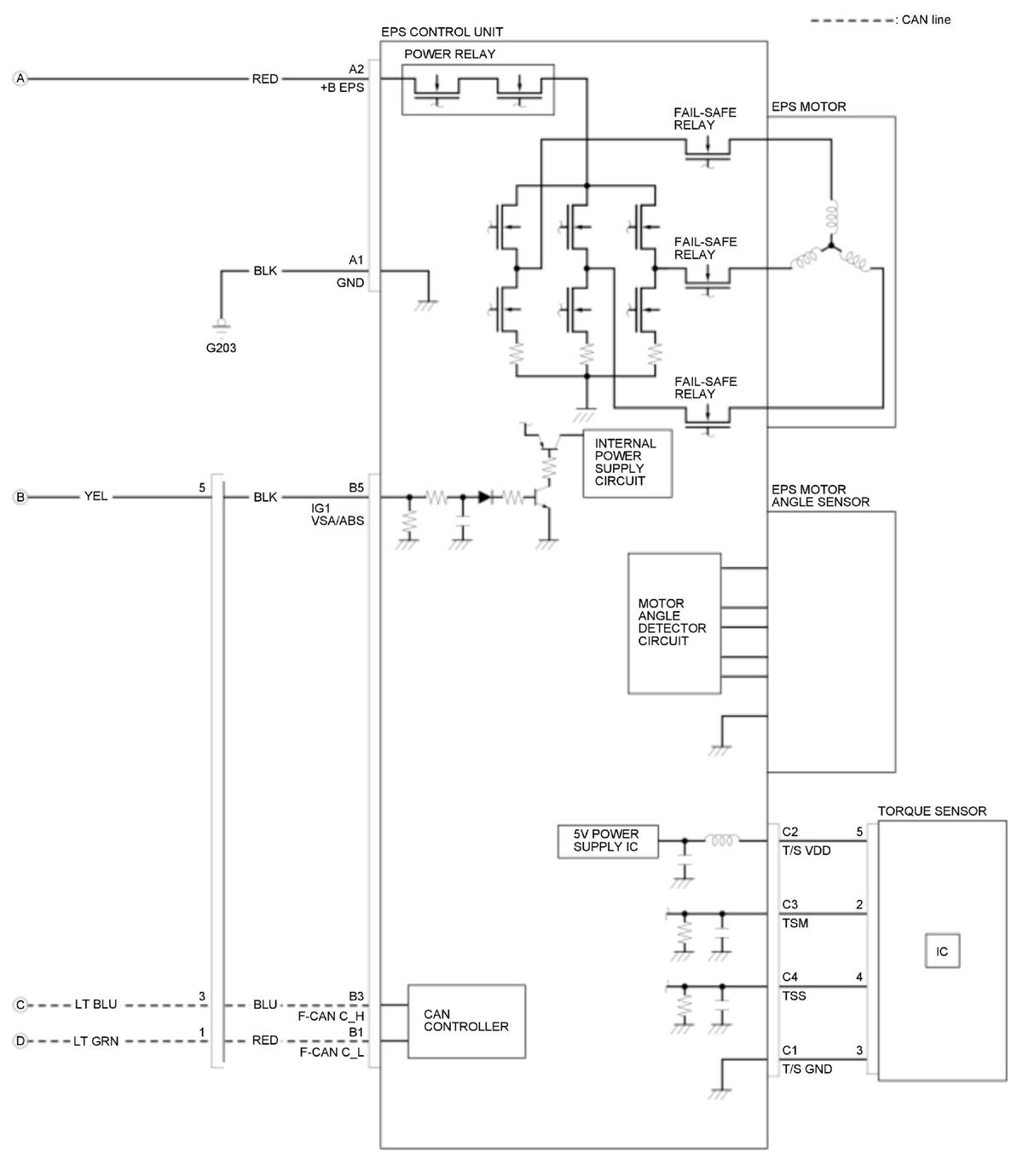

EPS Circuit Diagram
EPS Circuit Diagram
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
