Lubricants and Fluids
| Application |
Lubricant or Fluid |
| Engine |

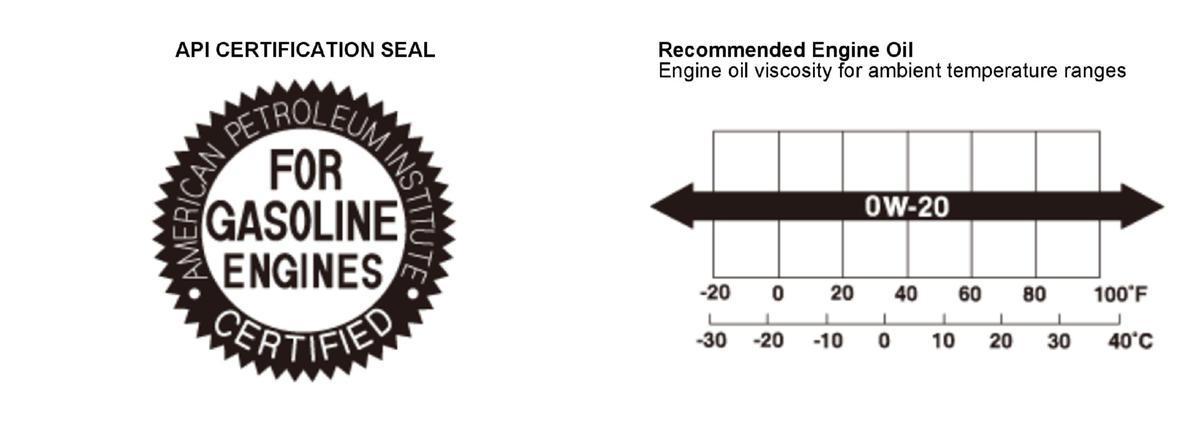

Honda Motor Oil: 0W-20 Look for the API certification seal on the oil container.Make sure it says "For Gasoline Engines."SAE Viscosity: See chart.
|
| Transmission (e-CVT) |
Honda Automatic Transmission Fluid (ATF DW-1):Always use Honda ATF DW-1.Using a non-Honda ATF can affect shift quality. |
| Brake system (including VSA lines) |
Honda DOT 3 Brake Fluid: Always use Honda DOT 3 Brake Fluid. Using a non-Honda brake fluid can cause corrosion and decrease the life of the system |
| Cooling system (Engine coolant/ES coolant/DT coolant) |
Use Honda Long Life Antifreeze/Coolant Type 2, and add Honda Extreme Cold Weather Antifreeze/Coolant Type 2. NOTE:
If the vehicle is regularly driven in very low temperatures (below -22 deg.F (-30 deg.C)), a 60 % concentration of coolant should be used.
|
 Courtesy of HONDA, U.S.A., INC.
|

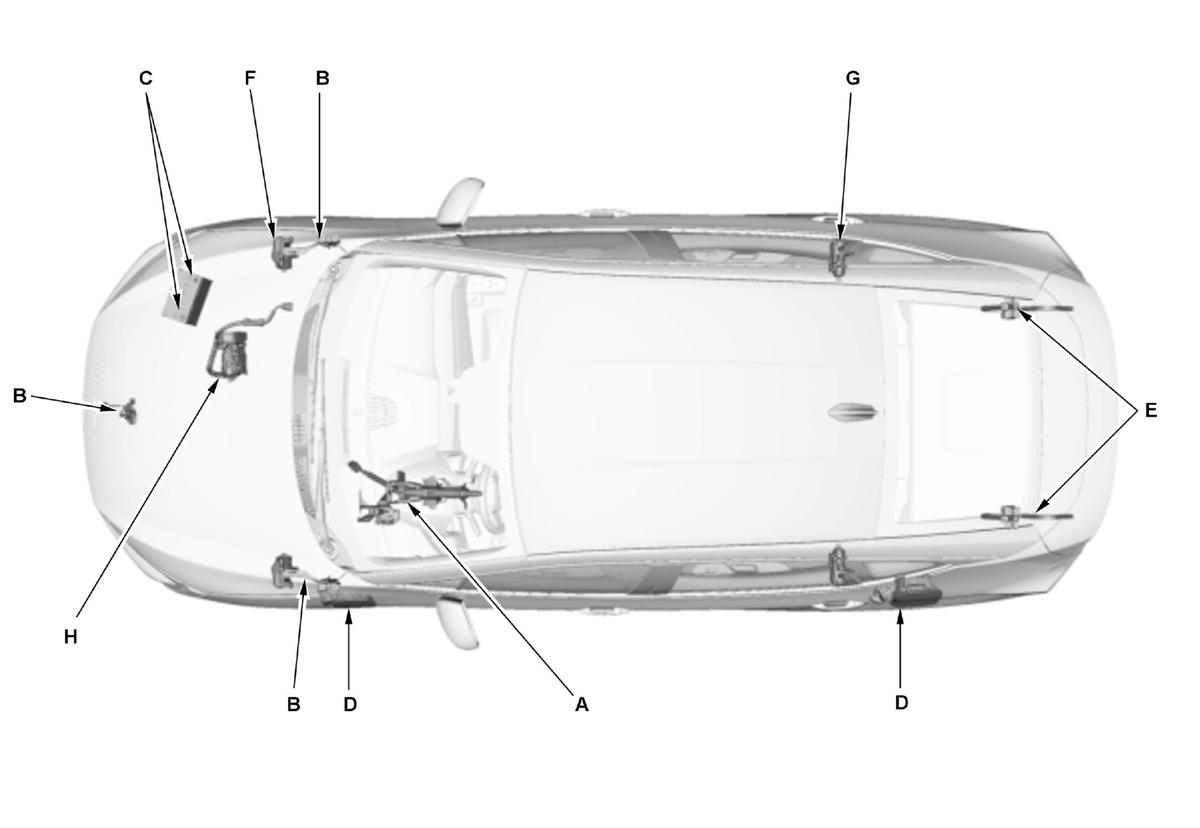

For the details of the lubrication points and the type of lubricants to be applied, refer to the illustrated index and the various work procedures (such as Assembly/Reassembly, Replacement, Overhaul, Installation, etc.) contained in each section.
| Application |
Lubricant or Fluid |
| A |
Brake booster yoke pin |
Multipurpose grease |
| B |
Hood Lock and hood hinges |
| C |
12 volt battery terminals |
| D |
Fuel fill door/Charge Lid |
| E |
Tailgate hinges |
| F |
Front brake caliper pins and pin boots |
Honda silicone grease (P/N 08C30-B0234M) or service set grease (NIGLUBE RM) |
| Front brake caliper piston seals |
Honda silicone grease (P/N 08C30- B0234M) or service set grease (Shin-Etsu Chemical KS62M) |
| Front brake caliper piston boots |
Honda silicone grease (P/N 08C30- B0234M) or service set grease (Cosmo Rubber Grease) |
| Front brake caliper piston |
Brake fluid DOT3 |
| G |
Rear brake caliper pin |
Honda silicone grease (P/N 08C30-B0234M) or caliper set grease (KLUBER GLK1) |
| Rear brake caliper piston seals |
Caliper set oil (KLUBER 9R100, No. 32960018) |
| Rear brake caliper piston boots |
| Rear brake caliper piston |
Brake fluid DOT3 |
| Application |
Lubricant or Fluid |
| H |
Air conditioning compressor |
Compressor Oil: SANDEN SE-A2 (POE oil: P/N 38899-5WM-013) for refrigerant HFO-1234yf (R-1234yf) |
NOTE:
- Lubricate the following areas using the recommended lubricants and fluids.
- In corrosive areas, more frequent lubrication is necessary.
|
 Courtesy of HONDA, U.S.A., INC.
|
