Retainer Replacement
A disconnected quick-connect fitting can be reconnected, but the retainer on the mating line cannot be reused once it has been removed from the line.
NOTE: Use the same manufacturer retainer and the same size retainer when the replacing the retainer.
| Location | Manufacturer | Retainer color | Piping diameter | Remarks |

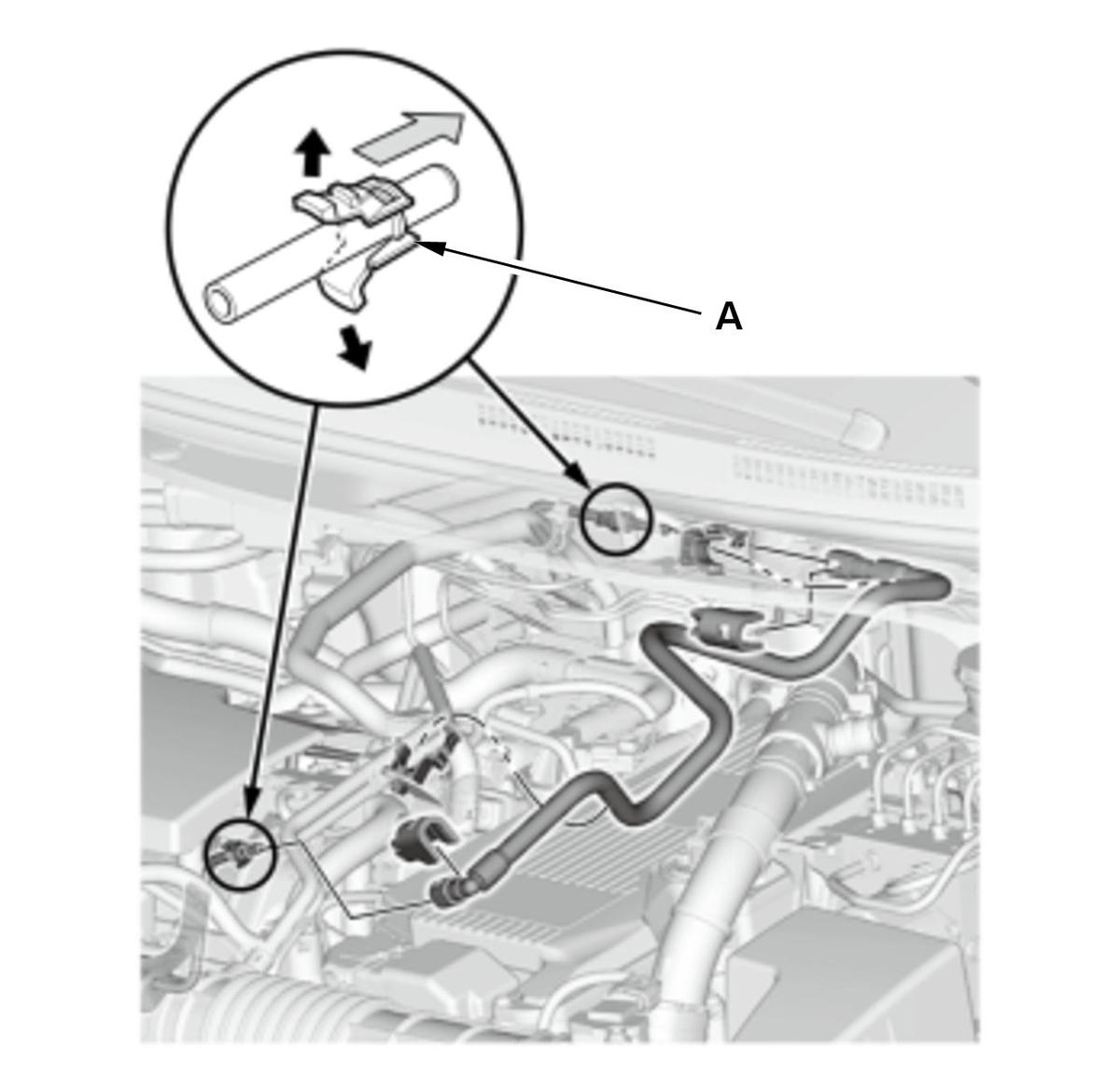

| Fuel feed pipe retainer (A) | Tokai | Green | 0.2500 in(6.35 mm) | |

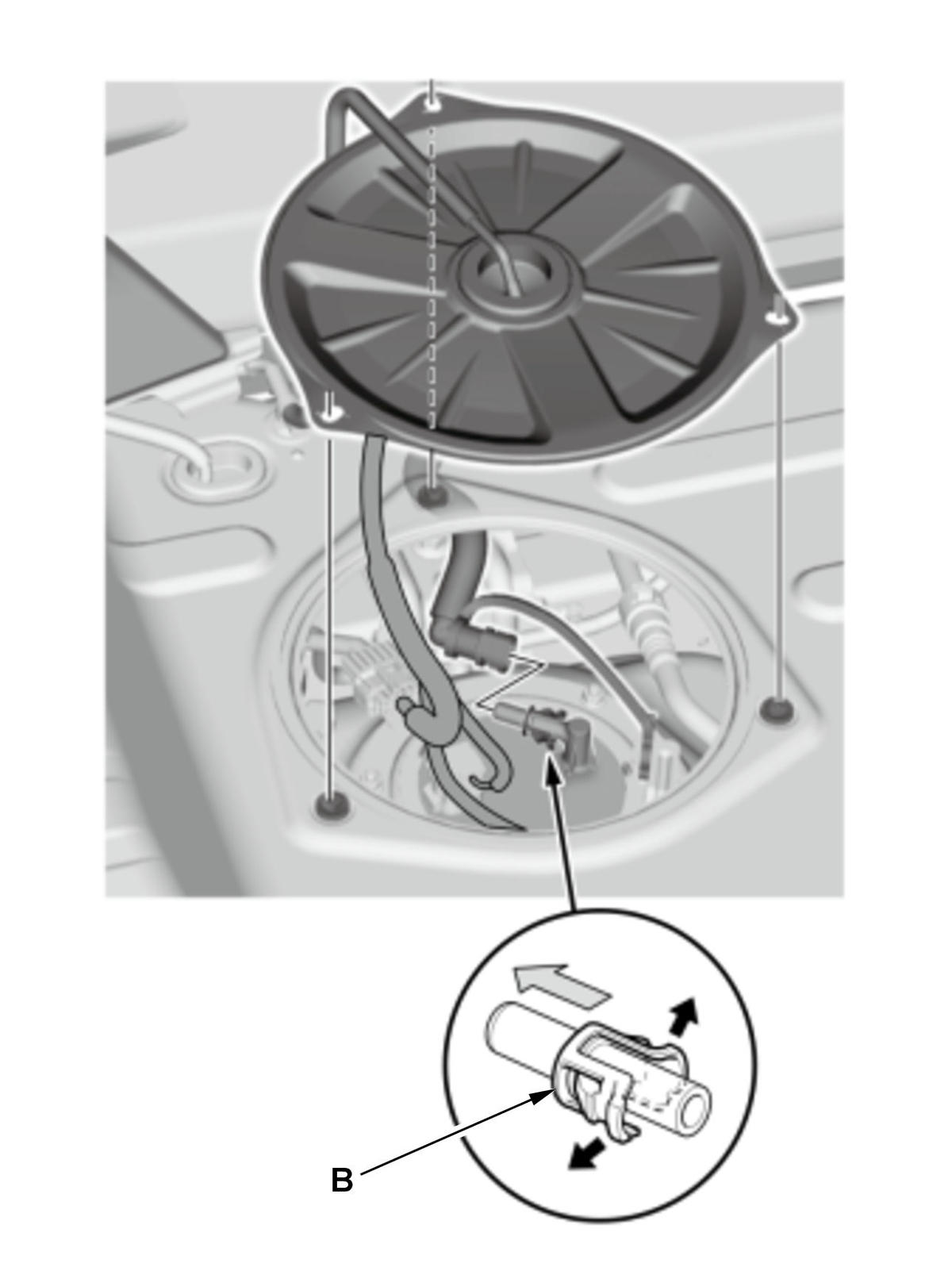

| Fuel tank unit retainer (B) | Sanoh | White | 0.374 in(9.5 mm) | |

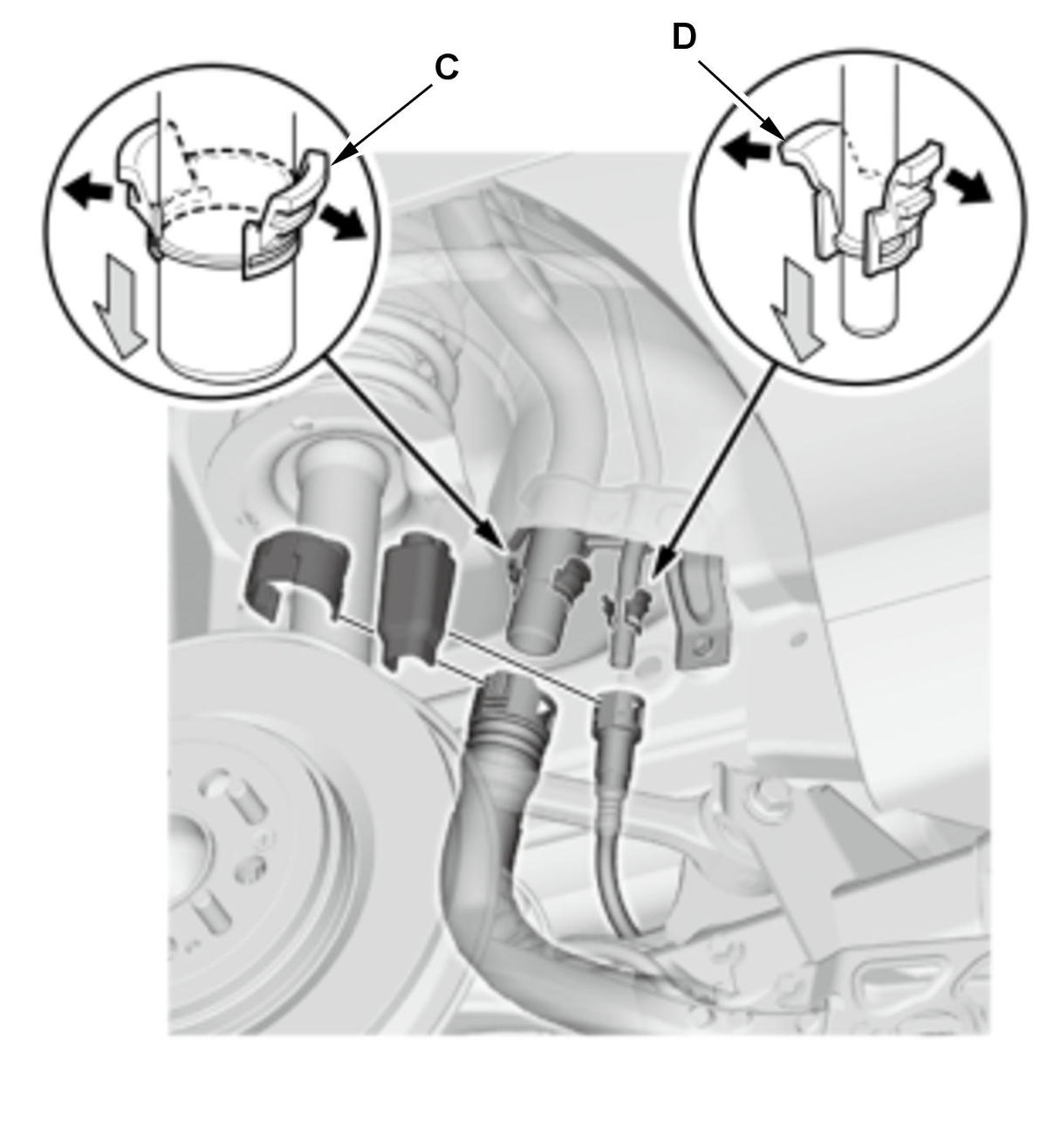

| Fuel fill pipe (C) | Tokai | Green | 1.126 in (28.6 mm) | |
| Fuel fill pipe (D) | Sumitomo Riko | Natural | 0.47 in (12 mm) | |

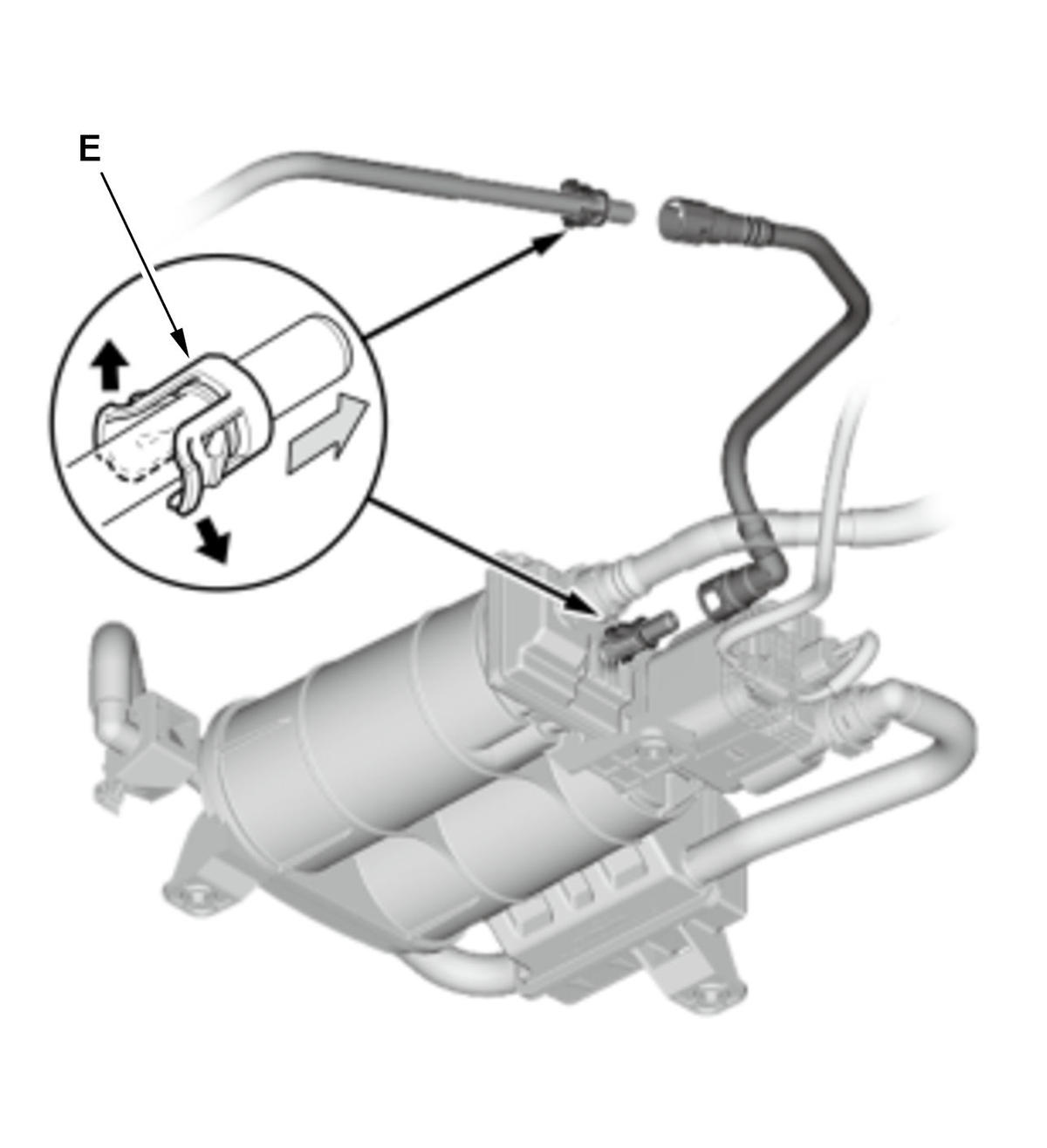

| EVAP canister (E) | Sanoh | White | 0.47 in (12 mm) | |

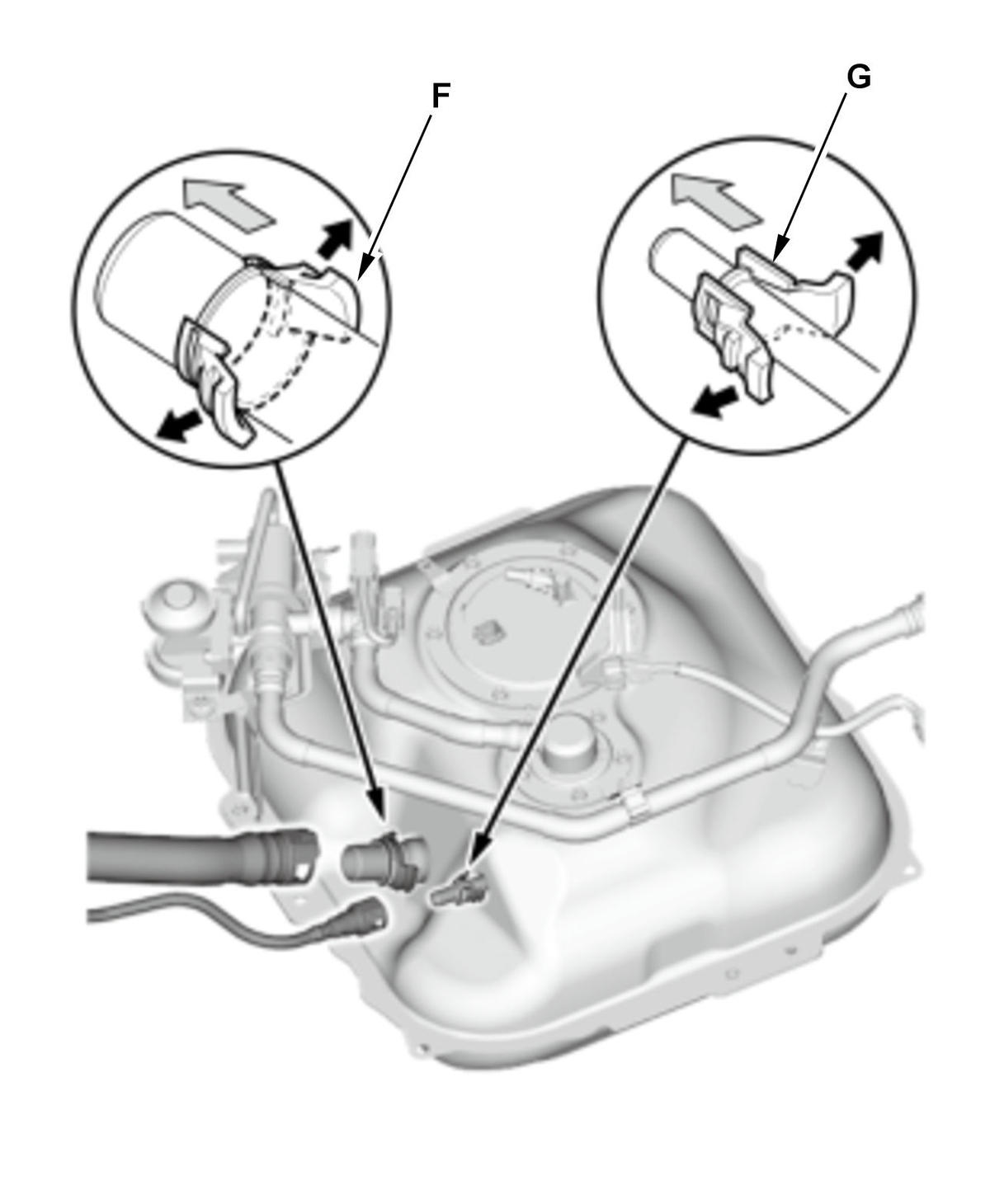

| Fuel tank (F) | Tokai | Green | 1.126 in (28.6 mm) | |
| Fuel tank (G) | Tokai | Natural | 0.47 in (12 mm) |
