Fuel Line/Quick-Connect Fitting Removal

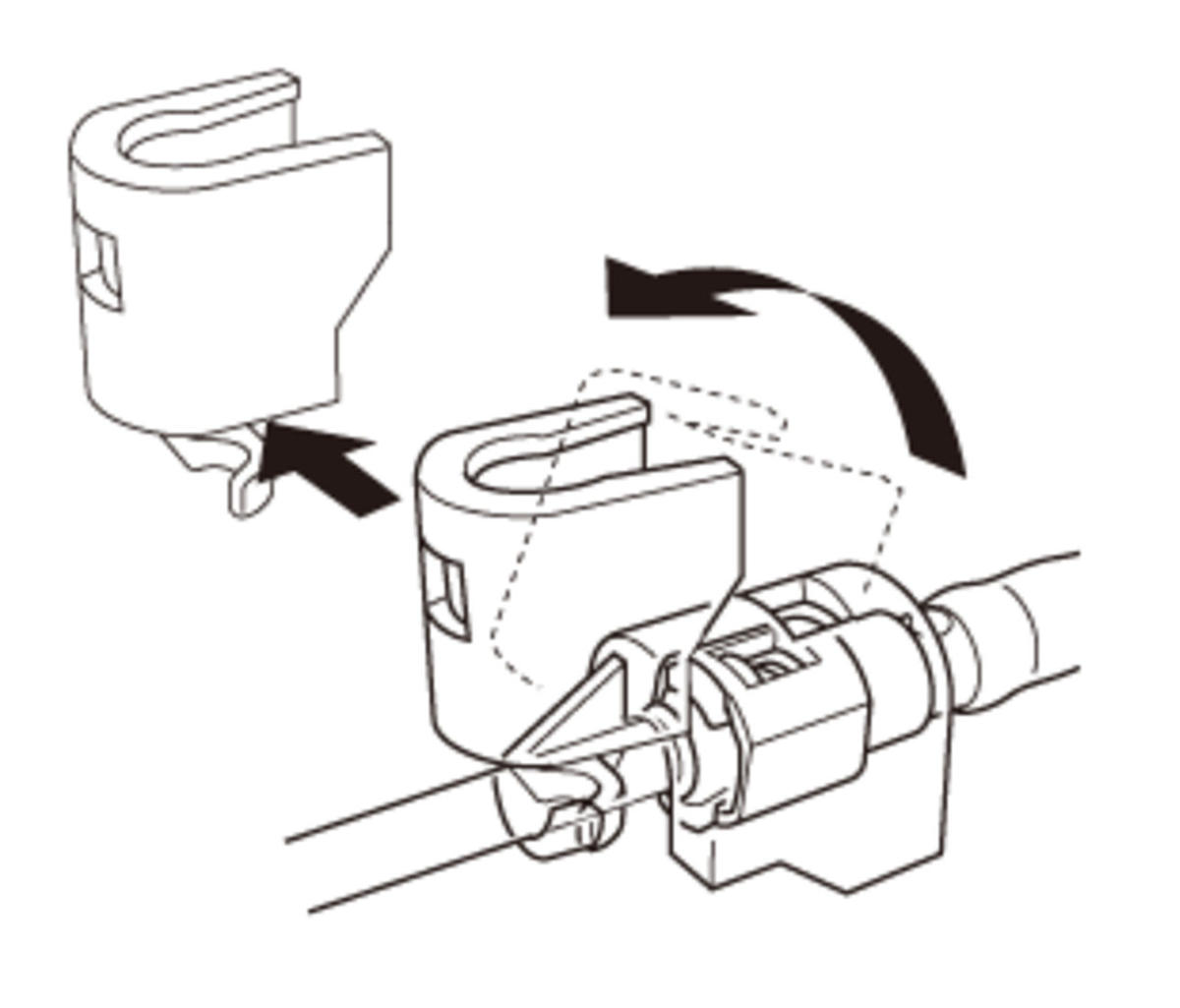

1. Remove the fuel line/quick-connect fitting cover (If equipped).

Courtesy of HONDA, U.S.A., INC.

2. Check the fuel quick-connect fittings for dirt, and clean it if needed.

3. Place a rag or shop towel over the quick-connect fitting.

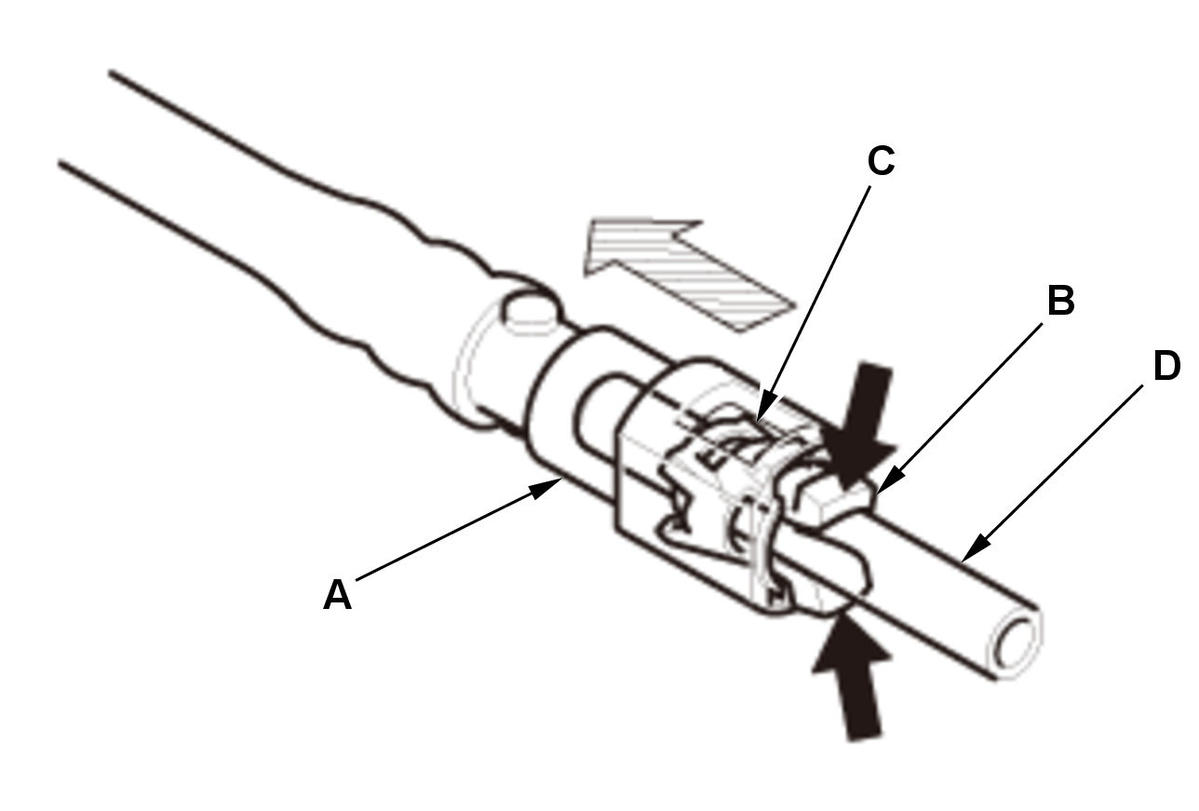

4. Hold the connector (A) with one hand, and squeeze the retainer tabs (B) with the other hand to release them from the locking tabs (C).

Courtesy of HONDA, U.S.A., INC.

Pull the connector off.NOTE:

• Be careful not to damage the line (D) or other parts. Do not use tools.
• If the connector does not move, keep the retainer tabs pressed down, and alternately pull and push the connector until it comes off easily.
• Do not remove the retainer from the line; once removed, the retainer must be replaced with a new one.

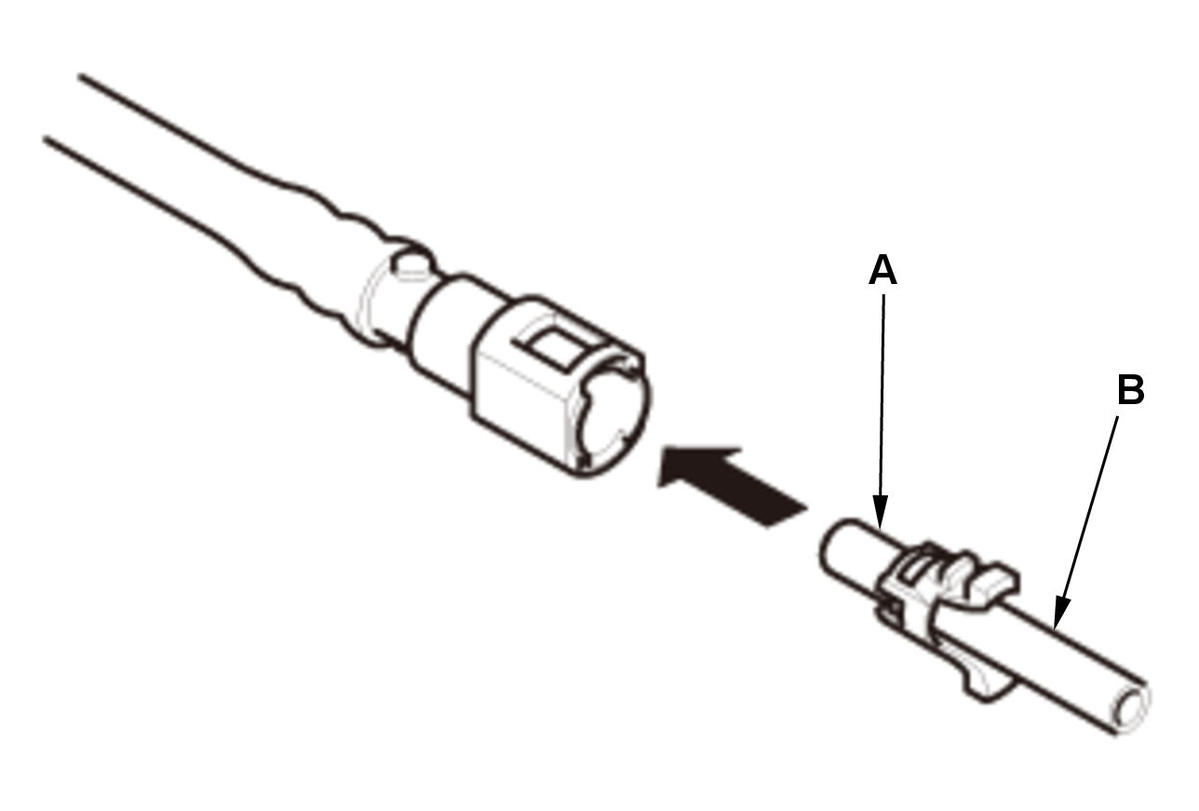

Check the contact area (A) of the line (B) for dirt or damage.

• If it is dirty, clean it.
• If it is rusty or damaged, replace the damaged fuel line or the damaged part.

Courtesy of HONDA, U.S.A., INC.

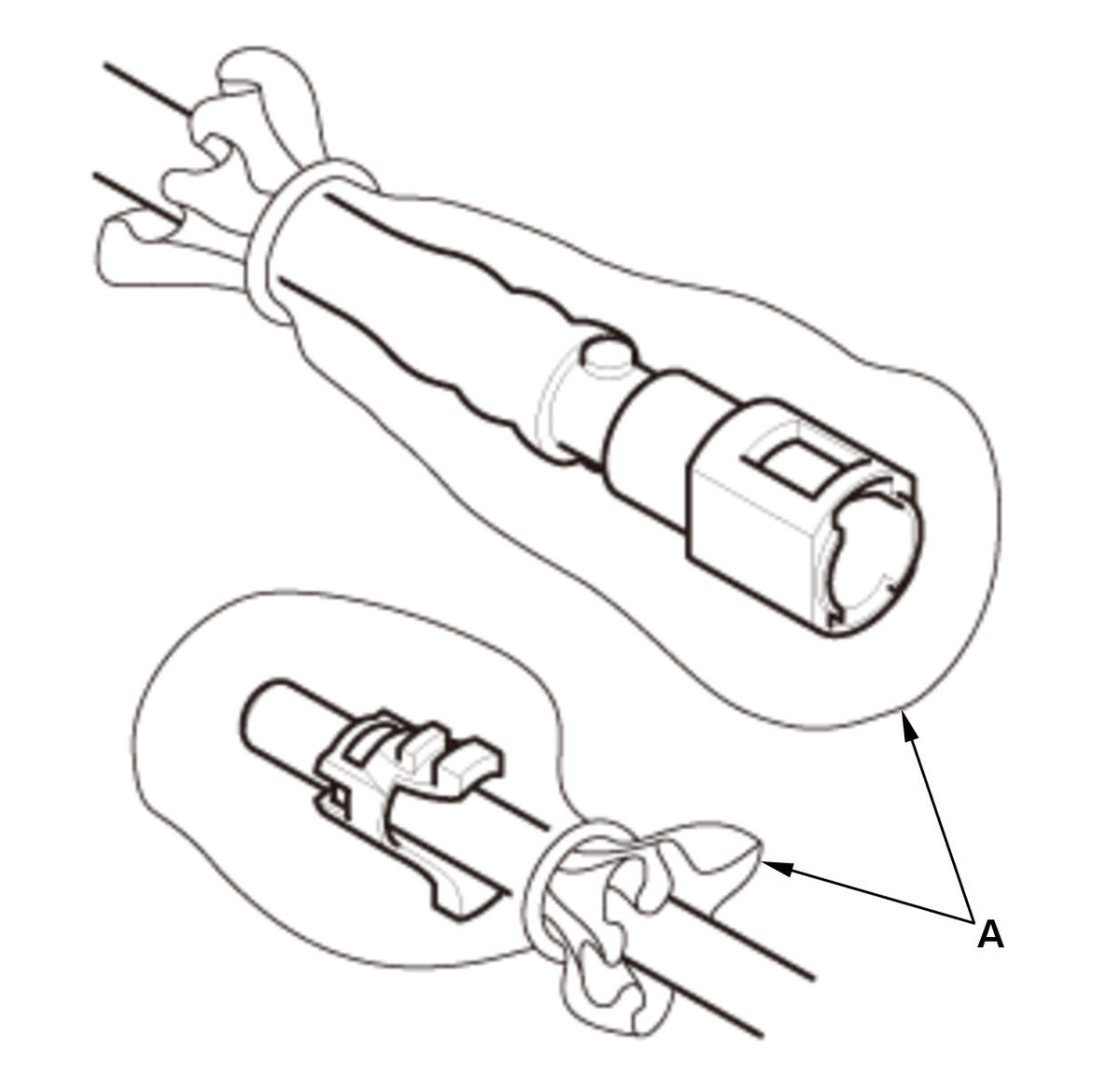

To prevent damage and keep foreign matter out, cover the disconnected connector and line ends with plastic bags (A).

• NOTE:  The retainer cannot be reused once it has been removed from the line.
• Replace the retainer when:
• • -

    replacing new part which does not pack with the suitable retainer. (a fuel line, a fuel tank unit etc.)

  • -

    it has been removed from the line.

  • -

    it is damaged.

Courtesy of HONDA, U.S.A., INC.
