Engine Assembly Mount: Procedure

NOTE:  Reinstall the mounting bolts and nuts in the sequence given in the following steps. Failure to follow this sequence may cause excessive noise and vibration, and severe damage to the engine mount brackets.

1. Jack - Remove

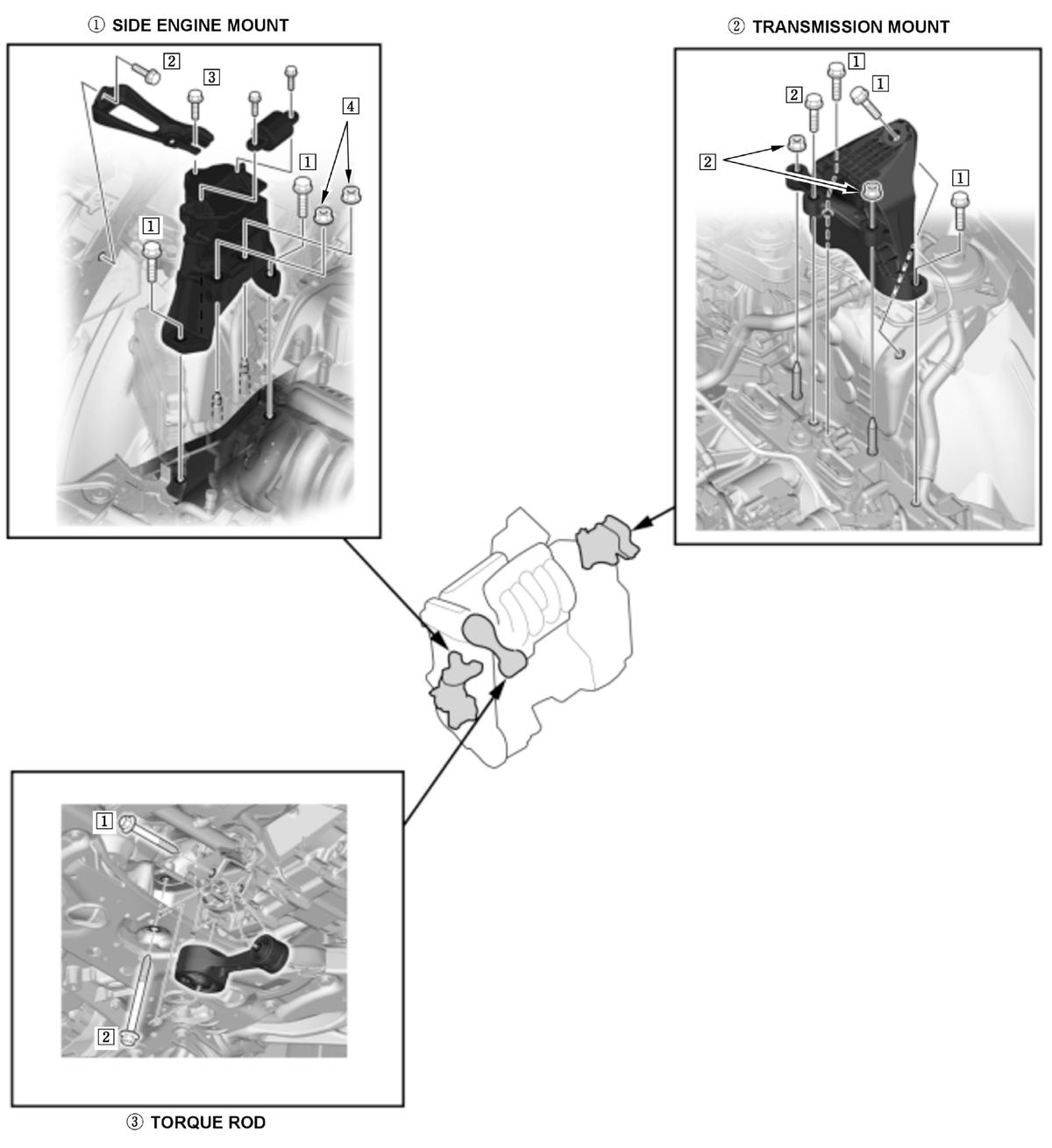

2. Engine/Transmission Mount - Tightening Procedure

   NOTE:

   • When the side engine mount is removed, loosely install the side engine mount, loosen the bolts and nuts of 's and , 's before tightening. Then tighten 's bolts at first and temporarily tighten the 's bolt, then tighten other remaining bolts and nuts as the corresponding procedures that can be seen on the following table.
   • When the transmission mount is removed, loosely install the transmission mount, loosen the bolt of 's before tightening. Then tighten other remaining bolts and nuts as the corresponding procedures that can be seen on the following table.

   Tightening Sequence

   Mount Removed	Mount Tightening Sequence
   Side Engine Mount	, ,
   Transmission Mount	,
   Torque Rod

   Tightening Torque

   Mount No.	Mount Name	Mount Bolt/Nut Tightening Sequence
   	Side Engine Mount	49 N.m (5.0 kgf.m, 36 lbf.ft)Replace.	54 N.m (5.5 kgf.m, 40 lbf.ft)Replace.	54 N.m(5.5 kgf.m, 40 lbf.ft)Replace.	93 N.m (9.5 kgf.m, 69 lbf.ft)Replace.
   	Transmission Mount	74 N.m (7.5 kgf.m, 55 lbf.ft)Replace.	49 N.m(5.0 kgf.m, 36 lbf.ft)Replace.
   	Torque Rod	83 N.m (8.5 kgf.m, 61 lbf.ft)Replace.	95 N.m(9.7 kgf.m, 70 lbf.ft)Replace.

   Courtesy of HONDA, U.S.A., INC.
