Cam Chain Auto-Tensioner: Installation: Procedure

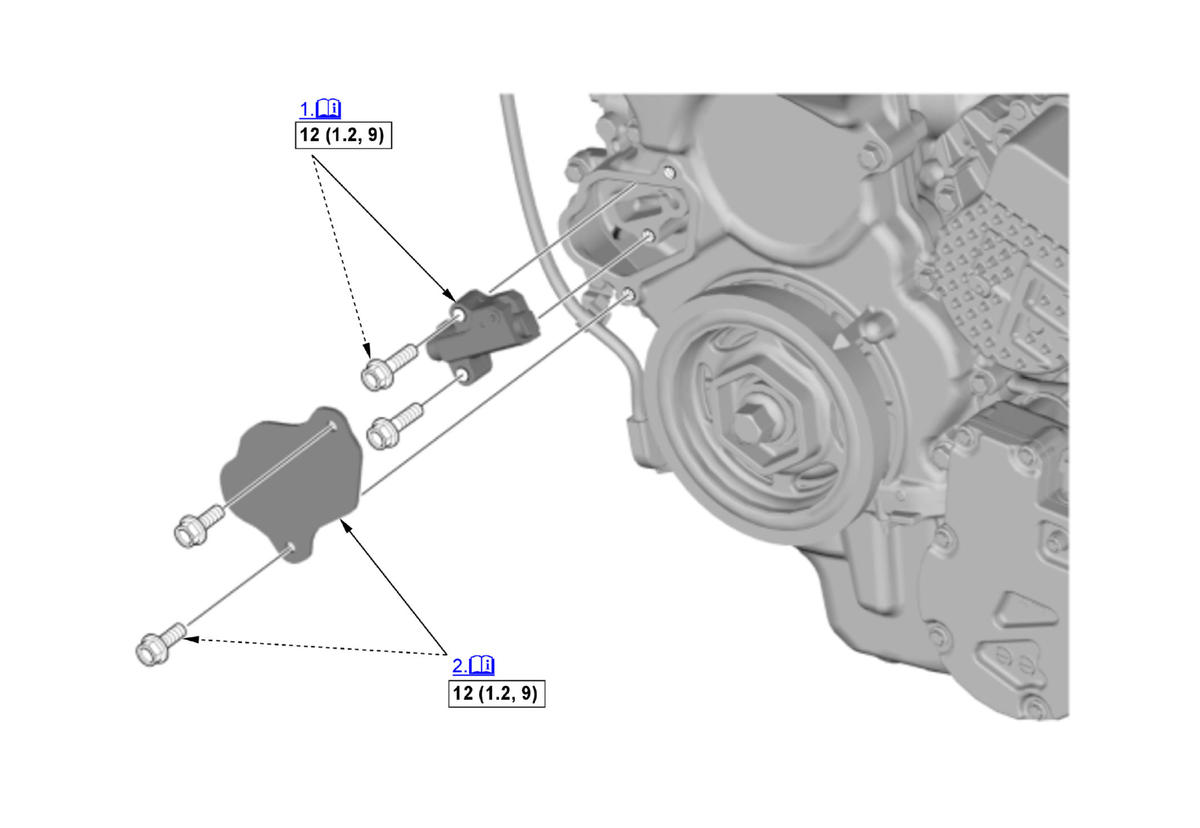

Fig 1: Cam Chain Auto-Tensioner With Torque Specifications
GHH418252Courtesy of HONDA, U.S.A., INC.
Detailed information, notes, and precautions
Torque: N.m (kgf.m, lbf.ft)
  1. Cam Chain Auto-Tensioner - Install

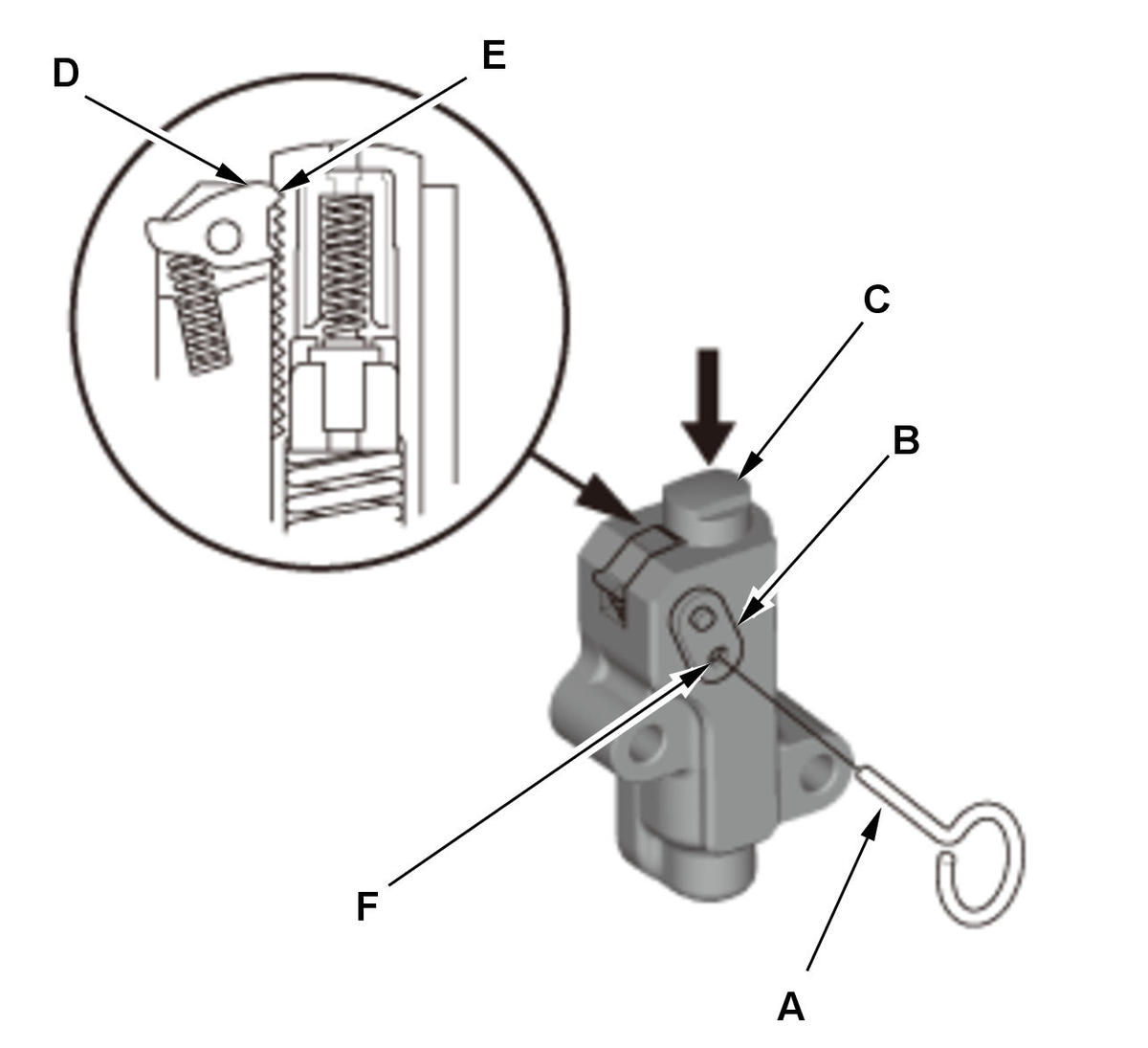

    GHH418253Courtesy of HONDA, U.S.A., INC.
    		 1. Compress the cam chain auto-tensioner when replacing the cam chain. Remove the pin (A) from the cam chain auto-tensioner that was installed during removal. Turn the plate (B) counterclockwise, to release the lock, then press the rod (C), and set the first cam (D) to the first edge of the rack (E). Insert the 1.2 mm (3/64 in) diameter pin back into the holes (F).

    NOTE:  If the cam chain auto-tensioner is not set up as described, the cam chain auto-tensioner will be damaged.

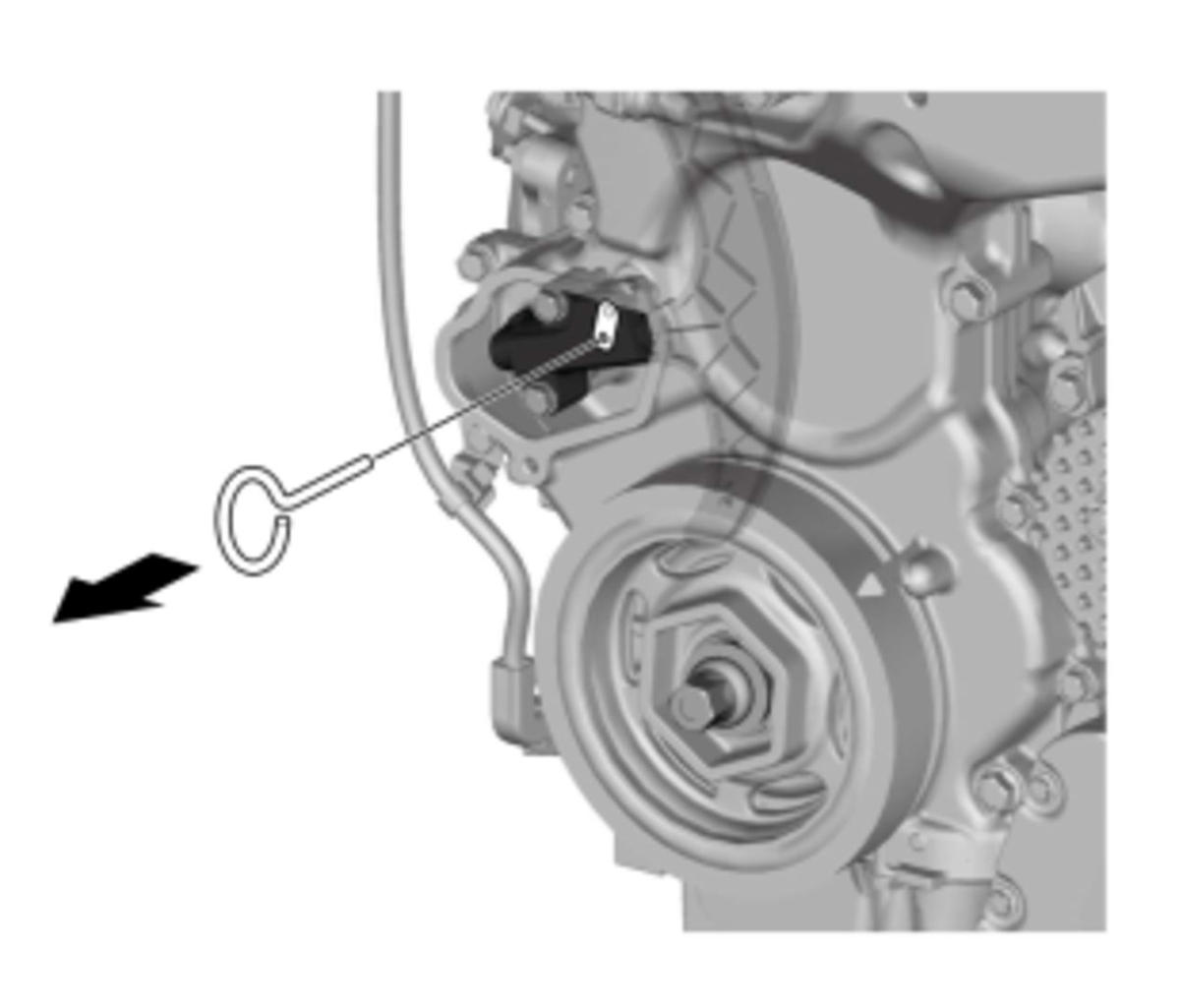

    GHH418254Courtesy of HONDA, U.S.A., INC.
    		 2. Install the cam chain auto-tensioner.

    3. Remove the pin from the cam chain auto-tensioner.
  2. Chain Case Cover - Install

    NOTE: Apply liquid gasket to the chain case mating surface of the chain case cover and to the inside edge of the threaded bolt holes.

  3. Motor Undercover - Install
  4. Right Front Wheel - Install
