VSA - Agile Handling Assist Control

Overview

Where previous VSA systems activated at the limit of a turn, the agile handling assist control activates across everyday driving situations providing a safer and more enjoyable driving experience.Agile handling assist responds to the increase/decrease in steering input and vehicle action is made smooth at the same time as it improves response to steering operation and reduced steering. The action of steering is accomplished with a smaller amount of steering operation.

Control

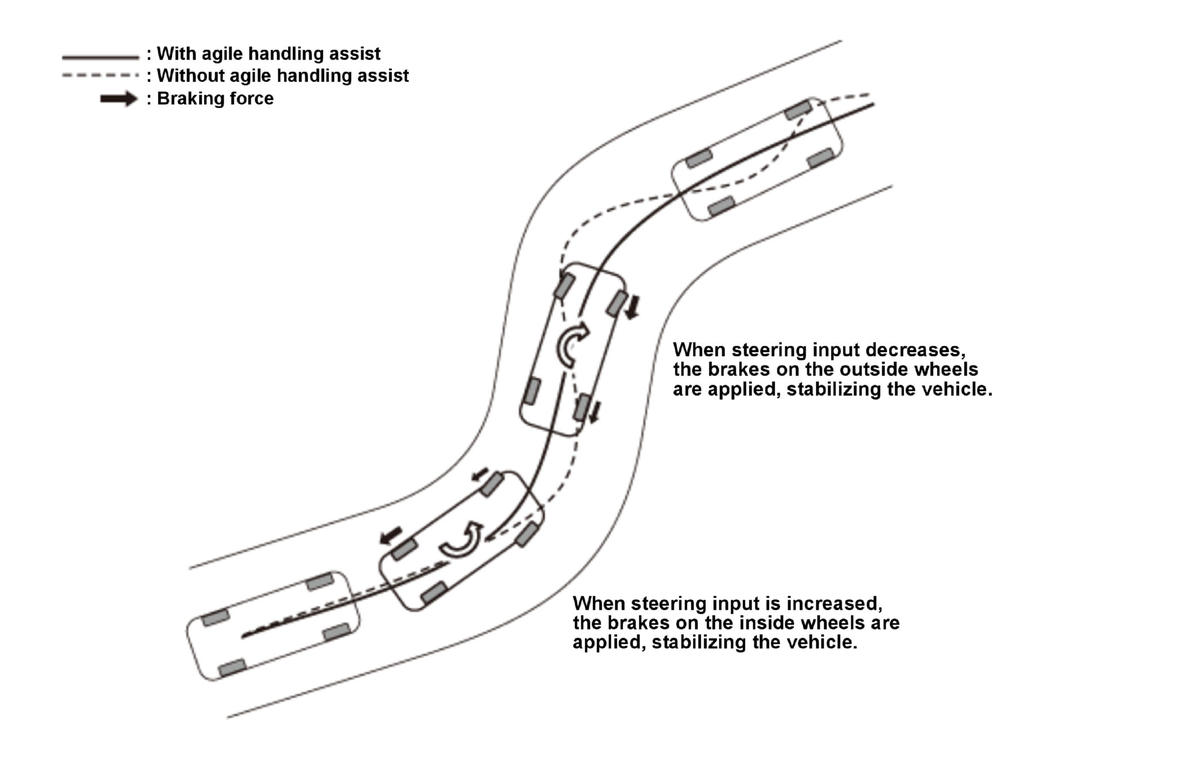

Agile Handling Assist Control Overview

Courtesy of HONDA, U.S.A., INC.

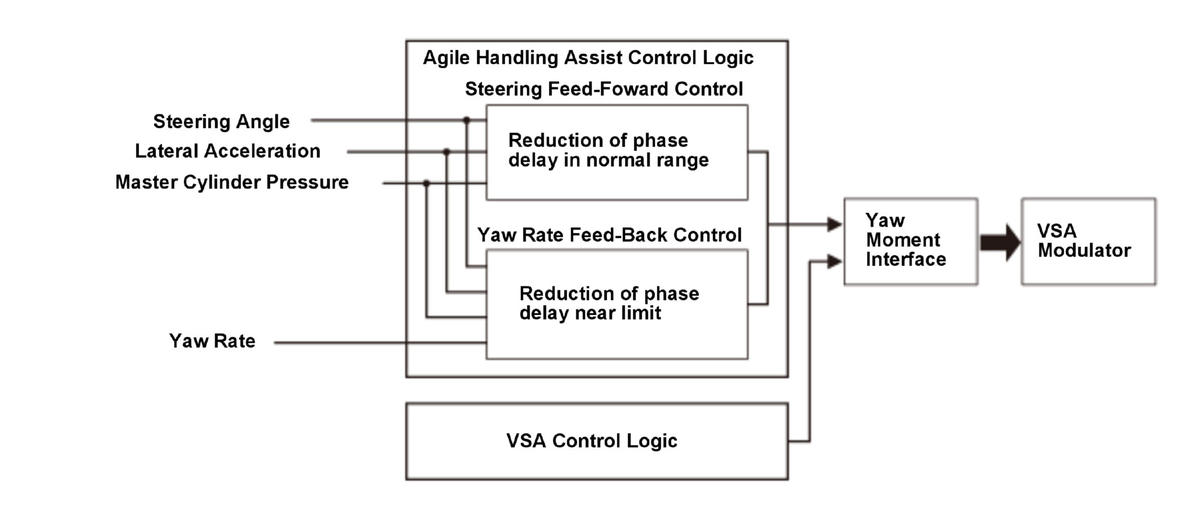

Control Block

Courtesy of HONDA, U.S.A., INC.

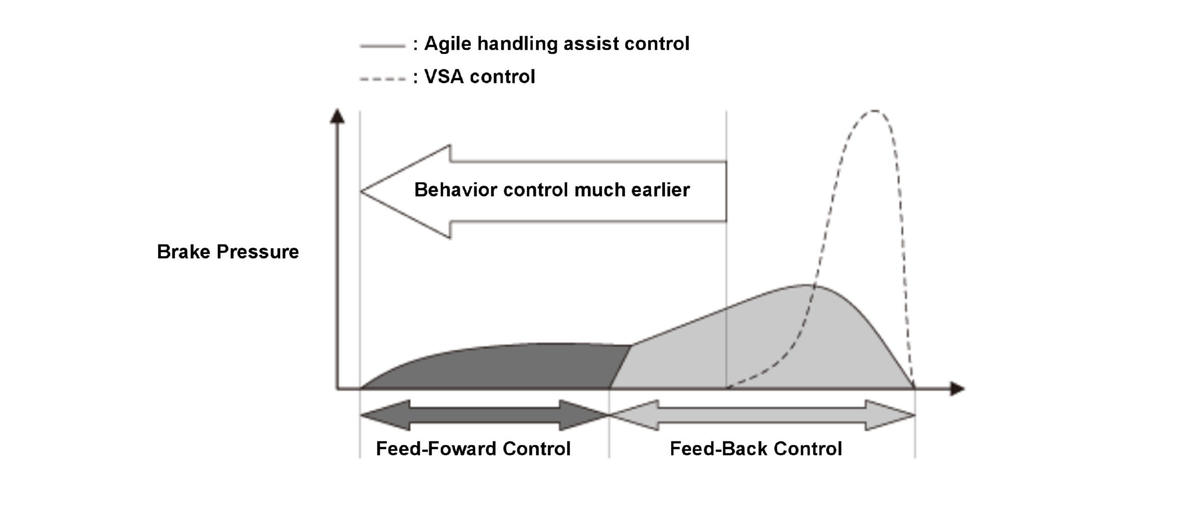

Brake Pressure Control Image

Courtesy of HONDA, U.S.A., INC.
