Seat Heaters

Heater Control

Front Seat Heaters

The front seat heater control unit sets the seat heater to High/Mid/Low or OFF based on the seat heater switch signals received from the climate control unit via the B-CAN. The front seat heater control unit monitors the thermistor resistance, the voltage/current/temperature to the heater, and the presence of communication with the climate control unit. Also, the system stores DTCs when a malfunction is detected in the front seat heater control unit.

Thermistor and Breaker

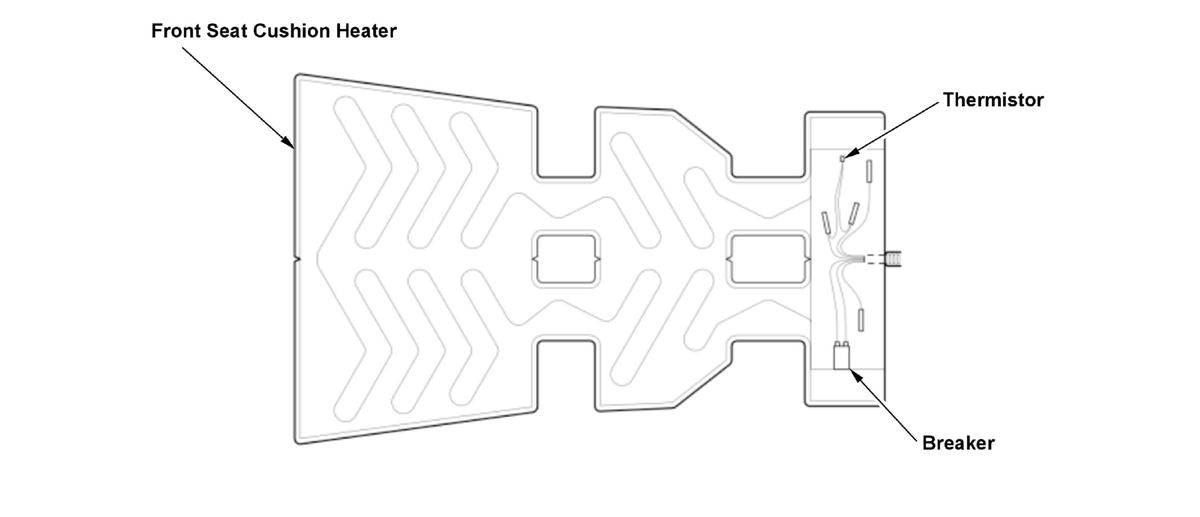

The seat cushion heater has a thermistor and breaker. The thermistor and breaker protect the seat heater circuit from overheating. The value of the thermistor is inputted to the control unit.

Courtesy of HONDA, U.S.A., INC.

The seat heater temperature is controlled by breaker ON and OFF condition.
