Unit Check (Quick Check): Notes
These screens allow you to diagnose the audio-navigation unit and related units. Some of the tests and screens that are displayed under the Unit Check are same as the checks listed under the Detail Information and setting.

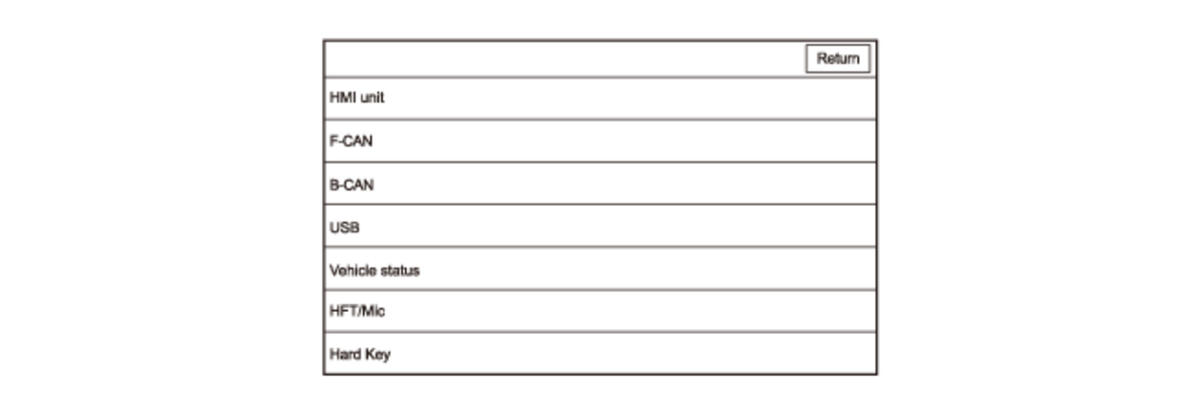

To start the test, select the item you want to check.
NOTE:
These items describe in indication order. Swipe the screen to check the next items.
- HMI Unit
- F-CAN
- B-CAN
- USB
- Vehicle status
- HFT/Mic
- Hard Key
- Error history
- Rear wide camera
- LaneWatch
- Remote tuner
- XM Ant.
- Center display
- Meter Display
- GPS antenna
- HD Traffic
- Gyro Sensor
- A/C
- Telematics Diag (not supported)
