Gyro Sensor

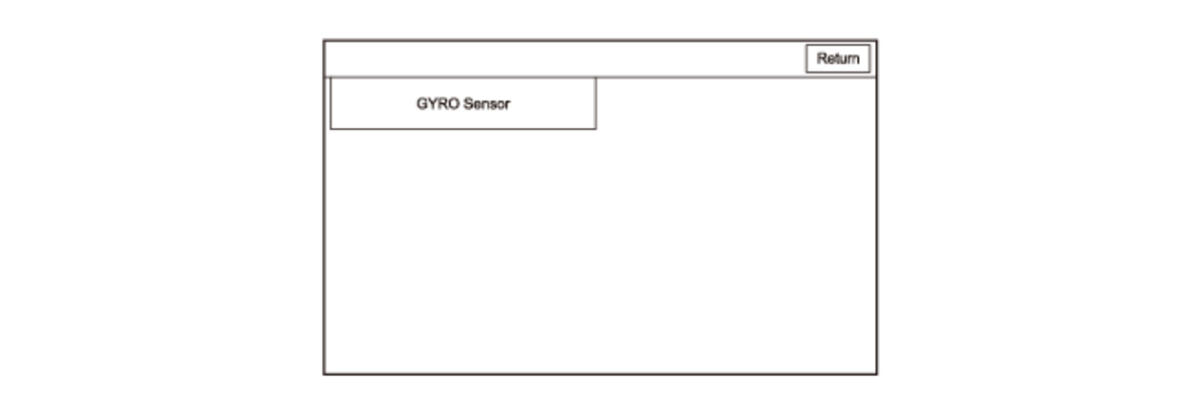

This diagnosis checks the gyro sensor in the audio-navigation unit. This device detects how the vehicle moves, and repositions the vehicle position icon on the map screen. Select the GYRO Sensor.

Courtesy of HONDA, U.S.A., INC.

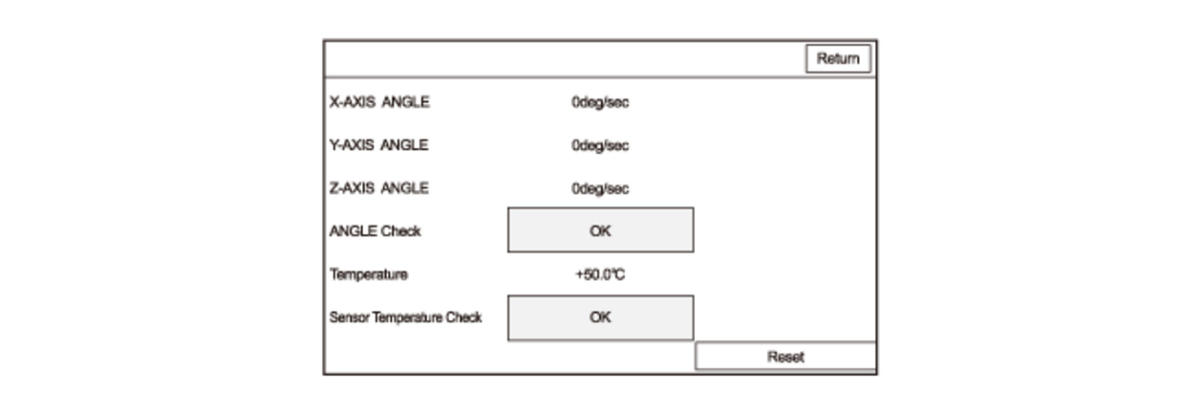

• X/Y/Z AXIS ANGLE: Indicates the angular speed of the gyro sensor.
• ANGLE Check: The audio-navigation unit checks if the angular speed is in range of threshold value.
• Temperature: Indicates the temperature of the gyro sensor.
• Sensor Temperature Check: The audio-navigation unit checks if the gyro sensor temperature is in range of threshold value.
• Reset: All values can be reset to the factory specification.

Courtesy of HONDA, U.S.A., INC.
