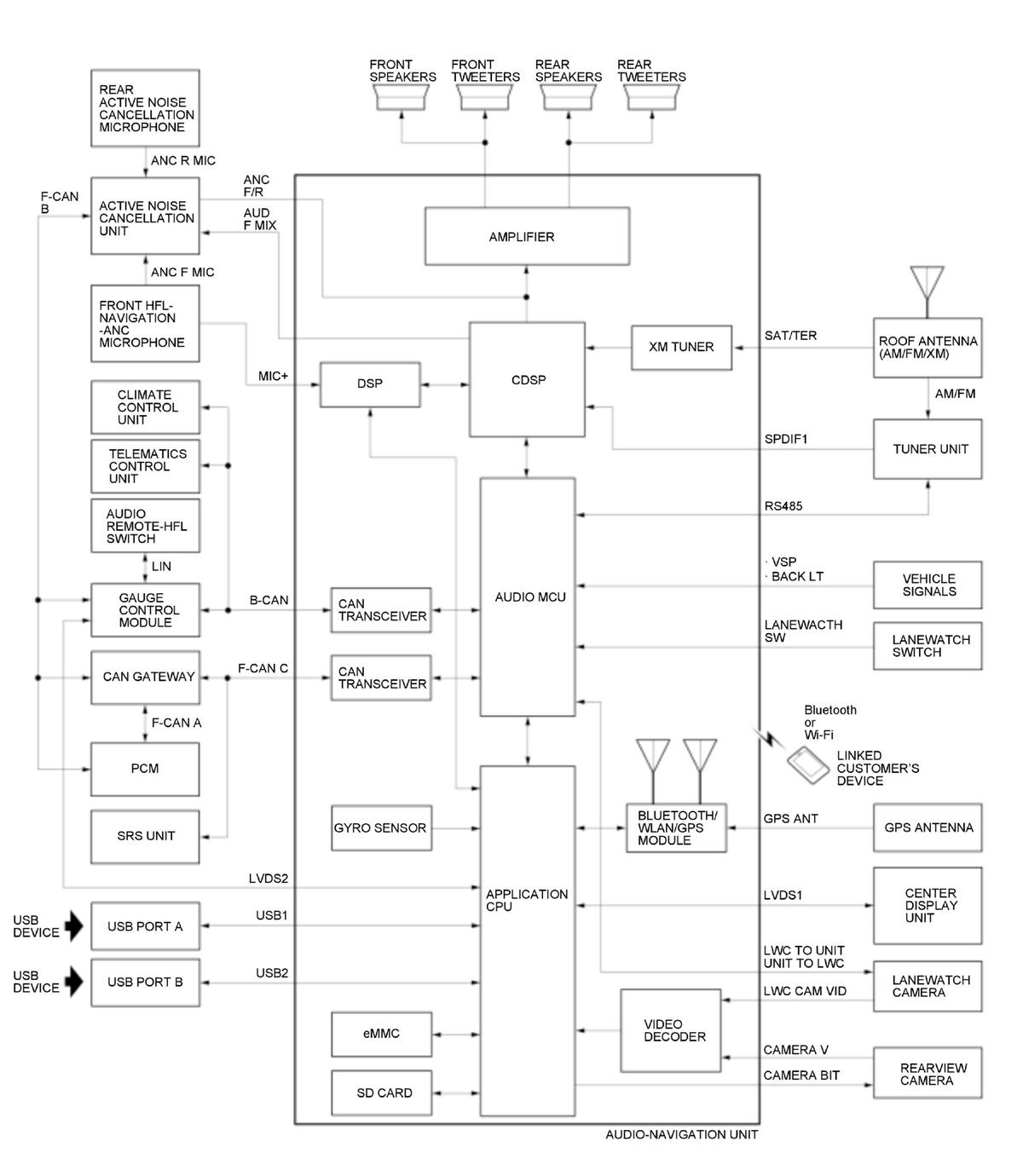

Navigation System - System Diagram

For locations of each component on vehicle, refer to Component Location Index.

• Audio system components
• Navigation system components
• Telematics control unit
• Gauge control module
• Climate control unit
• SRS unit
• PCM, CAN gateway
• LaneWatch camera

Courtesy of HONDA, U.S.A., INC.

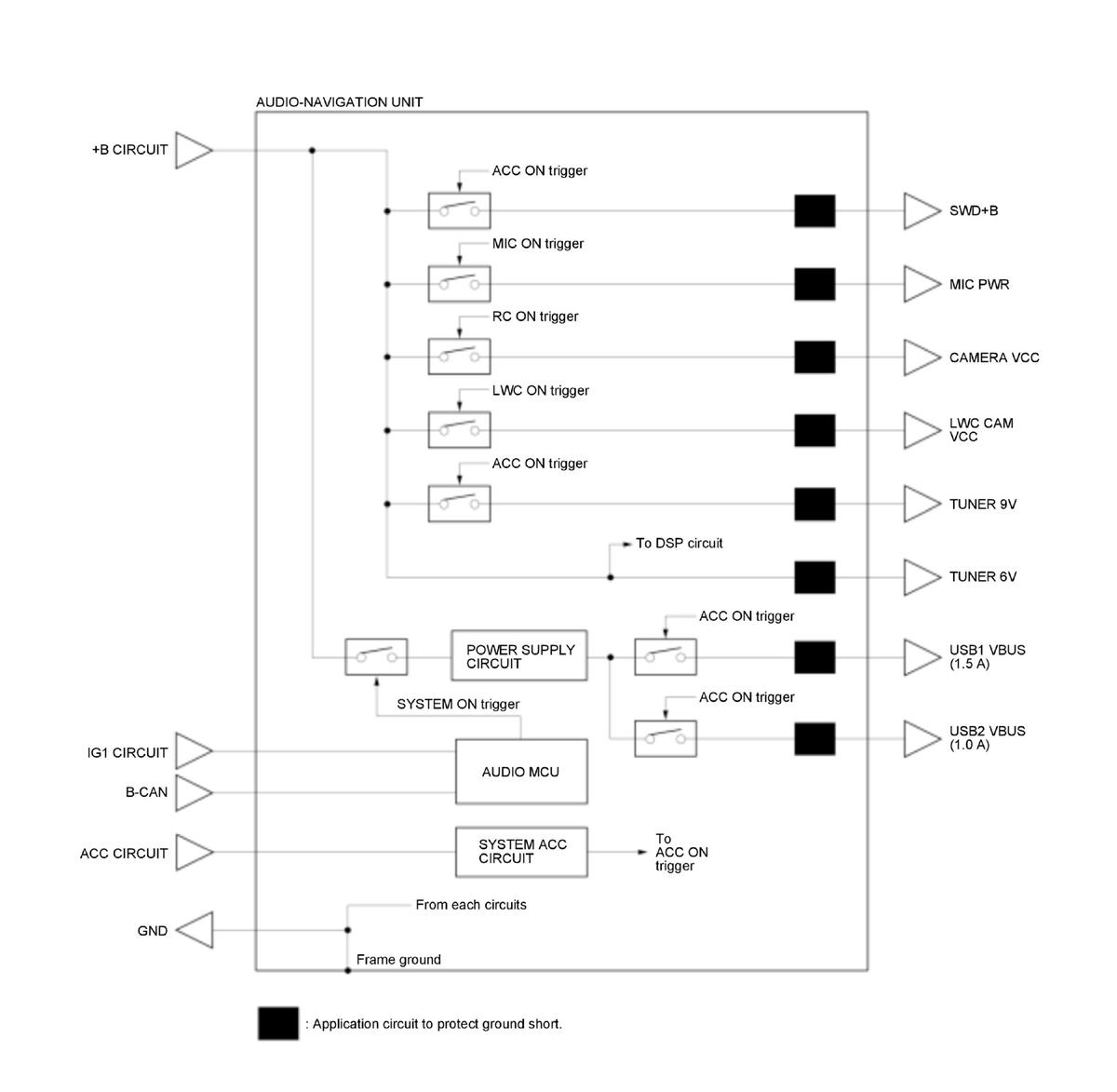

Power Supply Diagram

Courtesy of HONDA, U.S.A., INC.
