Removal and Installation

NOTE: How to read the torque specifications .

Trunk Side Trim (Passenger's Side) - Remove

Telematics Control Unit - Remove

Courtesy of HONDA, U.S.A., INC.

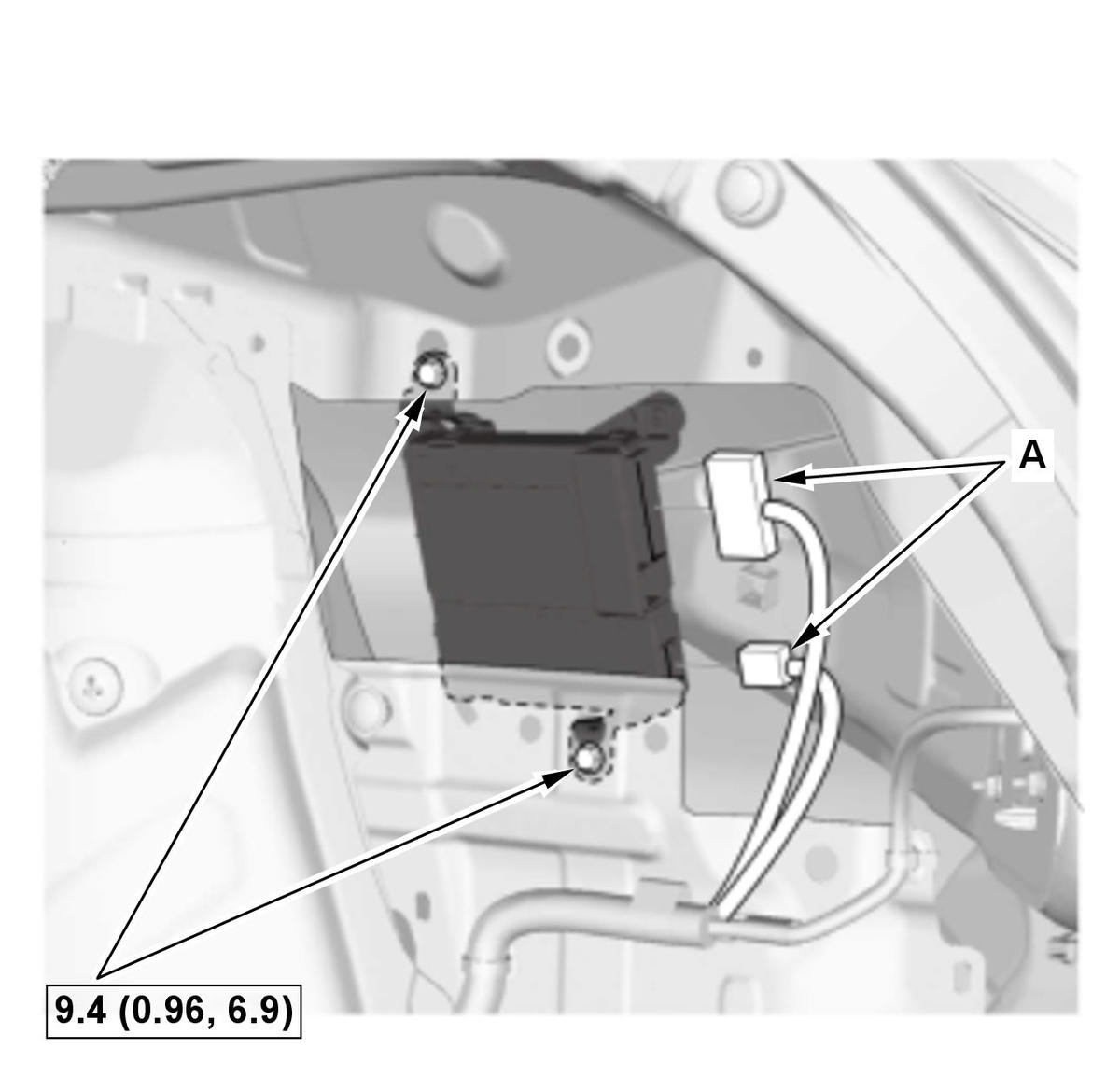

1. Loosen the bolts.

2. Disconnect the connectors (A).

Courtesy of HONDA, U.S.A., INC.

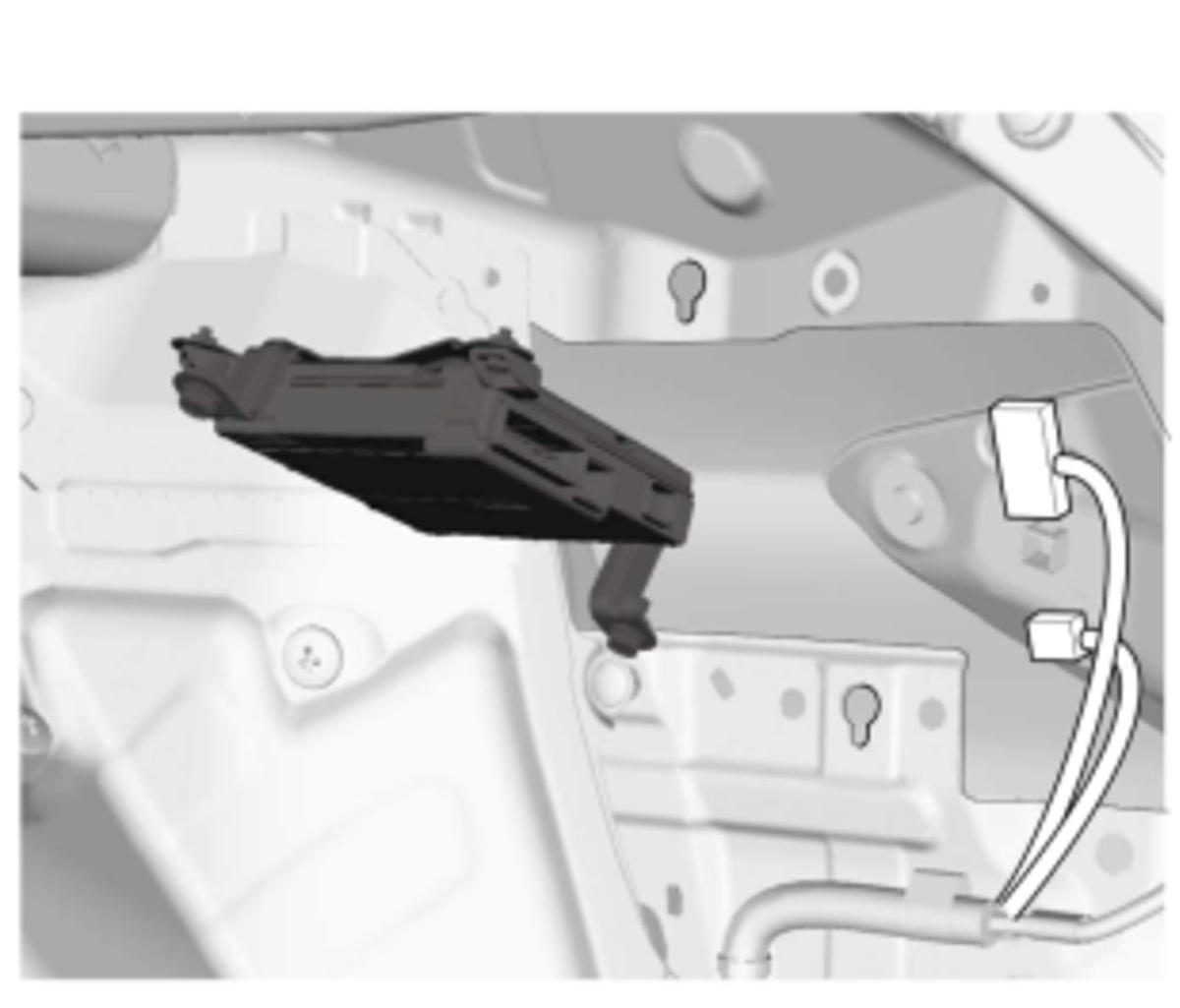

3. Remove the telematics control unit with the bracket.

Courtesy of HONDA, U.S.A., INC.

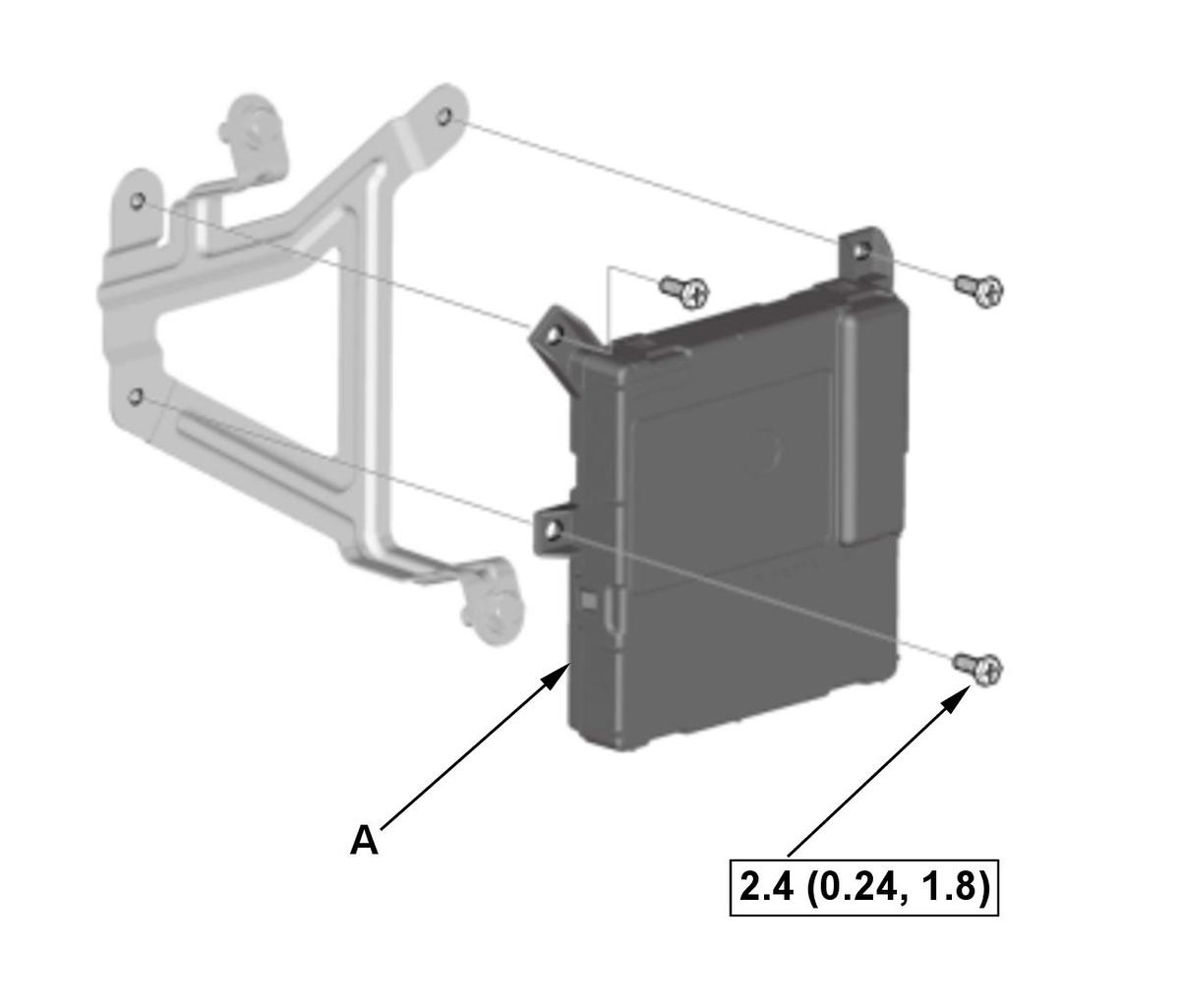

4. Remove the telematics control unit (A) from the bracket.

All Removed Parts - Install

1. Install the parts in the reverse order of removal.

NOTE: The telematics control unit and the audio-navigation unit establish an HTTP connection with Honda Client Services each time the vehicle is turned to the ON mode. When replacing the telematics control unit, both the telematics and audio-navigation units need to confirm a provision file is stored to complete the registration process. This entire procedure takes about 10 minutes while the vehicle is turned to the ON mode. If the vehicle is turned to the OFF (LOCK) mode without completing the registration process, the registration process restarts from the beginning each time the vehicle is turned to the ON mode.
