Multipurpose Camera Aiming: Notes

Image	Description/Tool Number
Courtesy of HONDA, U.S.A., INC.	Stand Set 07AAJ-STKA220
Courtesy of HONDA, U.S.A., INC.	Stand Pole (Aluminum) 07AAK-5K0A120
Courtesy of HONDA, U.S.A., INC.	Target Set 070AK-TYPA030
Courtesy of HONDA, U.S.A., INC.	Target Holder Set 07AAB-TYPA020

Use Stand 07AAJ-TK8A100 or Stand Set 07AAJ-STKA220 for aiming.

Multipurpose Camera Aiming

Special Tools Required

Image	Description/Tool Number

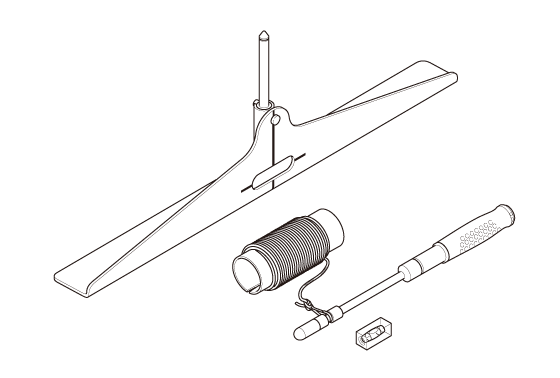

Courtesy of HONDA, U.S.A., INC.	Alignment Set 07AAJ-STKA210

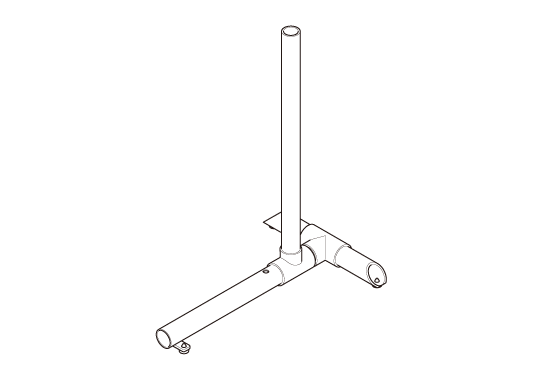

Courtesy of HONDA, U.S.A., INC.	Stand 07AAJ-TK8A100

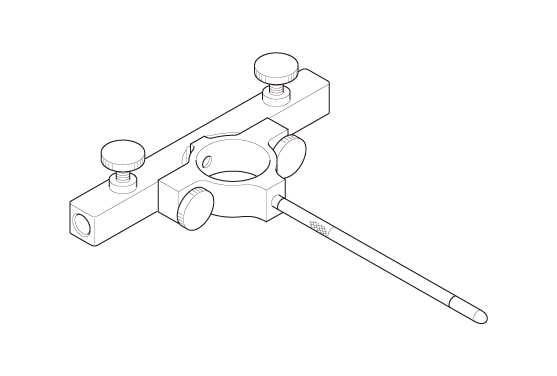

Courtesy of HONDA, U.S.A., INC.	Target Adjuster 07AAK-5K0A110

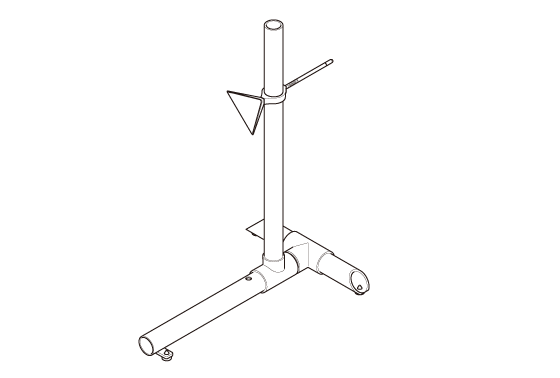

Courtesy of HONDA, U.S.A., INC.	Stand Set 07AAJ-STKA220

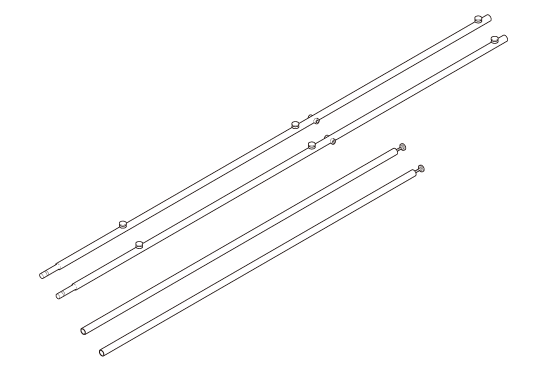

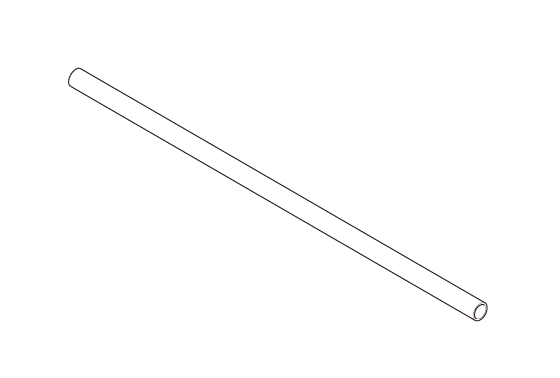

Courtesy of HONDA, U.S.A., INC.	Stand Pole (Aluminum) 07AAK-5K0A120

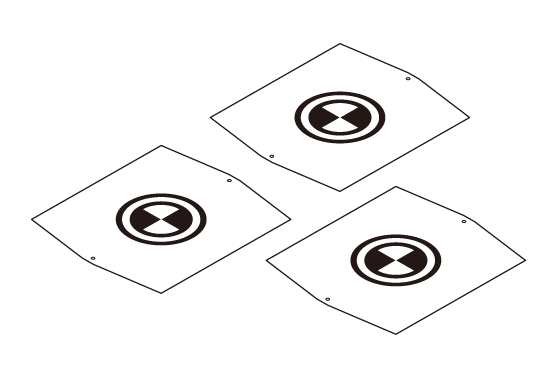

Courtesy of HONDA, U.S.A., INC.	Target Set 070AK-TYPA030
Courtesy of HONDA, U.S.A., INC.	Target Holder Set 07AAB-TYPA020

Use Stand 07AAJ-TK8A100 or Stand Set 07AAJ-STKA220 for aiming.
