Millimeter Wave Radar Aiming: Notes

Image	Description/Tool Number

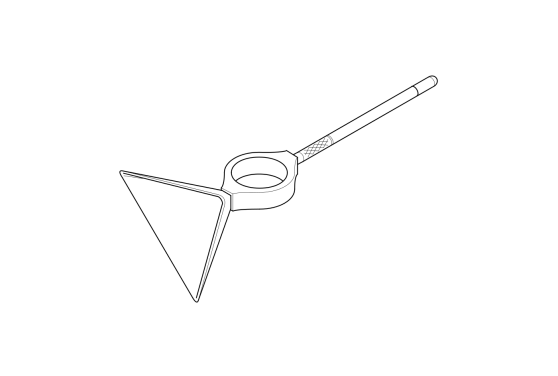

Courtesy of HONDA, U.S.A., INC.	Alignment Set 07AAJ-STKA210

*Stand 07AAJ-TK8A100 with Reflector Set 07AAJ-STKA200 or Stand Set 07AAJSTKA220 can be used for aiming.

Millimeter Wave Radar Aiming

Special Tools Required

Image	Description/Tool Number
Courtesy of HONDA, U.S.A., INC.	Stand Set 07AAJ-STKA220*
Courtesy of HONDA, U.S.A., INC.	Reflector Set 07AAJ-STKA200*
Courtesy of HONDA, U.S.A., INC.	Stand 07AAJ-TK8A100*
Courtesy of HONDA, U.S.A., INC.	Alignment Set 07AAJ-STKA210

*Stand 07AAJ-TK8A100 with Reflector Set 07AAJ-STKA200 or Stand Set 07AAJSTKA220 can be used for aiming.
