LaneWatch Switch: Test

  1. LaneWatch Switch - Test
    GHH420685GHH420686Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH420685GHH420686Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

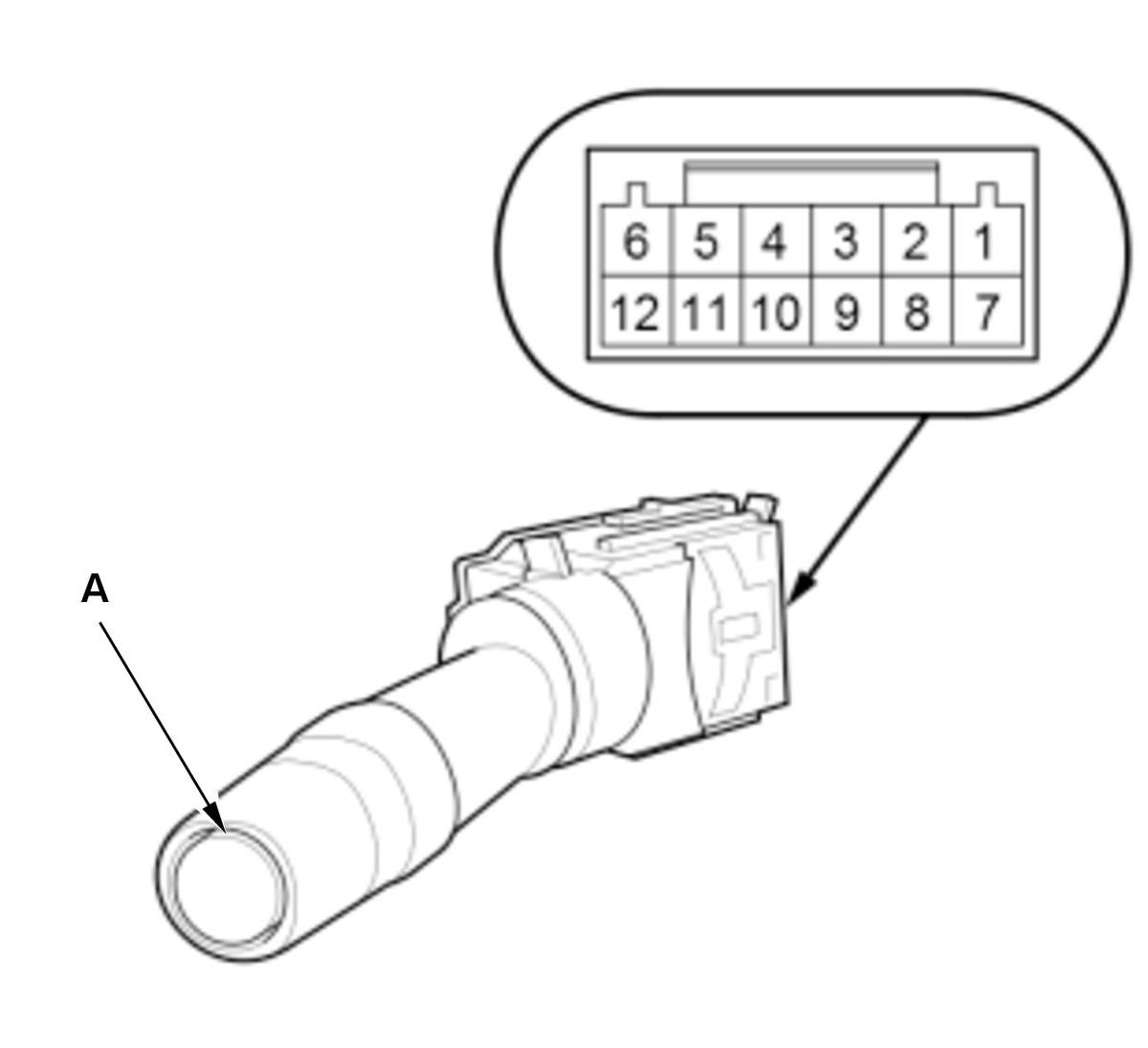

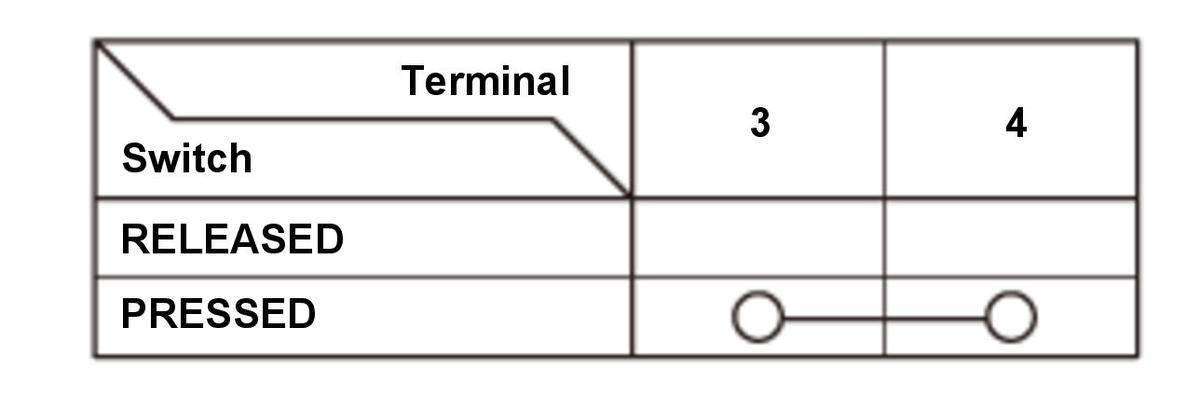

    		 1. Press the LaneWatch switch (A), and check for continuity between the combination light switch 12P connector terminals No. 3 and No. 4 according to the table.
