Relay Locations

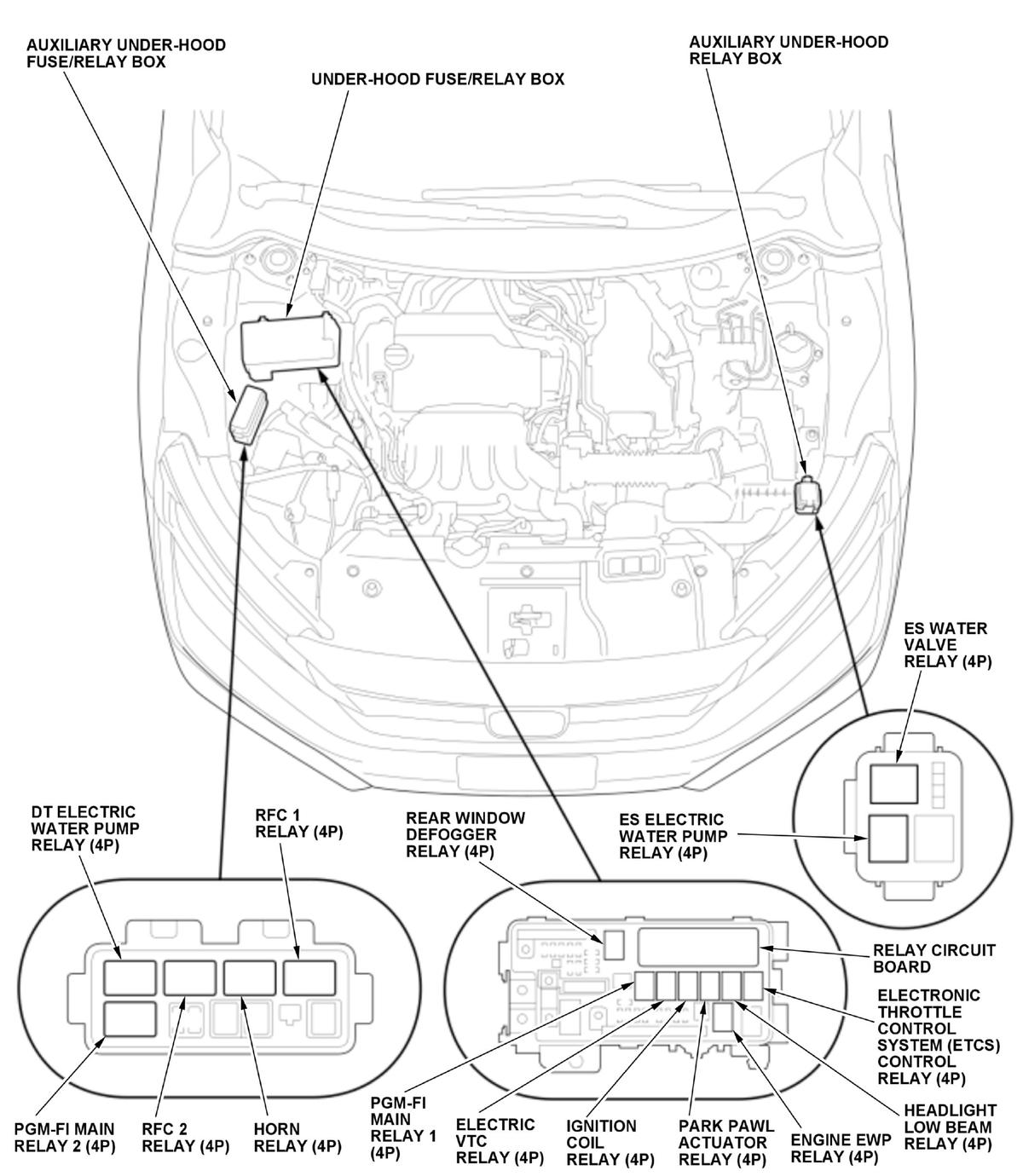

Engine Compartment

GHH416472

Courtesy of HONDA, U.S.A., INC.

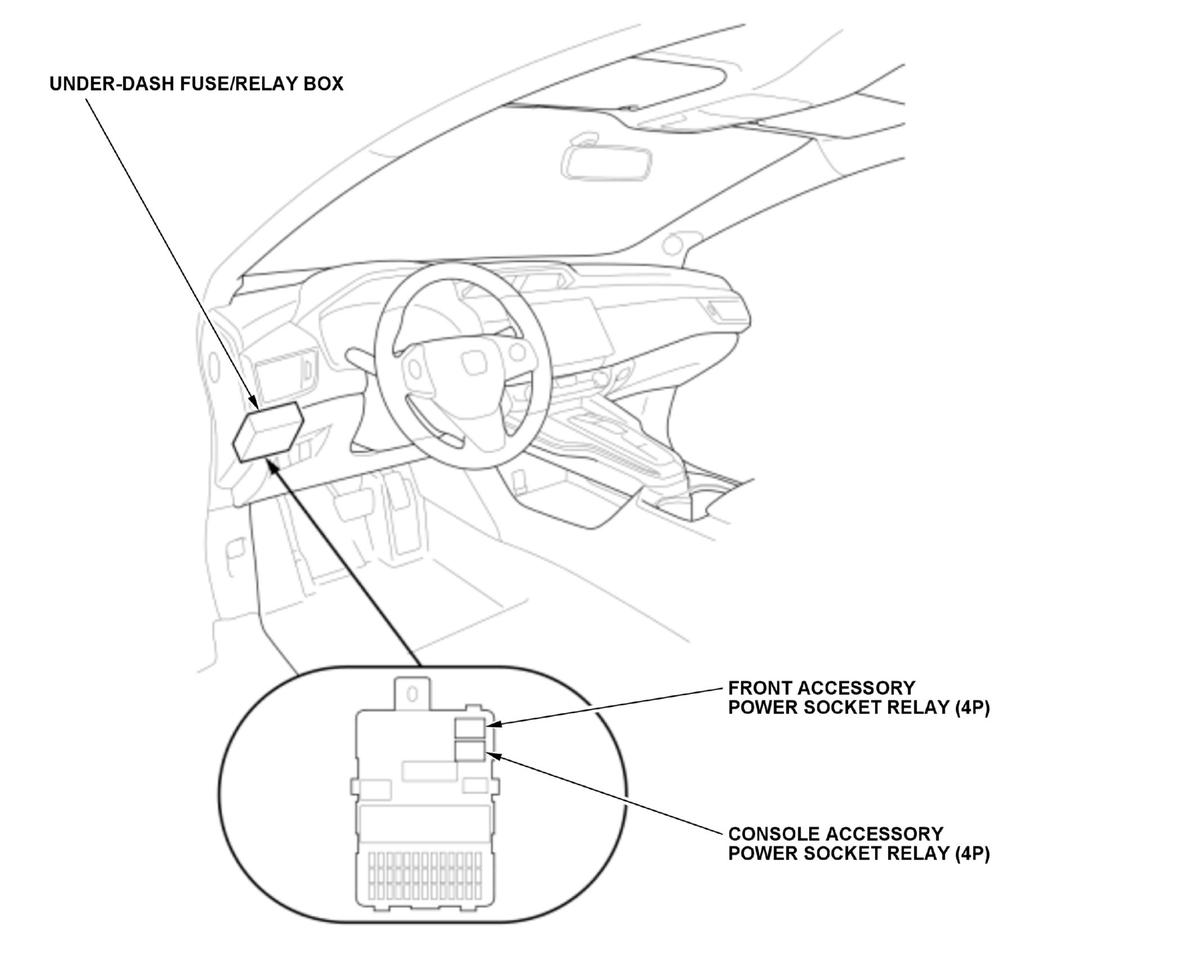

Dashboard - 1/2

GHH416473

Courtesy of HONDA, U.S.A., INC.

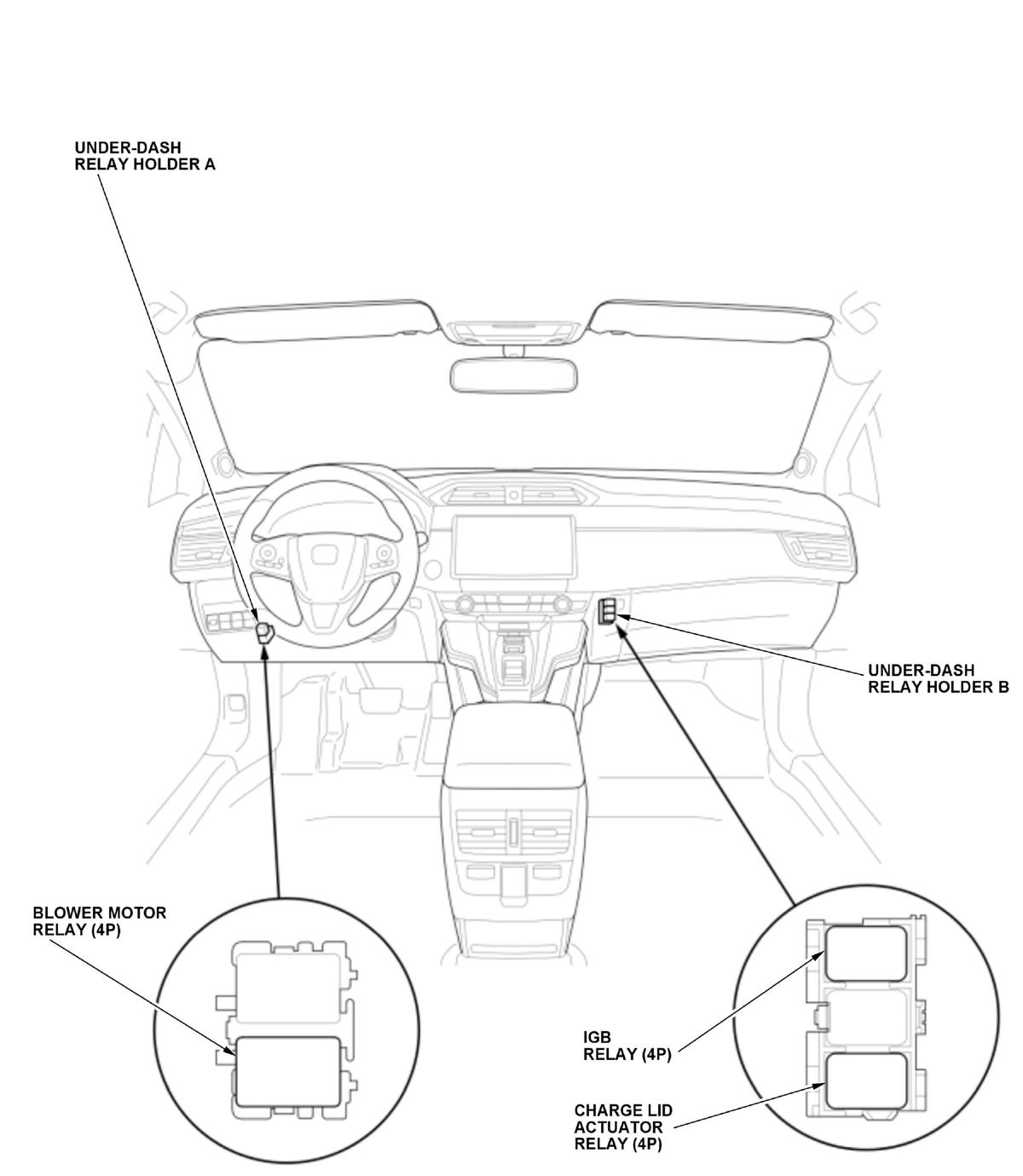

Dashboard - 2/2

GHH416474

Courtesy of HONDA, U.S.A., INC.

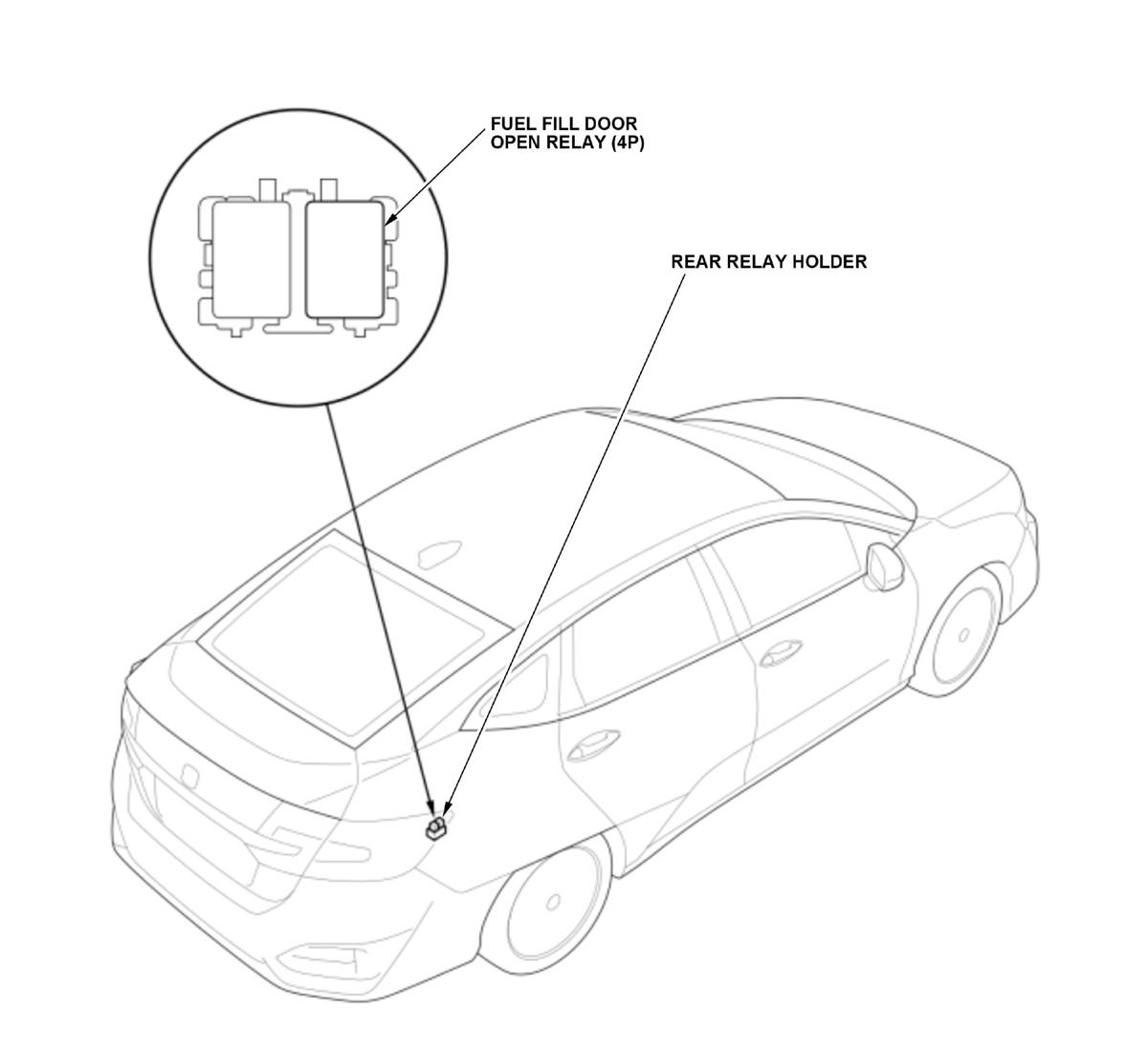

Rear

GHH416475

Courtesy of HONDA, U.S.A., INC.
