Fuel Pressure Relieving: Procedure

WARNING:

Flammable - Keep Fire Away

NOTE:

Refer to the Fuel and Emissions Systems Service Precautions before disconnecting the fuel line.
Before disconnecting fuel lines or hoses, relieve pressure from the system by disabling the fuel pump and disconnecting the fuel line/quick connect fitting in the engine compartment.

Fuel Tank Pressure - Relieve

Courtesy of HONDA, U.S.A., INC.

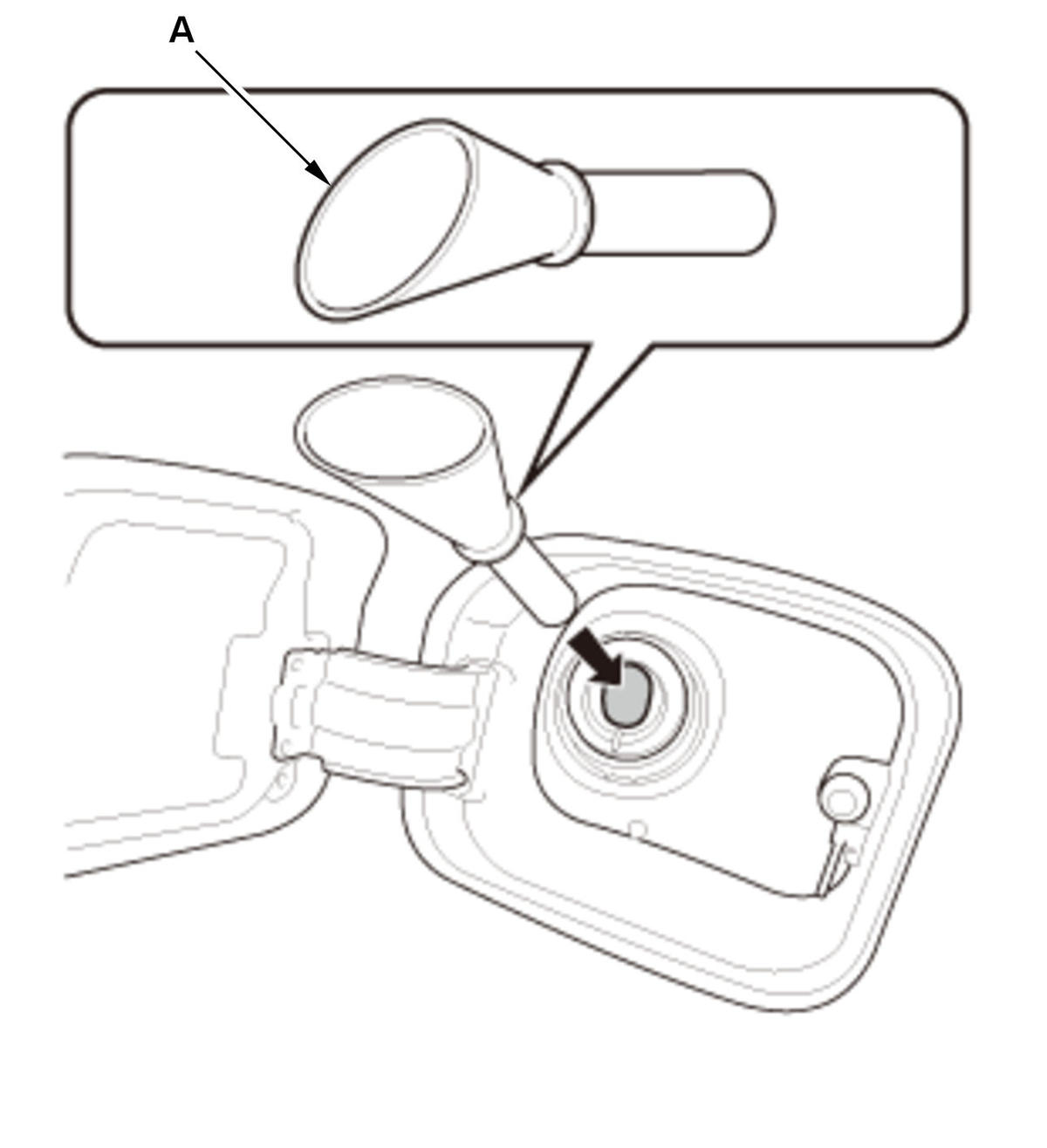

1. Insert the emergency fuel funnel (A) into the fuel filler neck to relieve the pressure in the fuel tank.

NOTE: The emergency fuel funnel is stored in the trunk tool box.

Fuel Pressure - Relieve

2. Start the engine, and let it idle until it stalls.

NOTE: If any DTCs are stored, clear and ignore them.

3. Turn the vehicle to the OFF (LOCK) mode.

4. Install PGM-FI main relay 2.
