Hood Latch Switch Test: Test

  1. Hood Latch - Remove

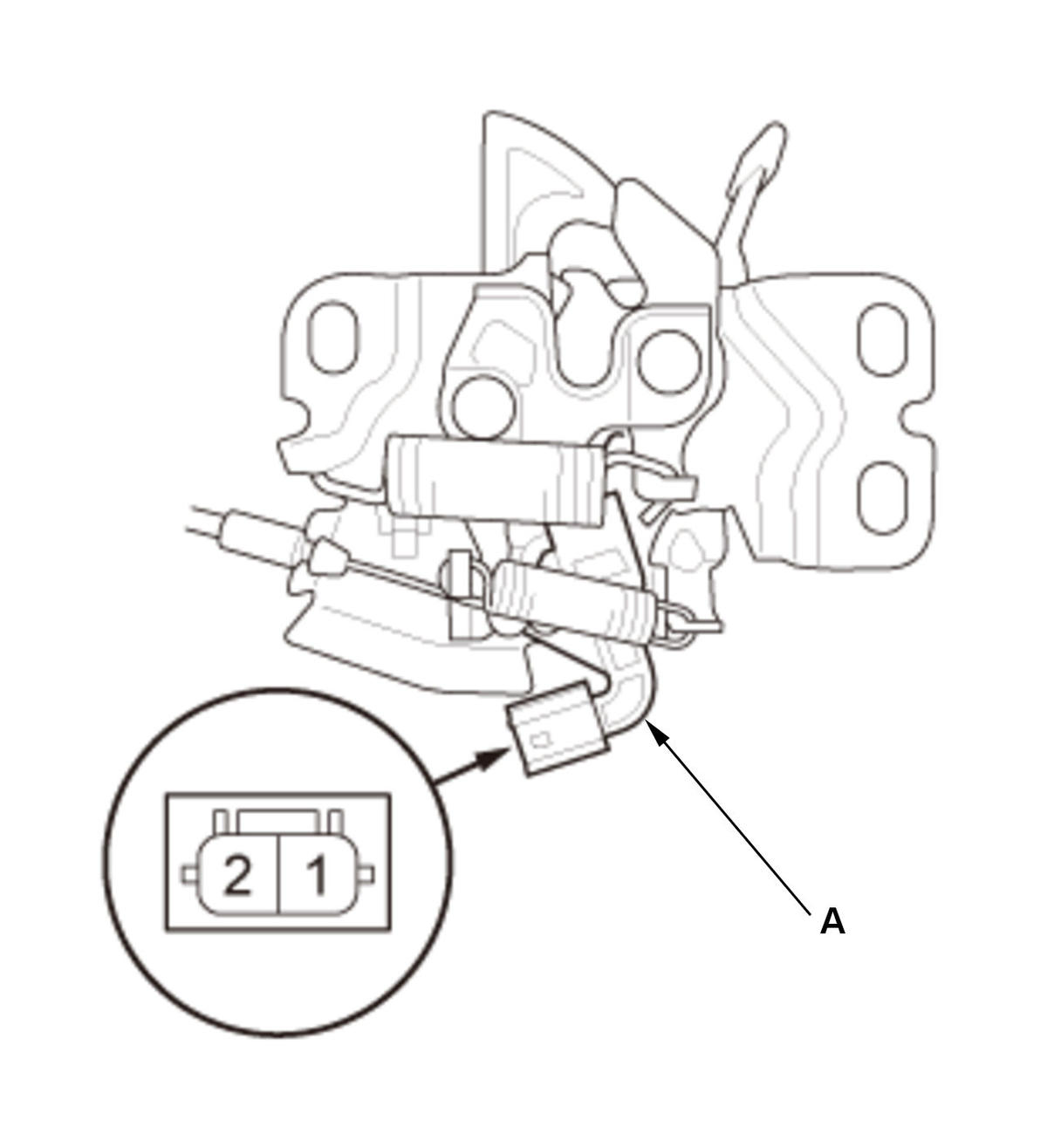

  2. Hood Latch Switch - Test
    GHH411562GHH411563Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH411562GHH411563Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

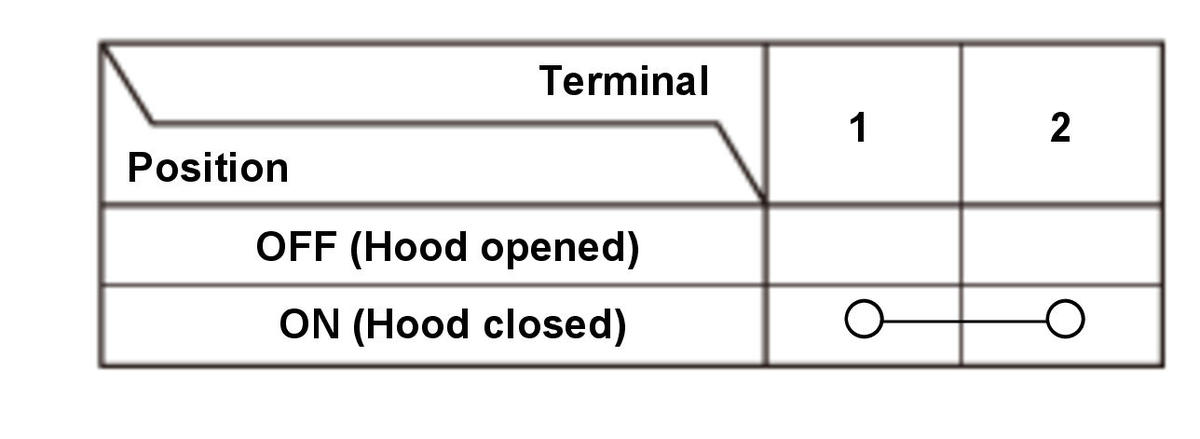

    		 1. Check for continuity between the terminals in each switch position according to the table.

    2. If the continuity is not as specified, the hood latch switch is faulty; replace the hood latch

    (A).
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
