Home
>>
Honda
>>
2021
>>
Civic EX, 4D Hatchback
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control / Engine Mechanical - Service Information
>>
Removal and Installation
>>
Intake Manifold Removal and Installation (1.5L Engine)
>>
Exploded View
Exploded View
Intake Manifold

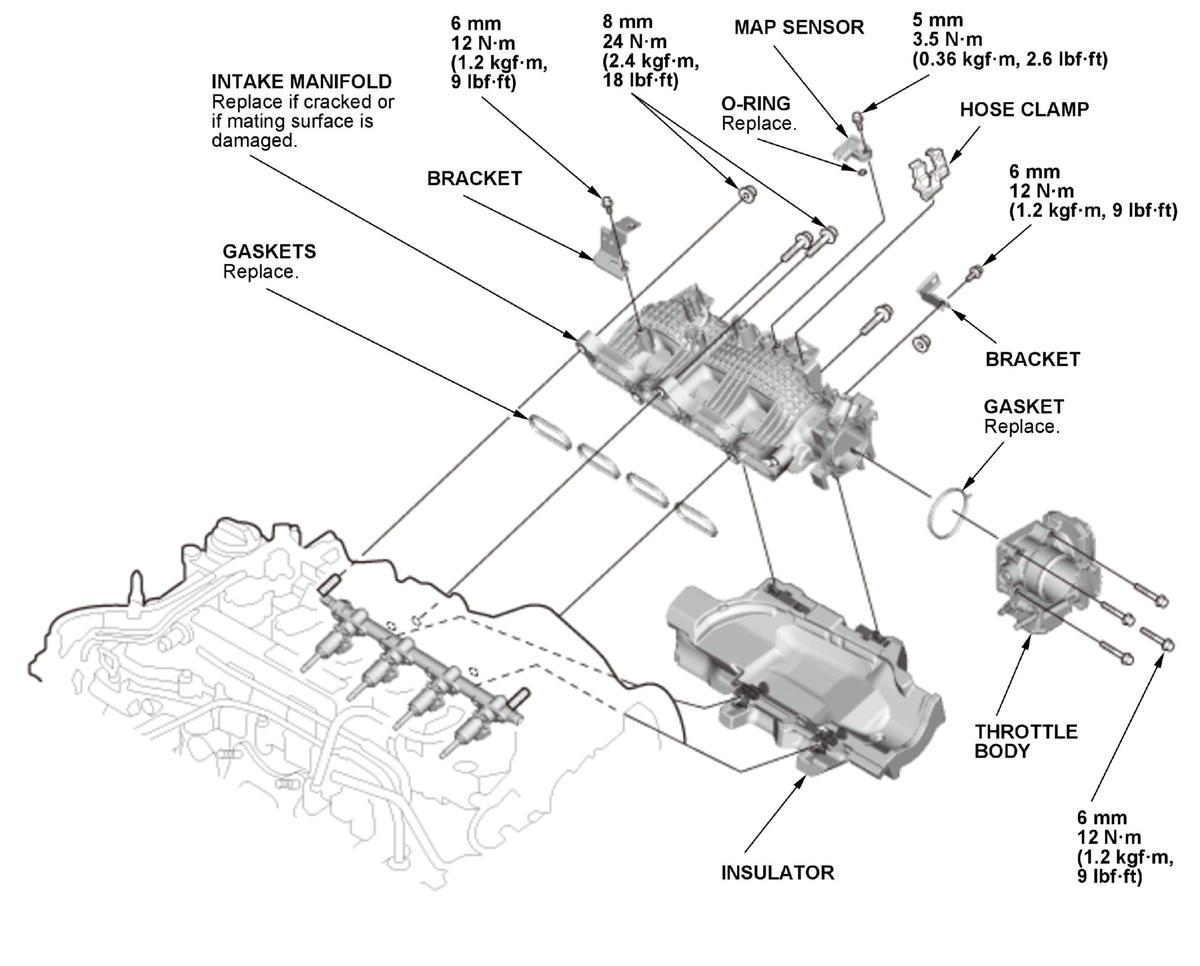

Fig 1: Exploded View Of Intake Manifold Components With Torque Specifications (1.5L Engine)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
