Fuse to Components Index
| Fuses | Location |
|---|---|
| A | Under-Hood Fuse/Relay Box |
| B | Under-Dash Fuse/Relay Box |

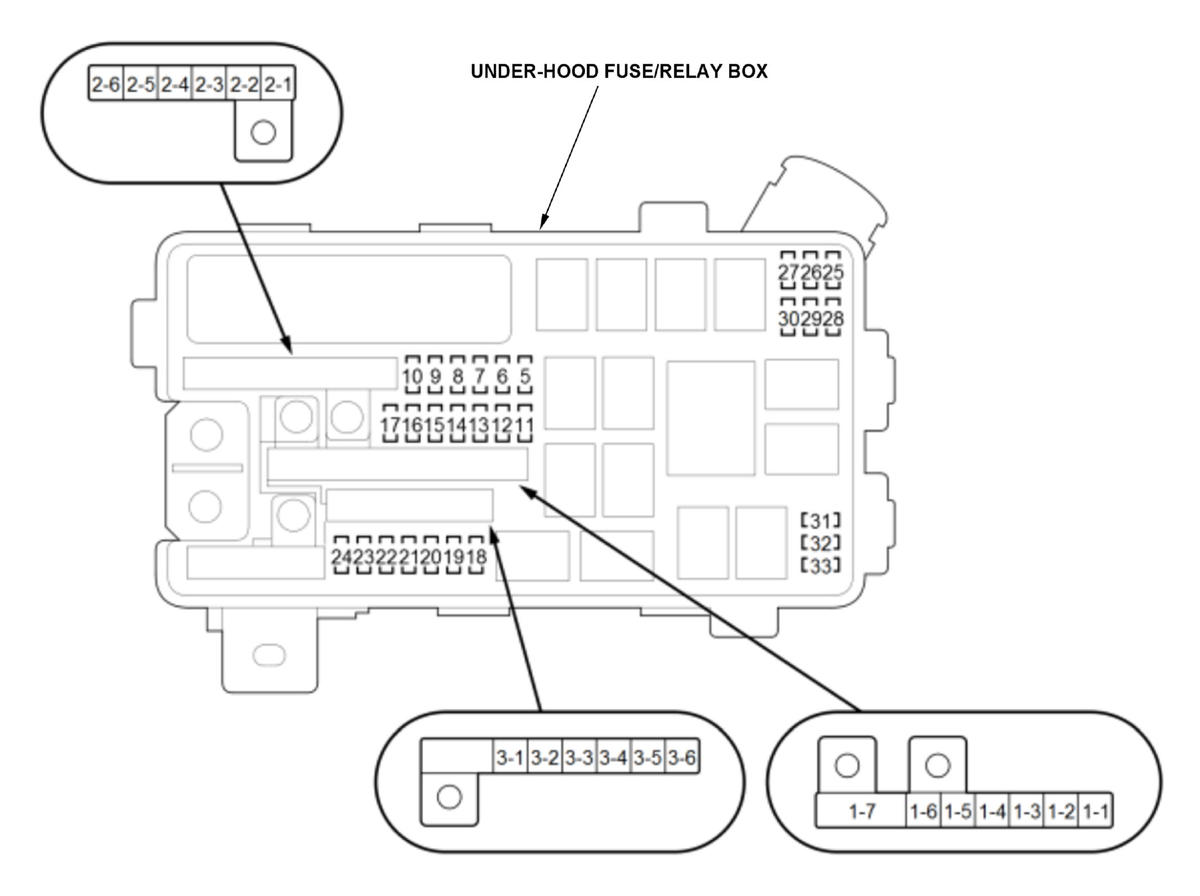

Under-Hood Fuse/Relay Box
Under-Hood Fuse/Relay Box (A)
| Fuse Number | Amps | Component(s) or Circuit(s) Protected | Feature |
|---|---|---|---|
| A1-1 *1/*2/*3 | 60 A | No. A31, No. A32, and No. A33 fuses in the under-hood fuse/relay box | *1: With front passenger's power seat *2: With rear seat heater *3: Except L15BY engine |
| A1-2 * | 30 A | RFC unit (via RFC relay) | *: K20C2 engine |
| A1-3 *1/*2/*3/*4 | 50 A *1/*2/*3 | RFC unit (via RFC relay) | *1: L15B7 engine *2: L15BA engine *3: L15BY engine *4: K20C1 engine |
| 30 A *4 | Radiator fan motor (via radiator fan relay) | ||
| A1-4 *1/*2 | 30 A | Stereo amplifier | *1: 5-door *2: L15BY engine |
| A1-5 *1 | 30 A | Via IG1B relay circuit (built into the under-dash fuse/relay box): Body control module (IG1-B SIG), No. B3 *2, No. B4, No. B5, No. B6, No. B7, and No. B17 fuses in the under-dash fuse/relay box |
*1: With keyless access system *2: 5-door |
| Via IG2 relay circuit (built into the under-dash fuse/relay box): Body control module (IG2 SIG), No. B9 and No. B22 fuses in the under-dash fuse/relay box |
| Fuse Number | Amps | Component(s) or Circuit(s) Protected | Feature |
|---|---|---|---|
| A1-6 | 30 A | No. A28 *1*3, No. A29, and No. A30 *2/*4 fuses in the under-hood fuse/relay box | *1: 2/4-door *2: 5-door *3: Except L15BY engine *4: L15BY engine |
| A1-7 | 125 A | No. A3-1, No. A3-2, No. A3-3, No. A3-4, No. A3-5, No. A3-6, No. A18, No. A19, No. A20 *1*3*5/*2/*4, No. A21, No. A22 *6, No. A23 *7, and No. A24 fuses in the under-hood fuse/relay box | *1: 2/4-door *2: 5-door *3: Except L15BY engine *4: L15BY engine *5: With stereo amplifier *6: With fog light *7: With A/C |
| A2-1 | 70 A | EPS motor/control unit | |
| A2-2 | 50 A *1 | Ignition switch | *1: Without keyless access system *2: With keyless access system *3: With fog light |
| 30 A *2 | Via IG1A relay circuit (built into the under-dash fuse/relay box): Body control module (IG1-A SIG), No. B8, No. B20 *3, No. B21, No. B34, and No. B35 fuses in the under-dash fuse/relay box |
||
| Via ACC relay circuit (built into the under-dash fuse/relay box): No. B1 fuse in the under-dash fuse/relay box |
|||
| A2-3 *1/*2 | 40 A | No. B19, No. B31, No. B32, and No. B33 fuses in the under-dash fuse/relay box | *1: With front seat heater *2: With moonroof |
| A2-4 | 60 A | No. B15, No. B16, No. B28, No. B29, and No. B30 fuses in the under-dash fuse/relay box, Power window relay *1/*2 |
*1: 4-door *2: 5-door |
| Via power window relay *1/*2: No. B14 and No. B27 fuses in the under-dash fuse/relay box | |||
| A2-5 | 30 A | Windshield wiper control unit/motor | |
| A2-6 | 30 A | Headlight low beam relay | *1: 2/4-door *2: 5-door *3: Except L15BY *4: L15BY engine |
| Via headlight low beam relay: No. A25 *1*3, No. A26, and No. A27 *2/*4 fuses in the under-hood fuse/relay box |
|||
| A3-1 | 40 A | Blower motor (via blower motor relay) | |
| A3-2 | 40 A | VSA modulator-control unit | |
| A3-3 | 40 A | VSA modulator-control unit | |
| A3-4 | 40 A | No. B24 fuse in the under-dash fuse/relay box | |
| A3-5 *1*3/*2 | 30 A | PCM (ST RLY 1 TO 2) (via starter cut relay 1 circuit built into the relay circuit board) | *1: 2/4-door *2: 5-door *3: With keyless access system |
| Starter (via starter cut relay 1 and starter cut relay 2 circuits (built into the relay circuit board)) | |||
| A3-6 | 40 A | Rear window defogger *2 (via rear window defogger relay). Rear window defogger *1 (via rear window defogger relay and the noise reduction condenser) |
*1: 2/4-door *2: 5-door |
| A5 * | 5 A | RFC relay | *: Except K20C1 engine |
| A6 | 15 A | Rear window washer motor relay *2, Windshield washer motor relay circuit (built into the relay circuit board) |
*1: 2/4-door *2: 5-door |
| Via windshield washer motor relay circuit (built into the relay circuit board): Windshield washer motor *1, Windshield/rear window washer motor *2 |
|||
| Via rear window washer motor relay *2: Windshield/rear window washer motor |
| Fuse Number | Amps | Component(s) or Circuit(s) Protected | Feature |
|---|---|---|---|
| A7 | 15 A | Ignition coil relay circuit (built into the relay circuit board), Injector relay *1, PGM-FI main relay 1 circuit (built into the relay circuit board) |
*1: L15B7 engine *2: Except K20C1 engine *3: K20C1 engine *4: K20C2 engine |
| Via PGM-FI main relay 1 circuit (built into the relay circuit board): PCM *2 (FI MAIN RLY OUT), PCM *3 (FI MAIN RLY OUT) (3 wires), PGM-FI main relay 2, Injectors *4 |
|||
| A8 *1*2 | 15 A | No. A5 fuse in the under-hood fuse/relay box PGM-FI subrelay circuit (built into the relay circuit board) |
*1: 2/4-door *2: Except L15BY engine *3: L15B7 engine |
| Via PGM-FI subrelay circuit (built into the relay circuit board): No. A11 and No. A27 *3 fuses in the under-hood fuse/relay box, PCM (FI SUB RLY OUT) |
|||
| A8 *1/*2 | 10 A | Via brake pedal position switch: Body control module (STOP SW), PCM (STOP SW) |
*1: 5-door *2: L15BY engine |
| Via brake light relay circuit (built into the relay circuit board): High mount brake light, Left brake light Right brake light VSA modulator-control unit |
|||
| Via brake pedal position switch and brake light relay circuit (built into the relay circuit board): High mount brake light, Left brake light, Right brake light, VSA modulator-control unit |
|||
| A9 *1*2 | 10 A | Via brake pedal position switch: Body control module (STOP SW), PCM (STOP SW) |
*1: 2/4-door *2: Except L15BY engine |
| Via brake pedal position switch and brake light relay circuit (built into the relay circuit board): High mount brake light, Left brake light, Right brake light, VSA modulator-control unit Left brake light, Right brake light, VSA modulator-control unit |
|||
| Via brake pedal position switch and brake light relay circuit (built into the relay circuit board): Left brake light, Right brake light, VSA modulator-control unit |
|||
| A9 *1/*2 | 15 A | No. A5 *3 fuse in the under-hood fuse/relay box, PGM-FI subrelay circuit (built into the relay circuit board) |
*1: 5-door *2: L15BY engine *3: Except K20C1 engine *4: K20C1 engine |
| Via PGM-FI subrelay circuit (built into the relay circuit board): A/F sensor (sensor 1) *4, EVAP canister purge valve *4 No. A11 and No. A33 fuses in the under-hood fuse/relay box, PCM *3 (FI SUB RLY OUT) |
|||
| A10 *1/*2/*3/*4 | 15 A *1/*2/*3 | Injector relay *2/*3, PCM (INJ RLY OUT) (2 wires) (via injector relay) |
*1: L15B7 engine *2: L15BA engine *3: L15BY engine *4: K20C1 engine |
| 20 A *4 | A/C condenser fan motor (via A/C condenser fan relay) |
| Fuse Number | Amps | Component(s) or Circuit(s) Protected | Feature |
|---|---|---|---|
| A11 | 5 A | A/C condenser fan relay A/F sensor (Sensor 1) *1, EVAP canister purge valve *3/*4/*5, EVAP canister vent shut valve *6, Fan control relay *2, Turbocharger bypass control solenoid valve *2 |
*1: Except K20C1 engine *2: K20C1 engine *3: L15B7 engine *4: L15BA engine *5: L15BY engine *6: USA and Canada models |
| A12 | 10 A | PCM (+B BACKUP FI-ECU) | |
| A13 *1*4 | 10 A | Taillight relay | *1: 2/4-door *2: 2-door *3: 4-door *4: Except L15BY engine *5: With ambient light) *6: With color audio (5-inch screen) *7: Without multi-information display (MID) *8: With display audio (7-inch screen) *9: With multipurpose camera unitt *10: Without multipurpose camera unit *11: With ECON switchs *12: USA and Canada models *13: Mexico models *14: With integrated drive-mode switch *15: With rear seat heater *16: With moonroof *17: With TPMS switch *18: With glove box light (LED type) *19: With HomeLink |
| Via taillight relay: Ambient light *5, Audio remote-HFL switch *1*6*7, Automatic brake hold switch, Center display unit *8, Climate control panel, CMBS OFF switch *9, Cruise control combination switch *6*10 (via audio remote-HFL switch), ECON switch *11, Electric parking brake switch, Front passenger's airbag cutoff indicator *12, Front passenger's airbag ON/OFF indicator *13, Glove box light *18, Hazard warning switch, HomeLink unit *19, Inner taillight *2 Integrated drive-mode switch *14, Left front parking/daytime running light, Left front side marker light, Left inner taillight *3, Left rear seat heater switch *15, Left taillight *3, Left taillight/rear side marker light *2, License plate light, Lower tray light *16, Moonroof switch, RDM switch *9, Right front parking/daytime running light, Right front side marker light, Right inner taillight *3, Right rear seat heater switch *15, Right taillight *3, Right taillight/rear side marker light *2, TPMS switch *17, Upper tray light *16, VSA OFF switch |
|||
| A13 *1/*2 | 15 A | Body control module (+B HAZARD) | *2: L15BY engine *2: L15BY engine |
| A14 | 15 A | Body control module *1*3 (+B HAZARD), Left rear seat cushion heater *2*5/*4*5 (via left rear seat heater relay (high)), Left rear seat cushion heater *2*5/*4*5 (via left rear seat heater relay (low)), Right rear seat cushion heater *2*5/*4*5 (via right rear seat heater relay (high)), Right rear seat cushion heater *2*5/*4*5 (via right rear seat heater relay (low)) |
*1: 2/4-door *2: 5-door *3: Except L15BY engine *4: L15BY engine *5: With rear seat heater |
| A15 | 15 A | Ignition coils (via ignition coil relay circuit built into the relay circuit board) | |
| A16 * | 15 A | TCM | *: CVT |
| Fuse Number | Amps | Component(s) or Circuit(s) Protected | Feature |
|---|---|---|---|
| A17 | 10 A | Daytime running light relay | |
| Via daytime running light relay: Left front parking/daytime running light, Right front parking/daytime running light |
|||
| A18 | 10 A | Gauge control module, Active sound control unit *14, Automatic lighting control unit-sensor *3, Automatic lighting/rain sensor *4, Audio remote-HFL switch *1*2*5/*1*2*8/*1*6*7, Body control module (+B BACK UP), CAN gateway *9, Data link connector (DLC), Electric parking brake switch *12, HomeLink unit *13, Immobilizer-keyless control unit *10, Power window master switch, Wireless charger *11 |
*1: 2/4-door *2: Except L15BY engine *3: Without automatic wiper and with automatic lighting *4: With automatic wiper *5: Without navigation *6: With color audio (5-inch screen) *7: With multi-information display (MID) *8: With display audio (7-inch screen) *9: With multipurpose camera unit *10: Without keyless access system *11: With wireless charger *12: With electric parking brake indicator *13: With HomeLink *14: With active sound control |
| A19 | 15 A | Audio unit *1, Audio-navigation unit *2, Center display unit *3 |
*1: Without navigation *2: With navigation *3: With display audio (7-inch screen) |
| A20 *1*2*3 | 30 A | Stereo amplifier | *1: 2/4-door *2: Except L15BY engine *3: With stereo amplifier |
| Fuse Number | Amps | Component(s) or Circuit(s) Protected | Feature |
|---|---|---|---|
| A20 *1/*2 | 10 A | Taillight relay | *1: 5-door *2: L15BY engine *3: Without multipurpose camera unit *4: With multipurpose camera unit *5: With color audio (5-inch screen) *6: With display audio (7-inch screen) *7: With ambient light *8: Without multi-information display (MID) *9: With ECON switch *10: With integrated drive-mode switch *11: With rear seat heater *12: With moonroof *13: With TPMS switch *14: With glove box light (LED type) *15: With HomeLink *16: With parking and back-up sensor system |
| Via taillight relay: ACC combination switch *4*5 (via audio remote-HFL switch), Ambient light *7, Audio remote-HFL switch *5*8, Automatic brake hold switch, Center display unit *6, Climate control panel, CMBS OFF switch *4, Cruise control combination switch *3*5 (via audio remote-HFL switch), ECON switch *9, Electric parking brake switch, Front passenger's airbag cutoff indicator, Glove box light *14, Hazard warning switch, HomeLink unit *15, Integrated drive-mode switch *10, Left front parking/daytime running light, Left front side marker light, Left inner taillight, Left rear seat heater switch *11, Left taillight *2, Left taillight/rear side marker light *1, License plate light, Lower tray light *12, Moonroof switch *12, Parking and back-up sensor switch *16, RDM switch *4, Right front parking/daytime running light, Right front side marker light, Right inner taillight, Right rear seat heater switch *11, Right taillight *2, Right taillight/rear side marker light *1, TPMS switch *13, Upper tray light *12, VSA OFF switch |
|||
| A21 | 10 A | Interior lights cut relay circuit (built into the relay circuit board) | *1: 2/4-door *2: 5-door *3: With vanity mirror ligh *4: Without keyless access system *5: With glove box light (Non-LED type) |
| Via interior lights cut relay circuit (built into the relay circuit board): Cargo area light *2, Ceiling light, Driver's vanity mirror light *3, Front Individual map lights, Glove box light *5, Ignition key light *4, Passenger's vanity mirror light *3, Trunk light *1 |
|||
| A22 * | 15 A | Fog light relay | *: With fog light |
| Via fog light relay: Left fog light, Right fog light Right fog light |
|||
| A23 * | 10 A | A/C compressor clutch (via A/C compressor clutch relay) | *: With A/C |
| Fuse Number | Amps | Component(s) or Circuit(s) Protected | Feature |
|---|---|---|---|
| A24 | 10 A | 12 volt battery sensor, Horn relay |
*: With double horn |
| Via horn relay: Horn (high) *, Horn (low) |
|||
| A25 *1*2 | 10 A | Left headlight (low beam) *3, Left LED headlight (low beam) *4 |
*1: 2/4-door *2: Except L15BY engine *3: Without LED headlight *4: With LED headlight |
| A26 | 10 A | Left headlight (low beam) *2*3, Left LED headlight (low beam) *2*4, Right headlight (low beam) *1*3, Right LED headlight (low beam) *1*4 |
*1: 2/4-door *2: 5-door *3: Without LED headlight *4: With LED headlight |
| A27 *1/*2/*3 | 10 A | PCM (VB ACT) *2, Right headlight (low beam) *1*4/*3*4, Right LED headlight (low beam) *1*5/*3*5 |
*1: 5-door *2: L15B7 engine *3: L15BY engine *4: Without LED headlight *5: With LED headlight |
| A28 *1*2 | 10 A | Body control module (+B L H/L HI) | *1: 2/4-door *2: Except L15BY engine |
| A29 | 10 A | Body control module *2/*4 (+B L H/L HI), Body control module *1*3 (+B R H/L HI) |
*1: 2/4-door *2: 5-door *3: Except L15BY engine *4: L15BY engine |
| A30 *1/*2 | 10 A | Body control module (+B R H/L HI) | *1: 5-door *2: L15BY engine |
| A31 *1*2*5/*3*6/*4 | 15 A *1*2*5/*4 | Adaptive damper control unit *4, Left rear seat cushion heater *1*2*5 (via left rear seat heater relay (high)), Left rear seat cushion heater *1*2*5 (via left rear seat heater relay (low)), Right rear seat cushion heater *1*2*5 (via right rear seat heater relay (high)), Right rear seat cushion heater *1*2*5 (via right rear seat heater relay (low)) |
*1: 2/4-door *2: Except L15BY engine *3: L15BY engine *4: K20C1 engine *5: With rear seat heater *6: With front passenger's power seat |
| 20 A *3*6 | Front passenger's power seat slide motor (via front passenger's power seat adjustment switch) | ||
| A32 *1 | 20 A | Front passenger's power seat slide motor *2 (via front passenger's power seat adjustment switch), Front passenger's power seat recline motor *3 (via front passenger's power seat adjustment switch) |
*1: With front passenger's power seat *2: Except L15BY engine *3: L15BY engine |
| A33 *1/*2*4/*3/*5 | 20 A *2*4 | Front passenger's power seat recline motor (via front passenger's power seat adjustment switch) | *1: L15BA enginei *2: Except L15BY engine *3: L15BY engine *4: With front passenger's power seat *5: Si |
| 15 A *5 | Adaptive damper control unit | ||
| 5 A *1/*3 | PCM (+B VBACT) |

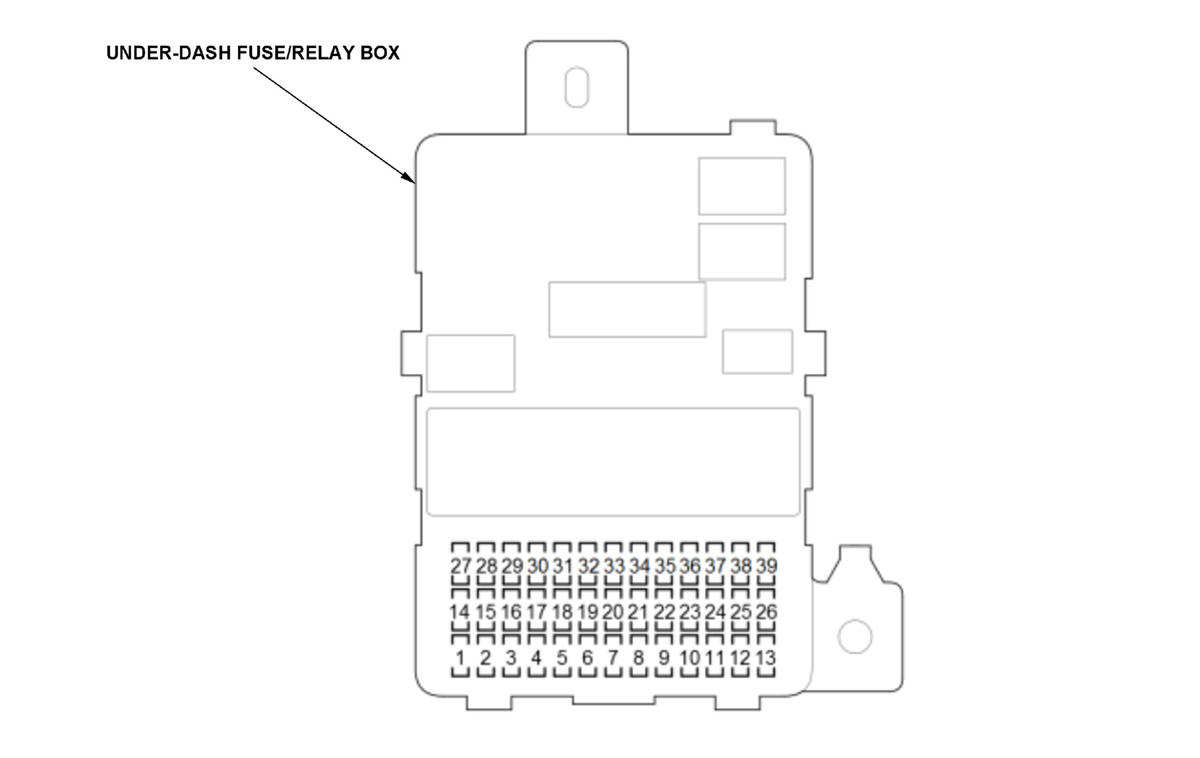

Under-Dash Fuse/Relay Box
Under-Dash Fuse/Relay Box (B)
| Fuse Number | Amps | Component(s) or Circuit(s) Protected | Feature |
|---|---|---|---|
| B1 | 10 A | Audio unit *1*3*6, Audio unit *2*6*8/*4*6 (2 wires), Audio-navigation unit *1*3*7, Audio-navigation unit *2*7/*4*7 (2 wires), Body control module *1*3 (ACC), Front accessory power socket relay *1/*2*10, Front accessory power socket relay *2*9 (via ACC cut relay), Shift position indicator *5, Wireless charger |
*1: 2/4-door *2: 5-door *3: Except L15BY engine *4: L15BY engine *5: CVT *6: Without navigation *7: With navigation *8: With display audio (7-inch screen) *9: Without keyless access system *10: With keyless access system |
| B2 *1 | 5 A | Body control module *2/*3 (ACC KEYLOCK), Key interlock solenoid *4 |
*1: CVT *2: 5-door *3: L15BY engine *4: Without keyless access system |
| B3 * | 10 A | Rear window wiper motor | *: 5-door |
| B4 | 10 A *1*5*6/*2*5*6 | TCM | *1: 2/4-door *2: L15BA engine *3: Except L15BY engine *4: L15BY engine *5: CVT *6: Without keyless access system *7: With keyless access system *8: With multipurpose camera unit |
| 5 A *1*3*7*8/*2*7/*4 | Multipurpose camera unit *7*8, RDM OFF switch *7*8, RFC unit *2*7/*4 |
||
| B5 | 10 A | Adaptive damper control unit *5, Brake light relay circuit *1/*3 (built into the relay circuit board), Front seat heater control unit *6, RFC unit *2/*4, Millimeter wave radar *7, Multipurpose camera unit *1*7, RDM switch *1*7 |
*1: 5-door *2: L15B7 engine *4: K20C2 engine *3: L15BY engine *5: With adaptive damper system *6: With front seat heater *7: With multipurpose camera unit |
| Fuse Number | Amps | Component(s) or Circuit(s) Protected | Feature |
|---|---|---|---|
| B6 | 10 A | Front passenger's airbag cutoff indicator *1, Front passenger's airbag ON/OFF indicator *2 |
*1: USA and Canada models *2: Mexico models |
| B7 | 10 A | Active sound control unit *13, Audio unit *4*6, Audio-navigation unit *5*6, CAN gateway *11, Gauge control module, Parking and back-up sensor control unit *14, Parking and back-up sensor control unit *14 (via parking and back-up sensor switch), Parking and back-up sensor switch *14, Reverse relay circuit *2 (built into the under-dash fuse/relay box), Shift lock solenoid *2, Shift position indicator *2 |
*1: 2/4-door *2: CVT *3: M/T *4: Without navigation *5: With navigation *6: With display audio (7-inch screen) *7: '16-17 *8: '18-21 *9: USA and Canada models *10: Mexico models *11: With multipurpose camera unit *12: With automatic dimming inside mirror *13: With active sound control *14: With parking and back-up sensor system |
| Via back-up light switch *1 *3 : Audio unit, Body control module (BACK LT), Left back-up light Right back-up light |
|||
| Via reverse relay circuit *2 (built into the under-dash fuse/relay box): Audio unit *4*7*9/*4*10, Audio unit *4*8*9 (2 wires), Audio-navigation unit *5*7*9/*5*10, Audio-navigation unit *5*8*9 (2 wires), Automatic dimming inside mirror *12, Body control module (BACK LT), Left back-up light Right back-up light |
|||
| B8 | 15 A *2 20 A *3 |
Body control module *1/*4 (IG1 FUEL PUMP), Electric steering lock *5, Immobilizer-keyless control unit *1*6, Fuel pump (via PGM-FI main relay 2), No. B11 fuse in the under-dash fuse/relay box, PCM *3 (IG1 FUEL PUMP) |
*1: 5-door *2: Except K20C1 engine *3: K20C1 engine *4: L15BY engine *5: With electric steering lock *6: Without keyless access system |
| B9 | 10 A | A/C compressor clutch relay *2, Automatic dimming inside mirror *3, Blower motor relay, Climate control panel, Climate control unit Front seat heater relay circuit *4 (built into the under-dash fuse/relay box), HomeLink unit *6, Left rear seat heater switch *5, Power mirror switch, Power window master switch, Radiator fan relay *1, Rear window defogger relay, Right rear seat heater switch *5 |
*1: K20C1 engine *2: With A/C *3: With automatic dimming inside mirror *4: With front seat heater *5: With rear seat heater *6: With HomeLink |
| Via left rear seat heater switch *5: Left rear seat heater relay (high), Left rear seat heater relay (low) |
|||
| Via right rear seat heater switch *5: Right rear seat heater relay (high), Right rear seat heater relay (low) |
| Fuse Number | Amps | Component(s) or Circuit(s) Protected | Feature |
|---|---|---|---|
| B10 | 20 A * | Not used | *: L15BY engine |
| B11 | 5 A | Body control module *1*2 (IG1 MON), Immobilizer-keyless control unit *1*4, PCM *3 (IG1 MONI) |
*1: 2/4-door *2: Except L15BY engine *3: Except K20C1 engine *4: Without keyless access system |
| B12 | 10 A | Front passenger's door lock actuator *1/*3, Passenger's door lock actuator *2, Right rear door lock actuator *1/*3 |
*1: 4-door *2: 2-door *3: 5-door |
| B13 | 10 A | Left rear door lock actuator *1/*2 | *1: 4-door *2: 5-door |
| B14 *1/*2 | 20 A | Left rear power window motor (via left rear power window switch) | *1: 4-door *2: 5-door |
| B15 | 20 A | Front passenger's power window switch *1/*3, Passenger's power window switch *2 |
*1: 4-door *2: 2-door *3: 5-door |
| B16 | 20 A | No. B12, No. B25, and No. B38 fuses (via power door lock relay circuit (LOCK) built into the under-dash fuse/relay box), No. B13 and No. B26 fuses (via power door lock relay circuit (UNLOCK) built into the under-dash fuse/relay box), No. B39 fuse (via power door lock relay circuit (DR UNLOCK) built into the under-dash fuse/relay box), Power door lock relay circuit (DR UNLOCK) (built into the under-dash fuse/relay box), Power door lock relay circuit (LOCK) (built into the under-dash fuse/relay box), Power door lock relay circuit (UNLOCK) (built into the under-dash fuse/relay box), Tailgate release actuator *2 (via tailgate release actuator relay circuit built into the under-dash fuse/relay box), Tailgate release actuator relay circuit *2 (built into the under-dash fuse/relay box), Trunk lid release actuator *1 (via trunk lid release actuator relay circuit built into the under-dash fuse/relay box), Trunk lid release actuator relay circuit *1 (built into the under-dash fuse/relay box) |
*1: 2/4-door *2: 5-door |
| B17 | 5 A *1*4*6/*2*4 | Multipurpose camera unit *1*4*6, RDM switch *1*4*6, RFC unit *2*4 |
*1: 2/4-door *2: L15BA engine *3: CVT *4: Without keyless access system *5: With keyless access system *6: With multipurpose camera unit |
| 10 A *3*5 | TCM | ||
| B18 | 10 A * | Not used | *: L15BY engine |
| B19 * | 20 A | Moonroof motor-control unit | *: With moonroof |
| B20 | 10 A * | Not used | *: L15BY engine |
| Fuse Number | Amps | Component(s) or Circuit(s) Protected | Feature |
|---|---|---|---|
| B21 | 10 A *2 | ACC cut relay *1*9, EVAP canister purge valve *4, IG2 cut relay *1*9, MAF sensor/IAT sensor 1 *5*11/*6/*7, PCM (BKSWNC) (via brake pedal position switch), Reverse lockout solenoid *8, Secondary HO2S (sensor 2), Starter cut relay 1 circuit *4*10/*5/*6/*7 (built into the relay circuit board), Starter cut relay 2 circuit *4*10/*5/*6/*7 (built into the relay circuit board), Turbocharger bypass control solenoid valve *5/*6/*7 |
*1: 5-door *2: Except K20C1 engine *3: K20C1 engine *4: K20C2 engine *5: L15B7 engine *6: L15BA engine *7: L15BY engine *8: M/T *9: Without keyless access system *10: With keyless access system *11: Except Si *12: Without navigation *13: With navigation *14: With display audio (7-inch screen) *15: With automatic dimming inside mirror |
| Via back-up light switch *1*8: Audio unit *12*14, Audio-navigation unit *13, Automatic dimming inside mirror *15, Body control module (BACK LT), Left back-up light, Right back-up light |
|||
| 15 A *3 | MAF sensor/IAT sensor 1, PCM (BKSWNC) (via brake pedal position switch), Reverse lockout solenoid, Secondary HO2S (sensor 2), Starter cut relay 1 circuit (built into the relay circuit board), Starter cut relay 2 circuit (built into the relay circuit board) |
||
| Via back-up light switch: Audio unit *12*14, Audio-navigation unit *13 Automatic dimming inside mirror *15, Body control module (BACK LT), Left back-up light, PCM (BACK LT), Right back-up light |
|||
| B22 | 10 A | Body control module (IG2 DRL) | |
| B23 | 10 A * | Not used | *: L15BY engine |
| B24 *1/*2/*3 | 5 A | Multipurpose camera unit *3, Audio remote-HFL switch *1*4/*1*5*6/*2 |
*1: 5-door *2: L15BY engine *3: With multipurpose camera unit *4: With display audio (7-inch screen) *5: With color audio (5-inch screen) *6: With multi-information display (MID) |
| B25 | 10 A | Driver's door lock actuator, Fuel fill door lock actuator * |
*: 2/4-door |
| B26 | 10 A | Front passenger's door lock actuator *1/*3, Passenger's door lock actuator *2, Right rear door lock actuator *1/*3 |
*1: 4-door *2: 2-door *3: 5-door |
| B27 *1/*2 | 20 A | Right rear power window motor (via right rear power window switch) | *1: 4-door *2: 5-door |
| B28 | 20 A | Power window master switch | |
| B29 | 20 A | Front accessory power socket (via front accessory power socket relay) | |
| B30 | 5 A *1*2 | PCM (STS) | *1: L15BA engine *2: Without keyless access system *3: With keyless access system *4: With electric steering lock |
| 10 A *3 | Body control module (+B SMART), Body control module (SS1(+)) (via engine start/stop switch), Engine start/stop switch, Electric steering lock *4 |
| Fuse Number | Amps | Component(s) or Circuit(s) Protected | Feature |
|---|---|---|---|
| B31 * | 20 A | Driver's power seat recline motor (via driver's power seat adjustment switch), Driver's power seat up-down motor (via driver's power seat adjustment switch) |
*: With driver's power seat |
| B32 * | 20 A | Front seat heater control unit (via front seat heater relay circuit built into the under-dash fuse/relay box) | *: With front seat heater |
| B33 * | 20 A | Driver's power seat front up-down motor (via driver's power seat adjustment switch), Driver's power seat slide motor (via driver's power seat adjustment switch) |
*: With driver's power seat |
| B34 | 10 A | Brake light relay circuit * (built into the relay circuit board), EPS motor/control unit, VSA modulator-control unit |
*: 2/4-door |
| B35 | 10 A | SRS unit | |
| B36 | 20 A * | Not used | *: L15BY engine |
| B37 | 10 A * | Not used | *: L15BY engine |
| B38 | 10 A | Fuel fill door lock actuator *2, Left rear door lock actuator *1/*2 |
*1: 4-door *2: 5-door |
| B39 | 10 A | Driver's door lock actuator, Fuel fill door lock actuator |
