Door Key Cylinder Switch Test: Test

WARNING: This page is about a different variant/trim than selected.
  1. Driver's Door Panel - Remove
  2. Door Key Cylinder Switch - Test
    GHH381015GHH381016Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH381015GHH381016Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

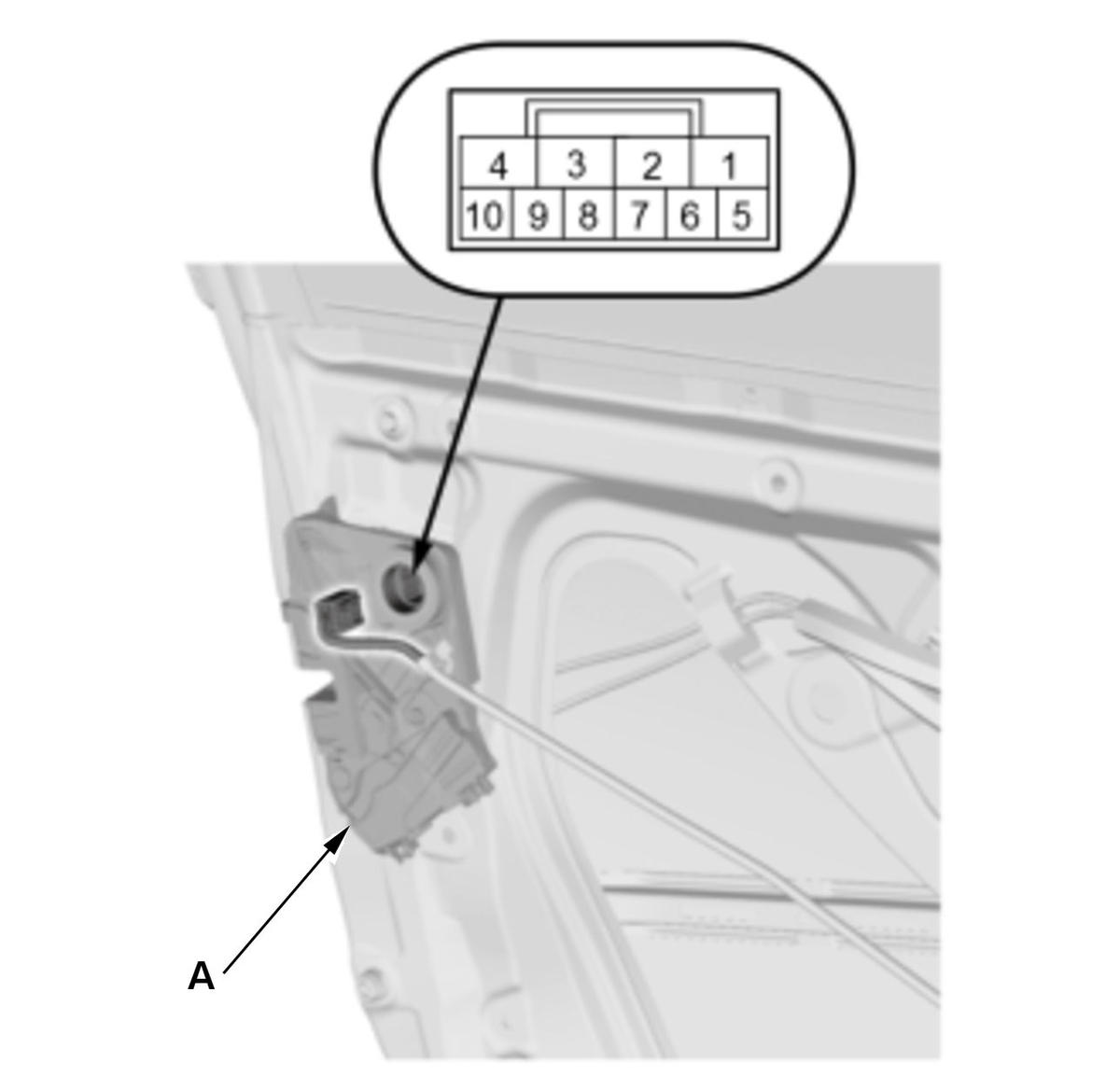

    		 1. Disconnect the connector.

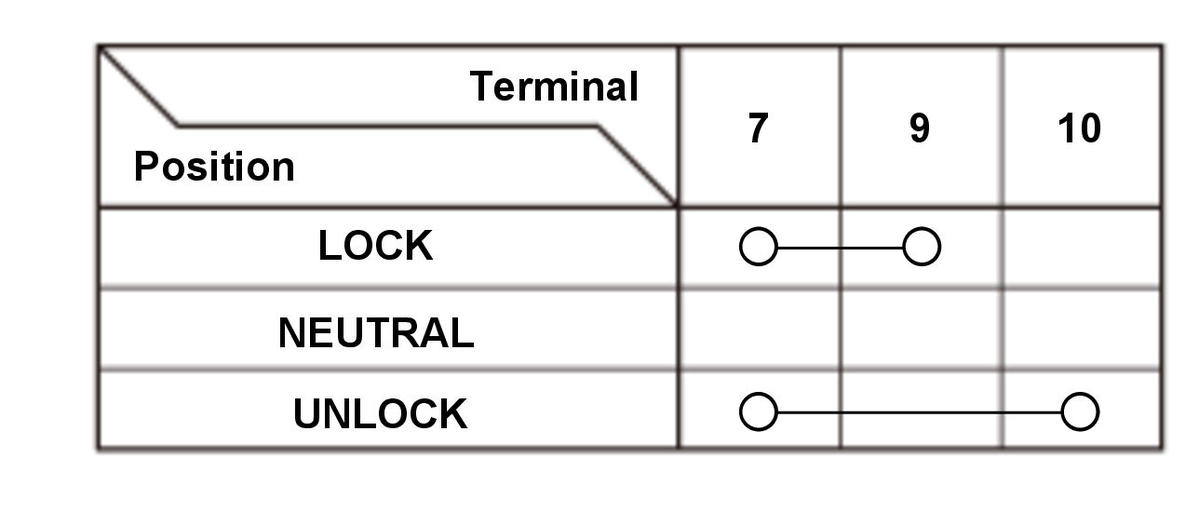

    2. Check for continuity between the terminals in each switch position according to the table.

    3. If the continuity is not as specified, the door key cylinder switch is faulty; replace the driver's door latch

    (A).
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
