Keyless Access System Description - Components
Power Switch
When pressing the power switch, it changes the vehicle to the OFF (LOCK), ACCESSORY, or ON mode. The power switch also includes an LF antenna.
LF (Low Frequency) Antennas
The front interior, middle interior, rear interior, front door outer handle, and rear bumper LF antennas send the signals to the remote when the remote is outside out of the vehicle.

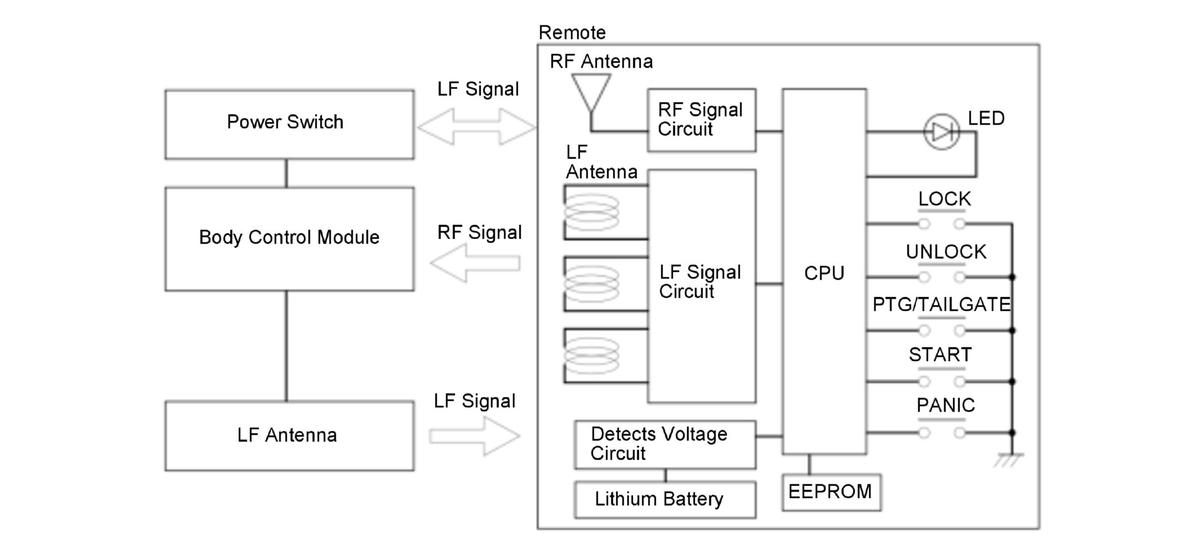

Remote
The remote is equipped with a keyless transmitter, and all the doors can be locked and unlocked by a lock/unlock button operation, even from a remote distance from the vehicle. When the lock button or unlock button is pressed, the keyless transmitter sends the applicable switch signal to the body control module. After receiving authentication, the body control module controls the door lock/unlock actuator.
Door Touch Sensors and Outer Handle Lock Sensers, Tailgate Outer Handle Switch and Lock Switch
The door touch sensors and the outer handle lock sensors are built into the driver's and front passenger's door outer handles. The tailgate outer handle switch is built into the tailgate outer handle. To operate the door locks without the built-in key while carrying the remote, grip the door outer handle to unlock the doors and press the outer handle lock switch on the door outer handle to lock the doors.
Keyless Buzzer
The keyless buzzer is located behind the rear bumper and sounds during smart entry functions.
