HomeLink Unit Connector for Inputs and Outputs
WARNING: This page is about a different variant/trim than selected.

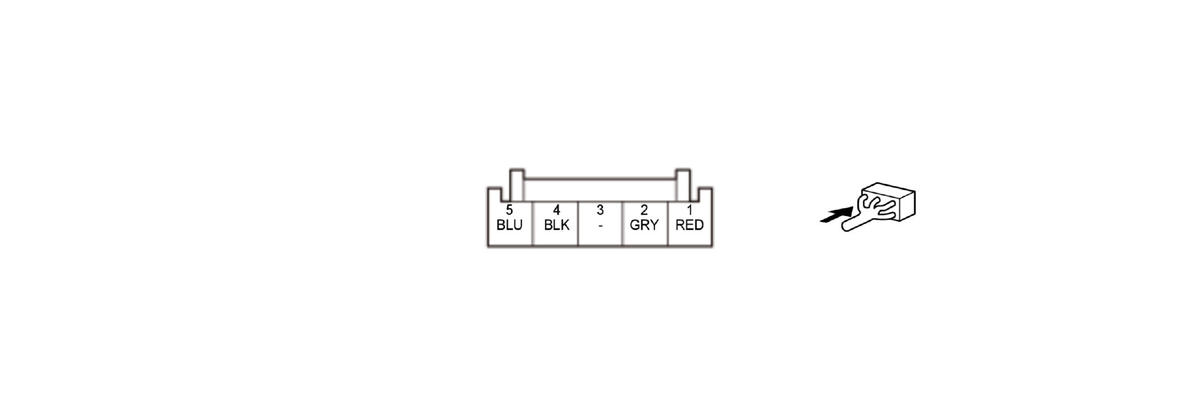

HomeLink ® Unit 5P Connector (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | +B_BACK_UP | +B power source | About battery voltage at all times |
| 2 | ILLUMI+ | Detects illumination signal | With combination light switch PARKING: about battery voltage With combination light switch OFF: less than 0.2 V |
| 3 | --- | Not used | --- |
| 4 | GND | HomeLink ® unit ground | Less than 0.2 V at all times |
| 5 | ILL-(LED) | Outputs illumination signal | --- |
