Keyless Access System Component Location Index
WARNING: This page is about a different variant/trim than selected.
For relationships between signals in a system,
refer to System Diagram .

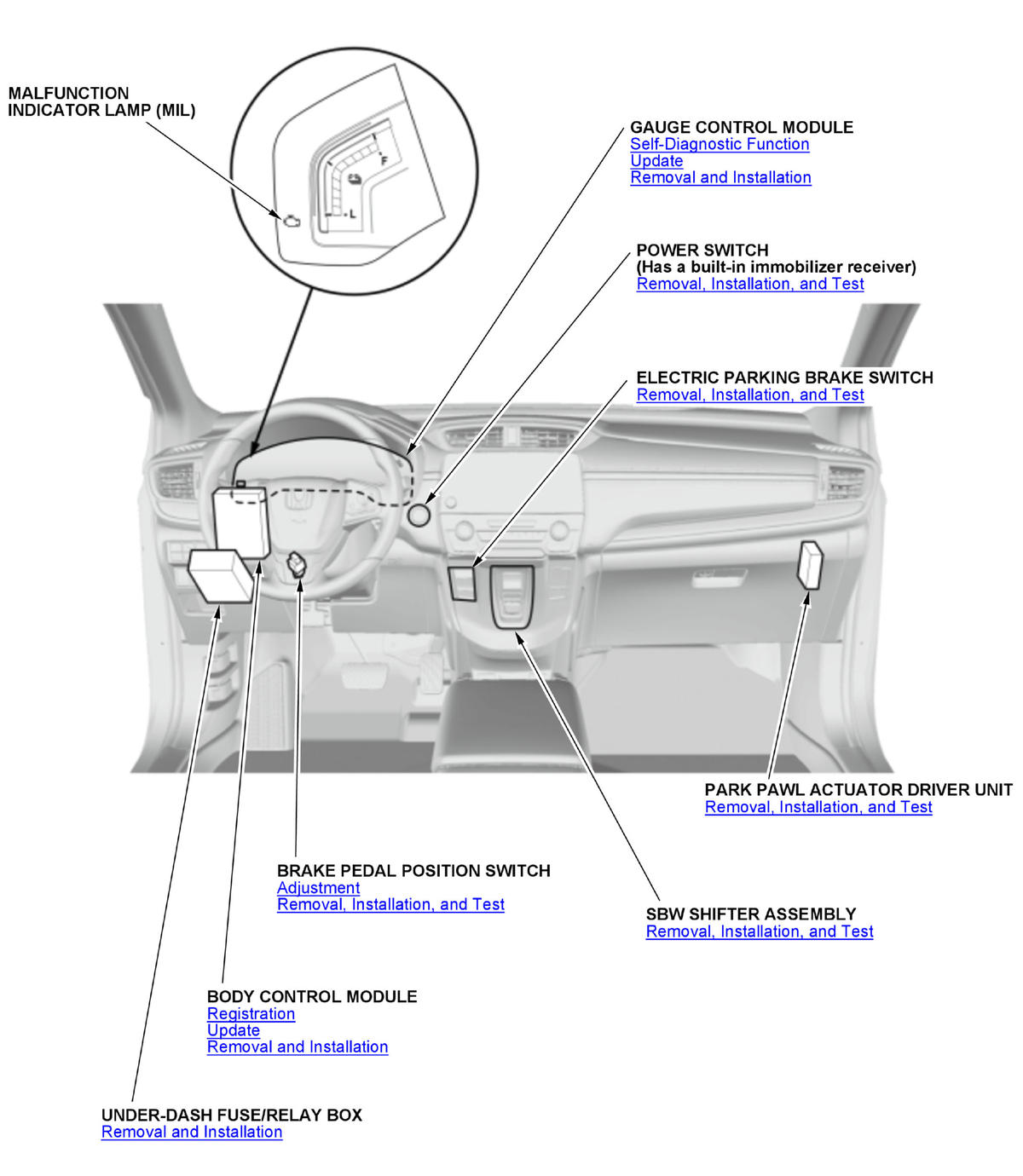

 Courtesy of HONDA, U.S.A., INC.
|

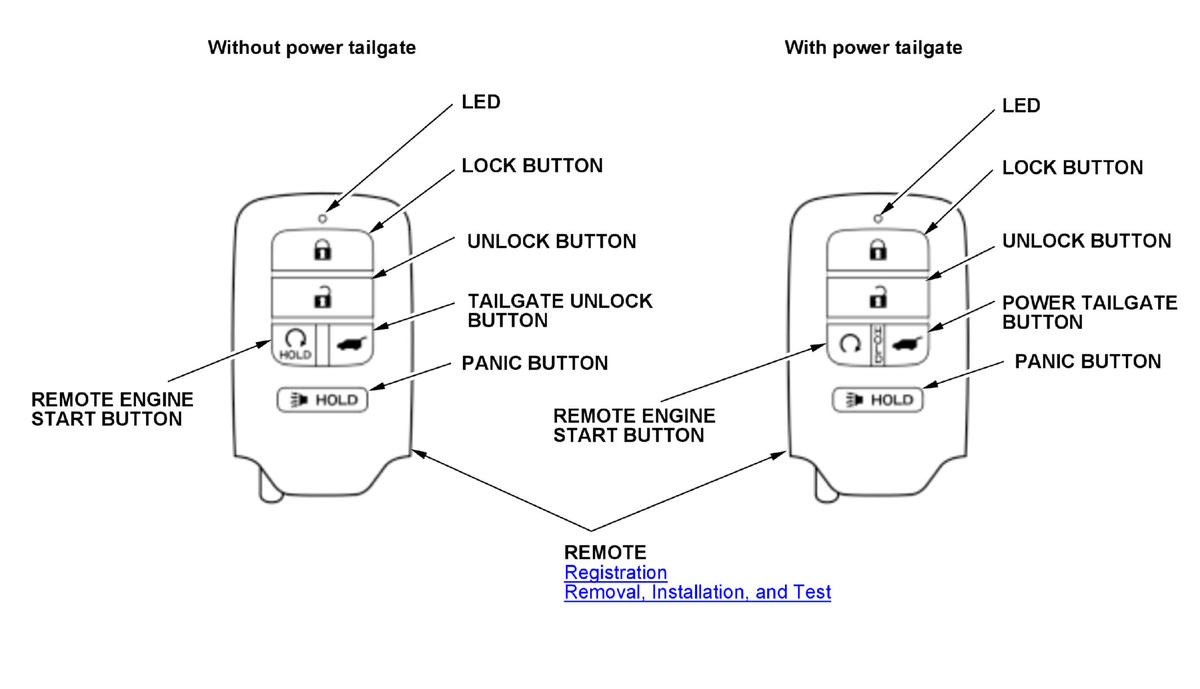

 Courtesy of HONDA, U.S.A., INC.
|

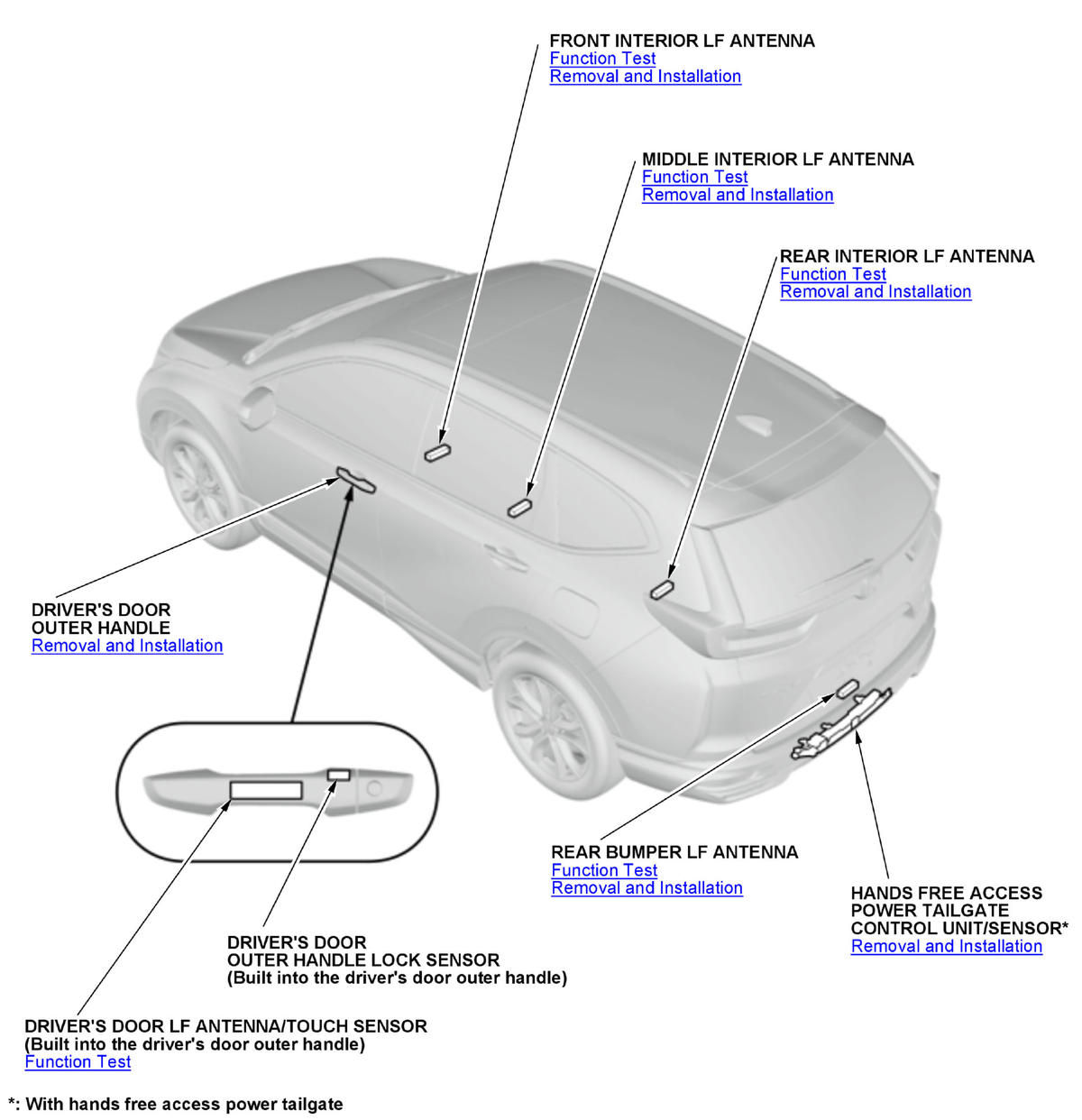

 Courtesy of HONDA, U.S.A., INC.
|

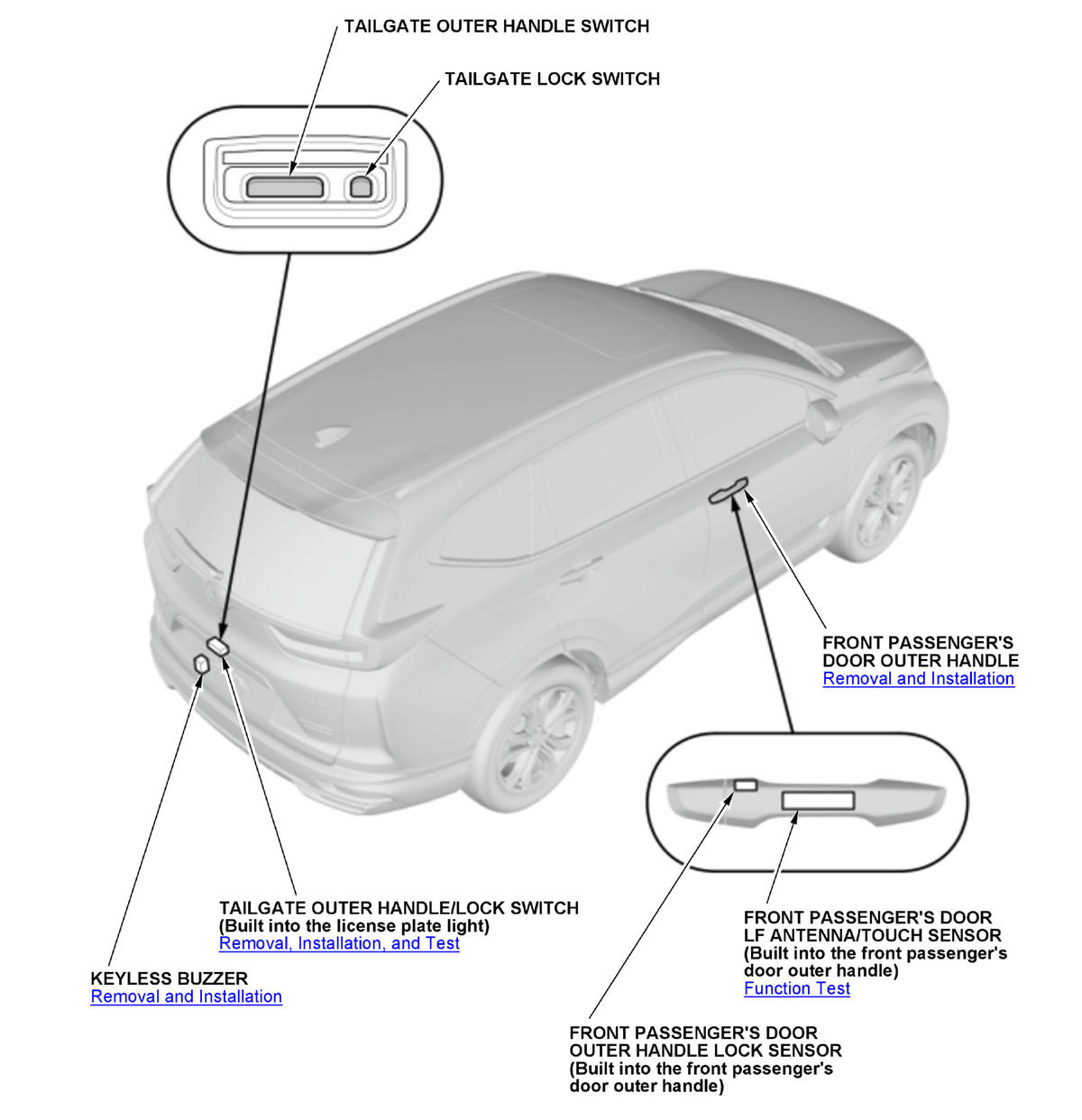

 Courtesy of HONDA, U.S.A., INC.
|

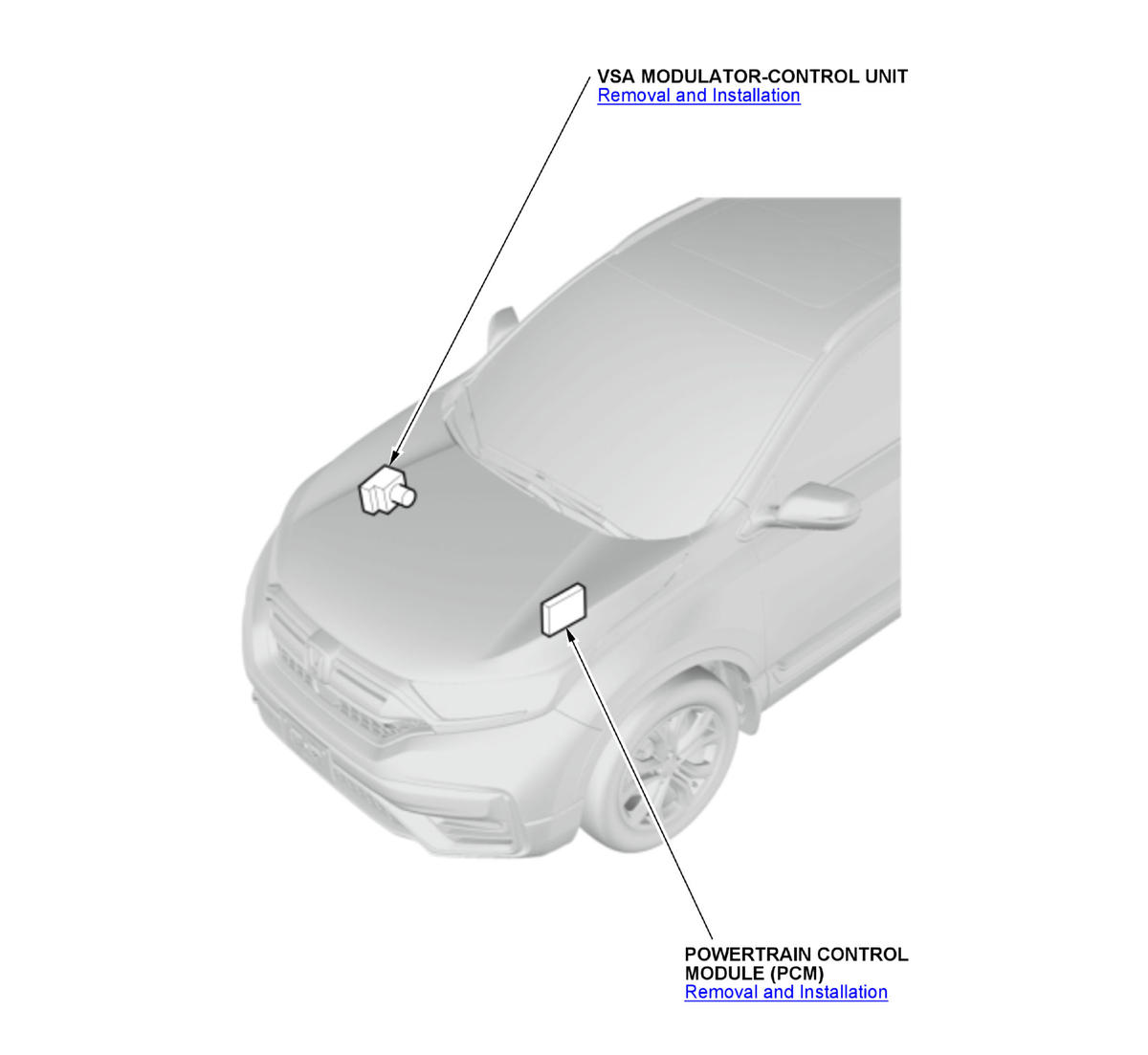

 Courtesy of HONDA, U.S.A., INC.
|
