Section 50 (Security System / Keyless Entry System - Testing & Troubleshooting (Hybrid))
>>
Circuit Diagram
>>

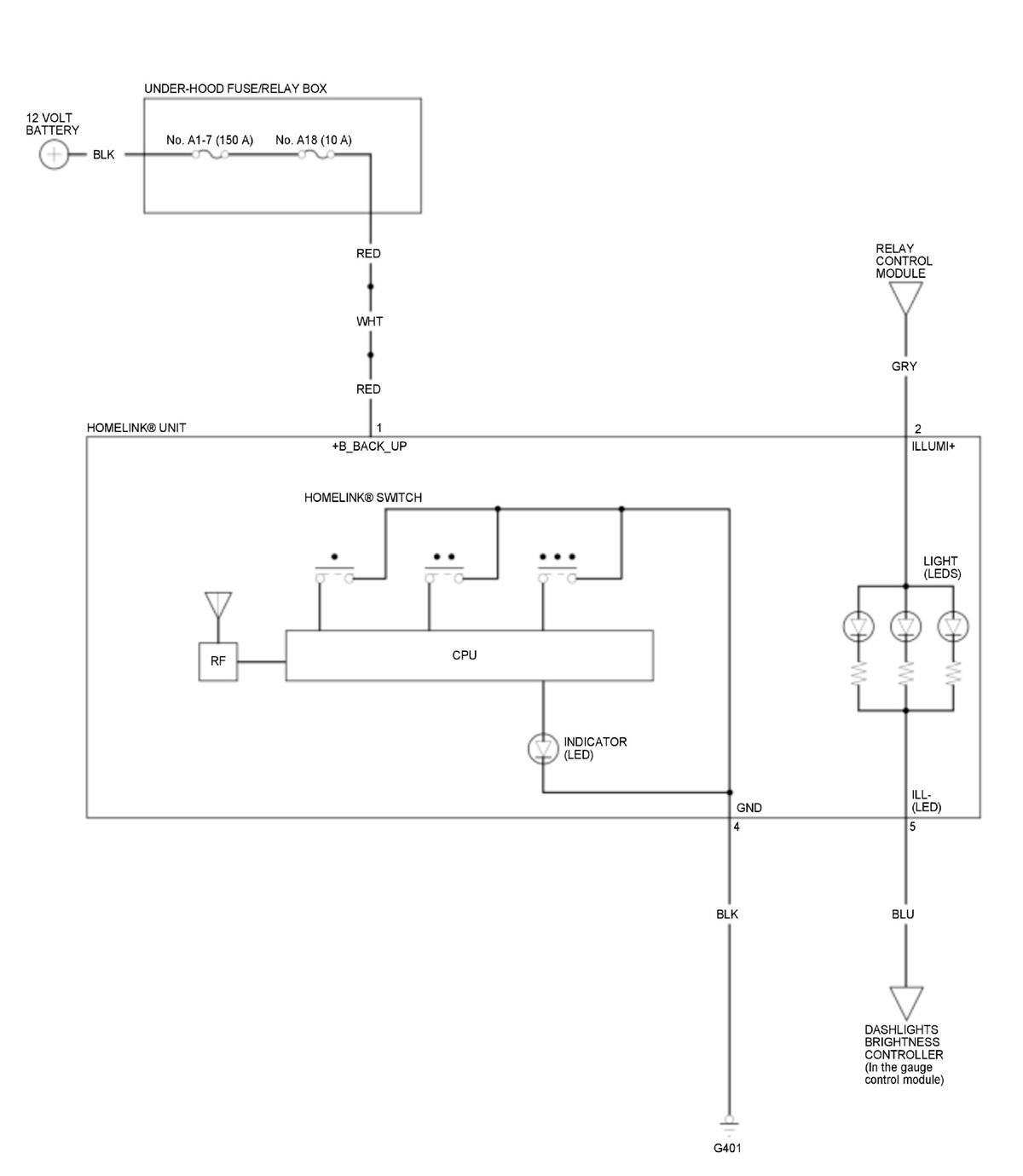

HomeLink Remote Control System Circuit Diagram
HomeLink Remote Control System Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of HONDA, U.S.A., INC.
