Body Control Module Connector for Inputs and Outputs

WARNING: This page is about a different variant/trim than selected.

Connector Index
Body Control Module Connector A (14P)
Body Control Module Connector B (36P)
Body Control Module Connector C (28P)
Body Control Module Connector D (40P)
Body Control Module Connector E (24P)
Body Control Module Connector F (36P)
Body Control Module Connector G (32P)

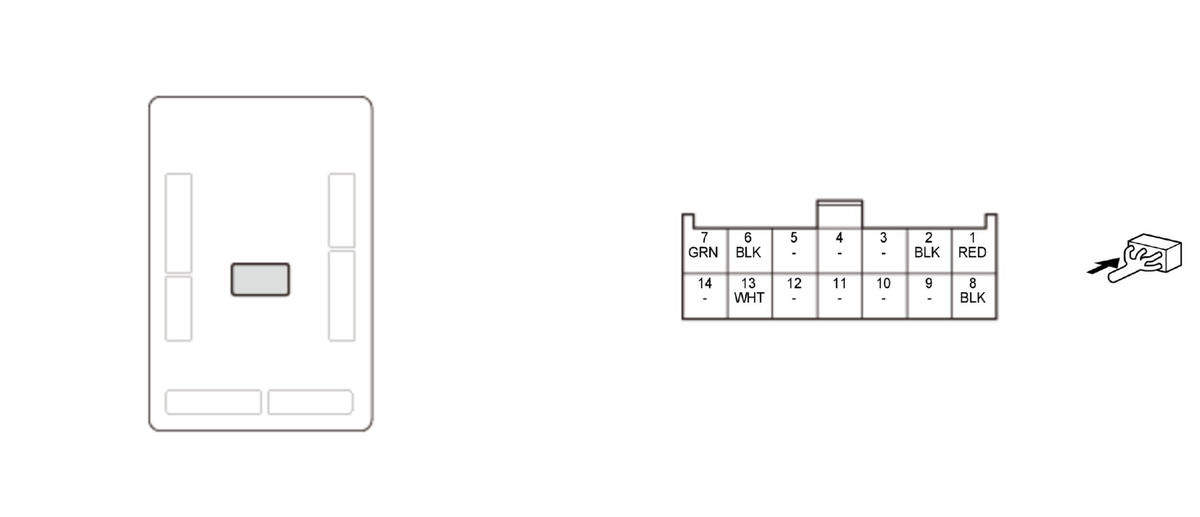

Body Control Module Connector A (14P) (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description	Signal
1	+B_HAZARD	+B power supply	About battery voltage at all times
2	GND	Body control module ground	Less than 0.2 V at all times
3	---	Not used	---
4	---	Not used	---
5	---	Not used	---
6	GND	Body control module ground	Less than 0.2 V at all times
7	RR_WIPER_MTR	Outputs rear window wiper motor signal	---
8	GND	Body control module ground	Less than 0.2 V at all times
9	---	Not used	---
10	---	Not used	---
11	---	Not used	---
12	---	Not used	---
13	INTR_LIGHT-	Detects interior lights signal	---
14	---	Not used	---

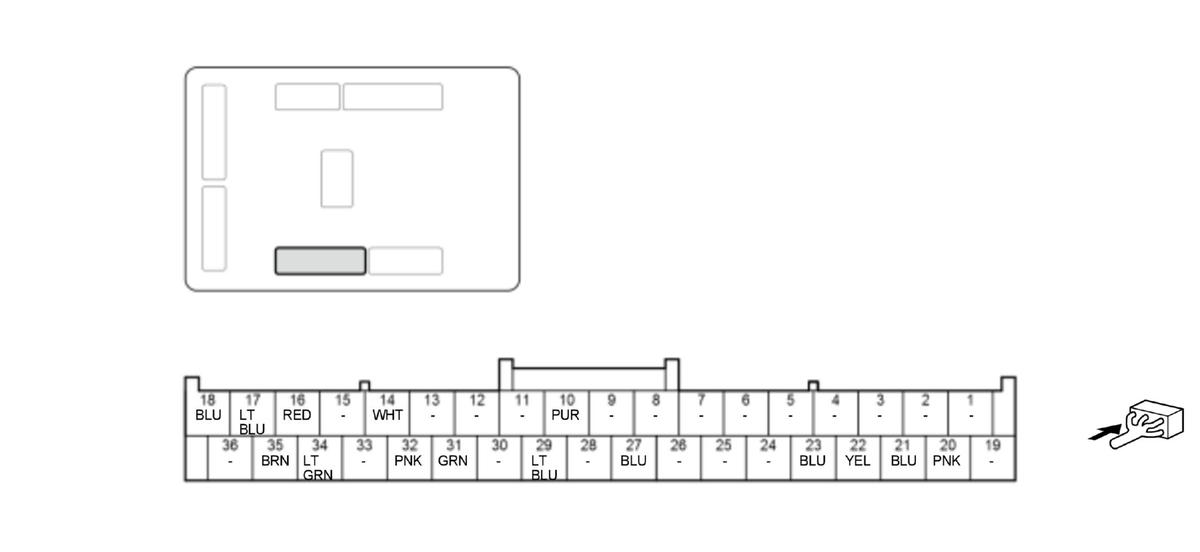

Body Control Module Connector B (36P) (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description	Signal
1	---	Not used	---
2	---	Not used	---
3	---	Not used	---
4	---	Not used	---
5	---	Not used	---
6	---	Not used	---
7	---	Not used	---
8	---	Not used	---
9	---	Not used	---
10	BACK_UP (WIPER)	Outputs windshield wiper control unit/motor (wiper HI/LO) signal	With wiper HI or LO operation: about battery voltage If none of above conditions are met: less than 0.2 V
11	---	Not used	---
12	---	Not used	---
13	---	Not used	---
14	P/W_TIMER	Drives power window relay	Without vehicle off operation: about battery voltage With vehicle off operation: less than 0.2 V
15	---	Not used	---
16	+B_SMART	+B power source	About battery voltage at all times
17	RR_L_TURN	Outputs left turn signal light signal	With left turn signal lights are ON: about battery voltage
18	FR_L_TURN	Outputs left turn signal light signal	With left turn signal lights are ON: about battery voltage
19	---	Not used	---
20	B-CAN_H	Communication line	---
21	B-CAN_L	Communication line	---
22	F-CAN B_H	Communication line	---
23	F-CAN B_L	Communication line	---
24	---	Not used	---
25	---	Not used	---

*: Without power tailgate

Terminal number	Terminal name	Description	Signal
26	---	Not used	---
27	DOOR_LOCK_RELAY_CL-	Drives power door lock relay circuit (LOCK) signal	With door lock actuators in locking operation: less than 0.2 V
28	---	Not used	---
29*	TRUNK_ACT_RLY_CL-	Drives tailgate release actuator relay circuit	With tailgate release actuator operation: less than 0.2 V
30	---	Not used	---
31	DR_DOOR_UNLOCK_RELAY_CL-	Drives power door lock relay circuit (DR UNLOCK)	With driver's door lock actuator in unlocking operation: less than 0.2 V
32	DOOR_UNLOCK_RELAY_CL-	Drives power door lock relay circuit (UNLOCK)	With door lock actuators in unlocking operation: less than 0.2 V
33	---	Not used	---
34	RR_R_TURN	Outputs right turn signal light signal	With right turn signal lights are ON: about battery voltage
35	FR_R_TURN	Outputs right turn signal light signal	With right turn signal lights are ON: about battery voltage
36	---	Not used	---

*: Without power tailgate

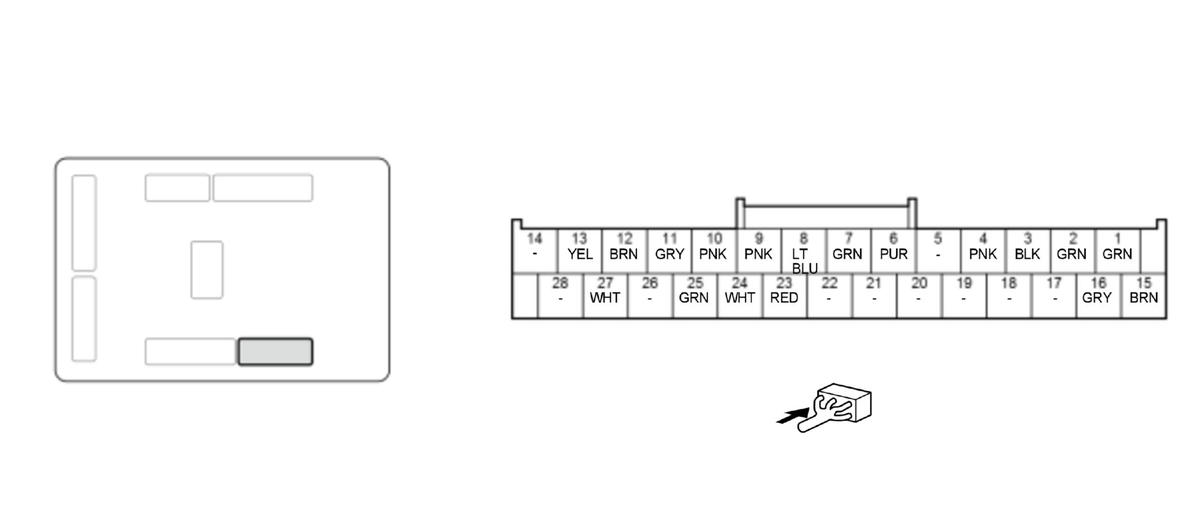

Body Control Module Connector C (28P) (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description	Signal
1	ATP-P	Detects transmission in P position/mode signal	With P position/mode: less than 0.2 V With out of P position/mode and body control module is wakeup mode: about battery voltage With out of P position/mode and body control module is sleep mode: pulse
2	HAZARD_SW	Detects hazard warning switch signal	With hazard warning switch OFF: about battery voltage With hazard warning switch ON: less than 0.2 V
3	COMBI_SW_GND(LT)	Ground for combination light switch	Less than 0.2 V at all times

*: With front fog light

Terminal number	Terminal name	Description	Signal
4	T/G_OPEN_SW	Detects tailgate outer handle switch signal	With tailgate outer handle switch ON: less than 0.2 V With tailgate outer handle switch OFF and body control module is wakeup mode: about battery voltage With tailgate outer handle switch OFF and body control module is sleep mode: pulse
5	---	Not used	---
6*	FR_FOG_SW	Detects front fog light switch signal	With front fog light switch ON: less than 0.2 V With front fog light switch OFF and body control module is wakeup mode: about battery voltage With front fog light switch OFF and body control module is sleep mode: pulse
7	PASSING_SW	Detects combination light switch PASSING signal	With combination light switch PASSING: less than 0.2 V With combination light switch OFF and body control module is wakeup mode: about battery voltage With combination light switch OFF and body control module is sleep mode: pulse
8	H/L_HI_SW	Detects combination light switch HI signal	With combination light switch HI: less than 0.2 V With combination light switch OFF and body control module is wakeup mode: about battery voltage With combination light switch OFF and body control module is sleep mode: pulse
9	H/L_ON_SW	Detects combination light switch ON signal	With combination light switch ON: less than 0.2 V With combination light switch OFF and body control module is wakeup mode: about battery voltage With combination light switch OFF and body control module is sleep mode: pulse
10	H/L_OFF_SW	Detects combination light switch OFF signal	With combination light switch OFF: less than 0.2 V With combination light switch ON and body control module is wakeup mode: about battery voltage With combination light switch ON and body control module is sleep mode: pulse
11	PARKING_LT_SW	Detects combination light switch PARKING signal	With combination light switch PARKING: less than 0.2 V With combination light switch OFF and body control module is wakeup mode: about battery voltage With combination light switch OFF and body control module is sleep mode: pulse
12	IG2_DRL	IG2 power source	With vehicle in ON mode: about battery voltage
13	LIN(FR_WIPER)	Communication line	---
14	---	Not used	---

*: With front fog light

Terminal number	Terminal name	Description	Signal
15	RR_L_SILCON_UNLOCK	Detects left rear door lock knob switch signal	With left rear door lock knob switch UNLOCK: less than 0.2 V With left rear door lock knob switch LOCK and body control module is wakeup mode: about battery voltage With left rear door lock knob switch LOCK and body control module is sleep mode: pulse
16	RR_R_SILCON_UNLOCK	Detects right rear door lock knob switch signal	With right rear door lock knob switch UNLOCK: less than 0.2 V With right rear door lock knob switch LOCK and body control module is wakeup mode: about battery voltage With right rear door lock knob switch LOCK and body control module is sleep mode: pulse
17	---	Not used	---
18	---	Not used	---
19	---	Not used	---
20	---	Not used	---
21	---	Not used	---
22	---	Not used	---
23	ACC_KEYLOCK	ACC power source	With vehicle in ACCESSORY or ON mode: about battery voltage
24	BACK_LT	Detects back-up light signal	With vehicle in ON mode and R position/mode: about battery voltage If none of above conditions are met: less than 0.2 V
25	STOP_SW	Detects brake pedal position switch signal	With brake pedal pressed: about battery voltage With brake pedal released: less than 0.2 V
26	---	Not used	---
27	+B_BACK_UP	+B power source	About battery voltage at all times
28	---	Not used	---

*: With front fog light

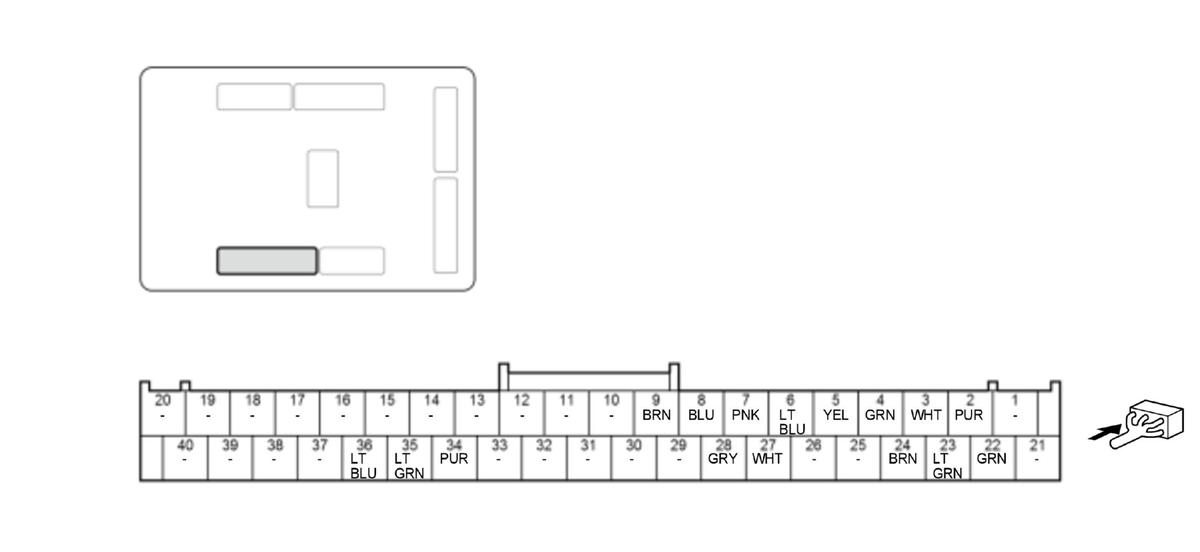

Body Control Module Connector D (40P) (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description	Signal
1	---	Not used	---
2	FR_WIPER_INT_SW	Detects windshield wiper switch INT or LO signal	With windshield wiper switch INT or LO: less than 0.2 V With out of windshield wiper switch INT or LO and body control module is wakeup mode: about battery voltage With out of windshield wiper switch INT or LO and body control module is sleep mode: less than 0.2 V
3	FR_WIPER_HI_SW	Detects windshield wiper switch HI or LO signal	With windshield wiper switch HI or LO: less than 0.2 V With out of windshield wiper switch HI or LO and body control module is wakeup mode: about battery voltage With out of windshield wiper switch HI or LO and body control module is sleep mode: less than 0.2 V
4	FR_WIPER_MIST_SW	Detects windshield washer switch MIST signal	With windshield washer switch MIST: less than 0.2 V With out of windshield wiper switch MIST and body control module is wakeup mode: about battery voltage With out of windshield wiper switch MIST and body control module is sleep mode: less than 0.2 V
5	FR_WASHER_SW	Detects windshield washer switch ON signal	With windshield washer switch ON: less than 0.2 V With windshield washer switch OFF and body control module is wakeup mode: about battery voltage With windshield washer switch OFF and body control module is sleep mode: less than 0.2 V
6	RR_WIPER_INT_SW	Detects rear window wiper switch INT signal	With rear window wiper switch INT: less than 0.2 V With out of rear window wiper switch INT and body control module is wakeup mode: about battery voltage With out of rear window wiper switch INT and body control module is sleep mode: less than 0.2 V
7	RR_WIPER_SW	Detects rear window wiper switch ON signal	With rear window wiper switch ON: less than 0.2 V With out of rear window wiper switch ON and body control module is wakeup mode: about battery voltage With out of rear window wiper switch ON and body control module is sleep mode: less than 0.2 V
8	RR_WASHER_SW	Detects rear window washer switch signal	With rear window washer switch ON: less than 0.2 V With rear window washer switch OFF and body control module is wakeup mode: about battery voltage With rear window washer switch OFF and body control module is sleep mode: less than 0.2 V
9	COMBI_SW_GND(WIP)	Ground for wiper/washer switch	Less than 0.2 V at all times
10	---	Not used	---

*: Without power tailgate

Terminal number	Terminal name	Description	Signal
11	---	Not used	---
12	---	Not used	---
13	---	Not used	---
14	---	Not used	---
15	---	Not used	---
16	---	Not used	---
17	---	Not used	---
18	---	Not used	---
19	---	Not used	---
20	---	Not used	---
21	---	Not used	---
22	FL_DOOR_SW	Detects driver's door switch signal	With driver's door switch ON: less than 0.2 Vs sleep mode: pulse With driver's door switch OFF and body control module is wakeup mode: about battery voltage With driver's door switch OFF and body control module is sleep mode: pulse
23	FR_DOOR_SW	Detects front passenger's door switch signal	With front passenger's door switch ON: less than 0.2 V With front passenger's door switch OFF and body control module is wakeup mode: about battery voltage With front passenger's door switch OFF and body control module is sleep mode: pulse
24	RL_DOOR_SW	Detects left rear door switch signal	With left rear door switch ON: less than 0.2 V With left rear door switch OFF and body control module is wakeup mode: about battery voltage With left rear door switch OFF and body control module is sleep mode: pulse
25	---	Not used	---
26	---	Not used	---
27	T/G_SW	Detects tailgate latch switch signal	With tailgate latch switch ON: less than 0.2 V With tailgate latch switch OFF and body control module is wakeup mode: about battery voltage With tailgate latch switch OFF and body control module is sleep mode: pulse
28	RR_DOOR_SW	Detects right rear door switch signal	With right rear door switch ON: less than 0.2 V With right rear door switch OFF and body control module is wakeup mode: about battery voltage With right rear door switch OFF and body control module is sleep mode: pulse
29	---	Not used	---
30	---	Not used	---
31	---	Not used	---
32	---	Not used	---
33	---	Not used	---

*: Without power tailgate

Terminal number	Terminal name	Description	Signal
34*	CDS	Detects SRS unit collision detection signal	With SRS unit collision detection: less than 0.2 V With SRS unit non-collision detection and body control module is wakeup mode: about battery voltage With body control module is sleep mode: less than 0.2 V at all time
35	S-NET	Communication line	---
36	K-LINE	Communication line	---
37	---	Not used	---
38	---	Not used	---
39	---	Not used	---
40	---	Not used	---

*: Without power tailgate

Body Control Module Connector E (24P) (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description	Signal
1	IG1_FUEL_PUMP	IG1 power source	With vehicle in ON or START mode: about battery voltage
2	---	Not used	---
3	TRUNK_LT	Outputs cargo area light signal	With cargo area light ON: less than 0.2 V
4	---	Not used	---
5	R_TURN_SW	Detects right turn signal switch signal	With right turn signal switch ON: less than 0.2 V With right turn signal switch OFF and body control module is wakeup mode: about battery voltage With right turn signal switch OFF and body control module is sleep mode: less than 0.2 V

*: With intermittent dwell time controller

Terminal number	Terminal name	Description	Signal
6	L_TURN_SW	Detects left turn signal switch signal	With left turn signal switch ON: less than 0.2 V With left turn signal switch OFF and body control module is wakeup mode: about battery voltage With left turn signal switch OFF and body control module is sleep mode: less than 0.2 V
7	---	Not used	---
8	---	Not used	---
9	---	Not used	---
10	---	Not used	---
11	---	Not used	---
12	---	Not used	---
13	---	Not used	---
14	---	Not used	---
15	---	Not used	---
16	---	Not used	---
17	---	Not used	---
18	---	Not used	---
19	---	Not used	---
20	---	Not used	---
21*	FR_WIPER_INT_VOL	Detects windshield wiper/washer switch intermittent dwell time controller signal	With vehicle in ON mode: about 0-5 V (depending on intermittent dwell time controller)
22	SMART_BUZZER	Outputs keyless buzzer signal	---
23	---	Not used	---
24	---	Not used	---

*: With intermittent dwell time controller

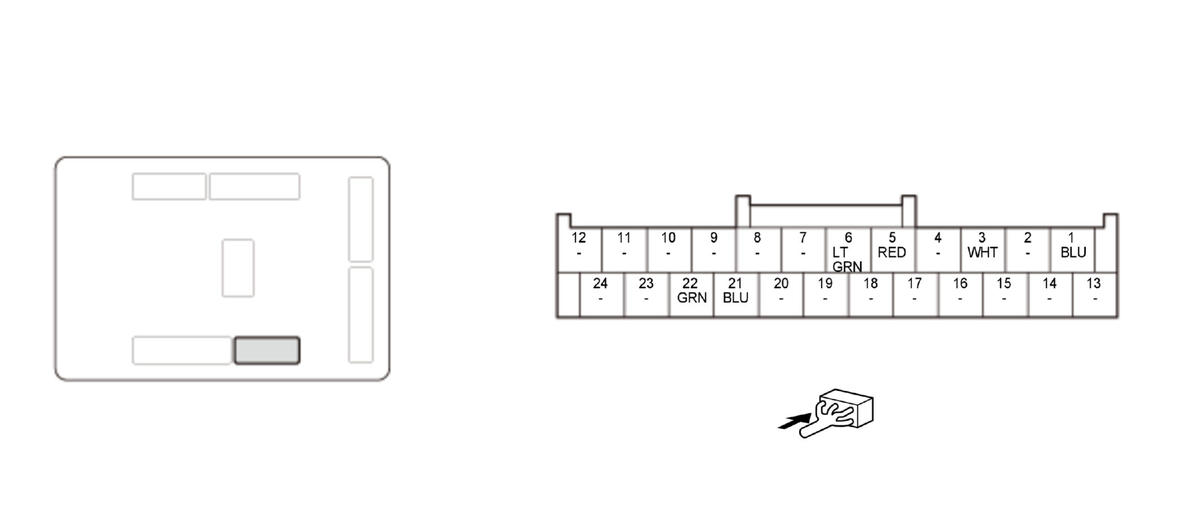

Body Control Module Connector F (36P) (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description	Signal
1	---	Not used	---

Terminal number	Terminal name	Description	Signal
2	IG1_COIL+	Drives IG1A and IG1B relay circuit	With vehicle in ON or START mode: about battery voltage With vehicle in OFF (LOCK) mode: less than 0.2 V
3	START_SW_IND1	Drives power switch light (RED)	With power switch light (RED) OFF: about battery voltage With power switch light (RED) ON: less than 0.2 V
4	START_SW_ILL	Drives power switch light (WHITE)	With power switch light (WHITE) OFF: about battery voltage With power switch light (WHITE) ON: less than 0.2 V
5	ESL_PWR	Outputs for park pawl actuator drive unit (ESL_PWR) signal	---
6	STS	Outputs engine starting request signal	With engine starting request: about battery voltage
7	---	Not used	---
8	---	Not used	---
9	---	Not used	---
10	---	Not used	---
11	SSSW_LF_ANT+	Outputs power switch LF antenna signal	---
12	EXT_FR_AS+	Outputs front passenger's door outer handle LF antenna signal	---
13	EXT_FR_DR+	Outputs driver's door outer handle LF antenna signal	---
14	EXT_TR+	Outputs rear bumper LF antenna signal	---
15	EXT_M+	Outputs middle interior LF antenna signal	---
16	EXT_F+	Outputs front interior LF antenna signal	---
17	EXT_R+	Outputs rear interior LF antenna signal	---
18	---	Not used	---
19	---	Not used	---
20	---	Not used	---
21	L-LINE	Communication line	---
22	---	Not used	---
23	---	Not used	---
24	---	Not used	---
25	---	Not used	---
26	---	Not used	---
27	---	Not used	---
28	---	Not used	---
29	SSSW_LF_ANT-	Outputs power switch LF antenna signal	---
30	EXT_FR_AS-	Outputs front passenger's door outer handle LF antenna signal	---
31	EXT_FR_DR-	Outputs driver's door outer handle LF antenna signal	---
32	EXT_TR-	Outputs rear bumper LF antenna signal	---

Terminal number	Terminal name	Description	Signal
33	EXT_M-	Outputs middle interior LF antenna signal	---
34	EXT_F-	Outputs front interior LF antenna signal	---
35	EXT_R-	Outputs rear interior LF antenna signal	---
36	---	Not used	---

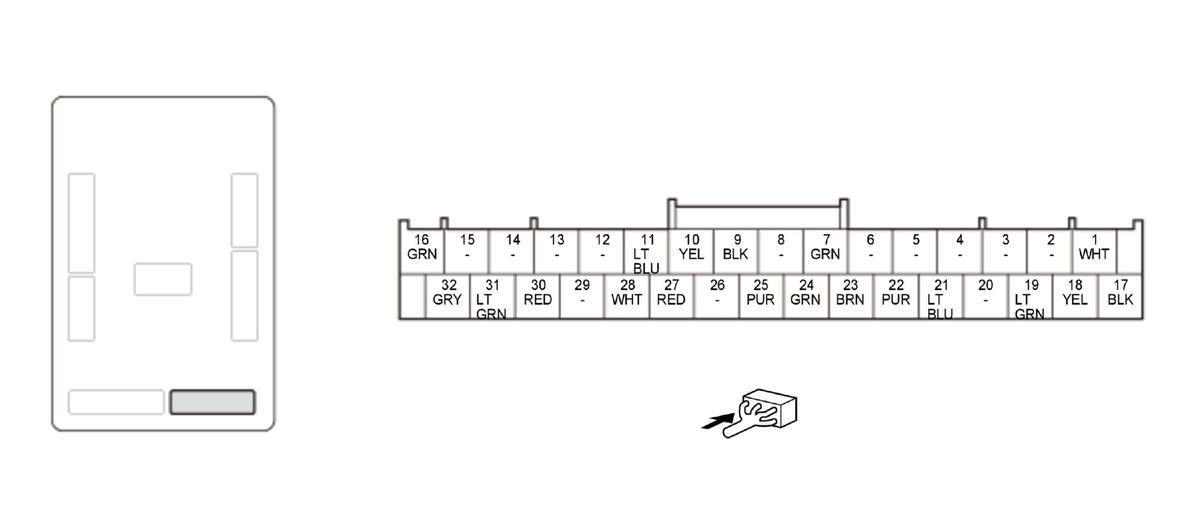

Body Control Module Connector G (32P) (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description	Signal
1	DL_FR_AS	Detects front passenger's door outer handle touch sensor (LOCK) signal	---
2	---	Not used	---
3	---	Not used	---
4	---	Not used	---
5	---	Not used	---
6	---	Not used	---
7	MTR_CUT2(IG1)	Detects for SBW shifter control module (MTR_CUT2(IG1)) signal	---
8	---	Not used	---
9	SS2(-)	Detects power switch (SS2(-)) signal	---
10	IG1-B_SIG	IG1 power source	With vehicle in ON or START mode: about battery voltage
11	IG2_SIG	IG2 power source	With vehicle in ON mode: about battery voltage
12	---	Not used	---
13	---	Not used	---
14	---	Not used	---
15	---	Not used	---

*: With hands free access power tailgate

Terminal number	Terminal name	Description	Signal
16	ACC_RLY_CL+	Drives ACC relay circuit	With vehicle in ACCESSORY or ON mode: about battery voltage With vehicle in OFF (LOCK) mode: less than 0.2 V
17	CONT_RLY_GND	Ground for IG1A/IG1B/IG2/ACC relay circuits	Less than 0.2 V at all times
18	SS1(+)	Detects power switch (SS1(+)) signal	Power switch pressed: about battery voltage Power switch released: less than 0.2 V
19	DL_FR_DR	Detects driver's door outer handle touch sensor (LOCK) signal	---
20	---	Not used	---
21	T/G_CLOSE_SW	Detects tailgate lock switch signal	With tailgate lock switch ON: less than 0.2 V With tailgate lock switch OFF and body control module is wakeup mode: about battery voltage With tailgate lock switch OFF and body control module is sleep mode: pulse
22	TS_FR_DR	Detects driver's door outer handle touch sensor (UNLOCK) signal	---
23	PARK_BUSY	Detects parking brake switch signal	---
24*	KICK_SNSR	Detects hands free access power tailgate control unit/sensor signal	---
25	TS_FR_AS	Detects front passenger's door outer handle touch sensor (UNLOCK) signal	---
26	---	Not used	---
27	IG1-A_SIG	IG1 power source	With vehicle in ON or START mode: about battery voltage
28	IGN_TRX	Communication line	---
29	---	Not used	---
30	VOUT_FR_AS	Drives front passenger's door outer handle touch sensor	---
31	VOUT_FR_DR	Drives driver's door outer handle touch sensor	---
32	IG2_COIL+	Drives IG2 relay circuit	With vehicle in ON mode: about battery voltage With vehicle in OFF (LOCK) mode: less than 0.2 V

*: With hands free access power tailgate
