Driving Position Memory System (DPMS) Component Location Index

For relationships between signals in a system,

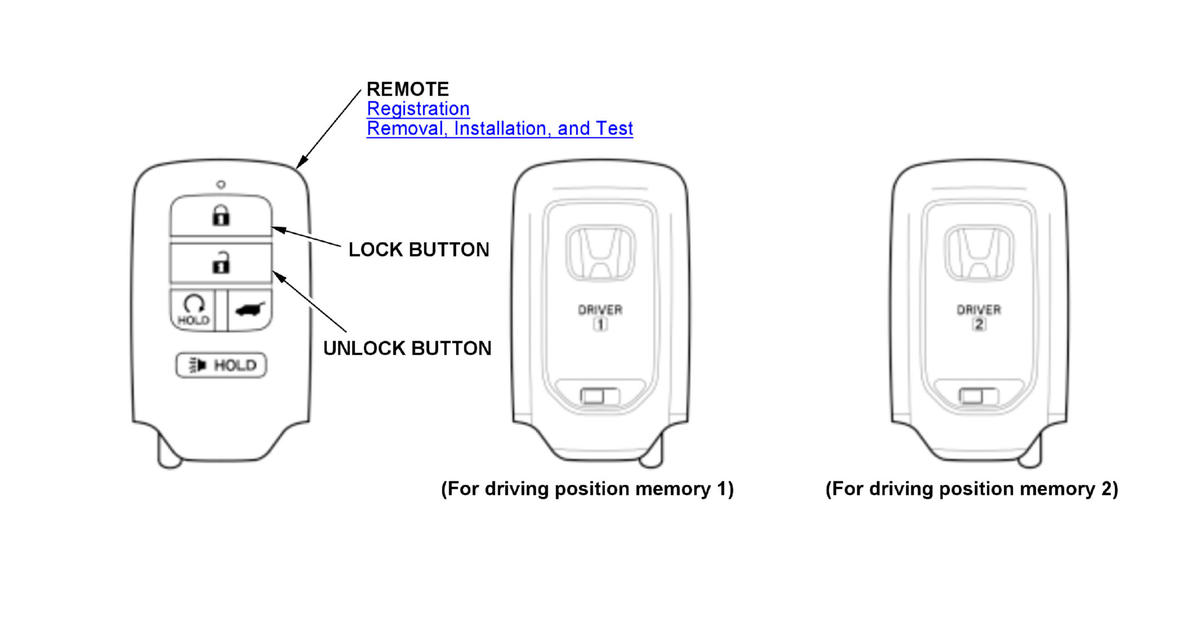

refer to System Diagram .With power tailgate

Courtesy of HONDA, U.S.A., INC.

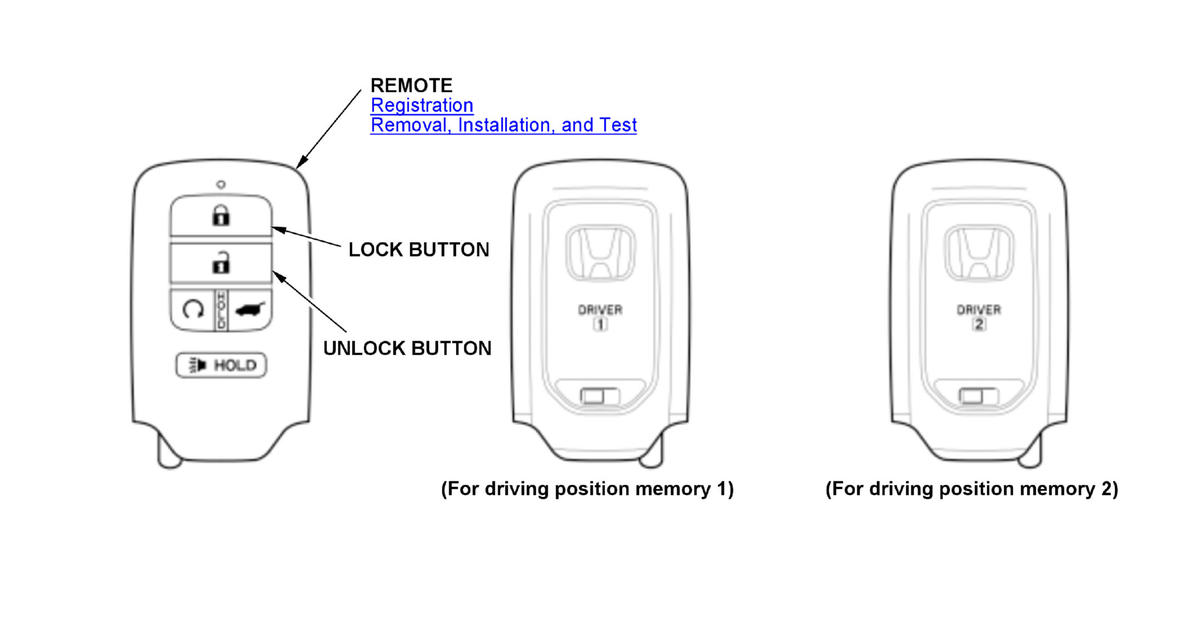

Without power tailgate

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.
