Driving Position Memory System (DPMS) Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

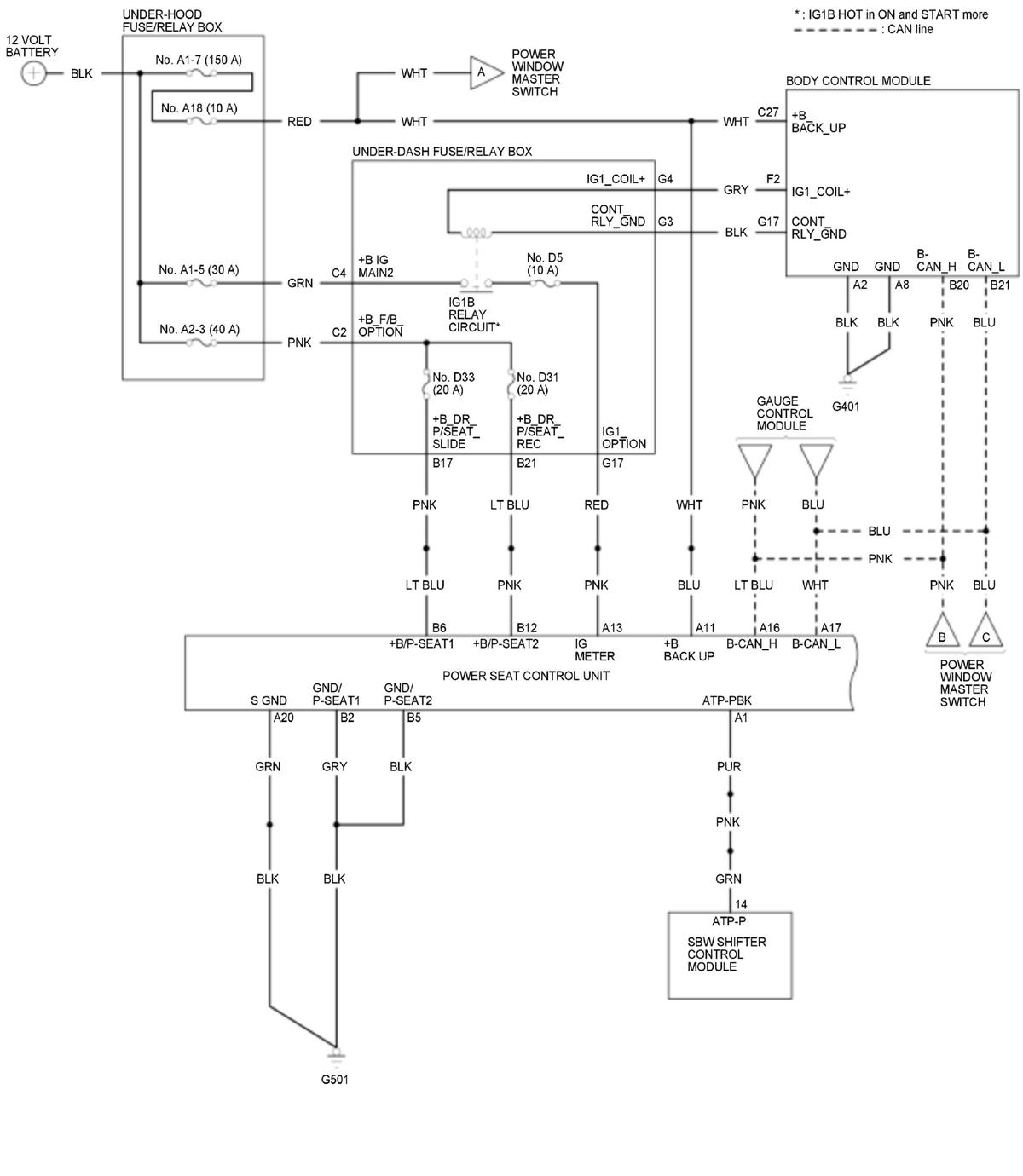

GHH379553Courtesy of HONDA, U.S.A., INC.

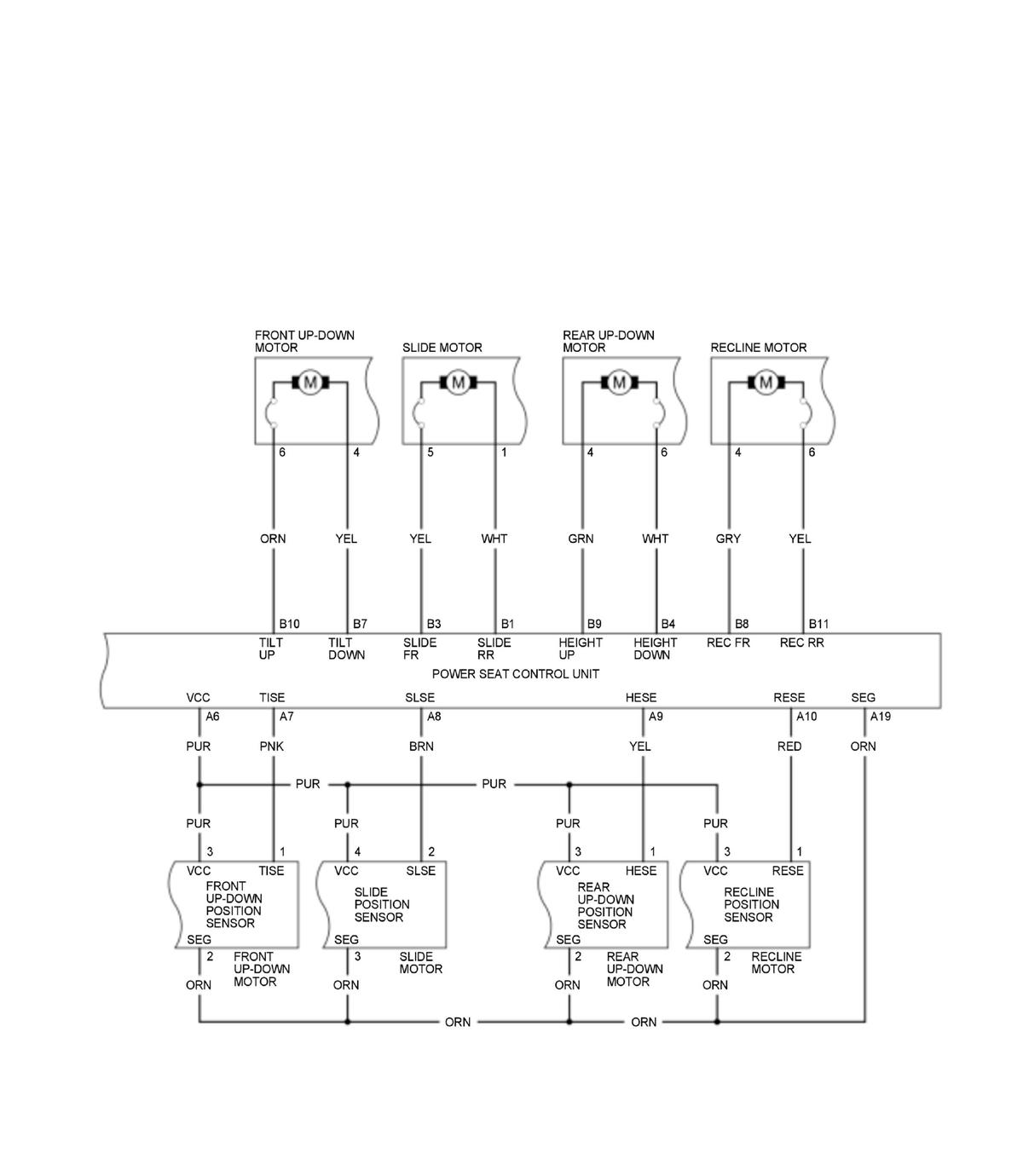

GHH379554Courtesy of HONDA, U.S.A., INC.

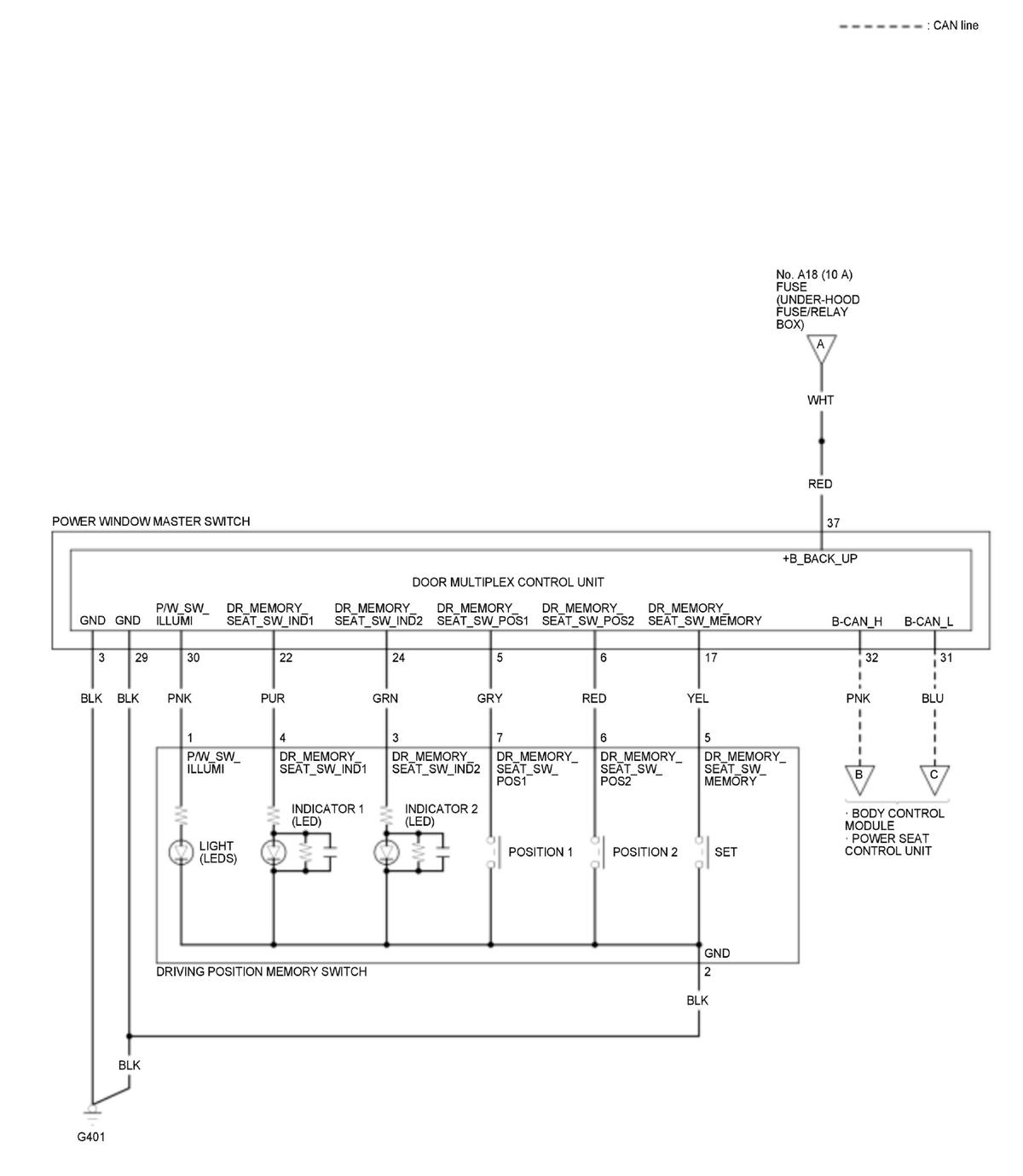

GHH379555Courtesy of HONDA, U.S.A., INC.
