Engine Configuration (1.5 L Engine)

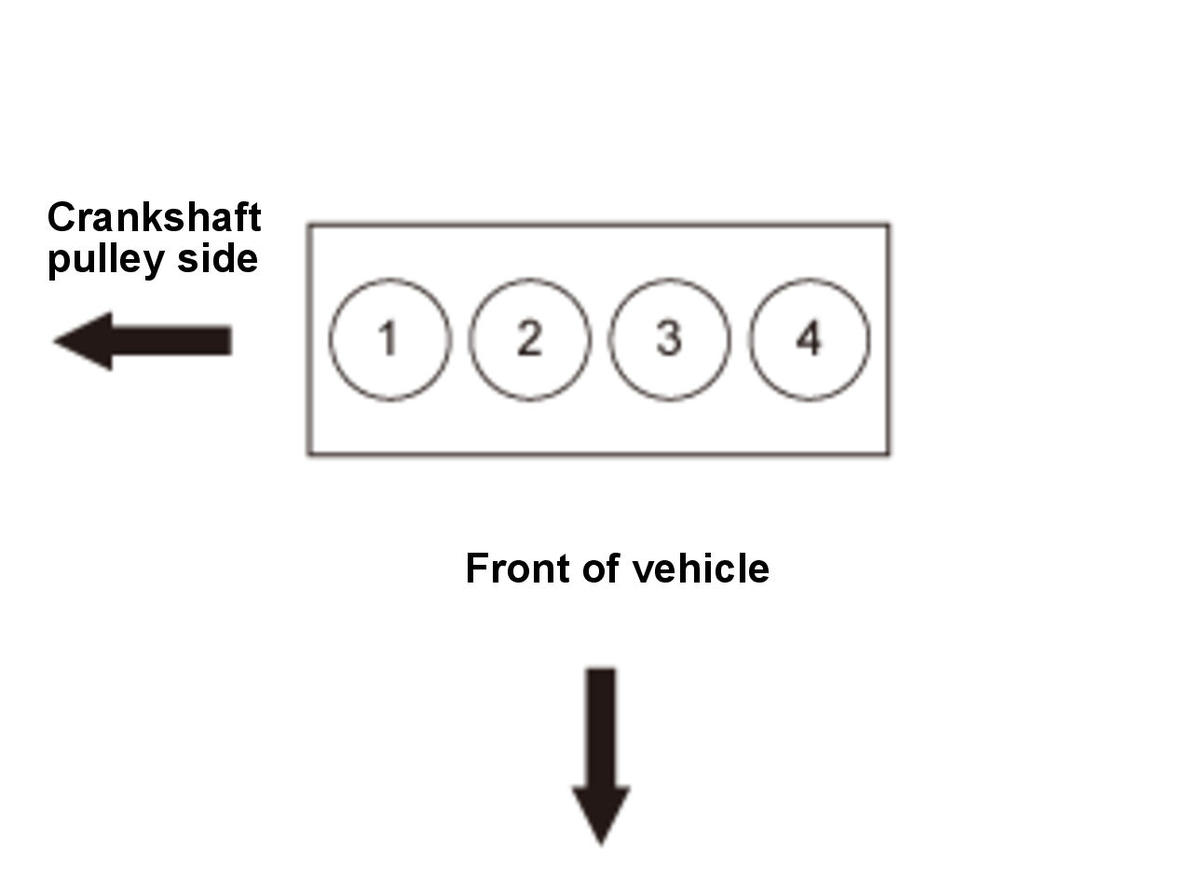

Cylinder Arrangement/Firing Order:

1-3-4-2

GHH427020

Courtesy of HONDA, U.S.A., INC.

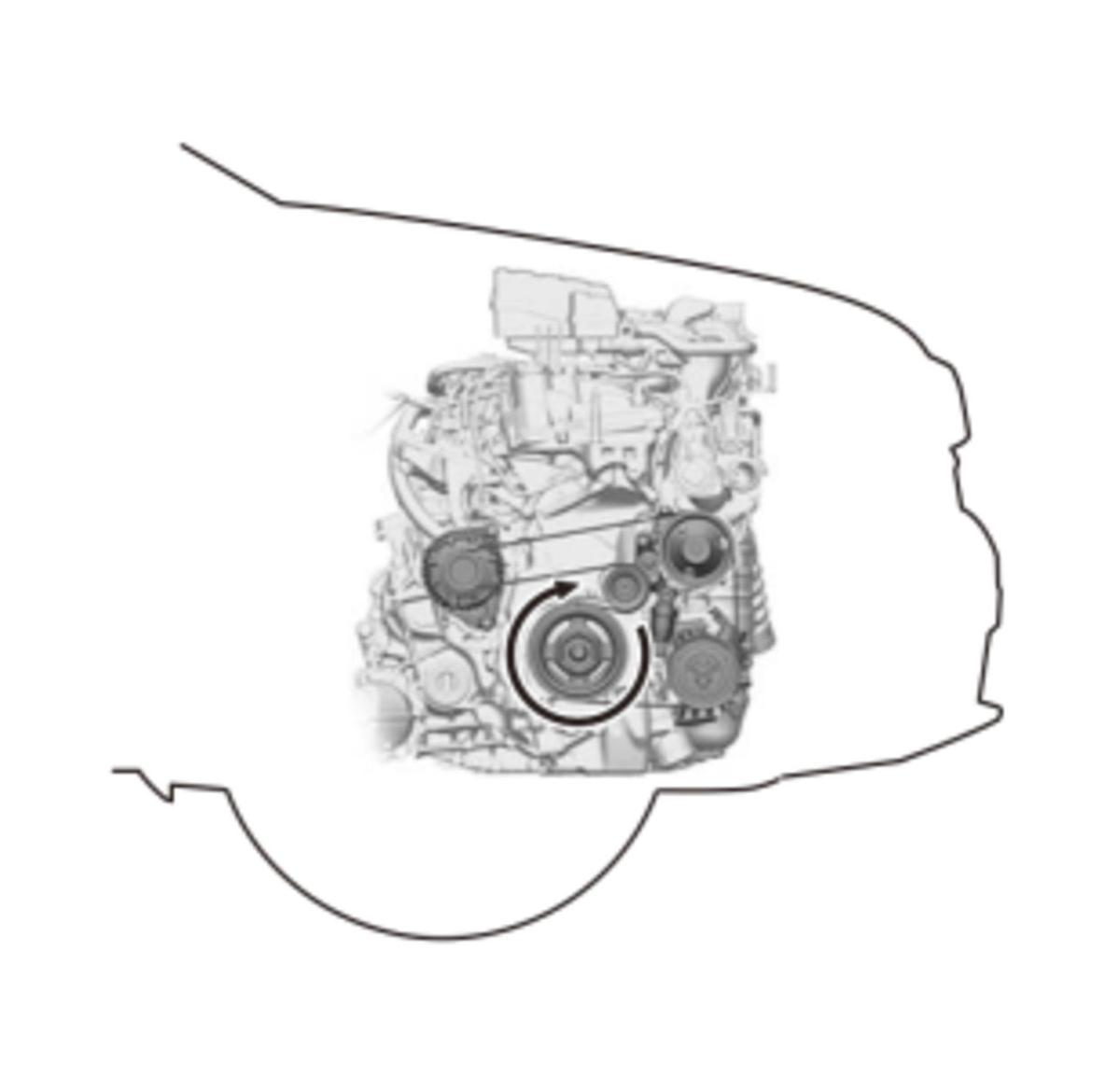

Engine Rotation: Clockwise

GHH427021

Courtesy of HONDA, U.S.A., INC.
