Rear Damper/Spring Disassembly, Reassembly, and Inspection: Disassembly

NOTE:

Further information shown below.
When compressing the damper spring, use a commercially available strut spring compressor according to the manufacturer's instructions.
Check for deterioration and damage to each part during removal.

Courtesy of HONDA, U.S.A., INC.

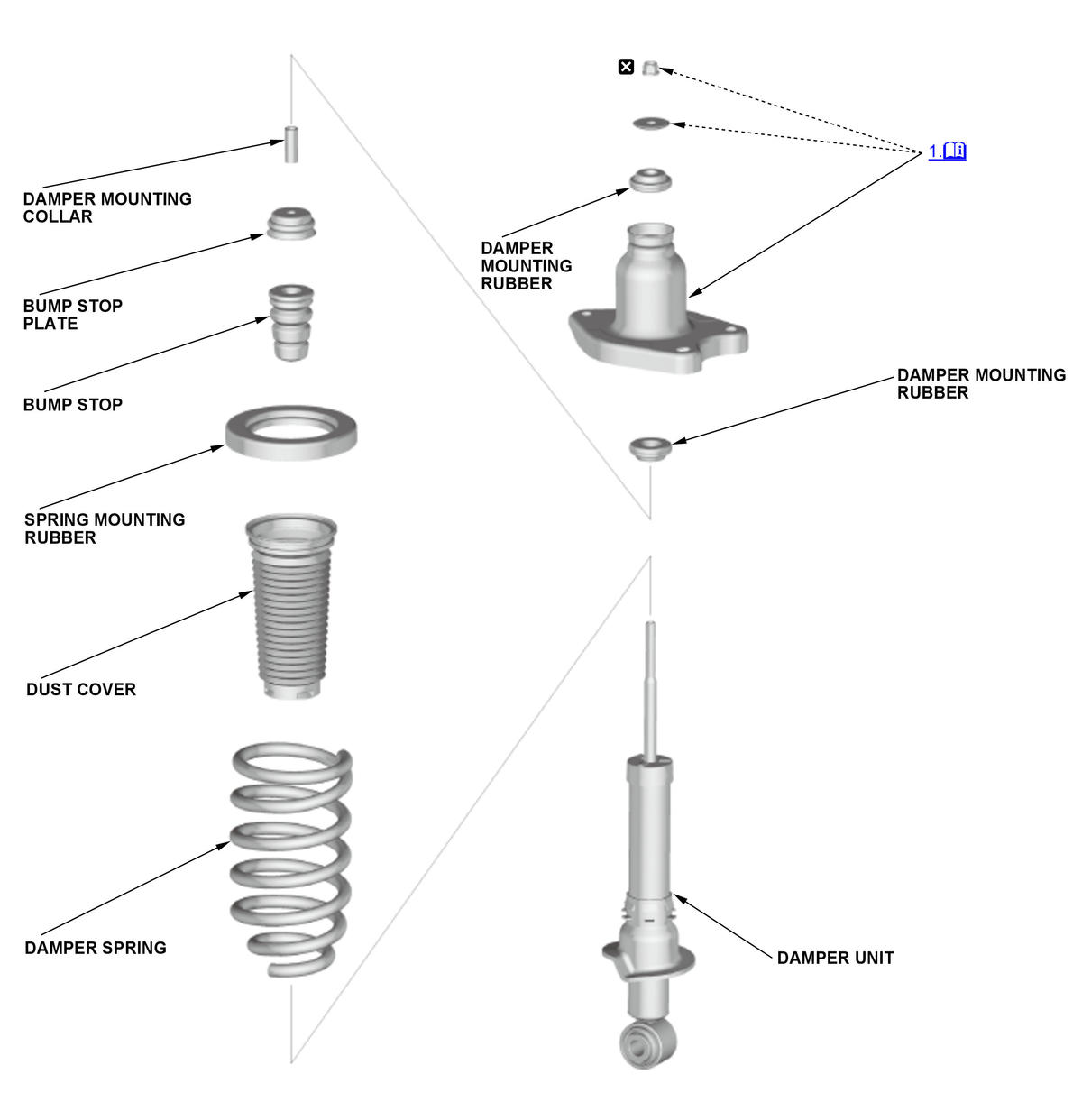

	Detailed information, notes, and precautions
	Torque: Nm (kgf-m, lbf.ft)
	Replace

Damper Mounting Base - Remove

Courtesy of HONDA, U.S.A., INC.

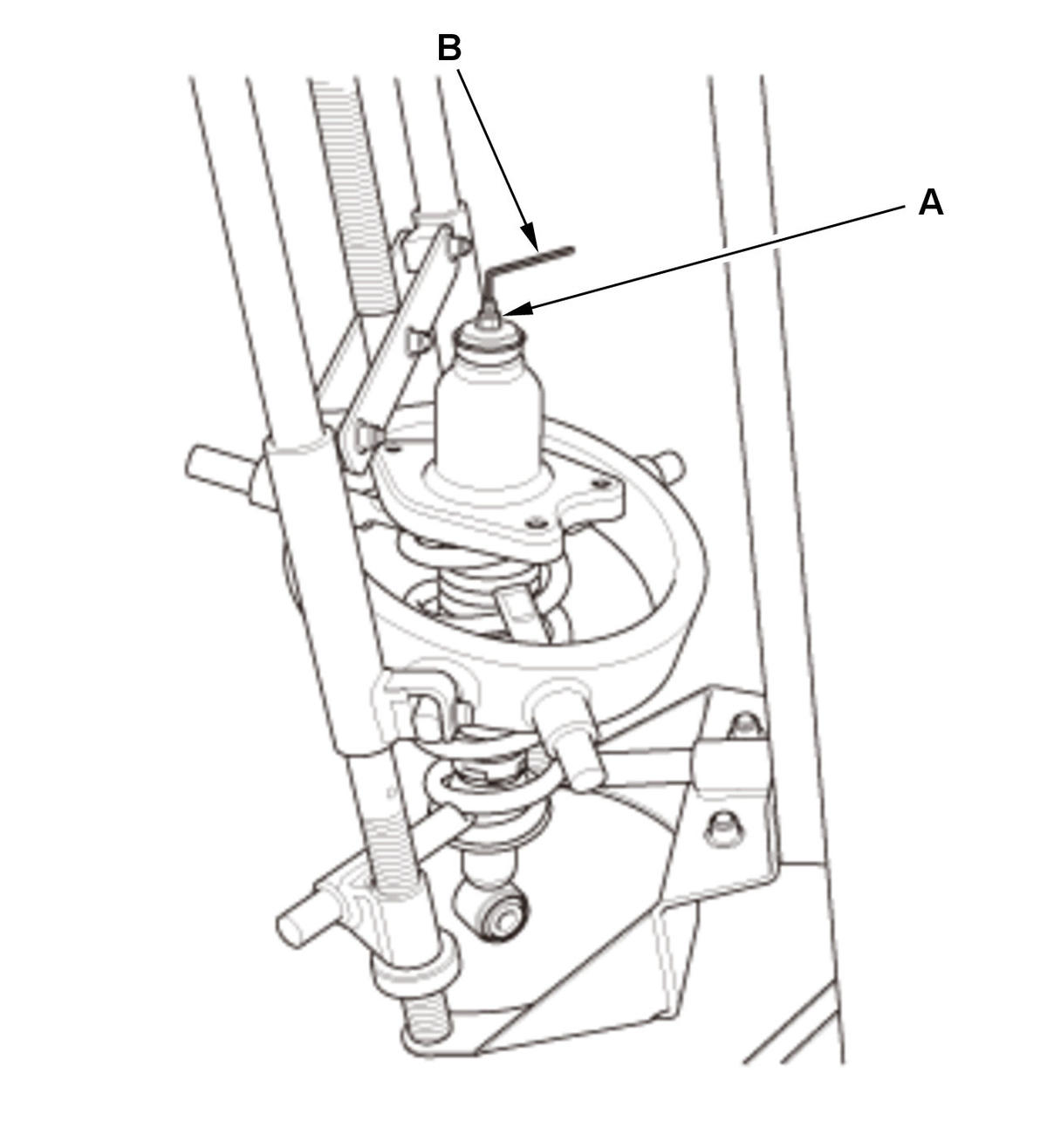

1. Compress the damper spring.

NOTE:

Do not compress the spring more than necessary to remove the nut.

2. Remove the self-locking nut (A) while holding the damper shaft with a hex wrench (B).

3. Release the pressure from the strut spring compressor.

4. Disassemble the damper as shown in the Exploded View.
