A/C System Contamination Inspection: Replacement

NOTE:

The parts illustrations are sample. External appearance may vary from model to model.

A/C Components - Replace

Courtesy of HONDA, U.S.A., INC.

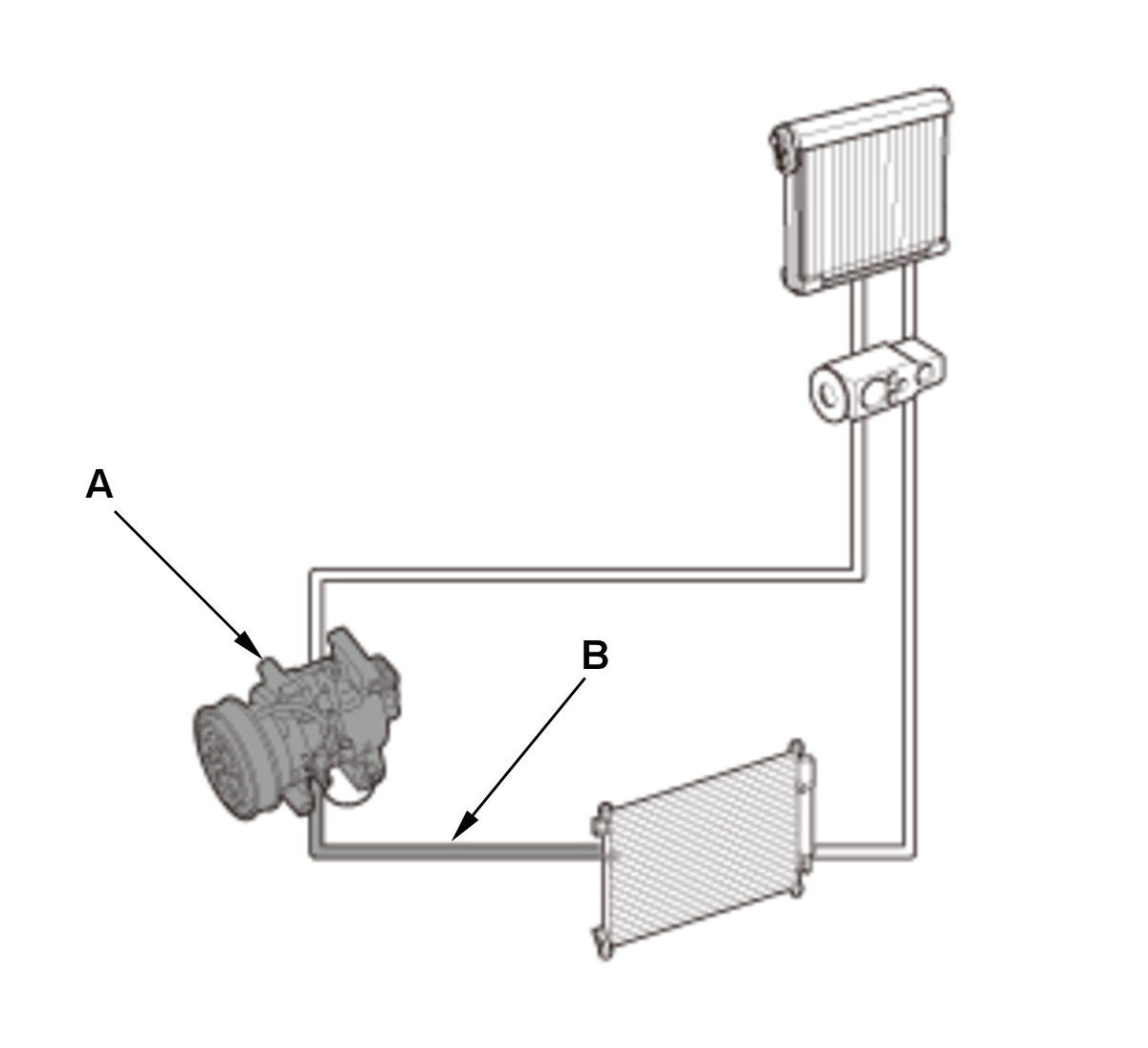

Repair Procedure A

Replace the following parts:
- A/C compressor (A)
- Discharge hose (B) - Refer to: A/C Line Removal and Installation (Variable Capacity Compressor) or A/C Line Removal and Installation (Fixed Capacity Compressor)
Courtesy of HONDA, U.S.A., INC.

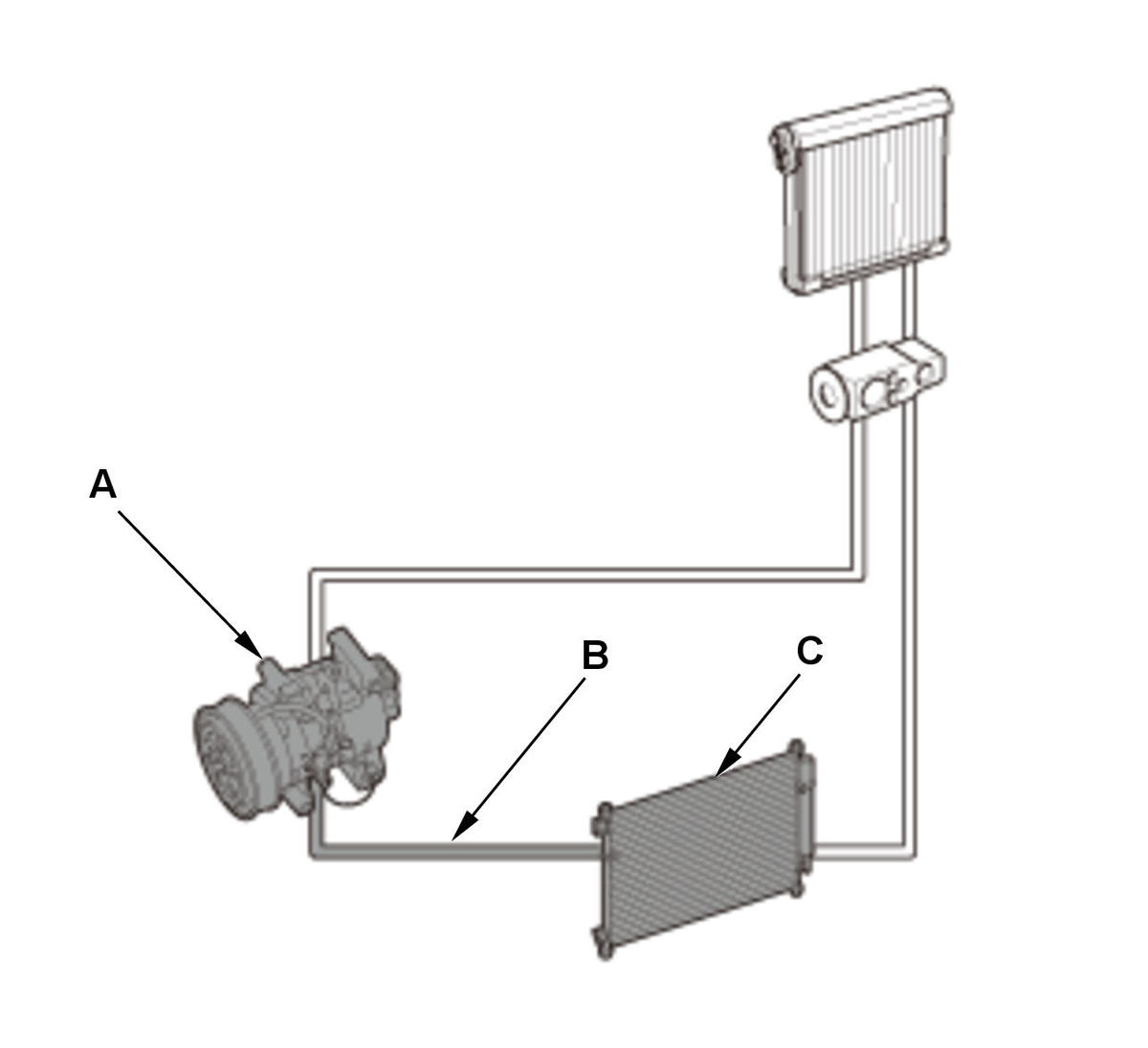

Repair Procedure B

Replace the following parts:
- A/C compressor (A)
- Discharge hose (B) - Refer to: A/C Line Removal and Installation (Variable Capacity Compressor) or A/C Line Removal and Installation (Fixed Capacity Compressor)
- A/C condenser (C)
Courtesy of HONDA, U.S.A., INC.

Repair Procedure C

Replace the following parts:
- A/C compressor (A)
- Discharge hose (B) - Refer to: A/C Line Removal and Installation (Variable Capacity Compressor) or A/C Line Removal and Installation (Fixed Capacity Compressor)
- A/C condenser (C)
- Receiver line (D) - Refer to: A/C Line Removal and Installation (Variable Capacity Compressor) or A/C Line Removal and Installation (Fixed Capacity Compressor)
Courtesy of HONDA, U.S.A., INC.

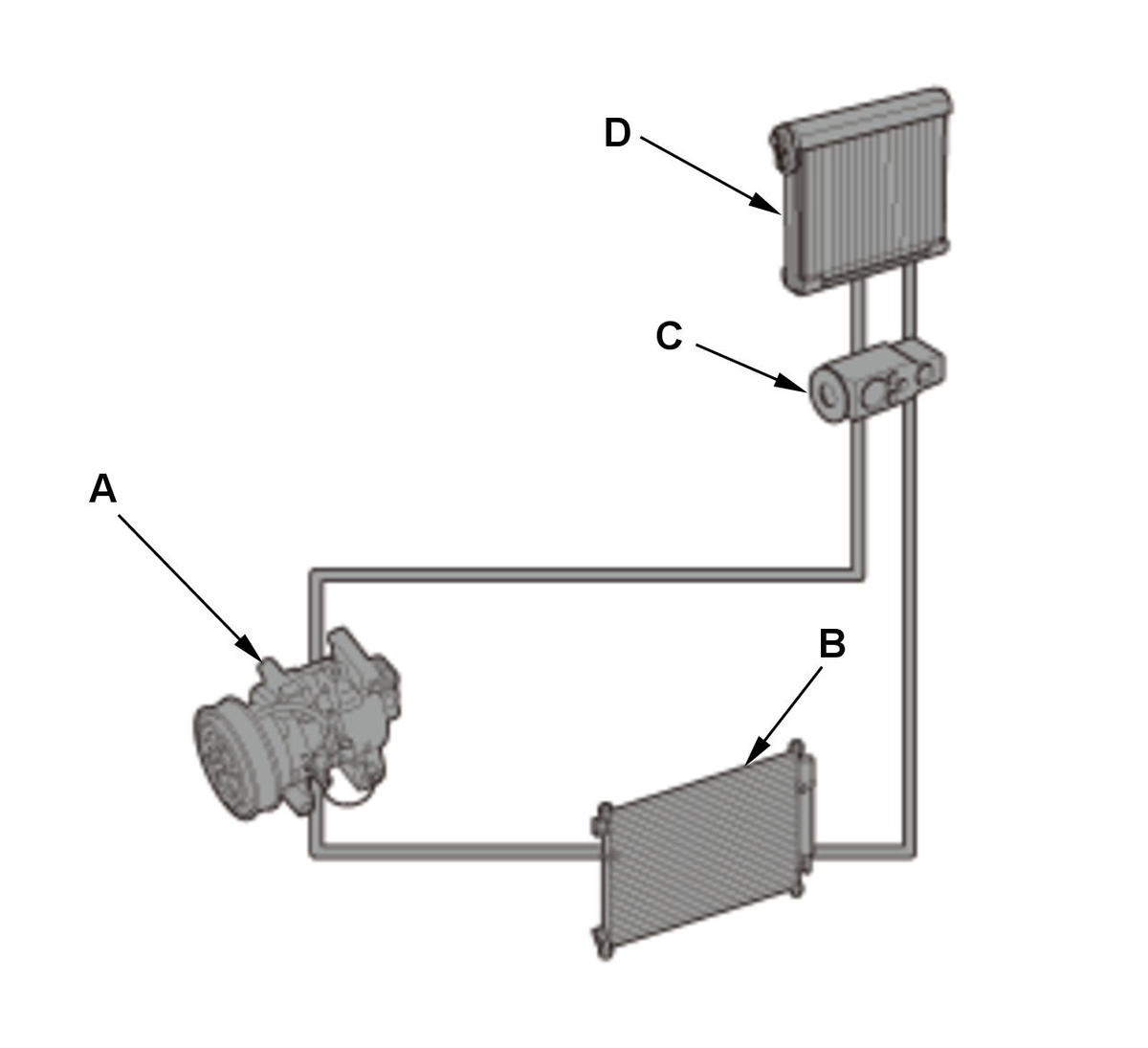

Repair Procedure D

Replace the following parts:
- A/C compressor (A)
- A/C condenser (B)
- Expansion valve (C)
- Evaporator core (D) - Refer to: Evaporator Core Removal and Installation (1234yf) or Evaporator Core Removal and Installation (134a)
- All A/C hoses and lines - Refer to: A/C Line Removal and Installation (Variable Capacity Compressor) or A/C Line Removal and Installation (Fixed Capacity Compressor)
